Toyota Corolla/Altis
2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General
Supported model
Data version 2022-08

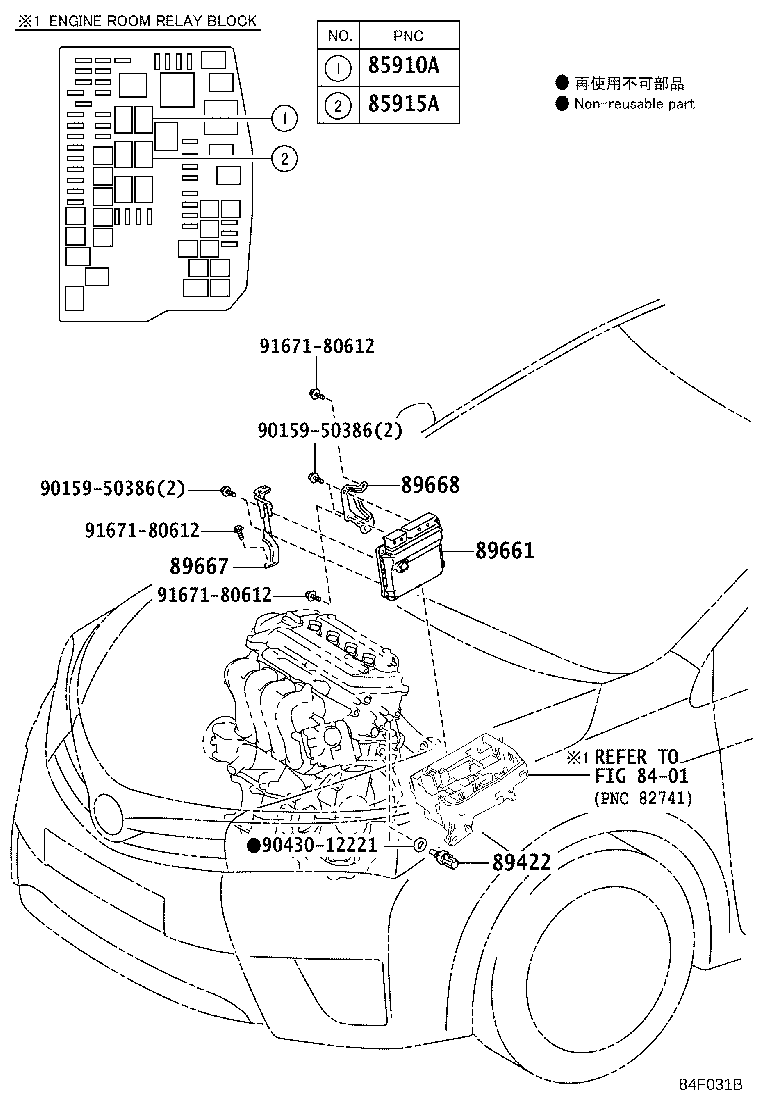

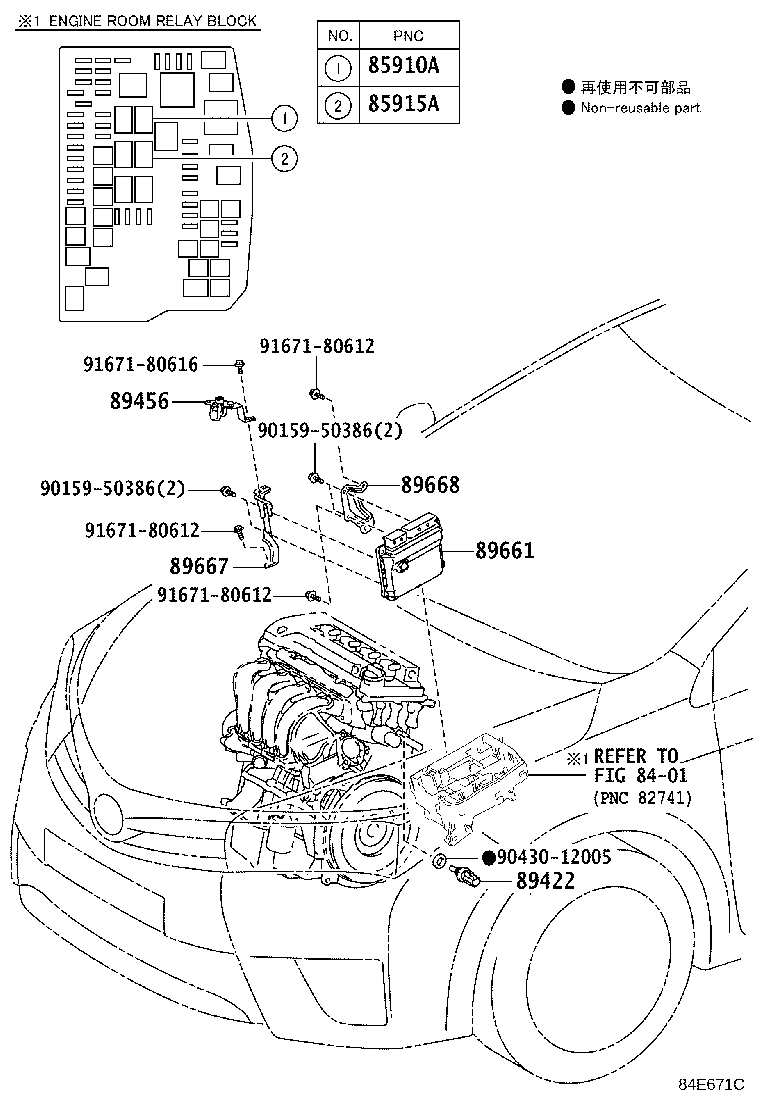

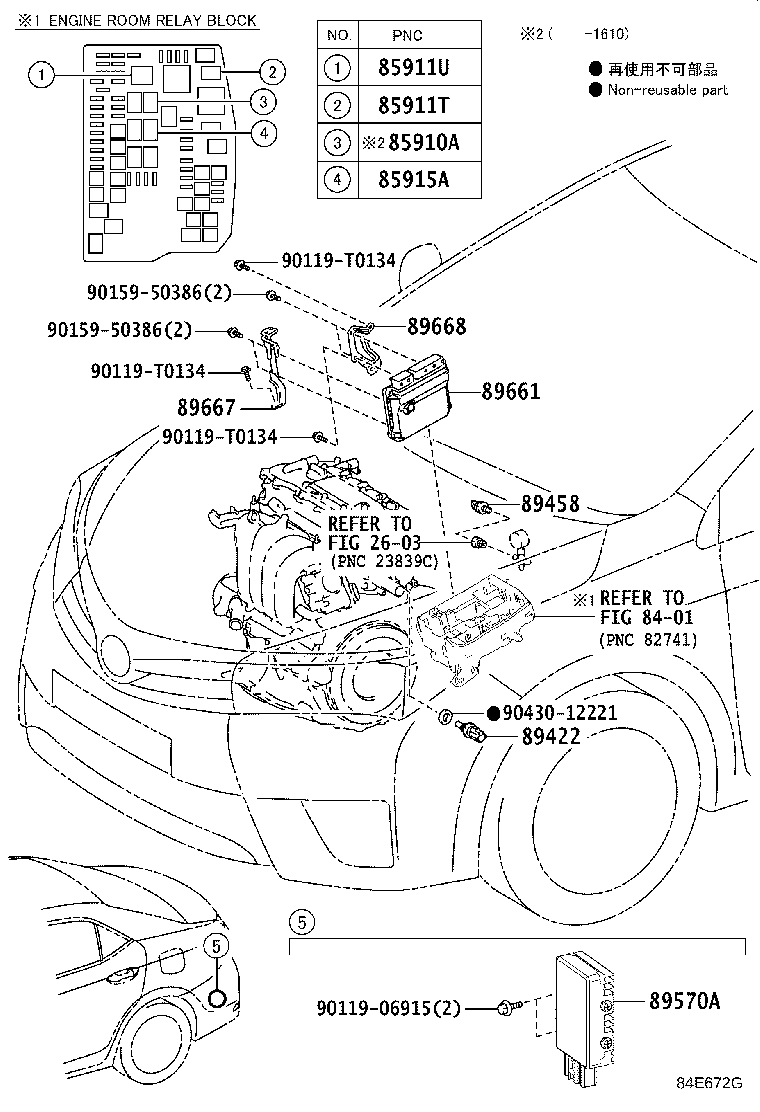

Electronic Fuel Injection System
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910Z | Relay, Injection (FOR EFI) |
| 85911T | Relay, Circuit Opening, NO.2 |
| 85911U | Relay, Cng Main |
| 85915A | Relay, Main |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89426 | Bracket, Vacuum Sensor |
| 89456 | Resistor, Variable |
| 89458 | Sensor, Fuel Pressure |
| 89570A | Computer Assy, Fuel Pump Control |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
