Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

11 part groups · 11 illustrations

Illustrations

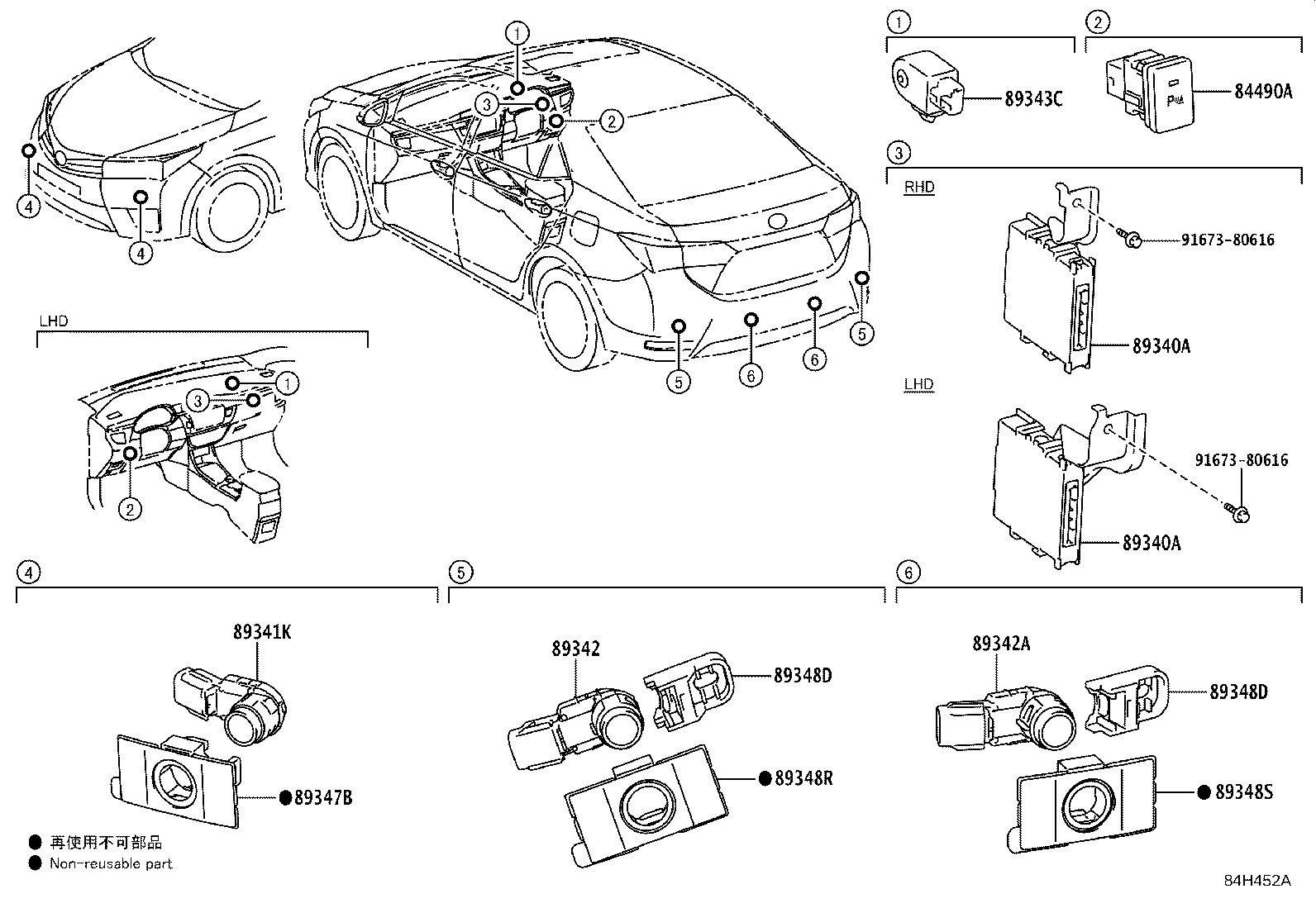

Figure 84E634 84E634 2013-10 → 2016-09 Figure 84E634 84E634 2013-10 → 2016-10 Figure 84E634 84E634 2013-10 → 2016-10 Figure 84E634 84E634 2014-05 → 2017-03 Figure 84E634 84E634 2014-07 → 2017-07 Figure 84E634 84E634 2014-09 → 2017-09 Figure 84H452A 84H452A 2016-10 → — Figure 84H452A 84H452A 2016-11 → — Figure 84H452A 84H452A 2017-03 → — Figure 84H452A 84H452A 2017-07 → — Figure 84H452A 84H452A 2017-09 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341K Sensor, Ultrasonic, Front Corner
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89343C Buzzer, Clearance Warning, NO.1
89347B Retainer, Ultrasonic Sensor, Front Corner
89348D Clip, Ultrasonic Sensor
89348R Retainer, Ultrasonic Sensor, Rear Corner
89348S Retainer, Ultrasonic Sensor, Rear Center
