Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 13 illustrations

Illustrations

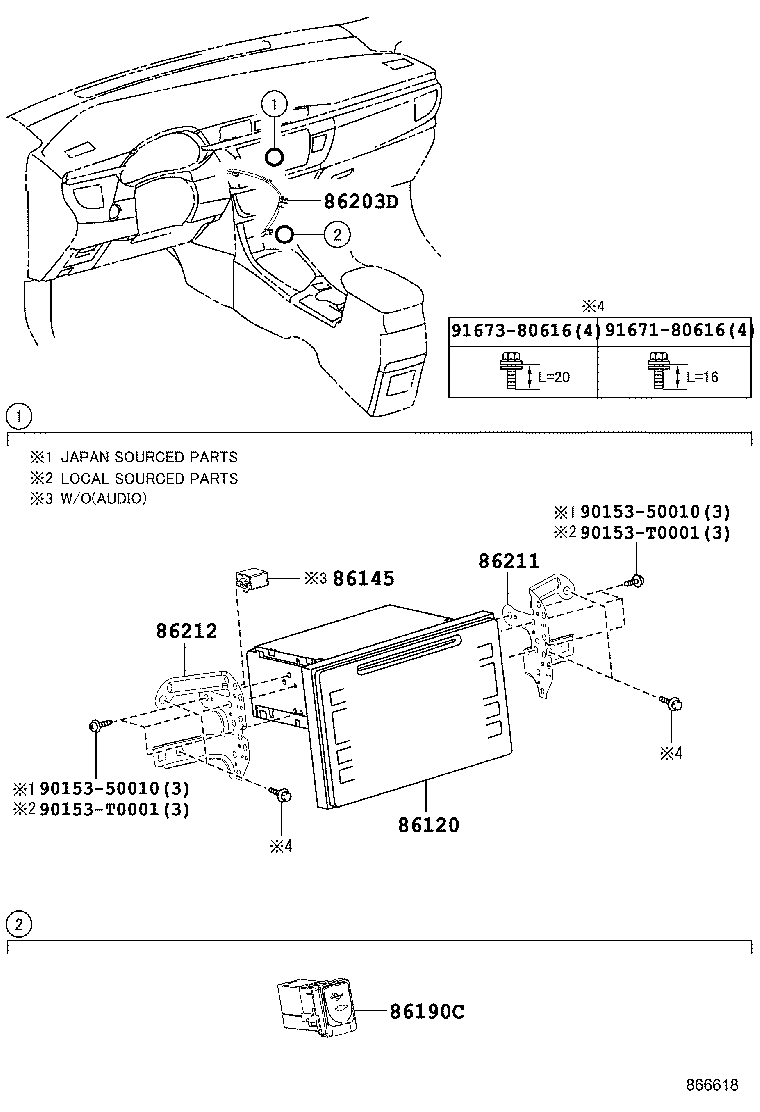

Figure 865563A 865563A 2013-10 → 2016-10 Figure 865563A 865563A 2013-10 → 2016-11 Figure 865563A 865563A 2014-05 → 2017-03 Figure 865563A 865563A 2014-07 → 2017-07 Figure 865563A 865563A 2014-09 → 2017-09 Figure 866618 866618 2016-10 → — Figure 866618 866618 2016-11 → — Figure 866618 866618 2017-03 → — Figure 866618 866618 2017-07 → — Figure 866618 866618 2017-09 → — Figure 866618 866618 2022-09 → — Figure 865564B 865564B 2013-10 → — Figure 865565 865565 2013-10 → —

Part groups

PNCDescription
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86145 Connector, Antenna Male
86190C Adapter Assy, Stereo Jack, NO.1
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86723C Wire, Mobilephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
