Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

18 part groups · 16 illustrations

Illustrations

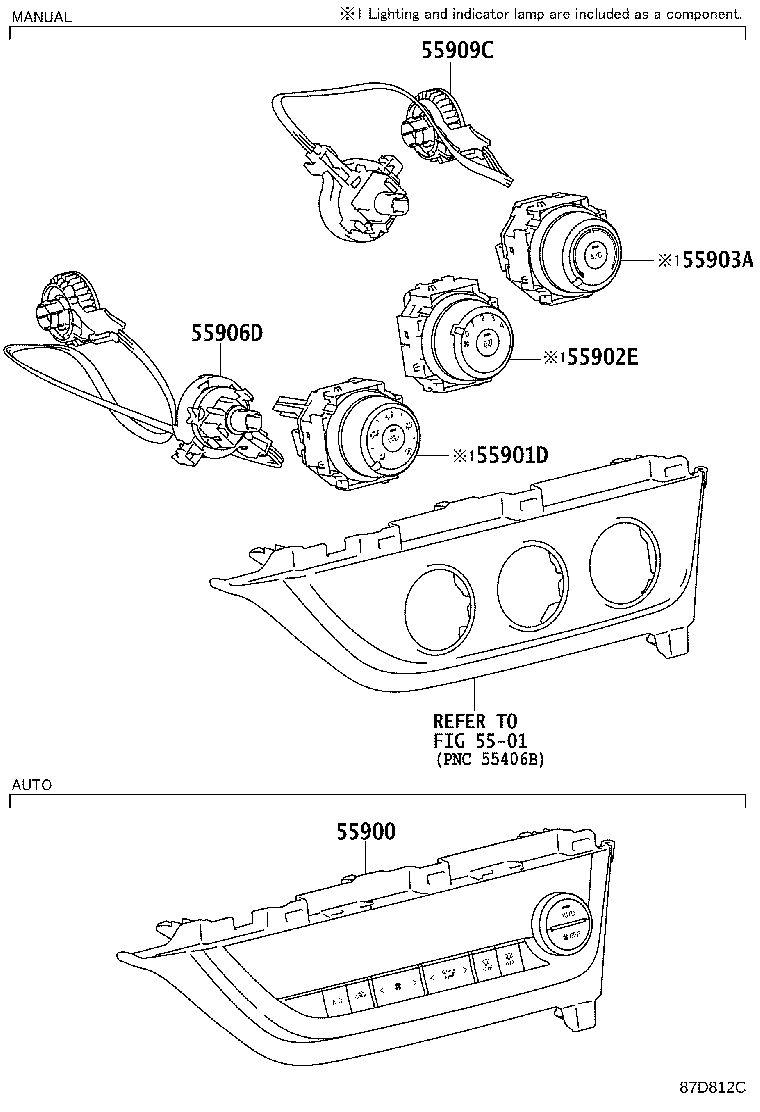

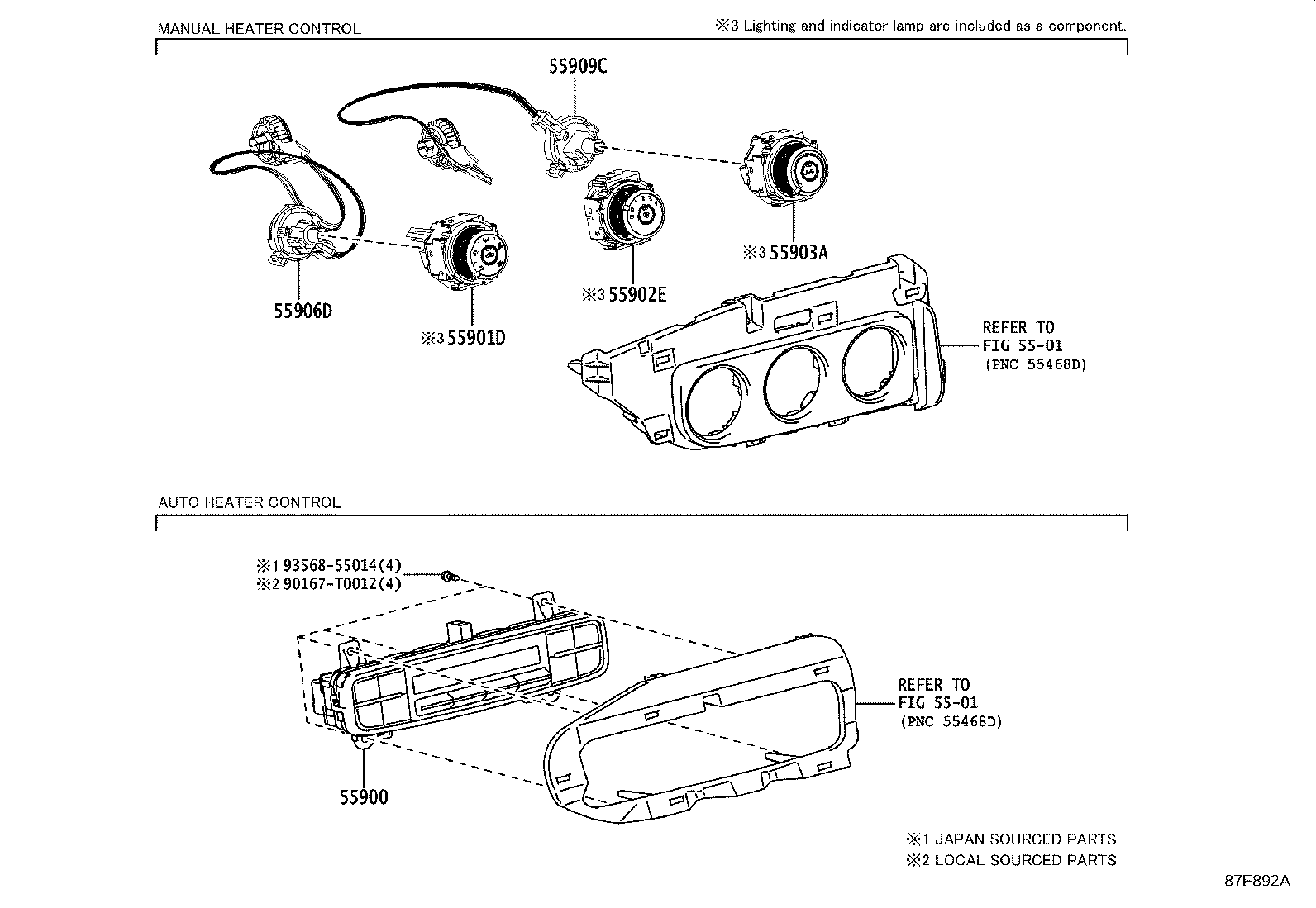

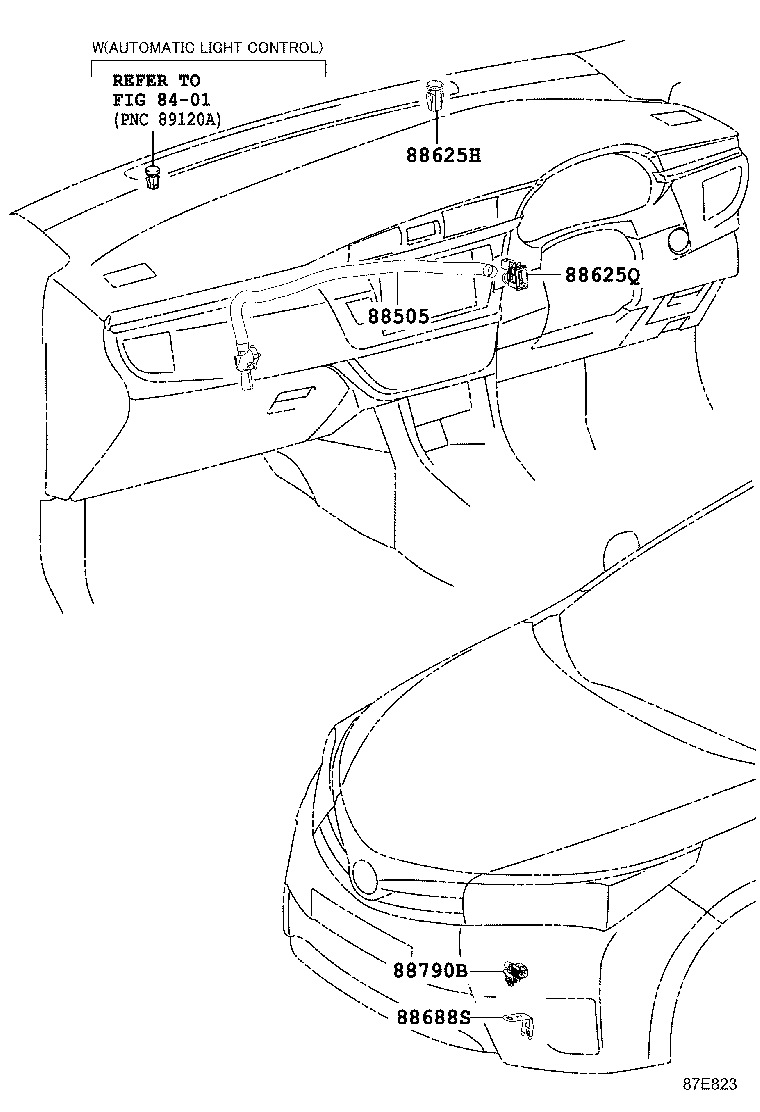

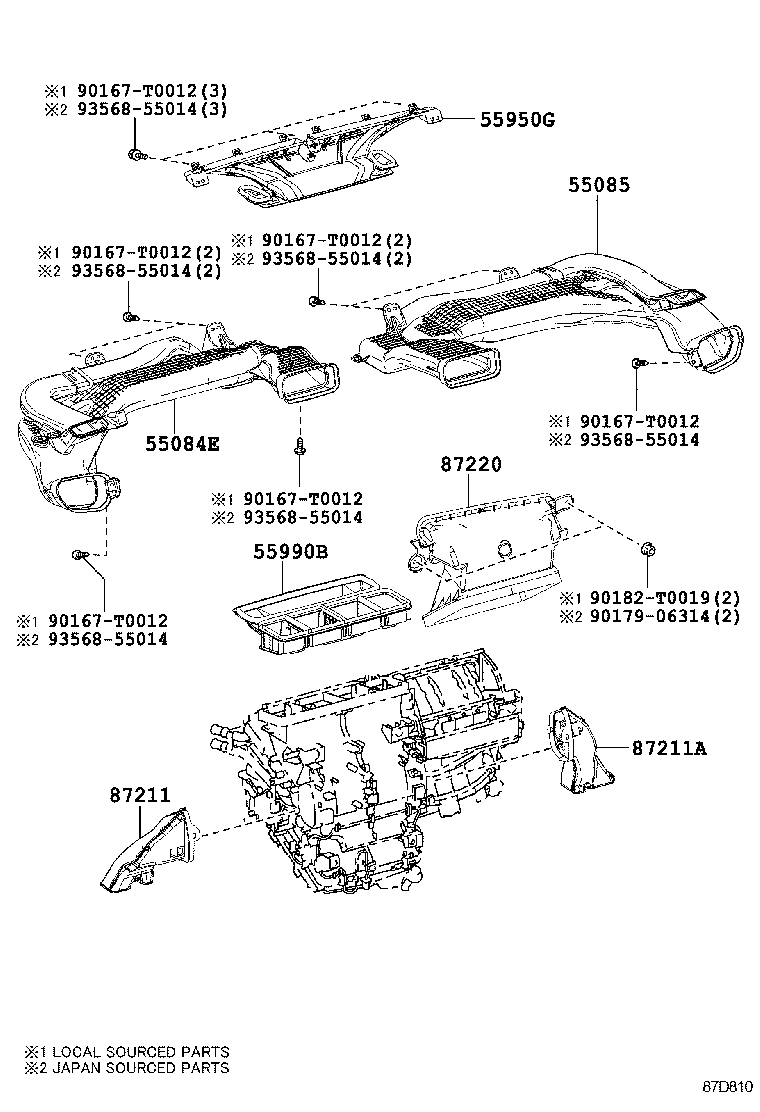

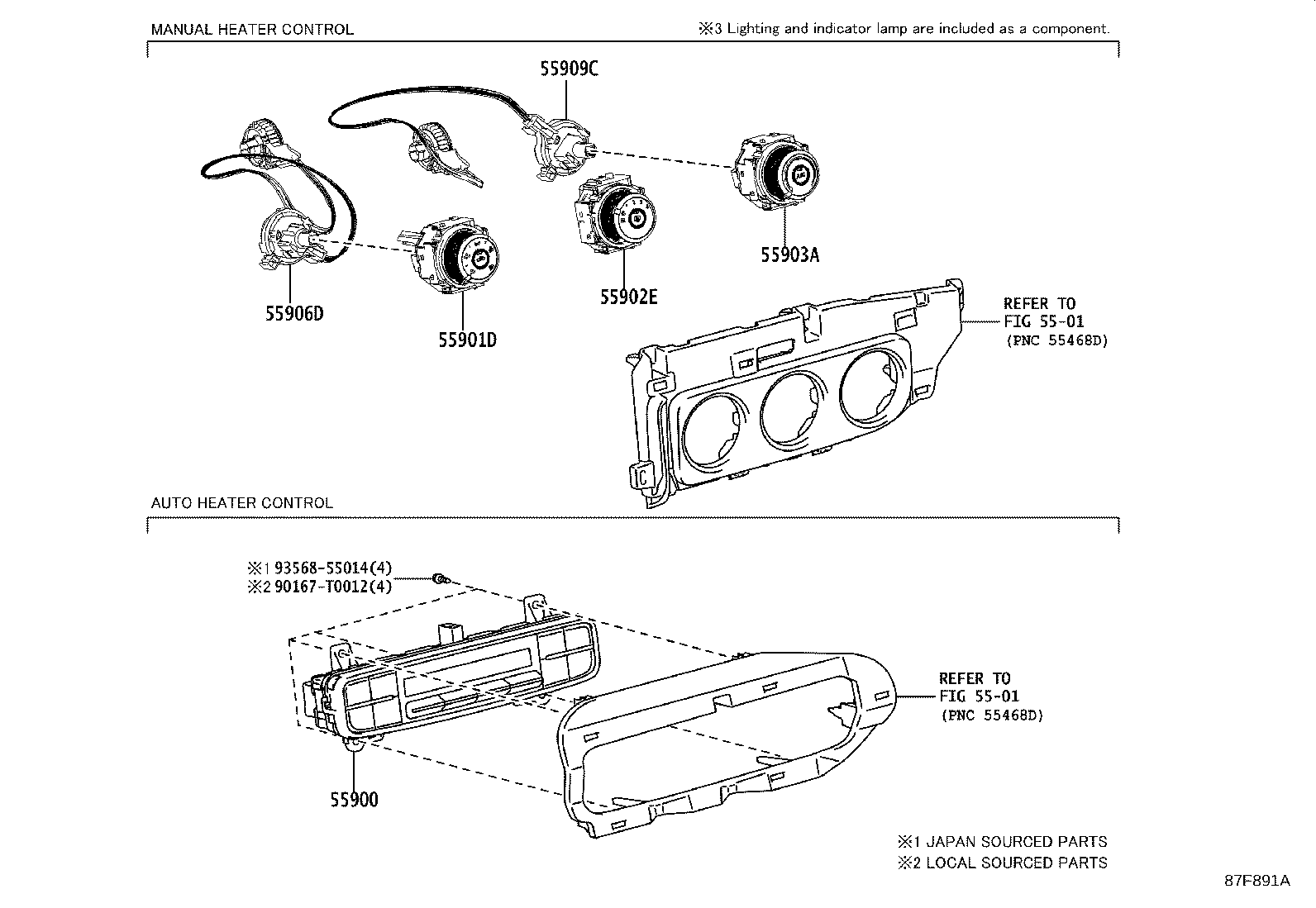

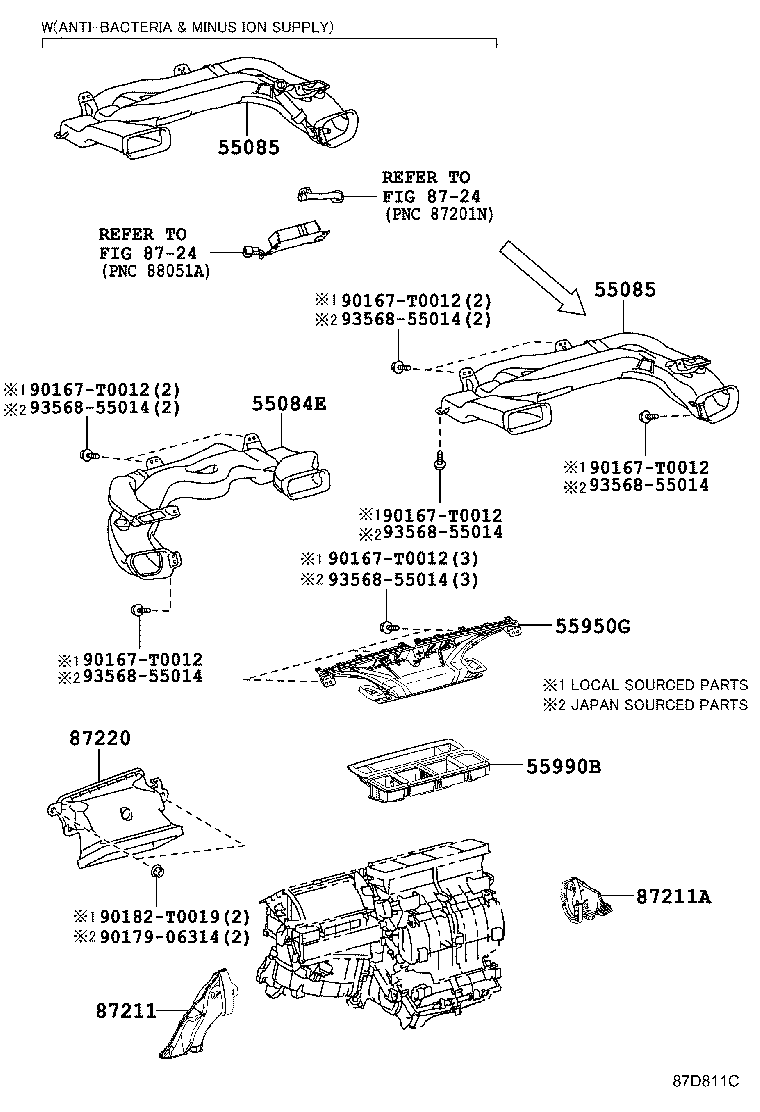

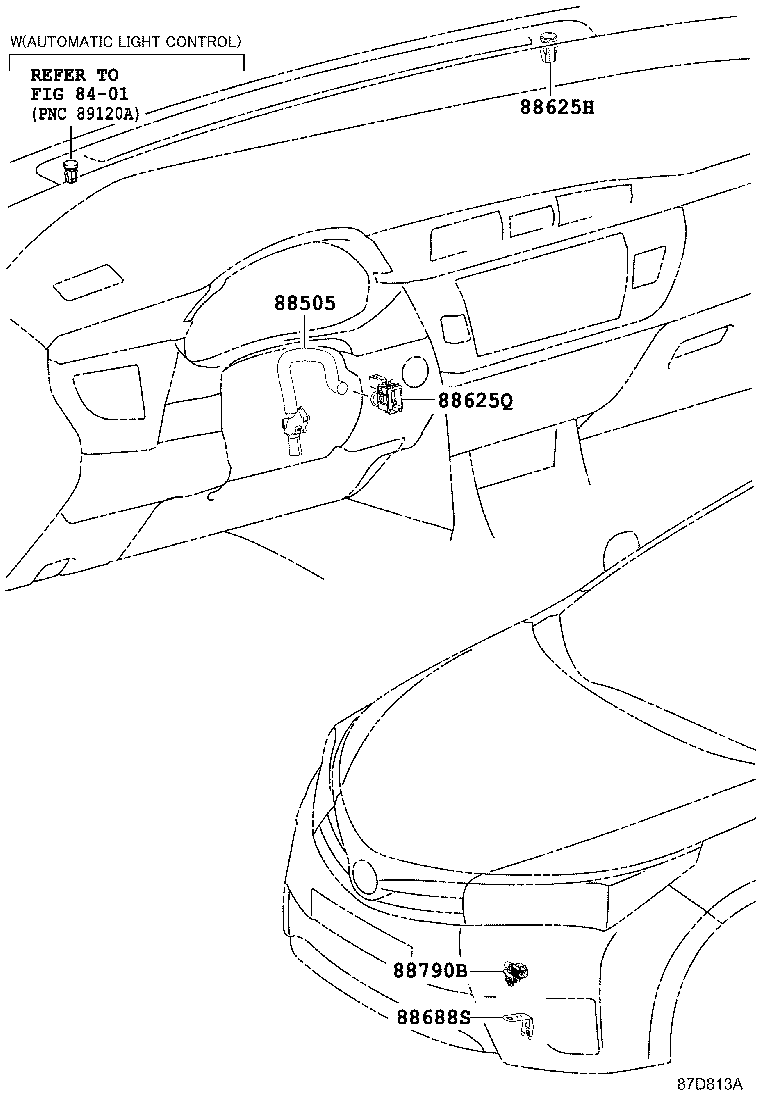

Figure 87D809A 87D809A 2013-10 → 2016-09 Figure 87D809A 87D809A 2013-10 → 2016-10 Figure 87D809A 87D809A 2013-10 → 2017-09 Figure 87F891A 87F891A 2016-10 → — Figure 87F891A 87F891A 2016-11 → — Figure 87F891A 87F891A 2017-09 → — Figure 87D812C 87D812C 2013-12 → 2016-10 Figure 87D812C 87D812C 2014-05 → 2017-03 Figure 87D812C 87D812C 2014-07 → 2017-07 Figure 87F892A 87F892A 2016-11 → — Figure 87F892A 87F892A 2017-03 → — Figure 87F892A 87F892A 2017-07 → — Figure 87D810 87D810 2013-10 → — Figure 87D811C 87D811C 2013-12 → — Figure 87D813A 87D813A 2013-10 → — Figure 87E823 87E823 2013-10 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55906D Cable Sub-assy, Heater Control, NO.2
55909C Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87220 Duct Assy, Air
88505 Duct Sub-assy,Air Conditioner
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88688S Bracket (FOR COOLER THERMISTOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
