Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 7 illustrations

Illustrations

Figure 87D803

87D803 2013-10 → —

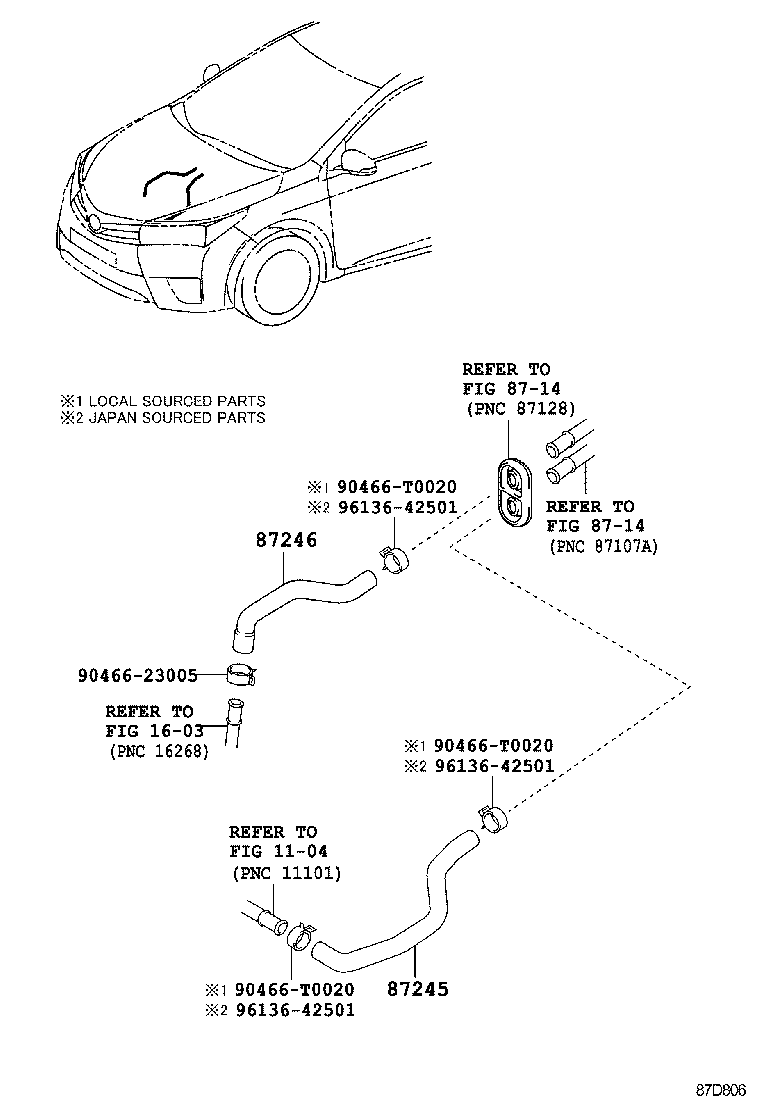

Figure 87D806

87D806 2013-10 → —

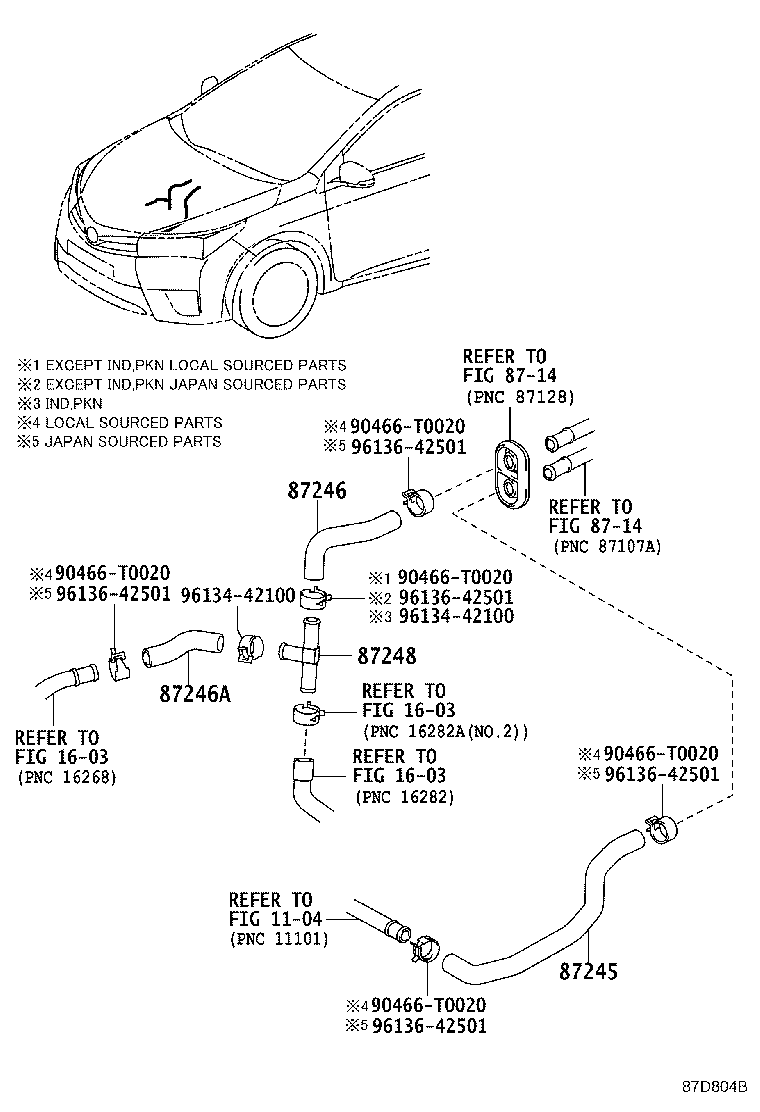

Figure 87D804B

87D804B 2013-10 → —

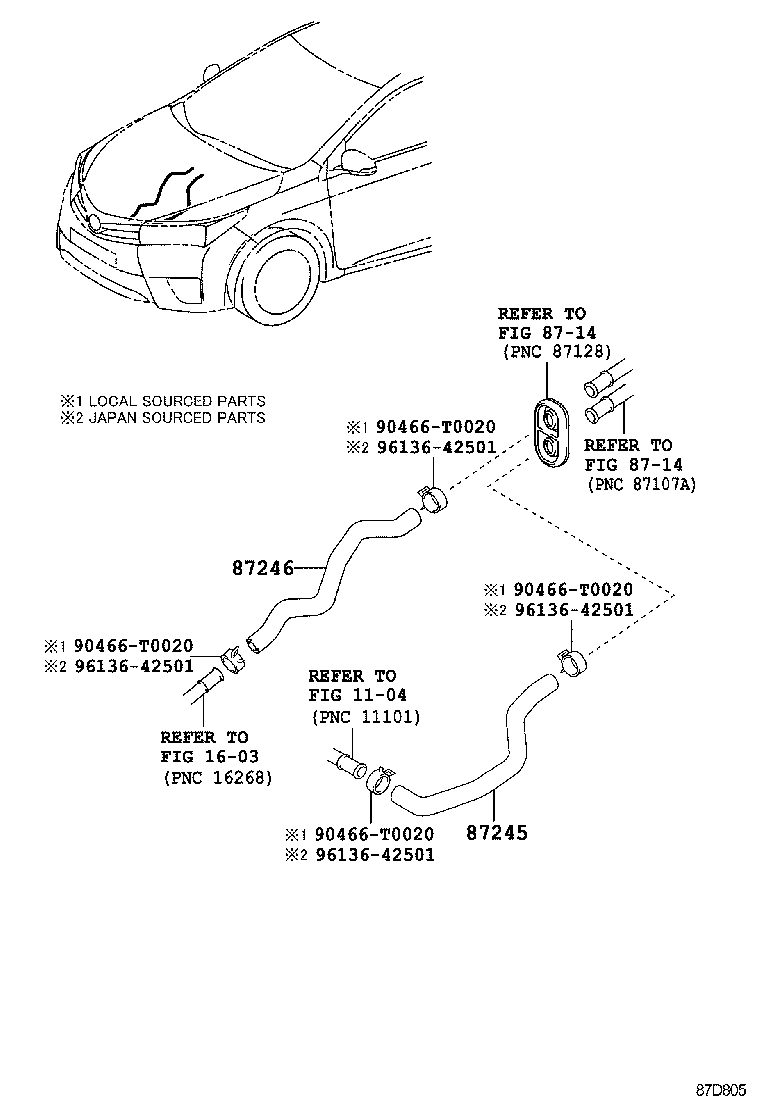

Figure 87D805

87D805 2013-10 → —

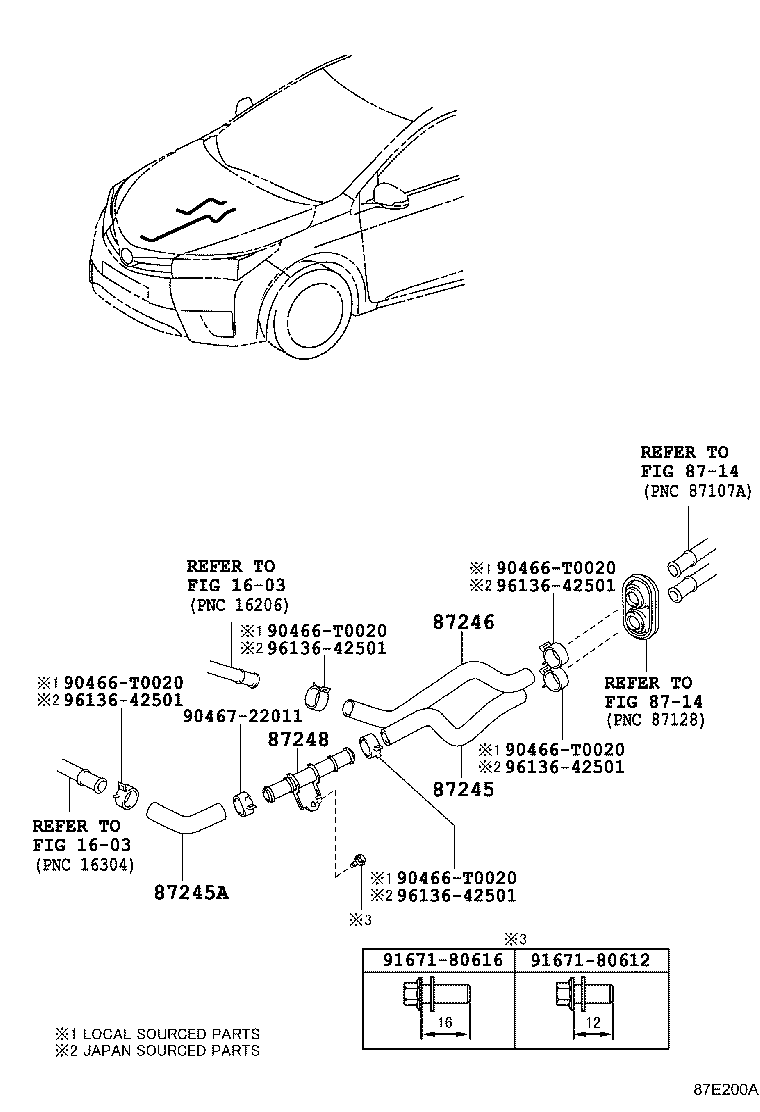

Figure 87E200A

87E200A 2014-05 → —

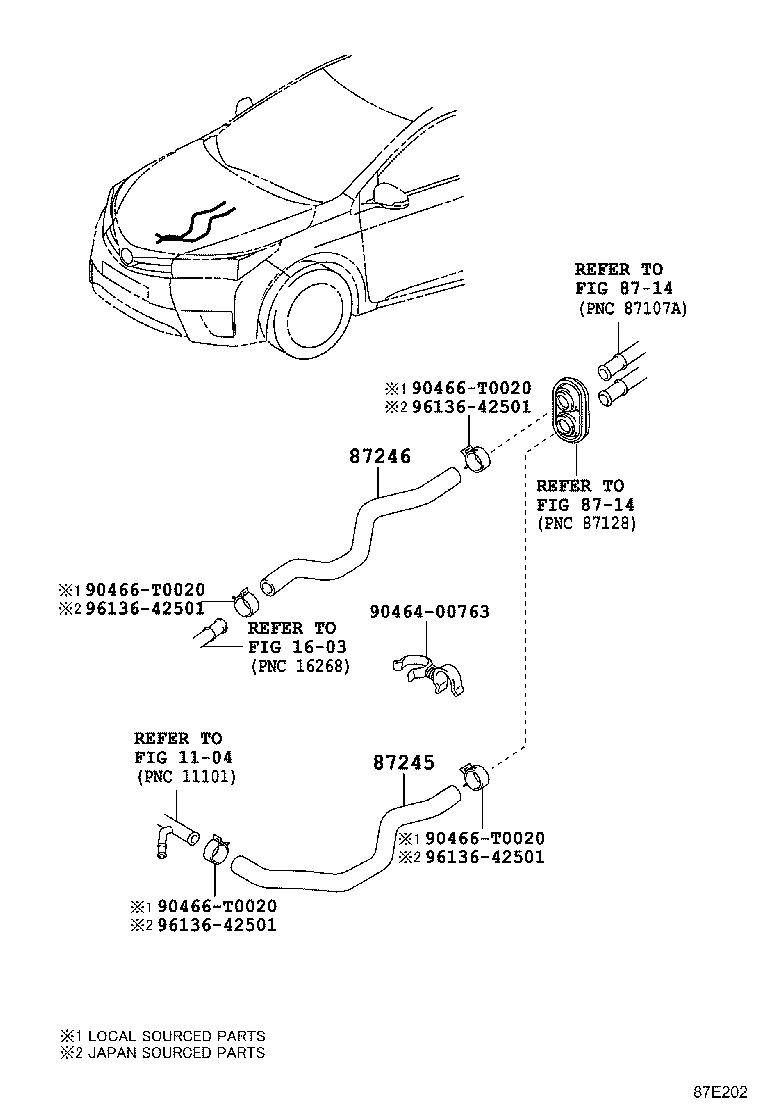

Figure 87E202

87E202 2014-07 → —

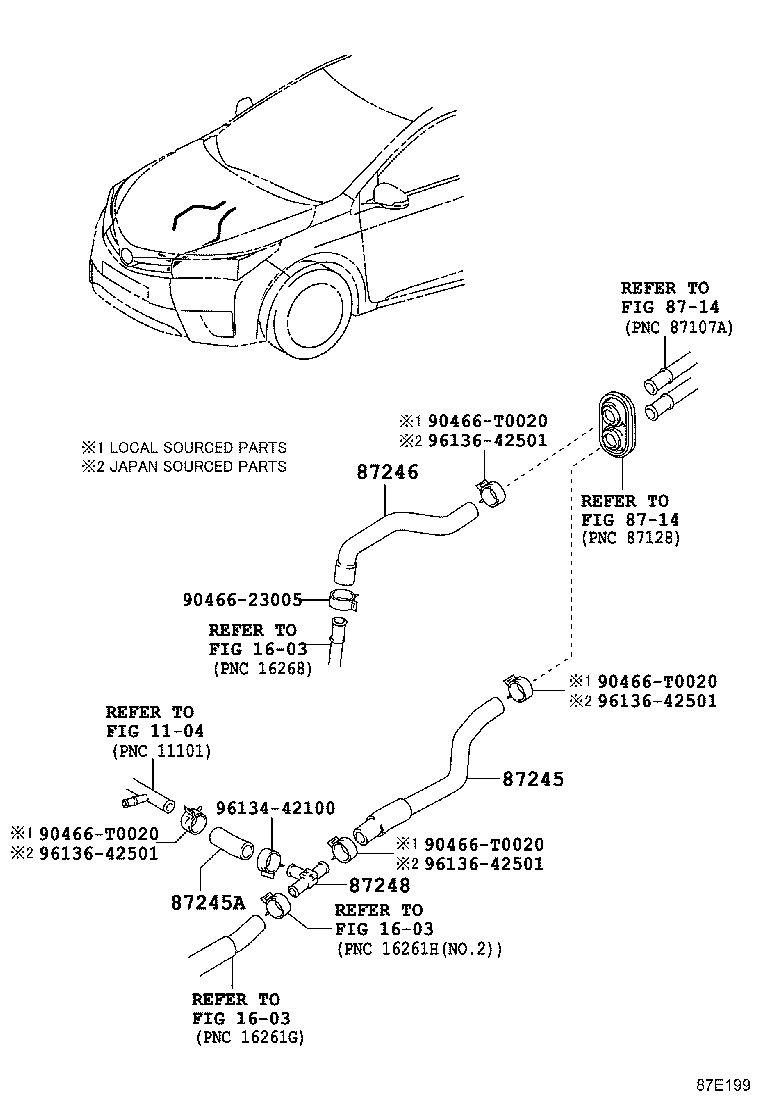

Figure 87E199

87E199 2014-09 → —

Part groups

PNC	Description
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87248	Pipe Sub-assy, Water

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
