Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

18 part groups · 6 illustrations

Illustrations

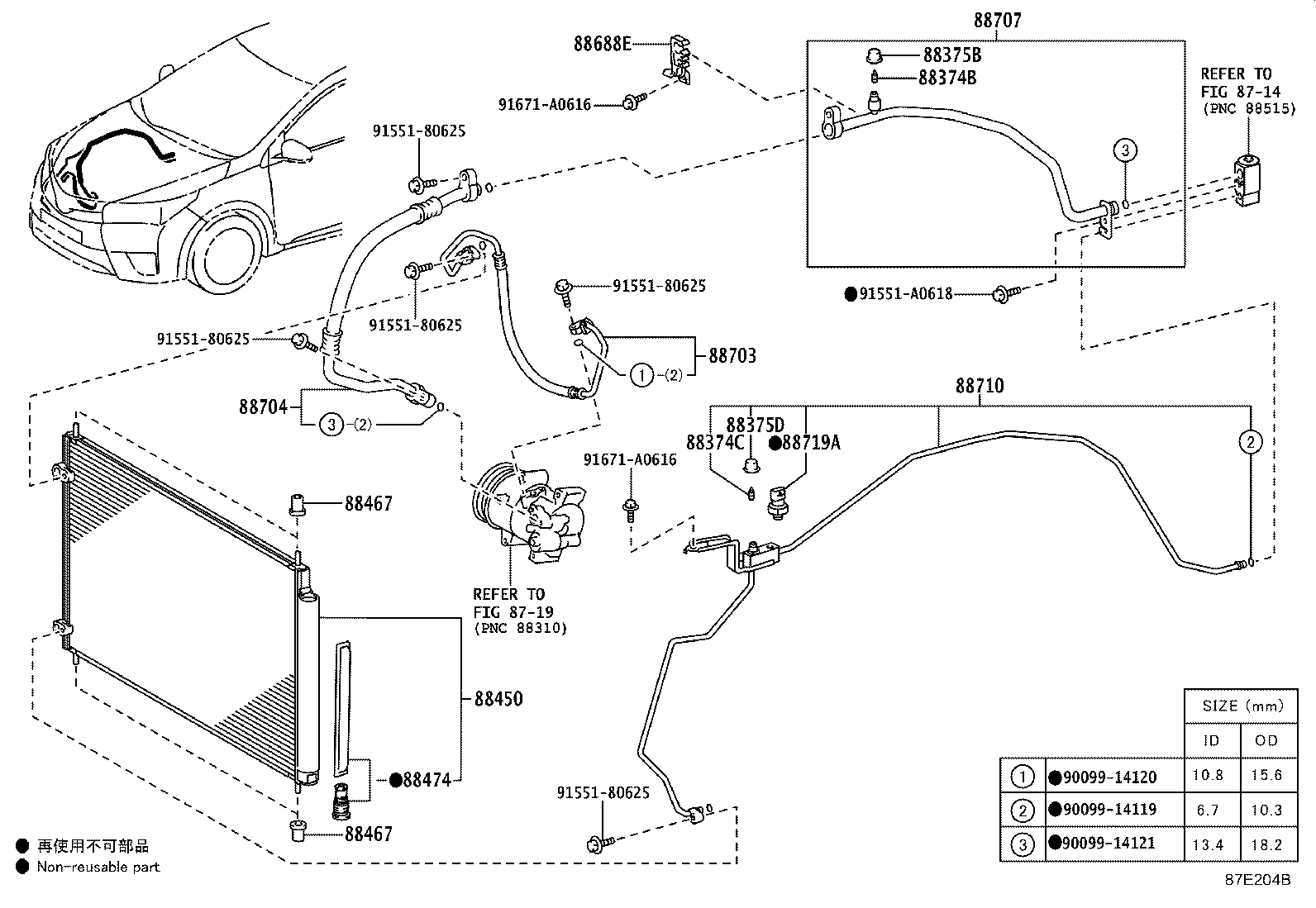

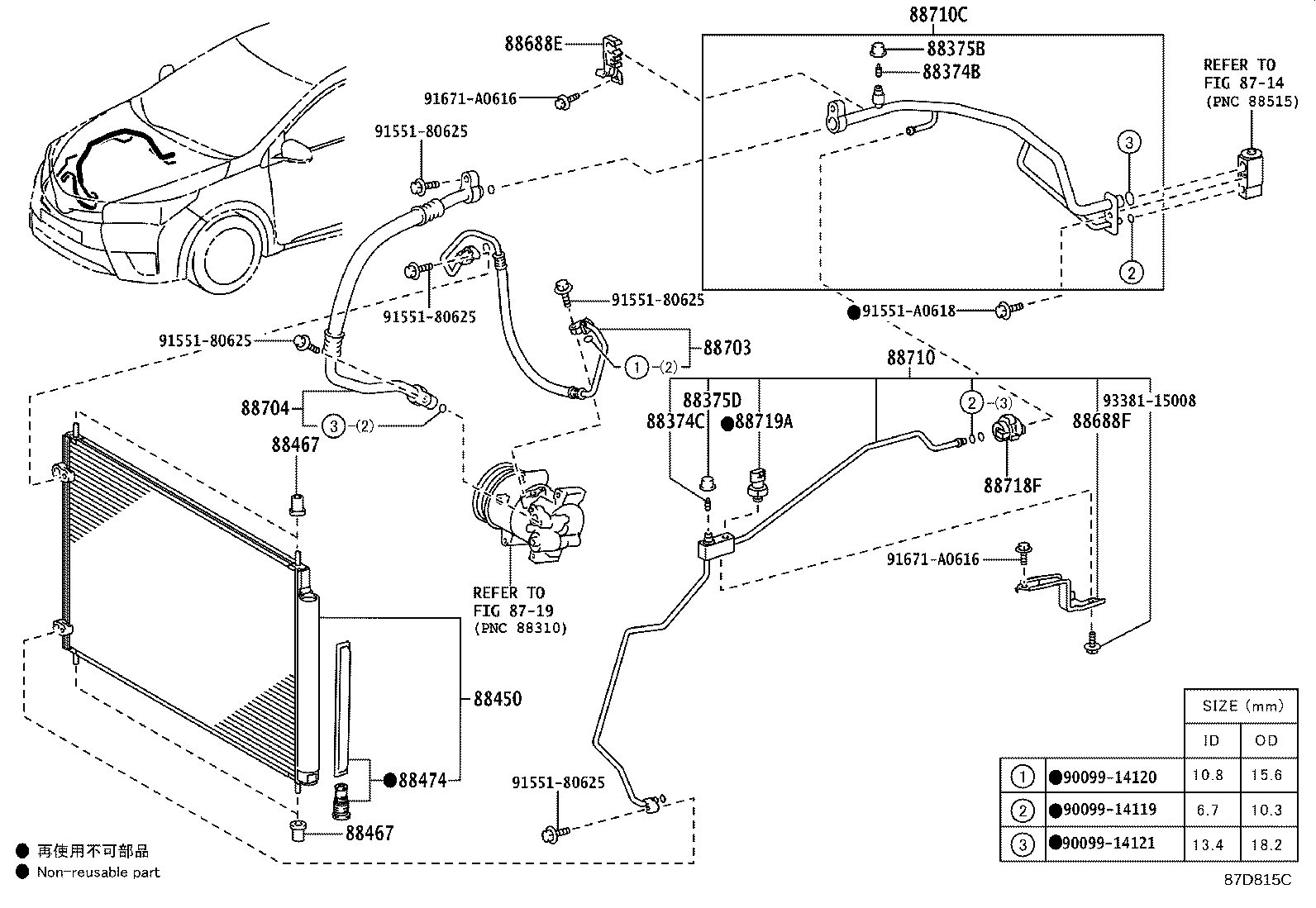

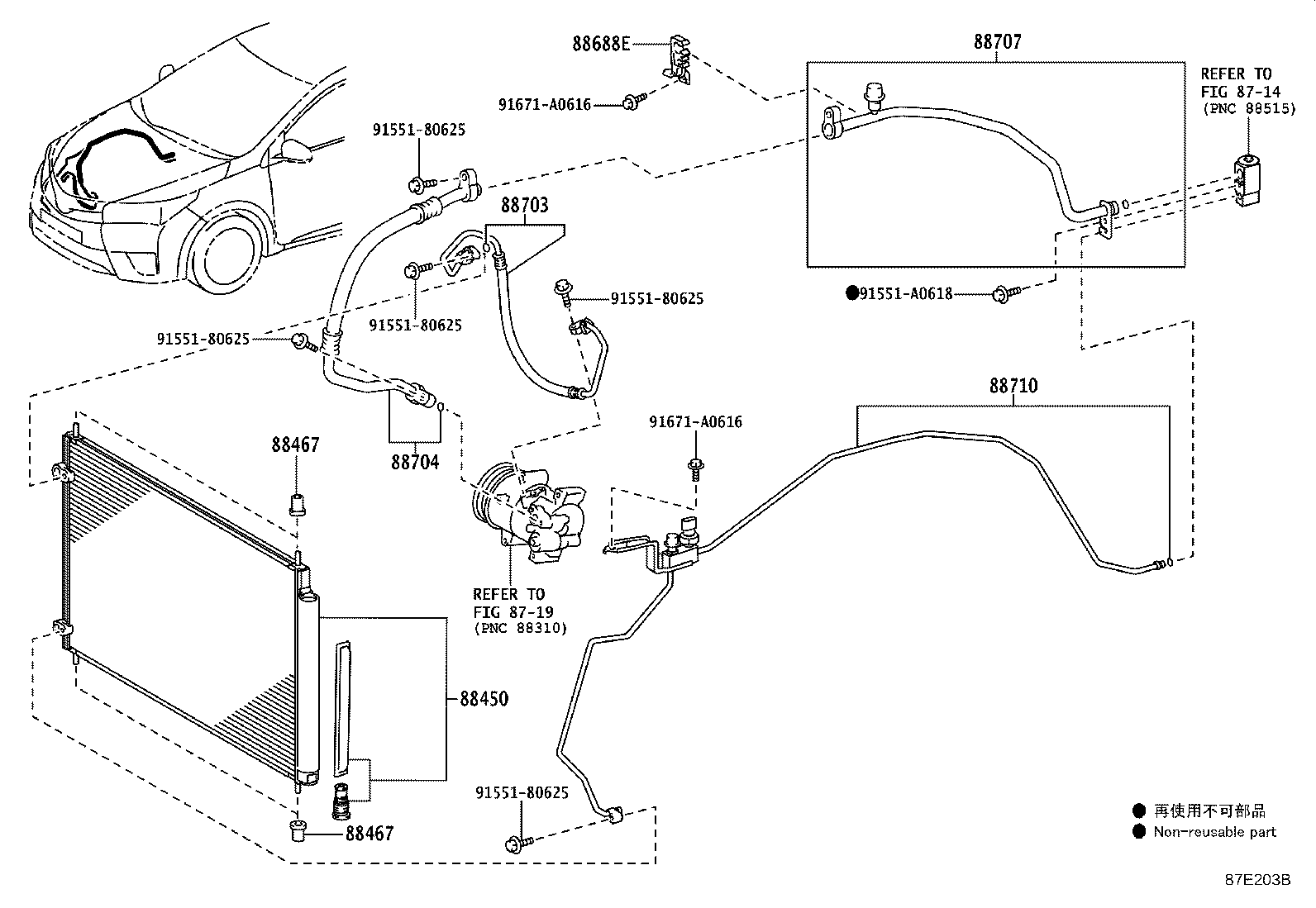

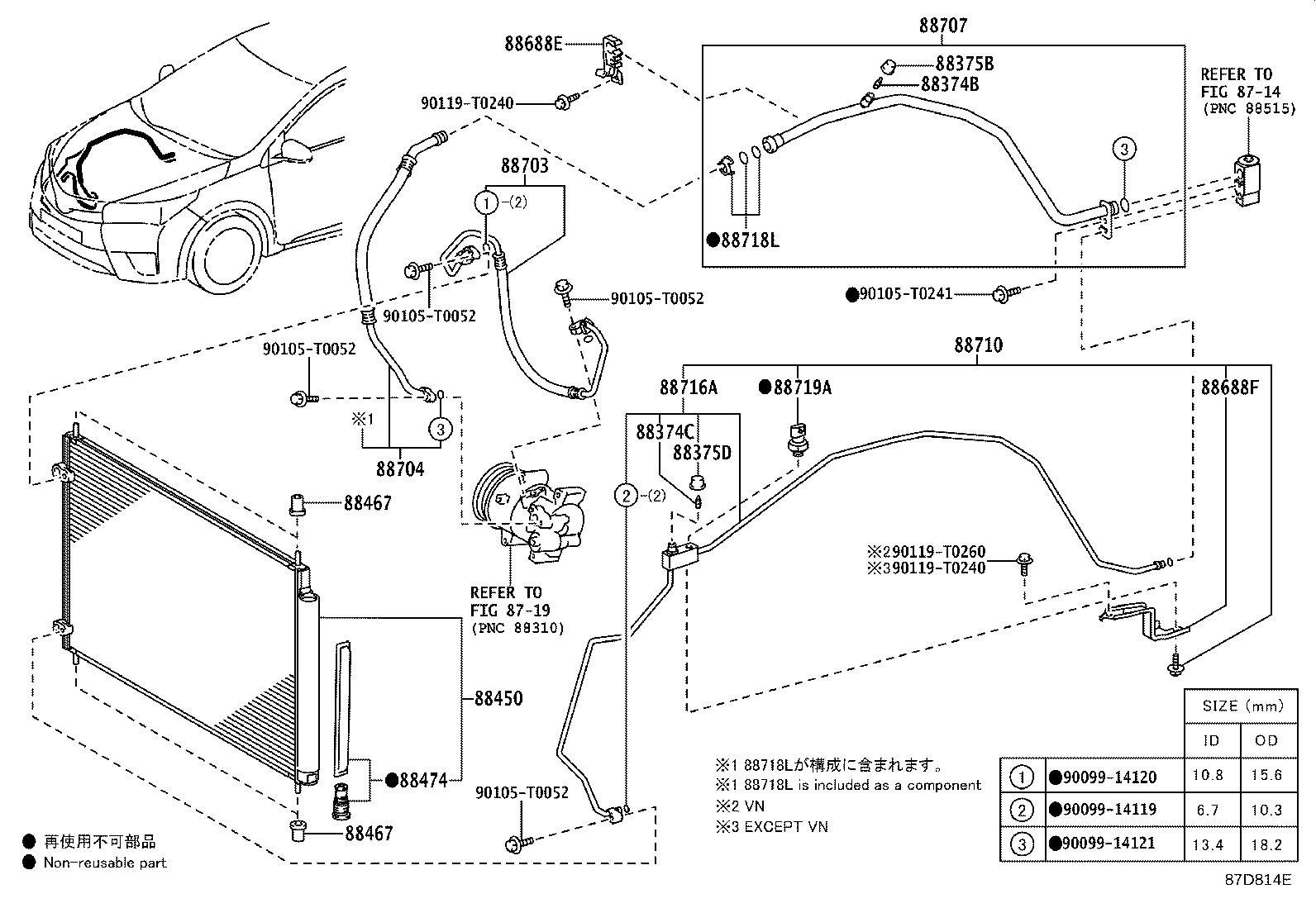

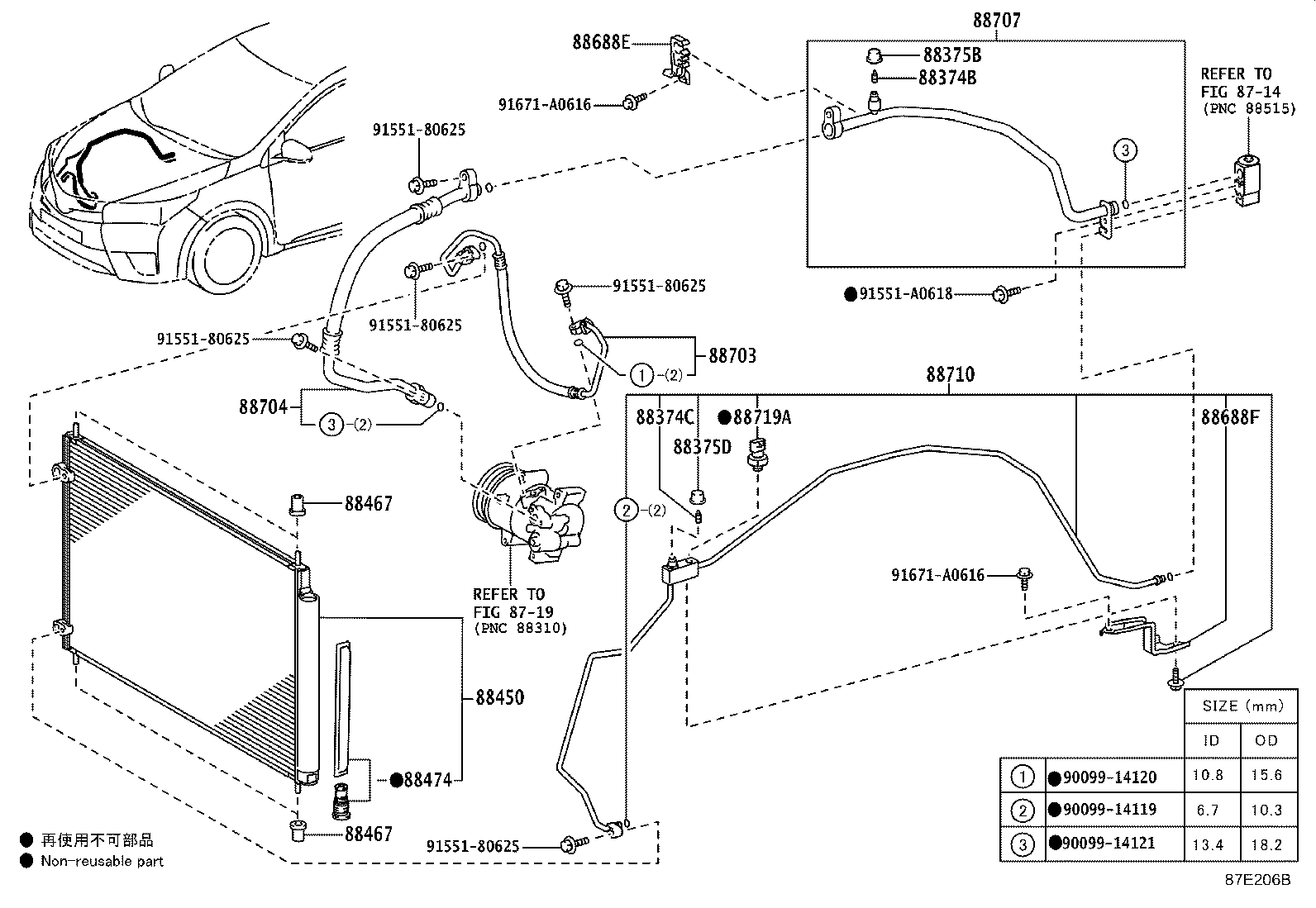

Figure 87E205B 87E205B 2013-10 → — Figure 87D815C 87D815C 2013-10 → — Figure 87E206B 87E206B 2013-10 → — Figure 87D814E 87D814E 2013-12 → — Figure 87E204B 87E204B 2014-05 → — Figure 87E203B 87E203B 2014-07 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88716A Pipe, Cooler Refrigerant Liquid, A
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
