Toyota Corolla/Altis

2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General

Supported model Data version 2024-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

3 part groups · 5 illustrations

Illustrations

Figure 167341A

167341A 2019-04 → —

Figure 167341A

167341A 2024-11 → —

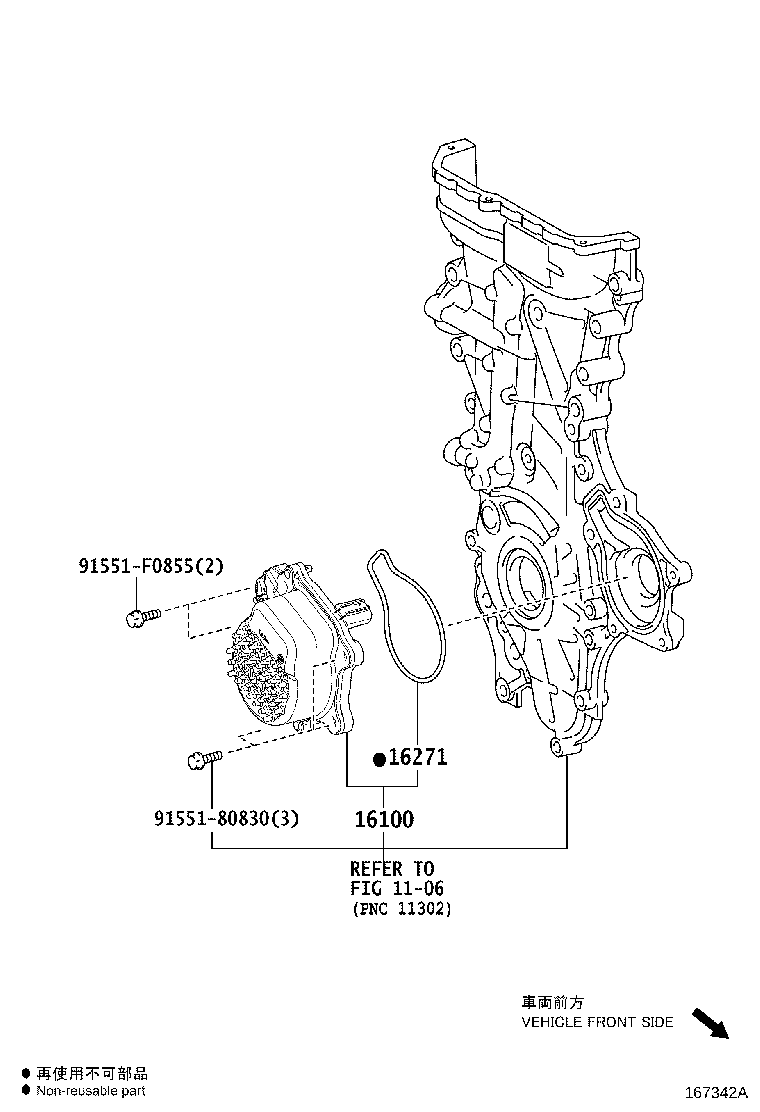

Figure 167342A

167342A 2019-04 → —

Figure 167342A

167342A 2024-11 → —

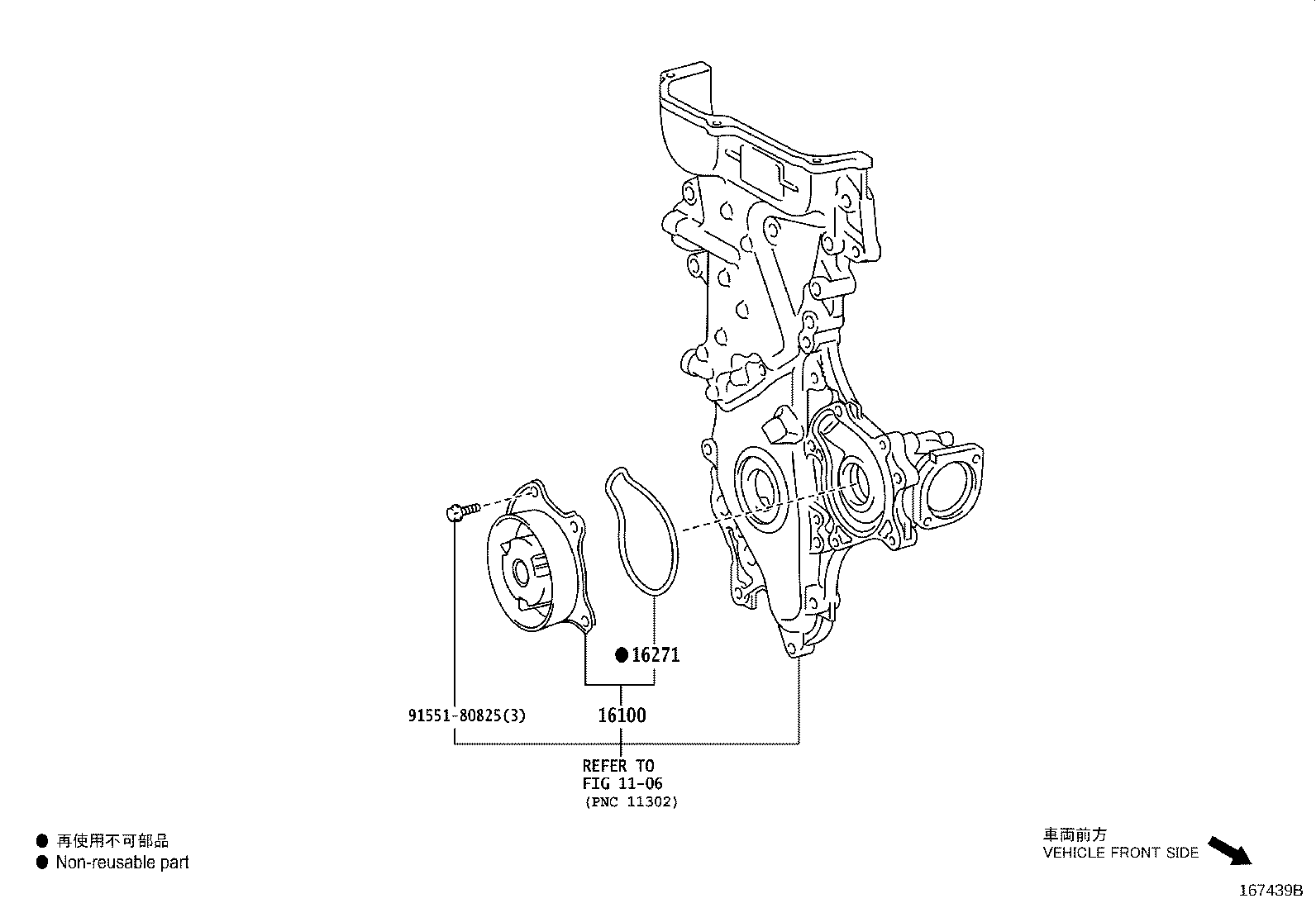

Figure 167439B

167439B 2019-08 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
