Toyota Corolla/Altis

2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

10 part groups · 7 illustrations

Illustrations

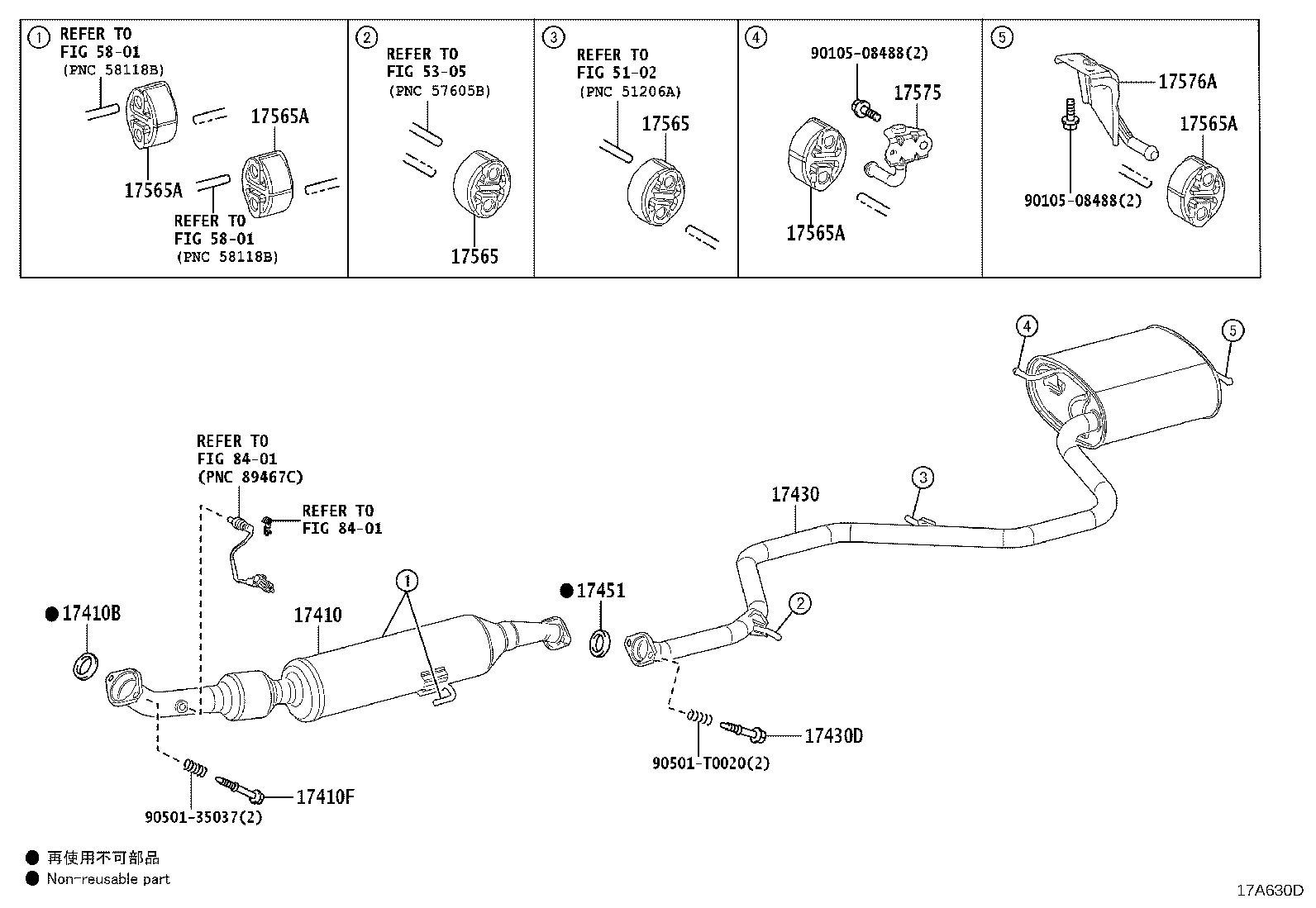

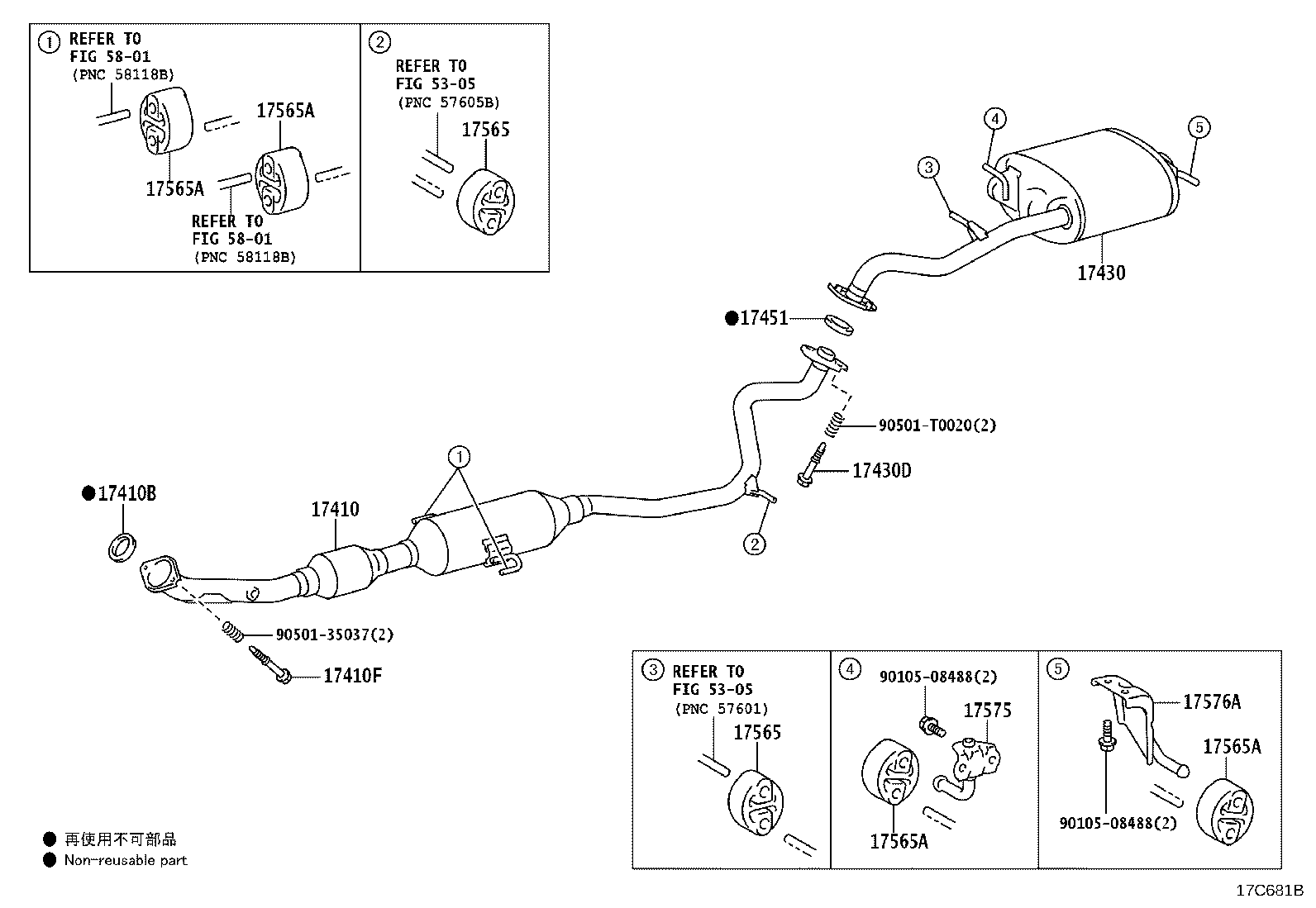

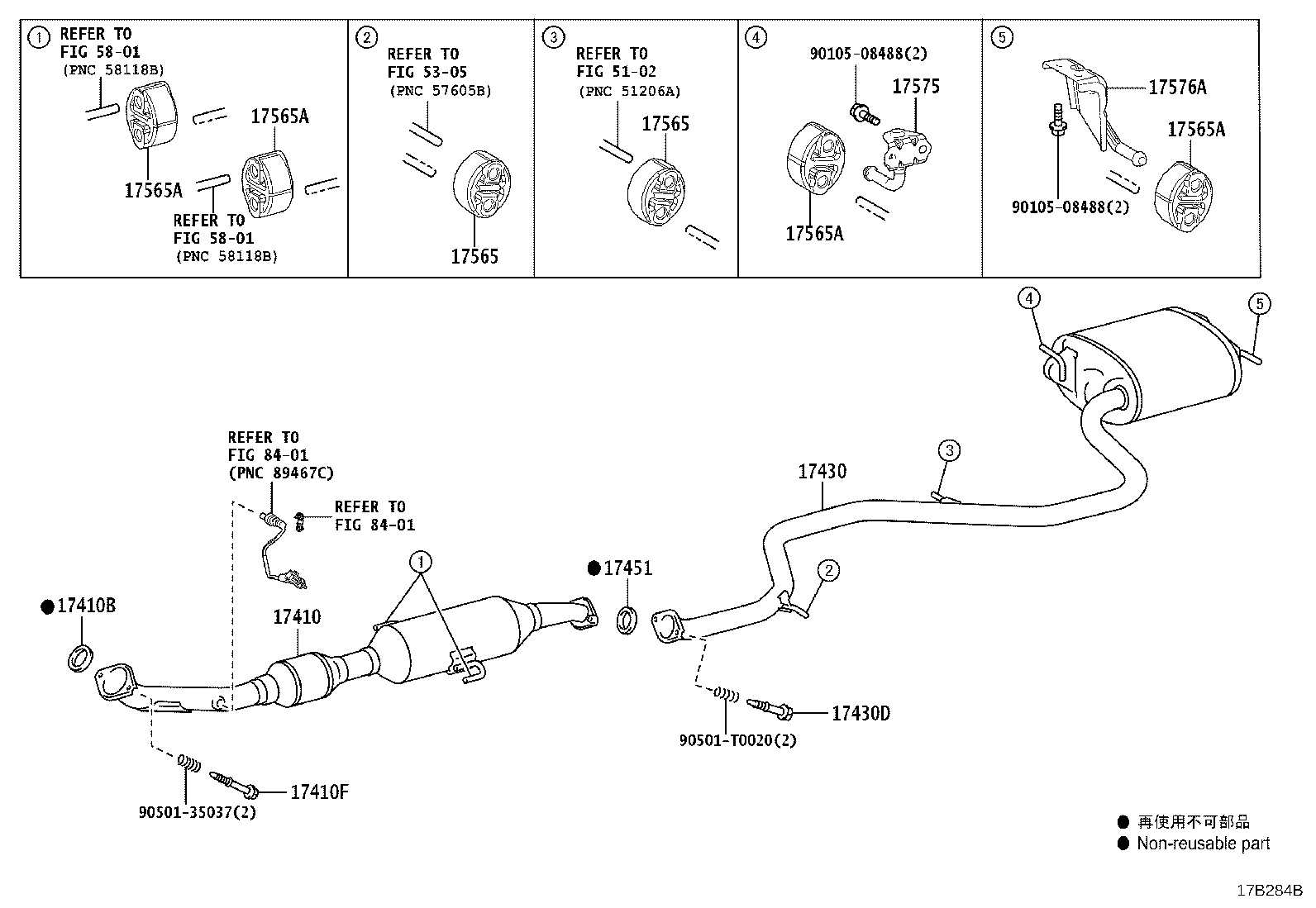

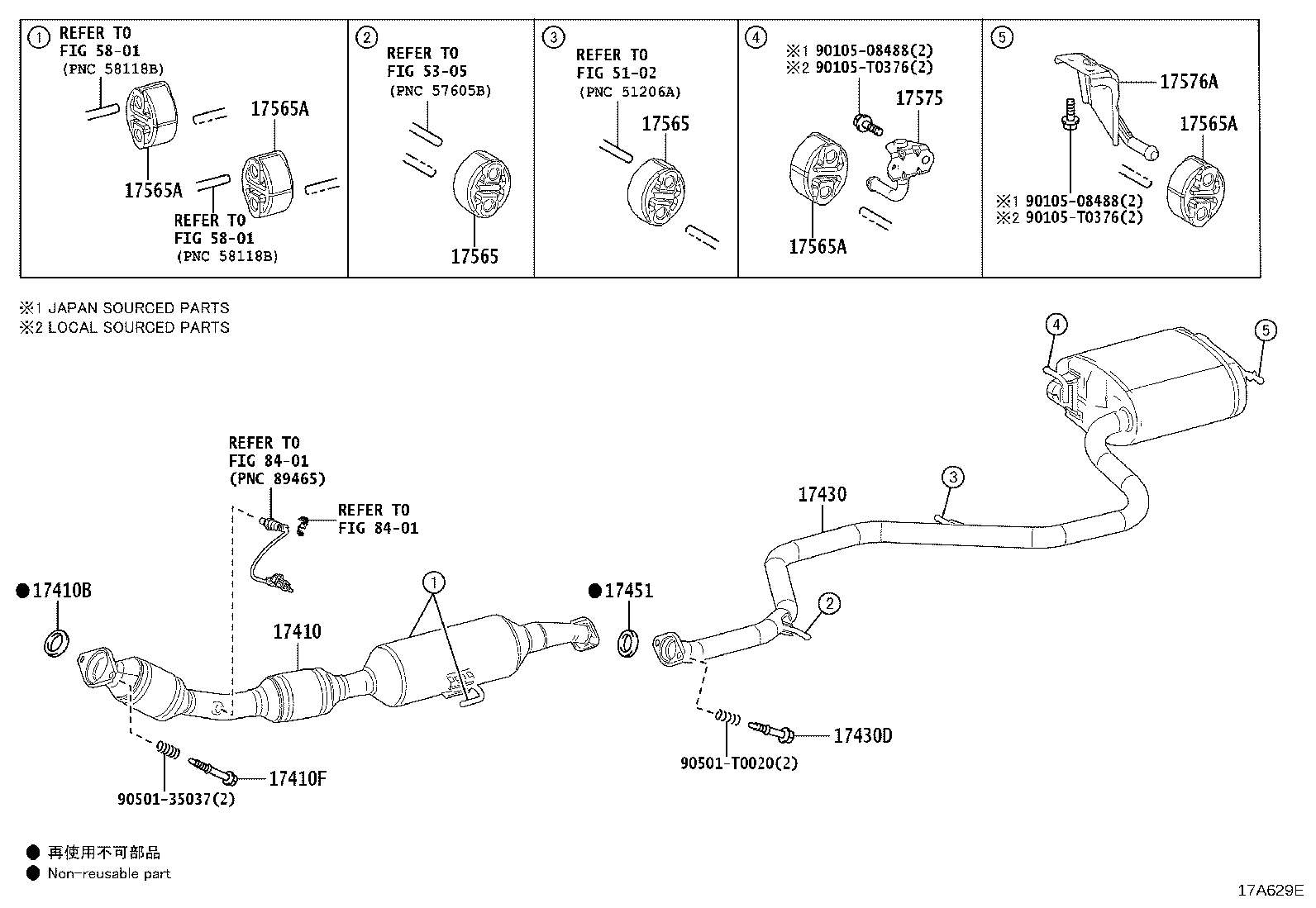

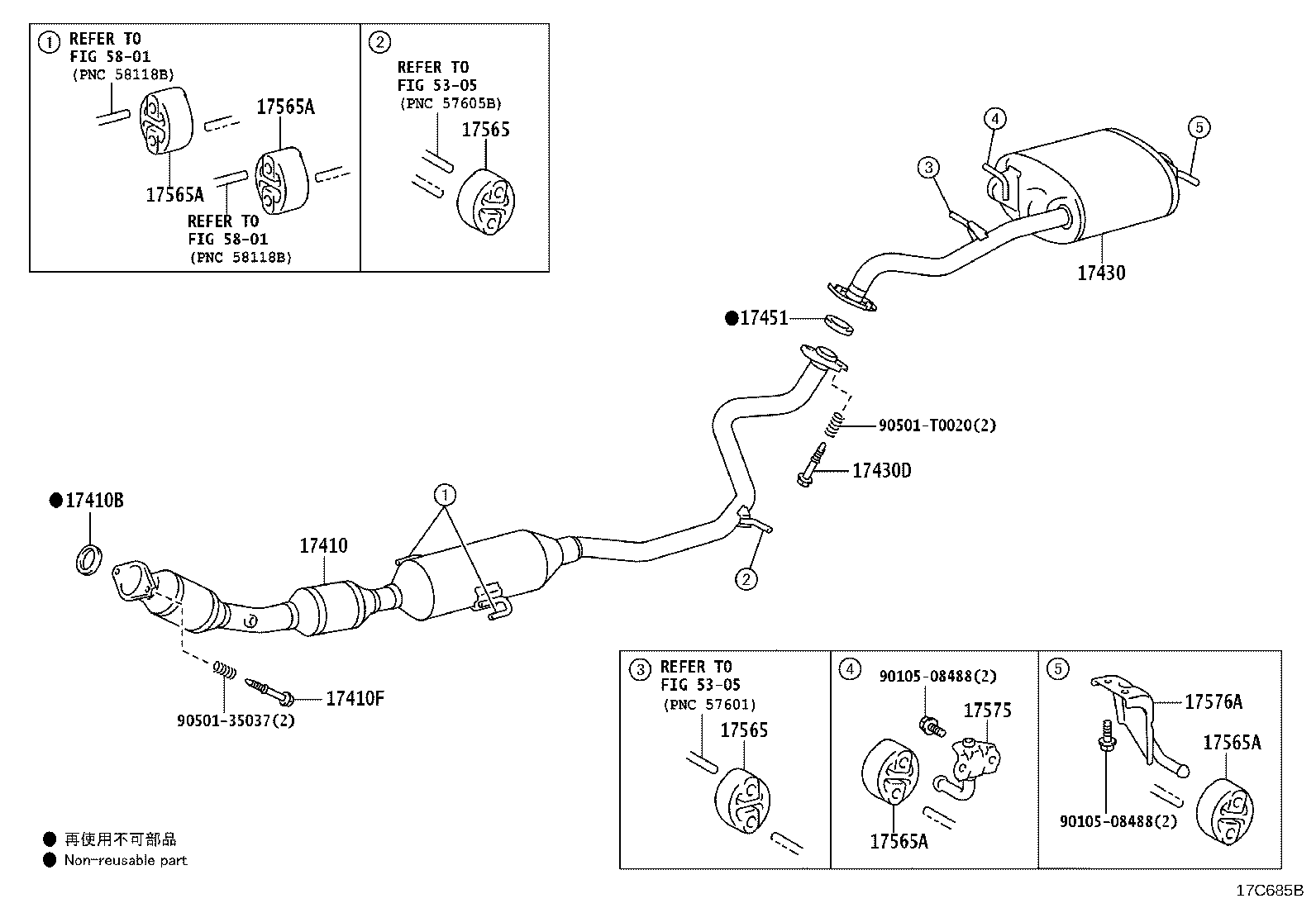

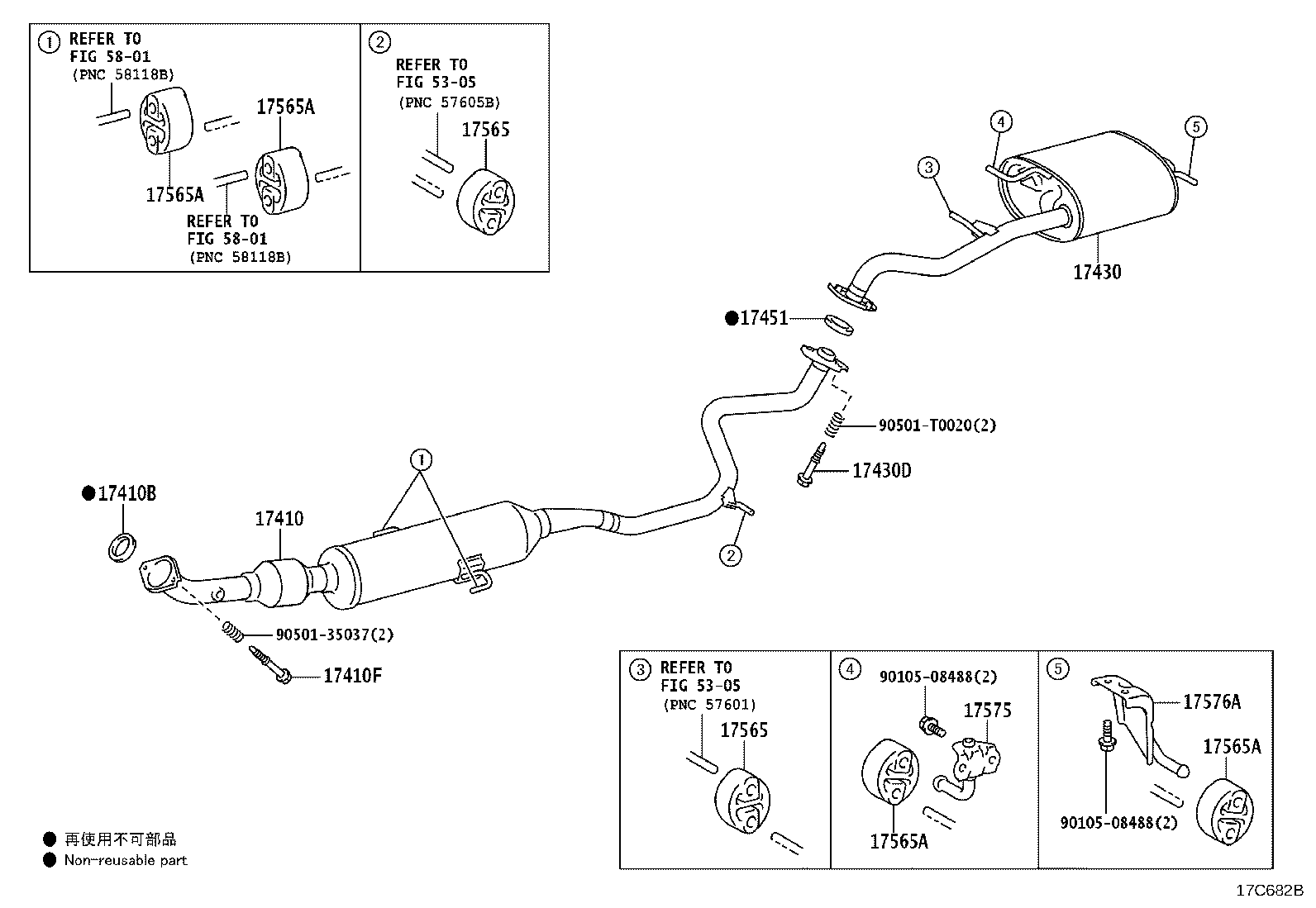

Figure 17A628G 17A628G 2019-04 → — Figure 17A629E 17A629E 2019-04 → — Figure 17A630D 17A630D 2019-04 → — Figure 17B284B 17B284B 2020-08 → — Figure 17C681B 17C681B 2023-05 → — Figure 17C682B 17C682B 2023-05 → — Figure 17C685B 17C685B 2023-04 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17430 Pipe Assy, Exhaust, Tail
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17451 Gasket, Exhaust Pipe
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
