Toyota Corolla/Altis
2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General
Supported model
Data version 2024-10
Starter
6 part groups · 3 illustrations

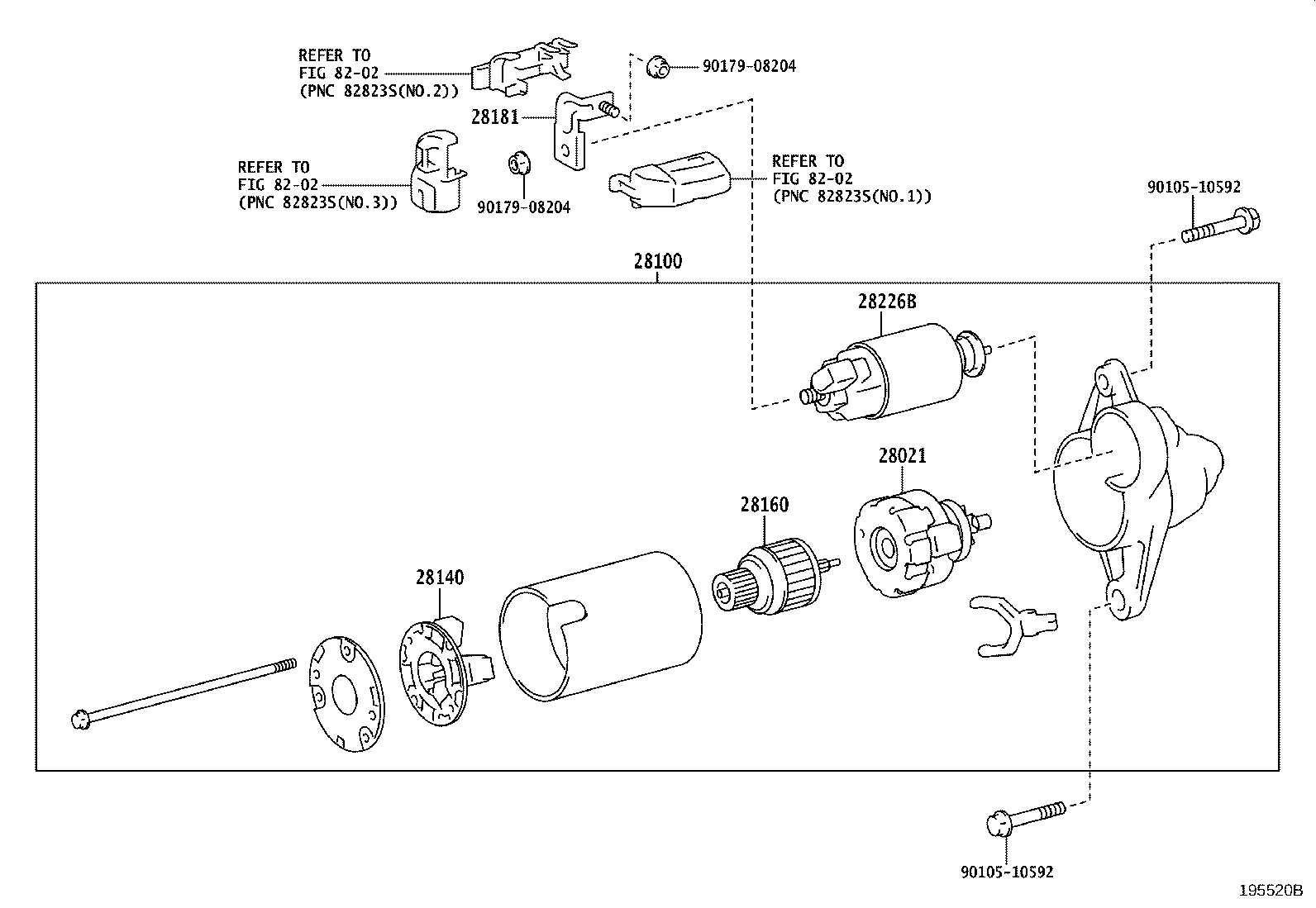

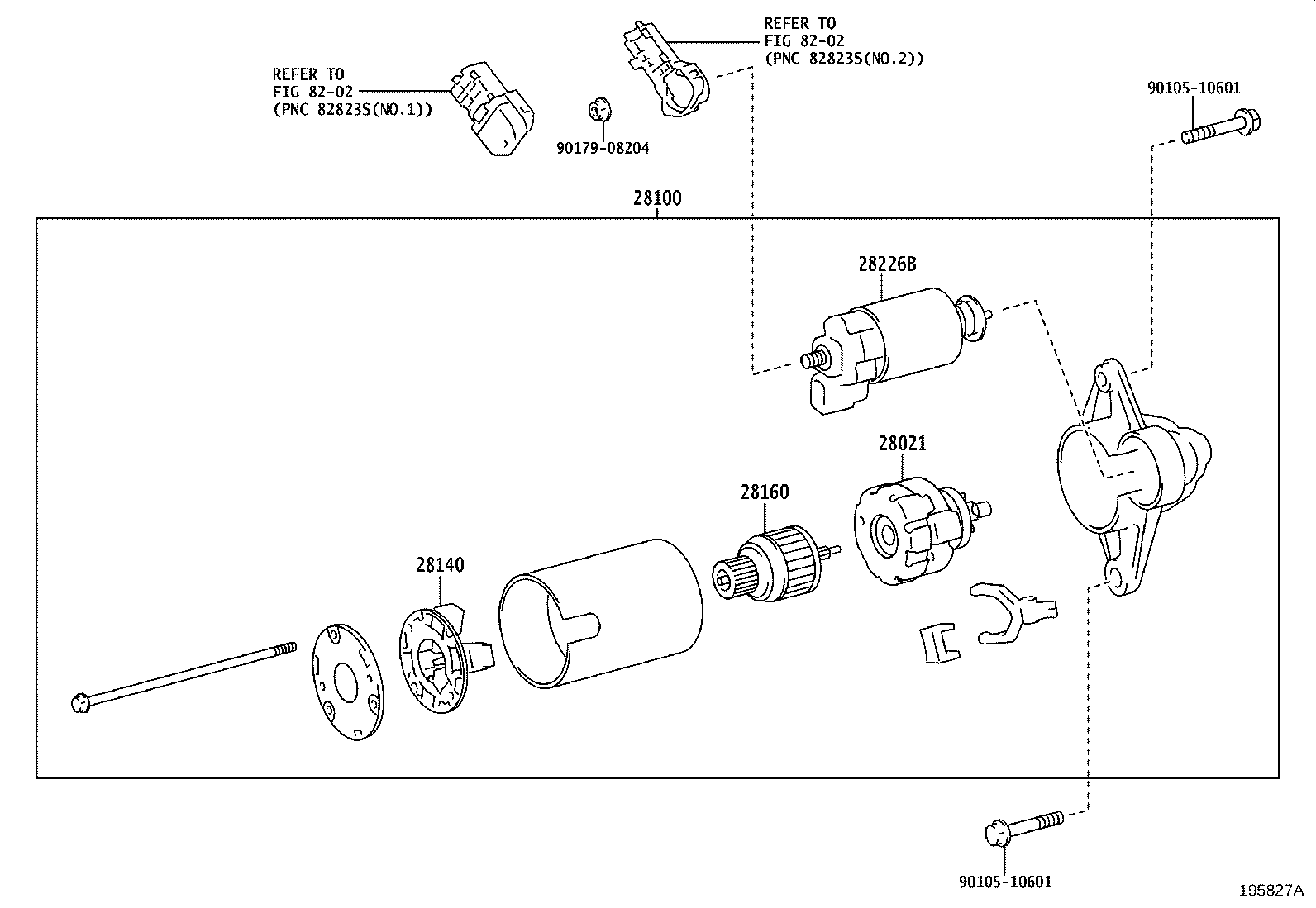

Part groups
| PNC | Description |
|---|---|
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28140 | Holder Assy, Starter Brush |
| 28160 | Armature Assy, Starter |
| 28181 | Terminal, Starter |
| 28226B | Starter Kit, Repair Service |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
