Toyota Corolla/Altis

2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

17 part groups · 2 illustrations

Illustrations

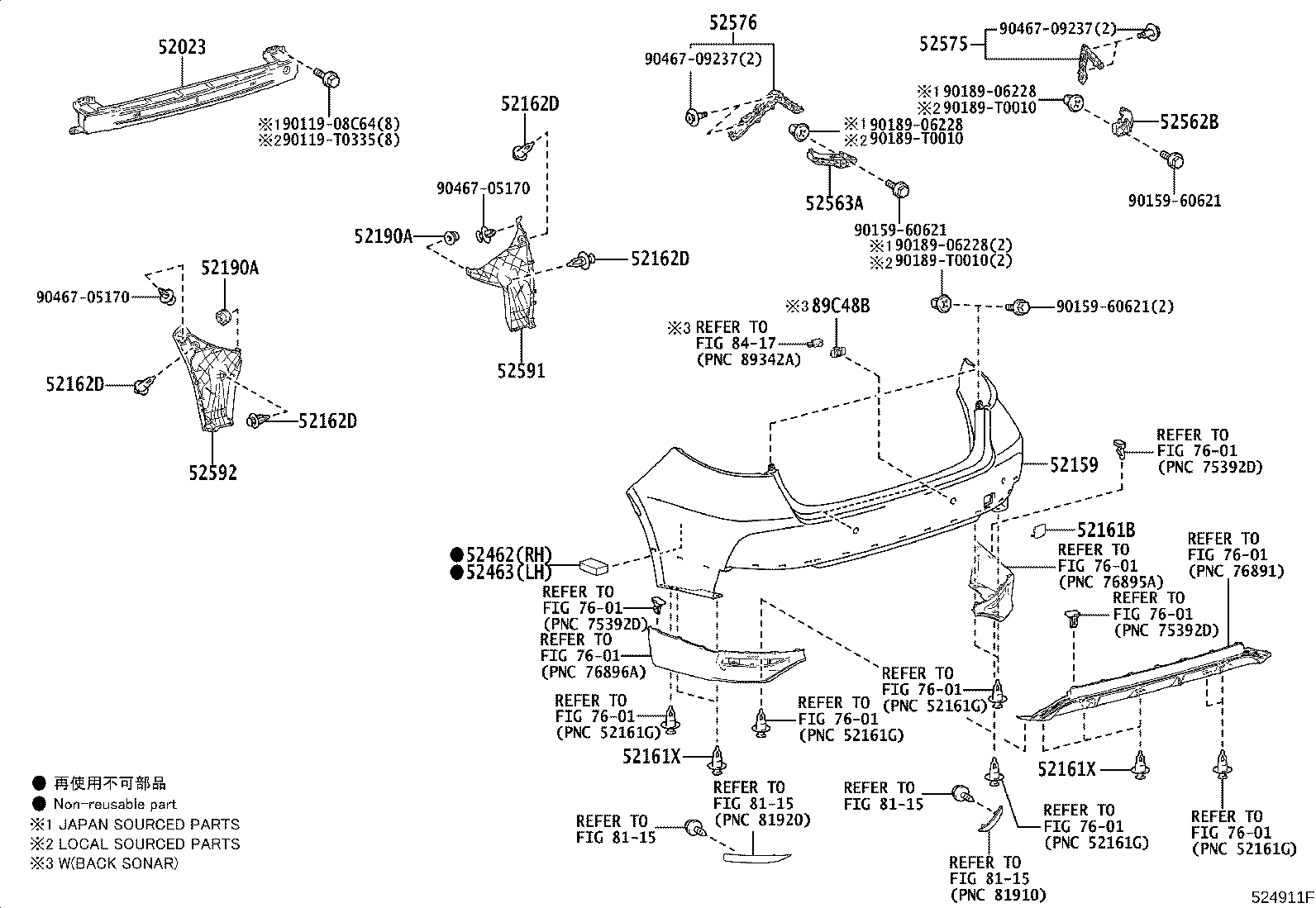

Figure 523967G 523967G 2019-04 → — Figure 524911F 524911F 2020-04 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52161X Piece, Rear Bumper
52162D Piece, Rear Bumper
52162E Piece, Rear Bumper
52190A Clip
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
