Toyota Corolla/Altis
2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General
Supported model
Data version 2024-10
Instrument Panel & Glove Compartment
50 part groups · 13 illustrations

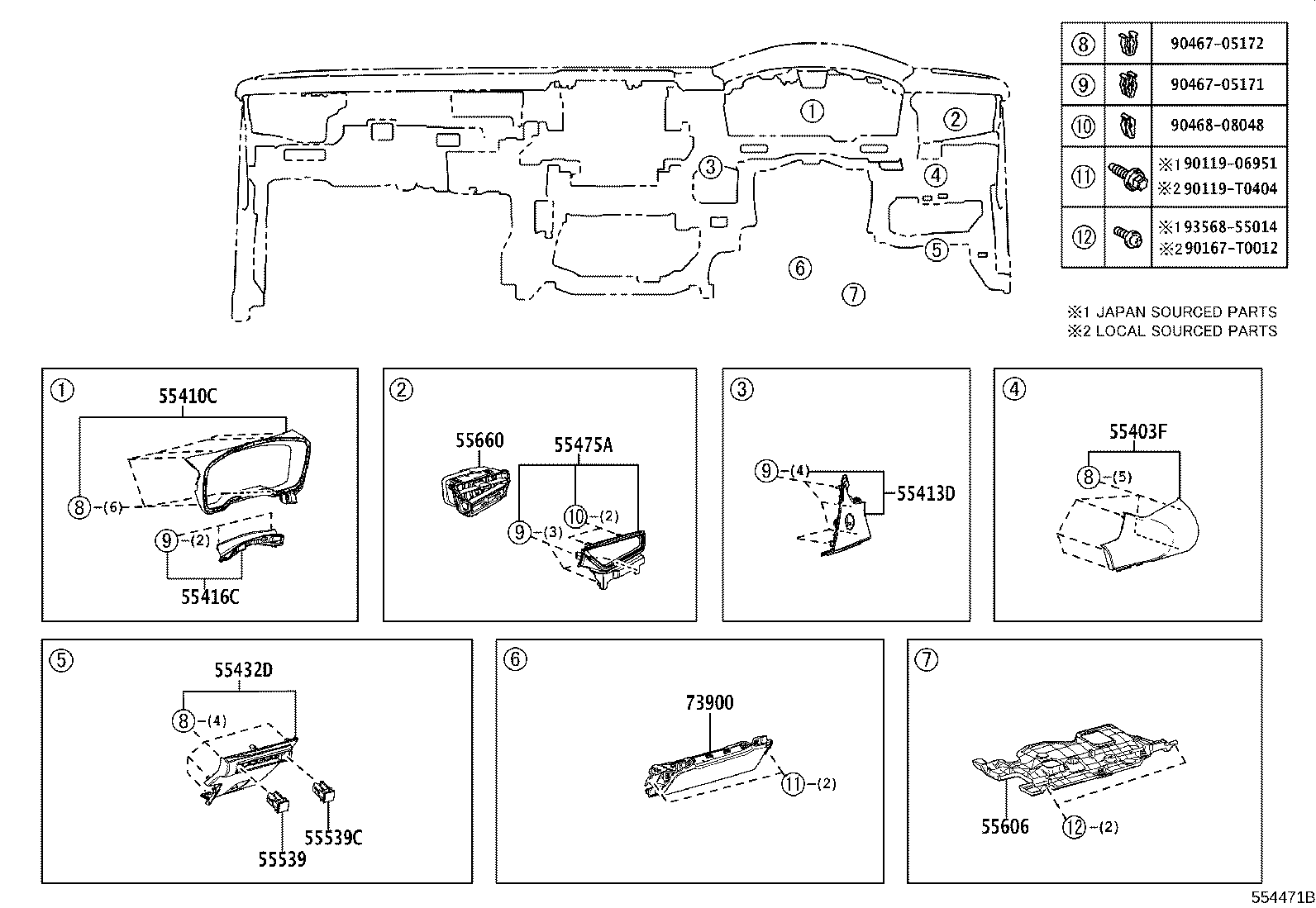

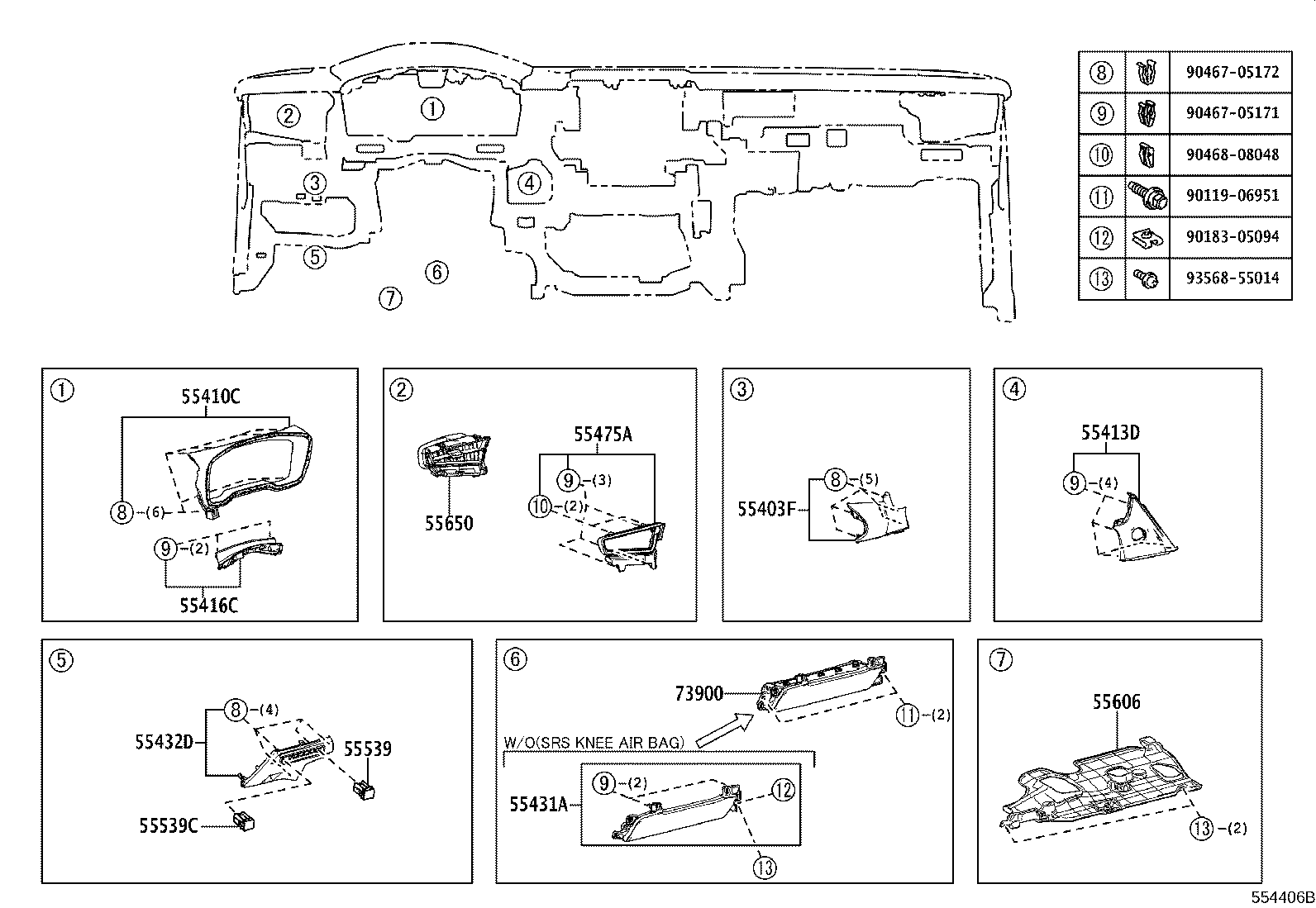

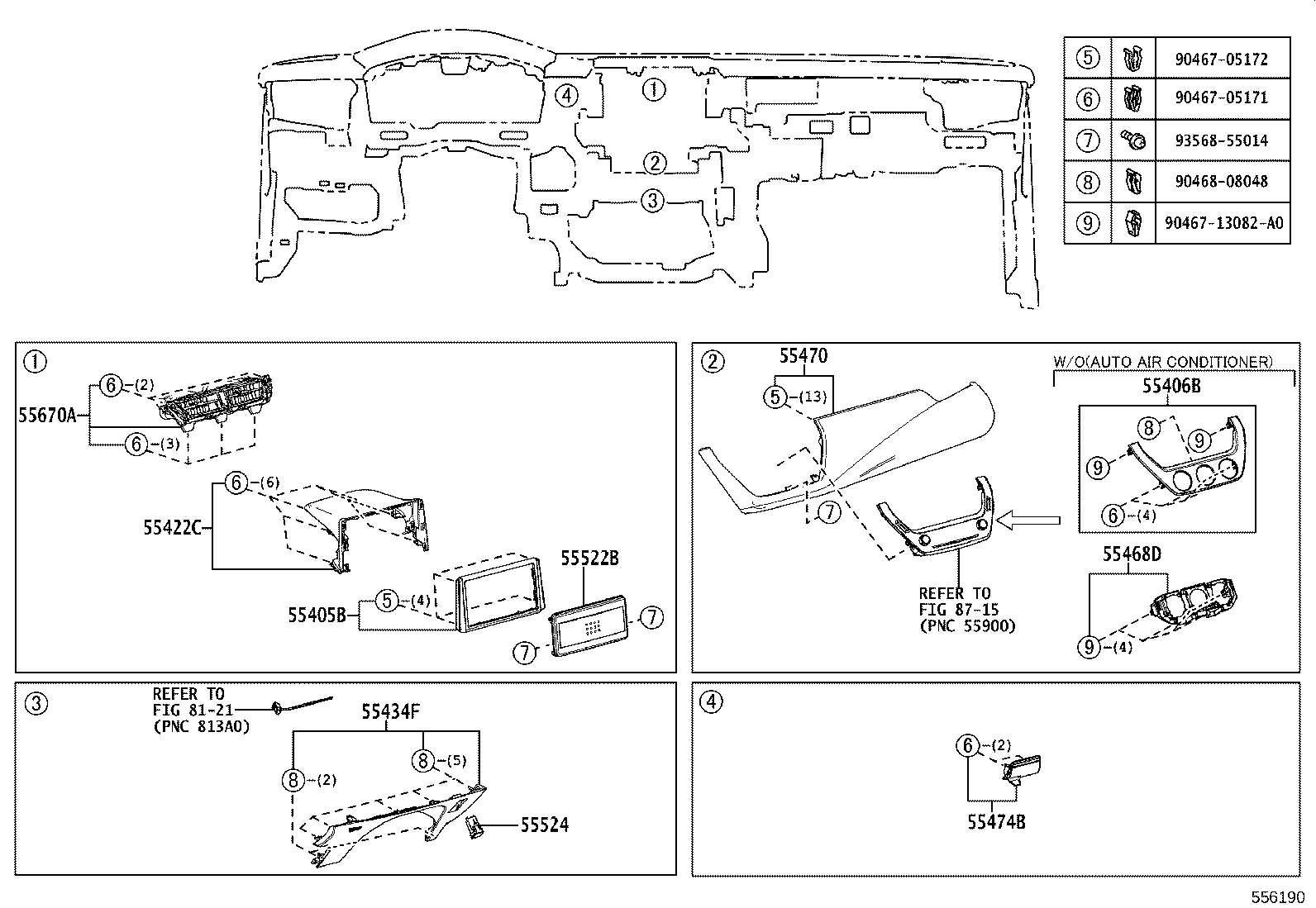

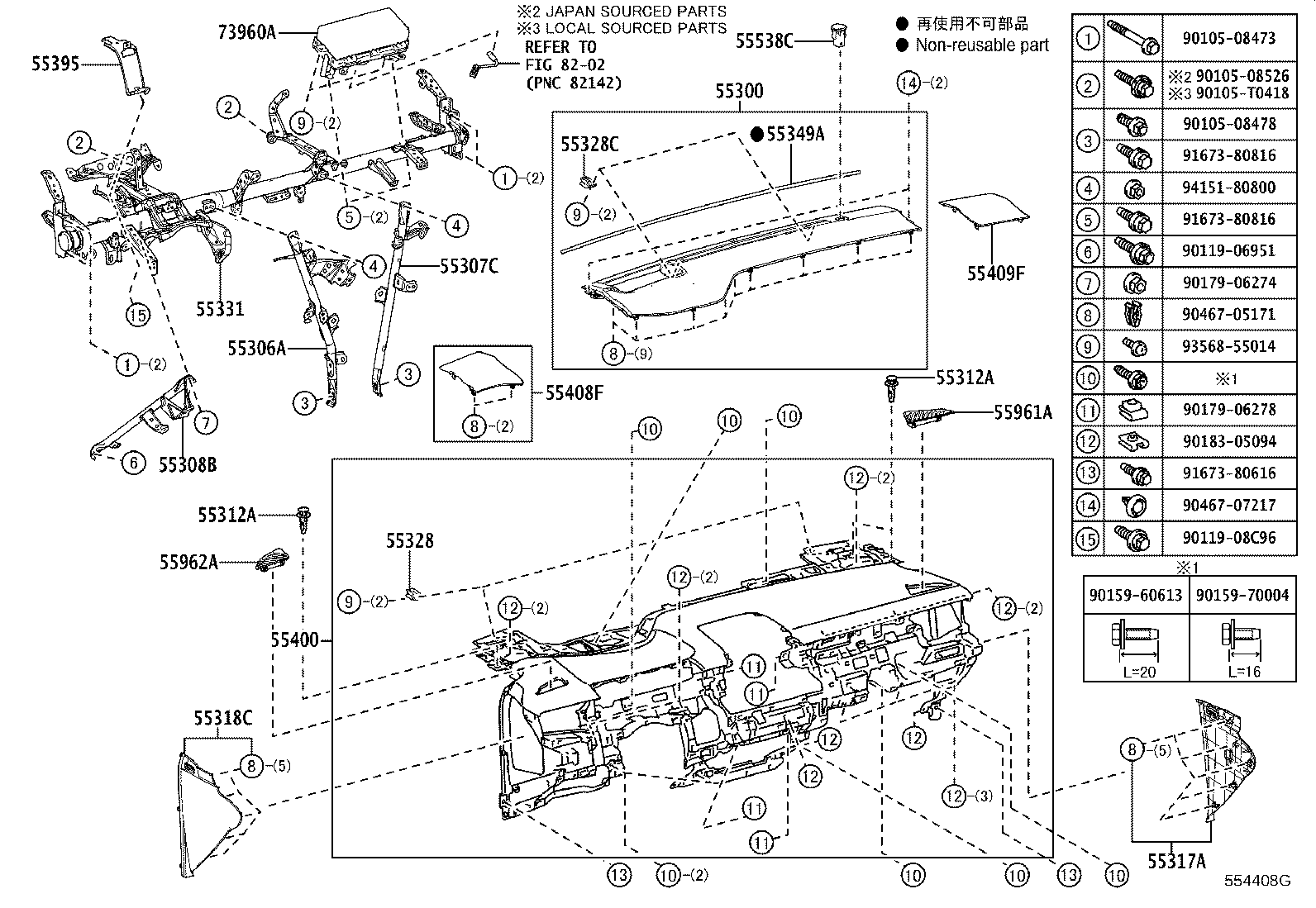

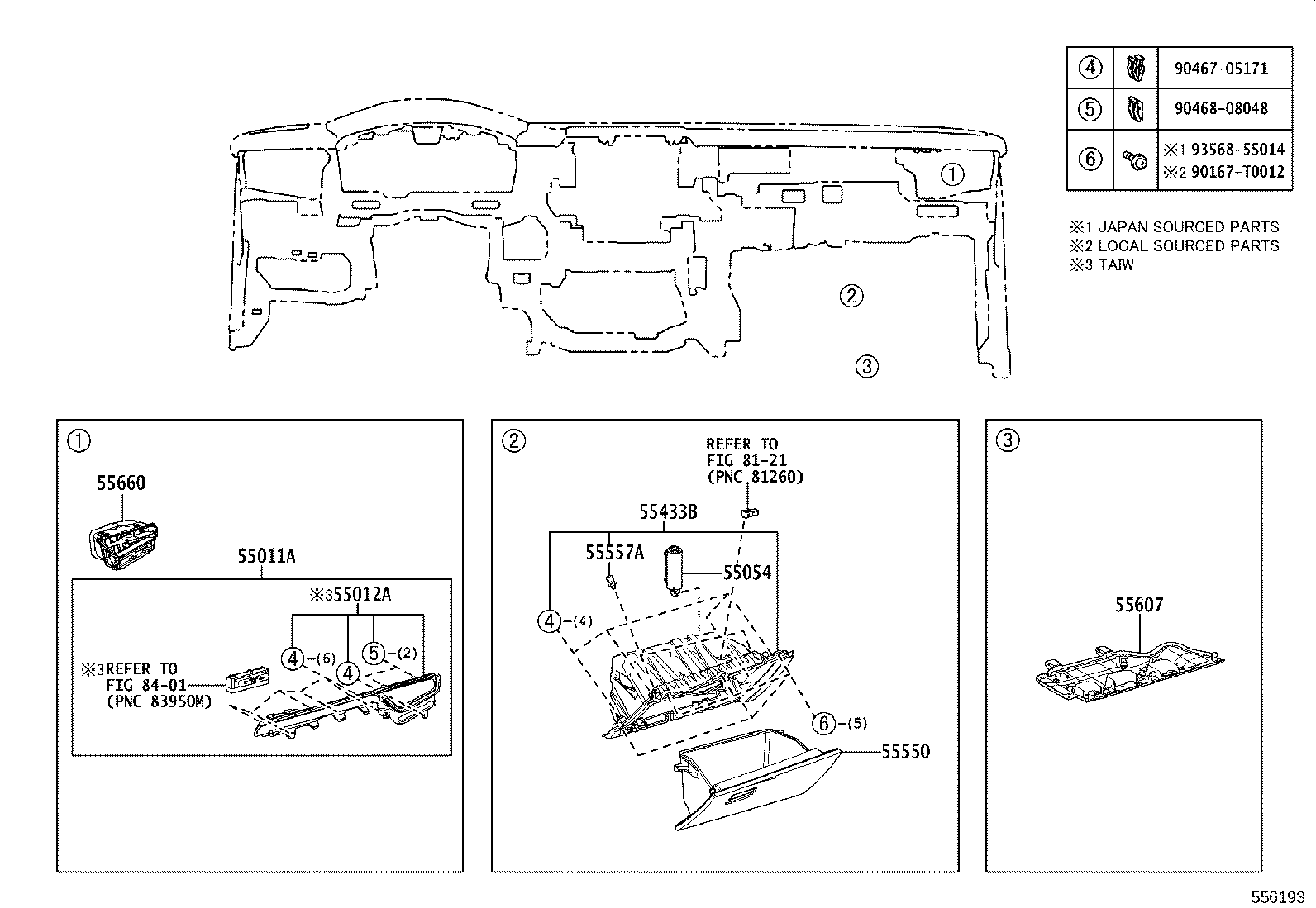

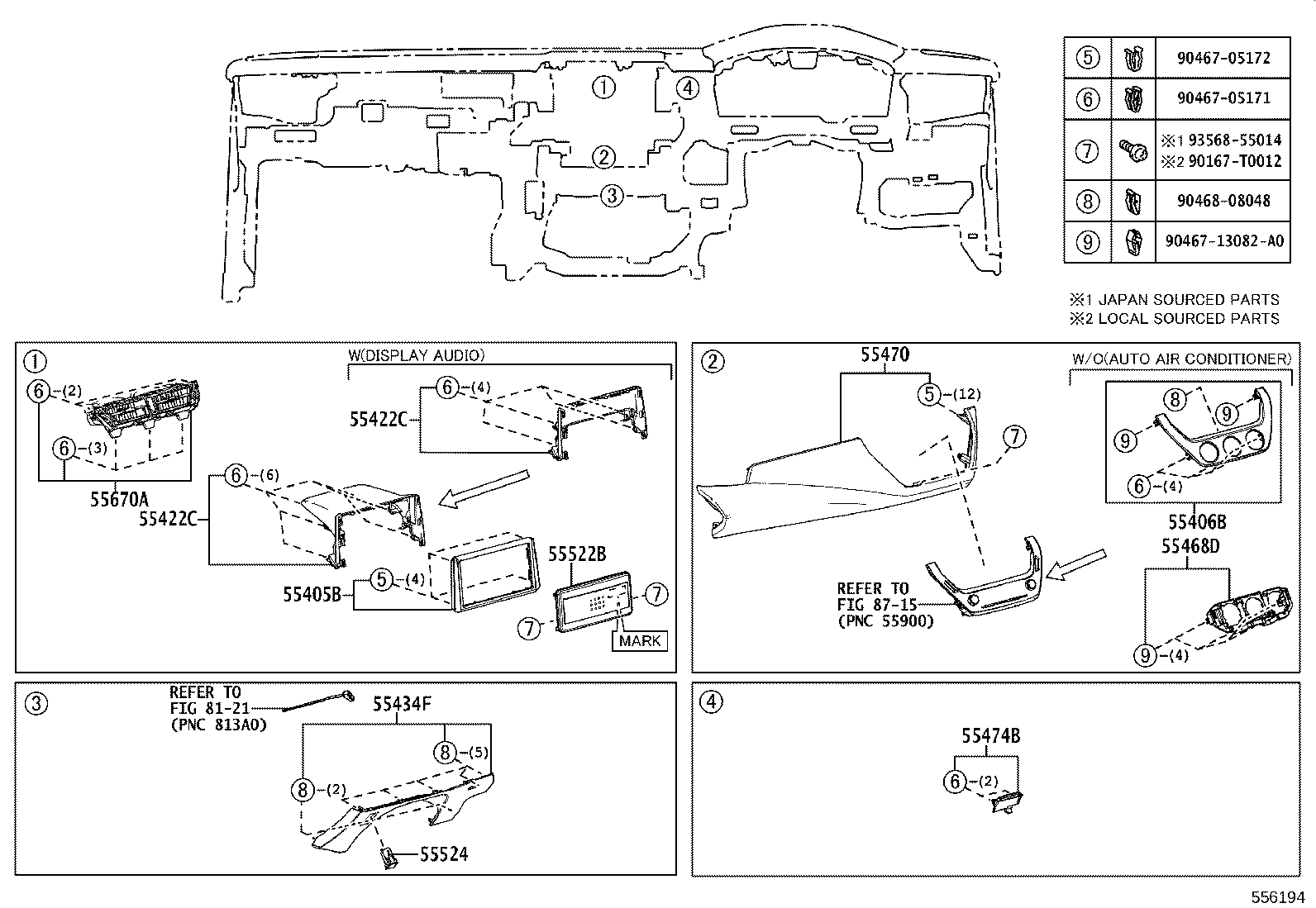

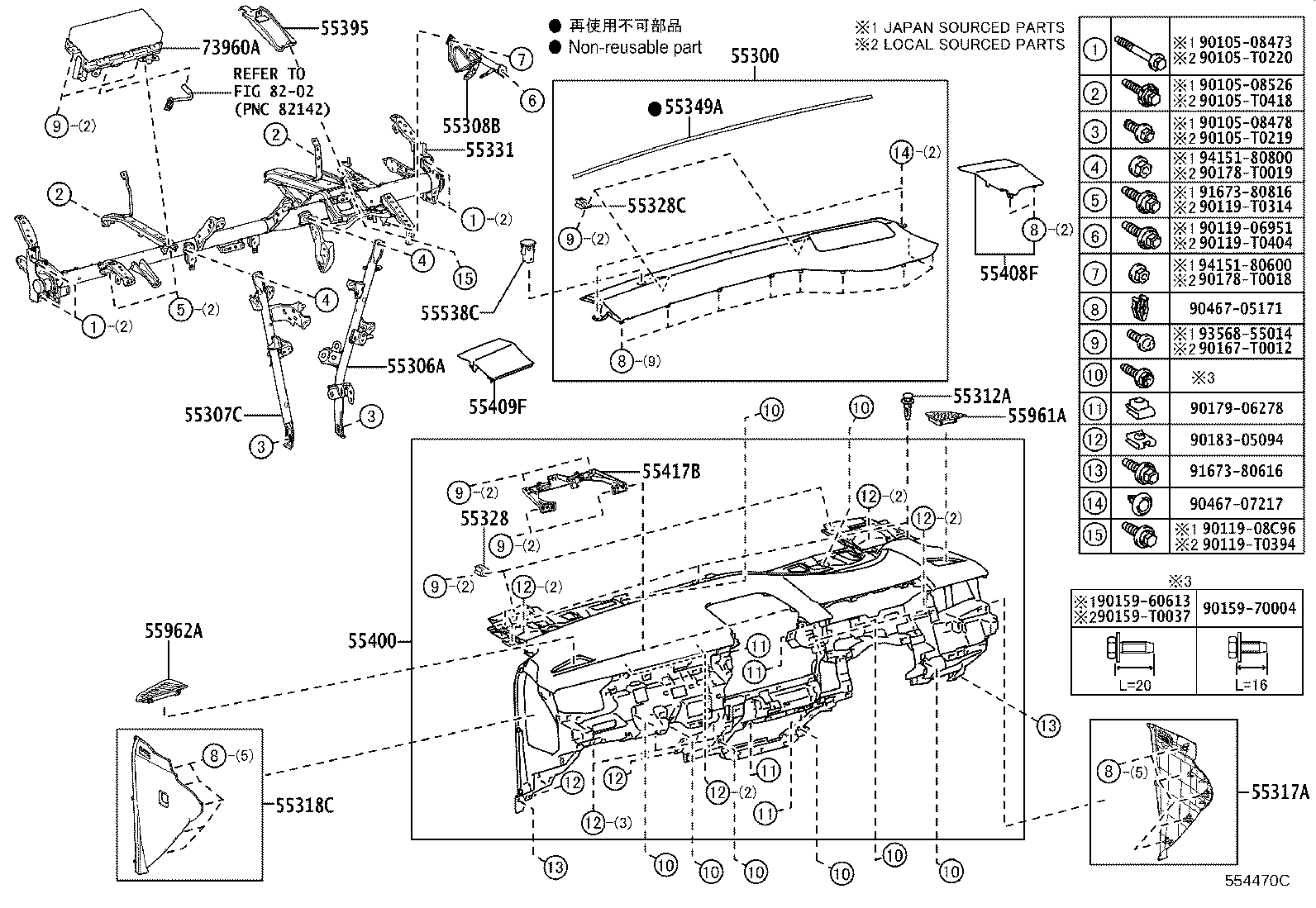

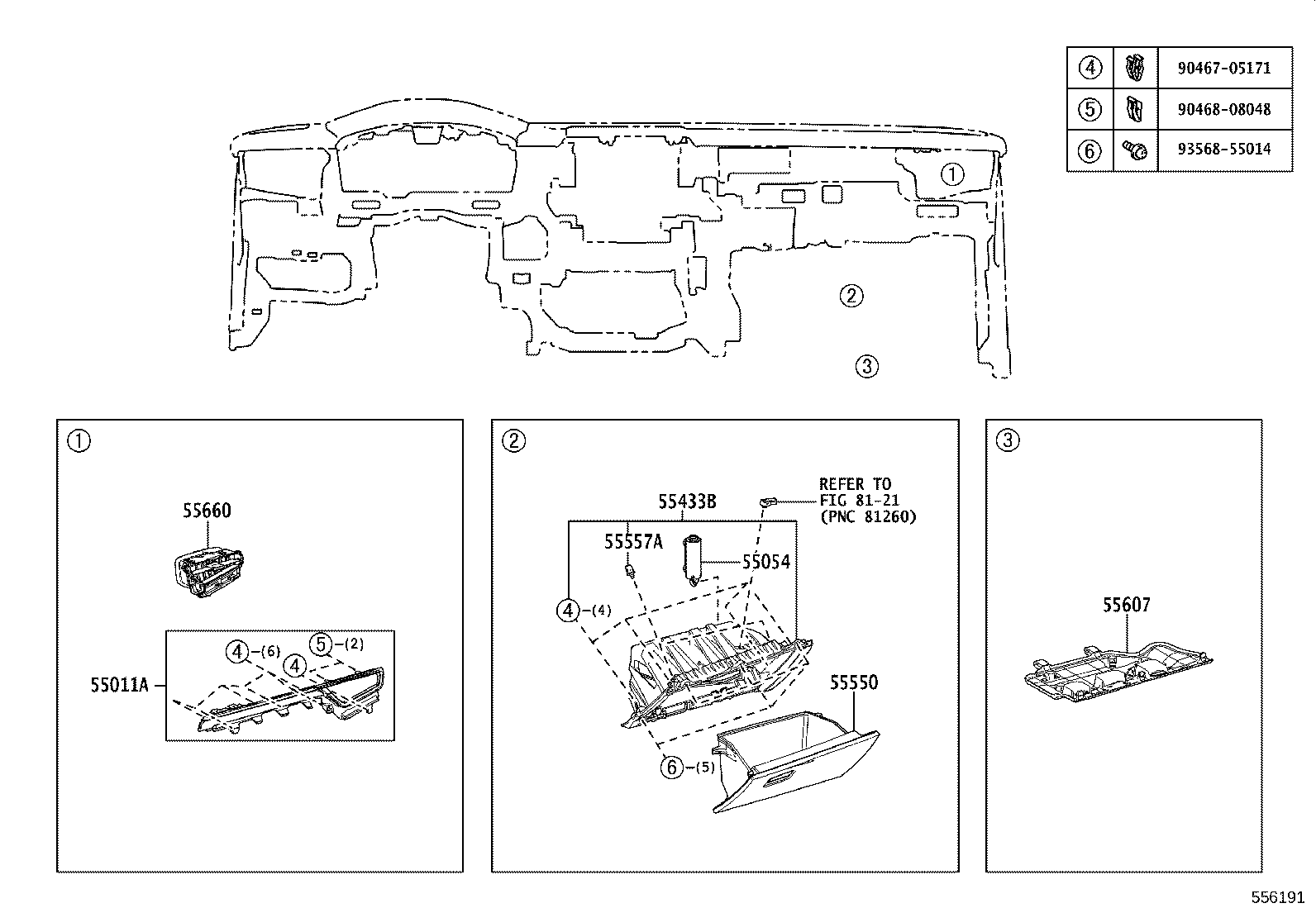

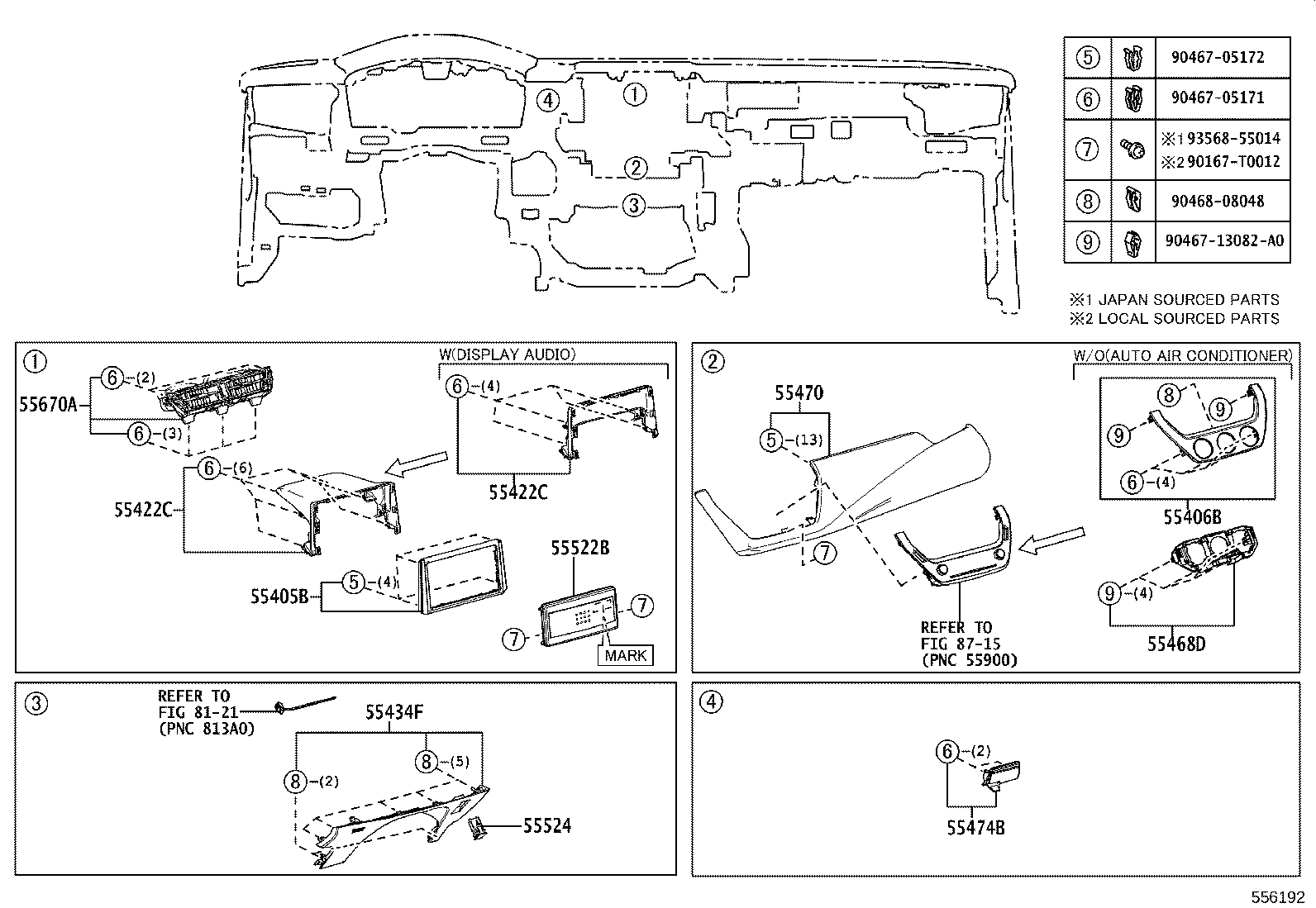

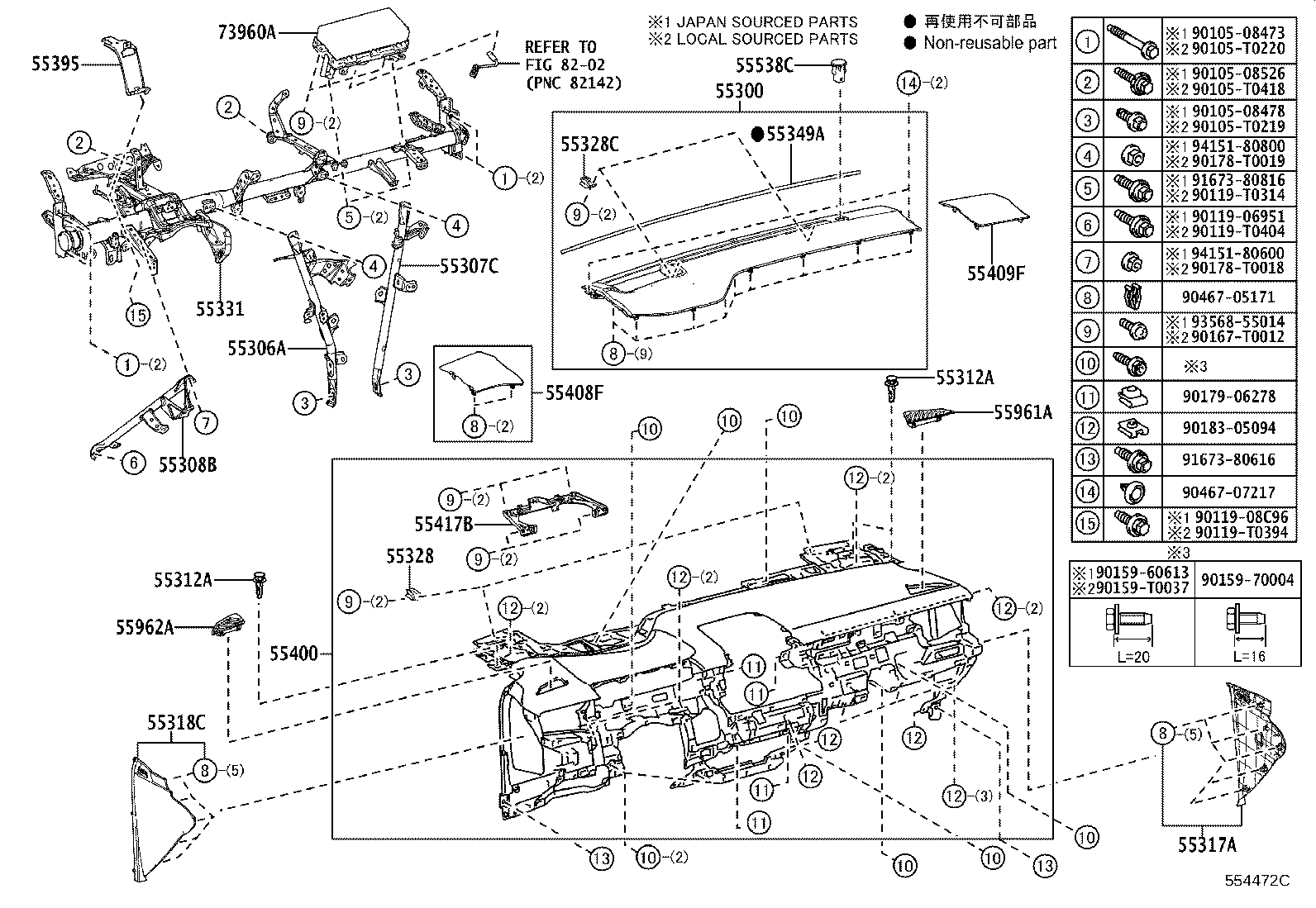

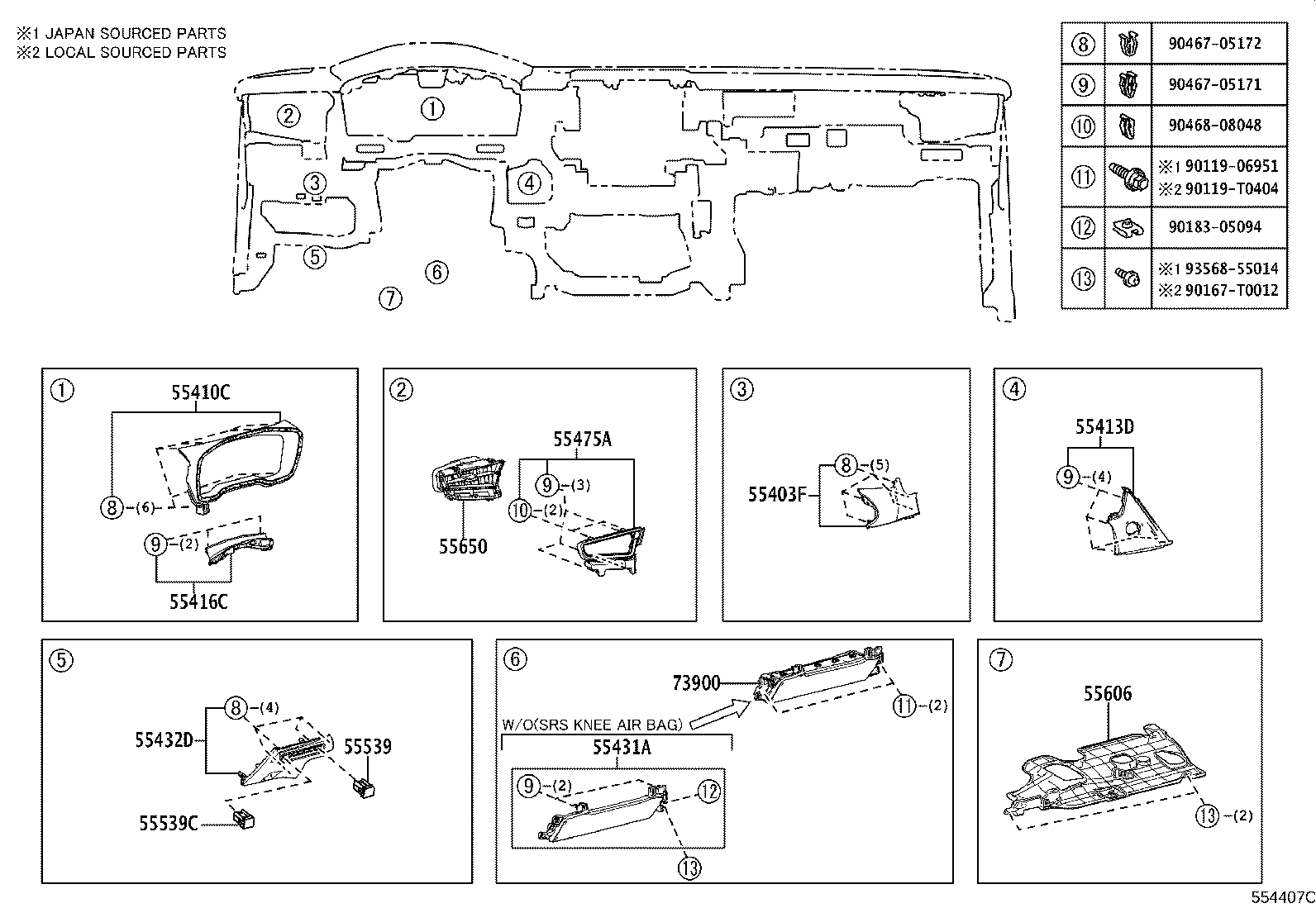

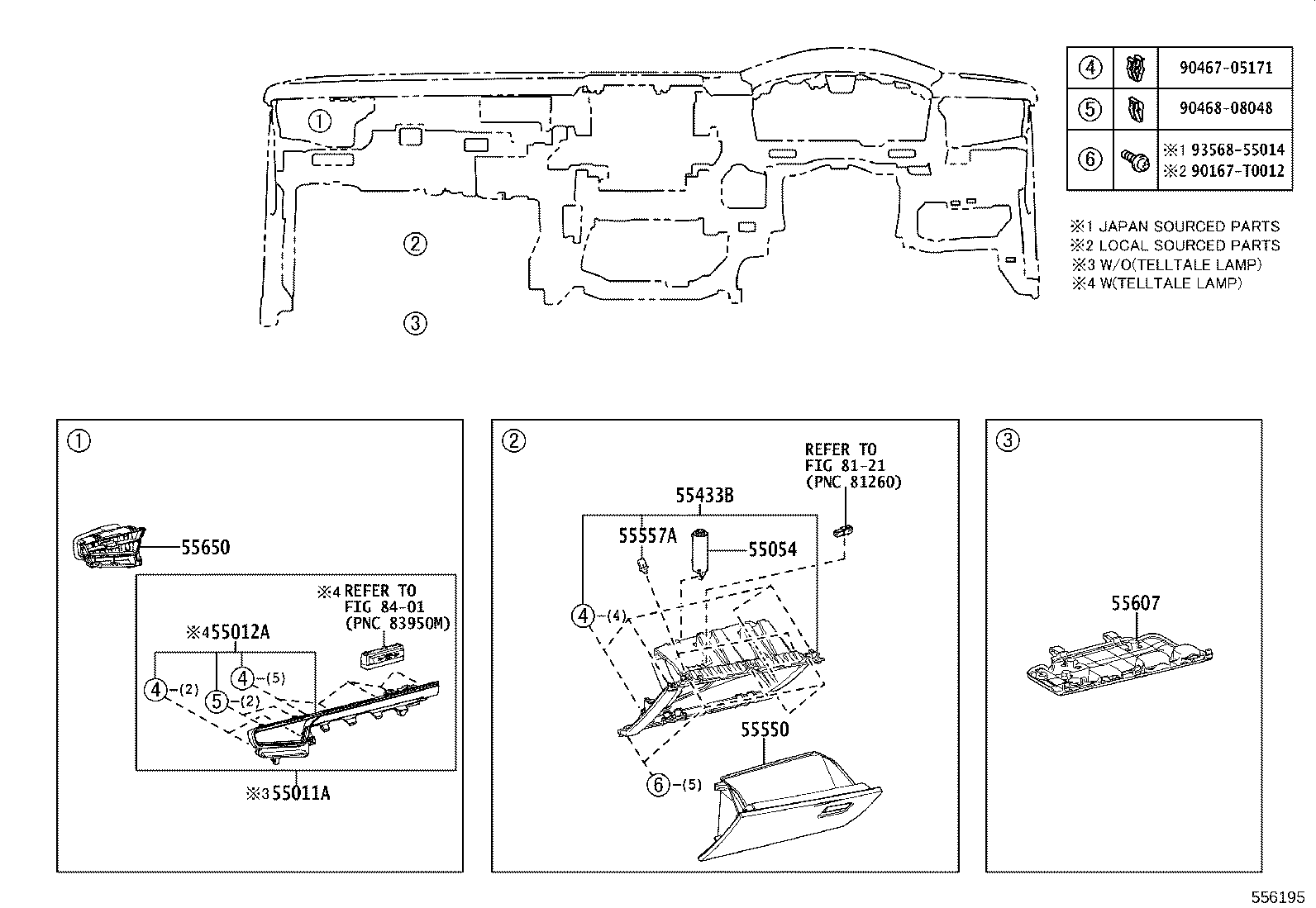

Illustrations
Part groups
| PNC | Description |
|---|---|
| 55011A | Garnish Sub-assy, Instrument Panel, NO.1 |
| 55012A | Garnish Sub-assy, Instrument Panel, NO.2 |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55300 | Panel Assy, Instrument, Upper |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308B | Brace Sub-assy, Instrument Panel TO Cowl, NO.3 |
| 55312A | Clip, Instrument Panel |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55328C | Pin, Instrument Panel, NO.2 |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55395 | Bracket, Instrument Panel TO Pedal |
| 55400 | Pad Assy, Instrument Panel Safety |
| 55403F | Panel Sub-assy, Instrument Panel Finish |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55416C | Retainer, Instrument Cluster Finish Panel |
| 55417B | Retainer, Radio Tuner Finish |
| 55422C | Panel, Instrument Cluster Finish, Center Upper |
| 55431A | Panel, Instrument Panel Finish |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434F | Panel, Instrument Panel Finish, Lower Center |
| 55468D | Retainer, Instrument Panel Safety Pad, Center |
| 55470 | Garnish Assy, Instrument Cluster Finish Panel |
| 55474B | Garnish, Instrument Cluster Finish Panel |
| 55475A | Garnish, Instrument Cluster Finish Panel, NO.2 |
| 55522B | Cover, Radio Tuner Opening |
| 55524 | Cover, Switch Bace Hole |
| 55538C | Cover, Cooler Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55961A | Nozzle, Side Defroster, RH |
| 55962A | Nozzle, Side Defroster, LH |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
