Toyota Corolla/Altis

2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

27 part groups · 3 illustrations

Illustrations

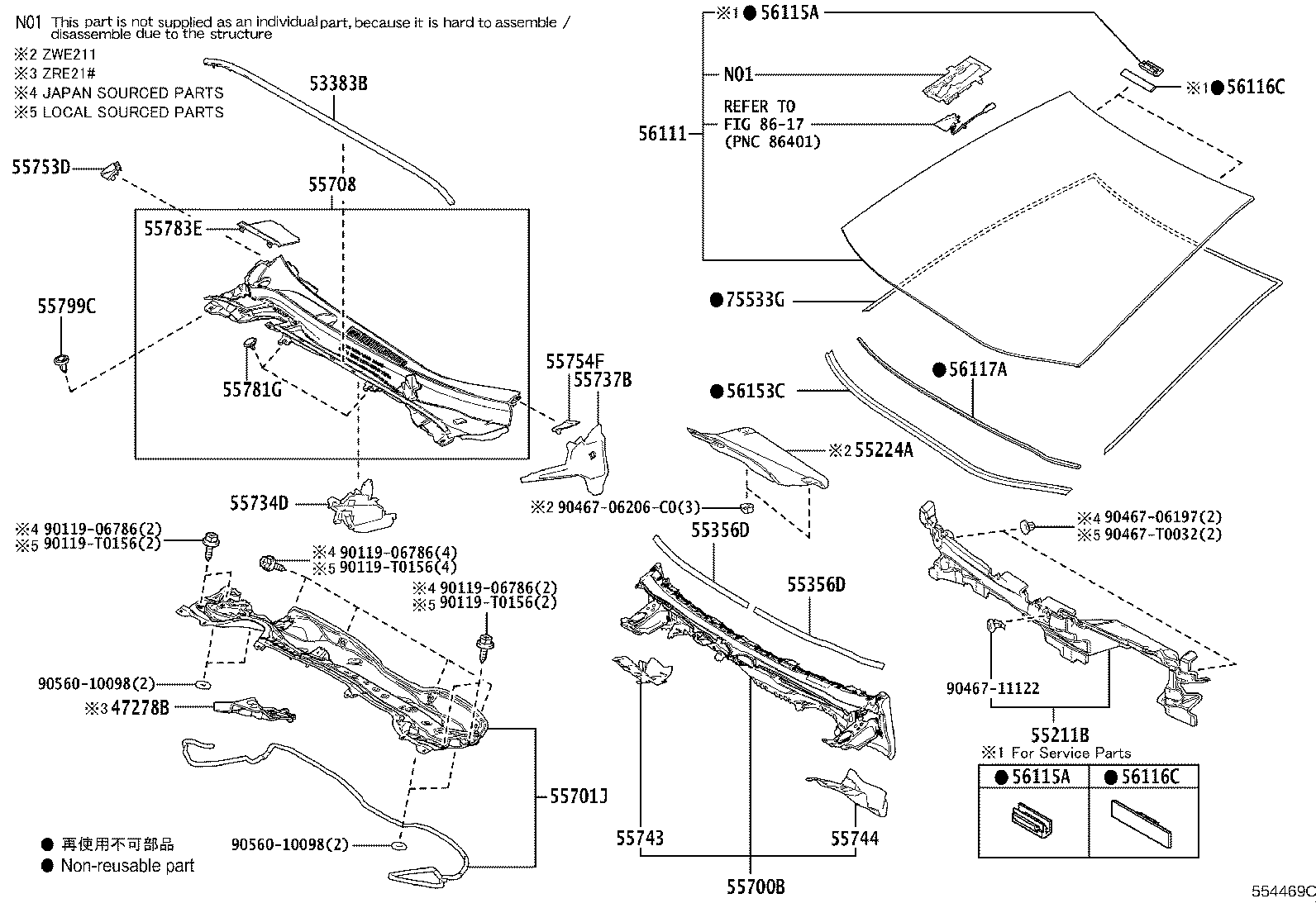

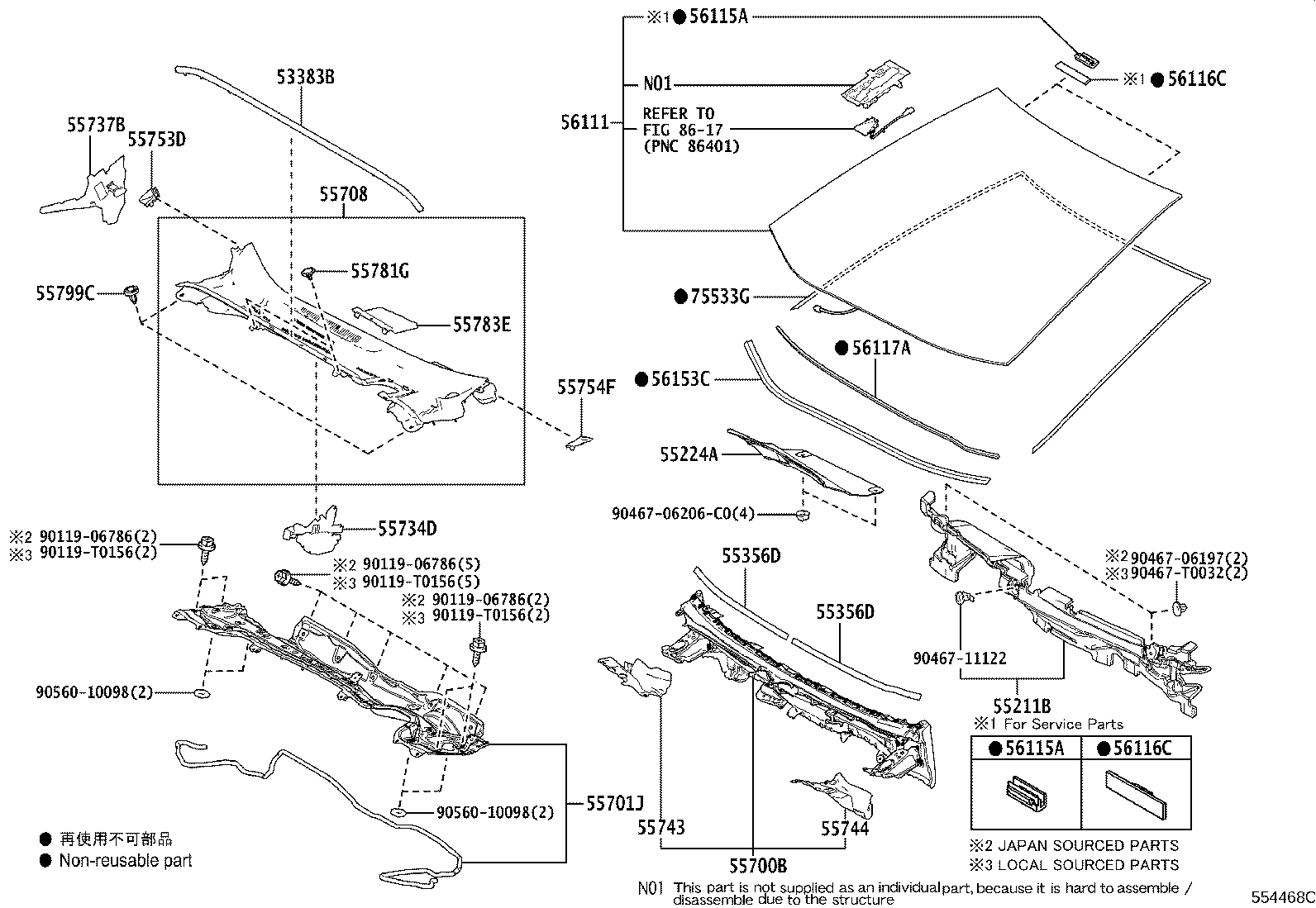

Figure 554404C 554404C 2019-04 → — Figure 554468C 554468C 2019-08 → — Figure 554469C 554469C 2019-08 → —

Part groups

PNCDescription
47278B Cover, Brake Master Cylinder
53383B Seal, Hood TO Cowl Top
55211B Silencer, Front Panel
55224A Insulator, Dash Panel, Outer NO.2
55356D Cushion, Instrument Panel, NO.2
55700B Cowl Assy
55701J Panel Sub-assy, Cowl Top, Outer
55708 Louver Sub-assy, Cowl Top Ventilator
55734D Plate, Water Guard
55737B Seal, Heater Air Duct Splash Shield, NO.1
55743 Panel, Cowl Top Outside Corner, RH
55744 Panel, Cowl Top Outside Corner, LH
55753D Shield, Cowl Water Extract, RH
55754F Shield, Cowl Water Extract, LH
55781G Clip, Cowl Top Ventilator Louver
55783E Louver, Cowl Top Ventilator, Center
55799C Clip, Cowl Top Ventilator Louver
55875A Seal, Air Duct, NO.5
55876D Seal, Air Duct, NO.6
55877B Cover, Cowl Vent, RH
55878B Cover, Cowl Vent, LH
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56153C Moulding, Front Window, Inner Center
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
