Toyota Corolla/Altis
2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General
Supported model
Data version 2024-10
Mat & Carpet
17 part groups · 4 illustrations
Part groups

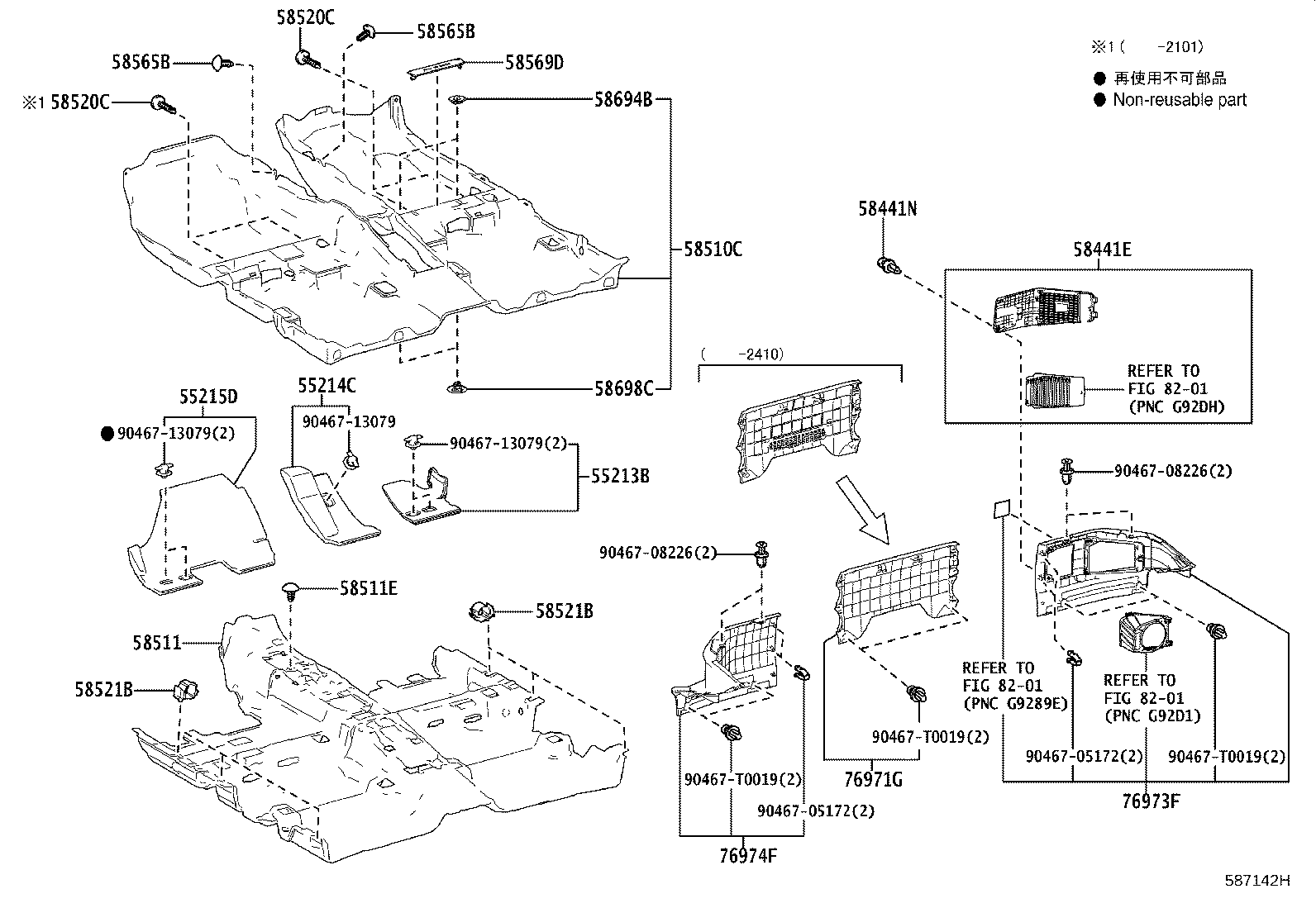

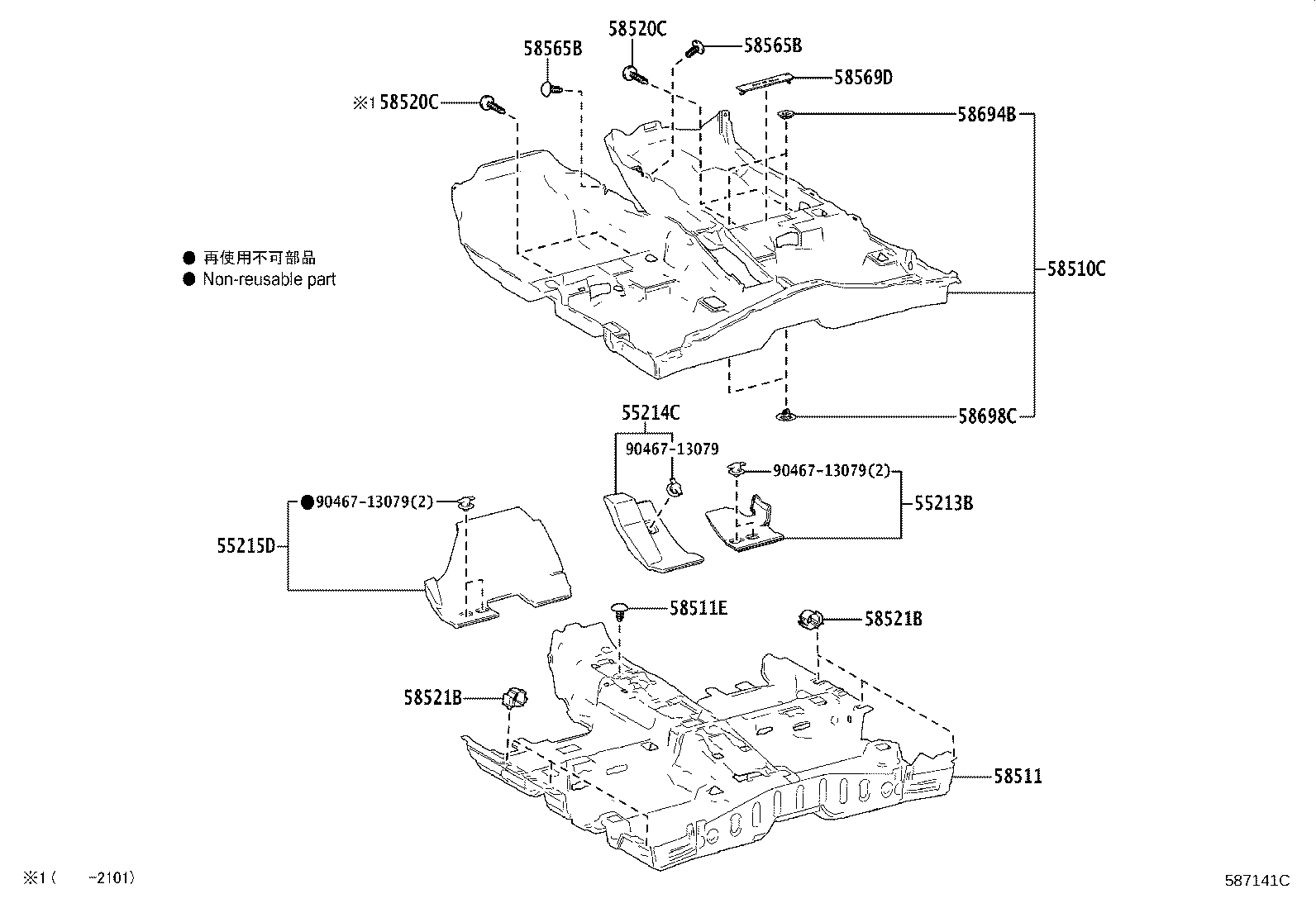

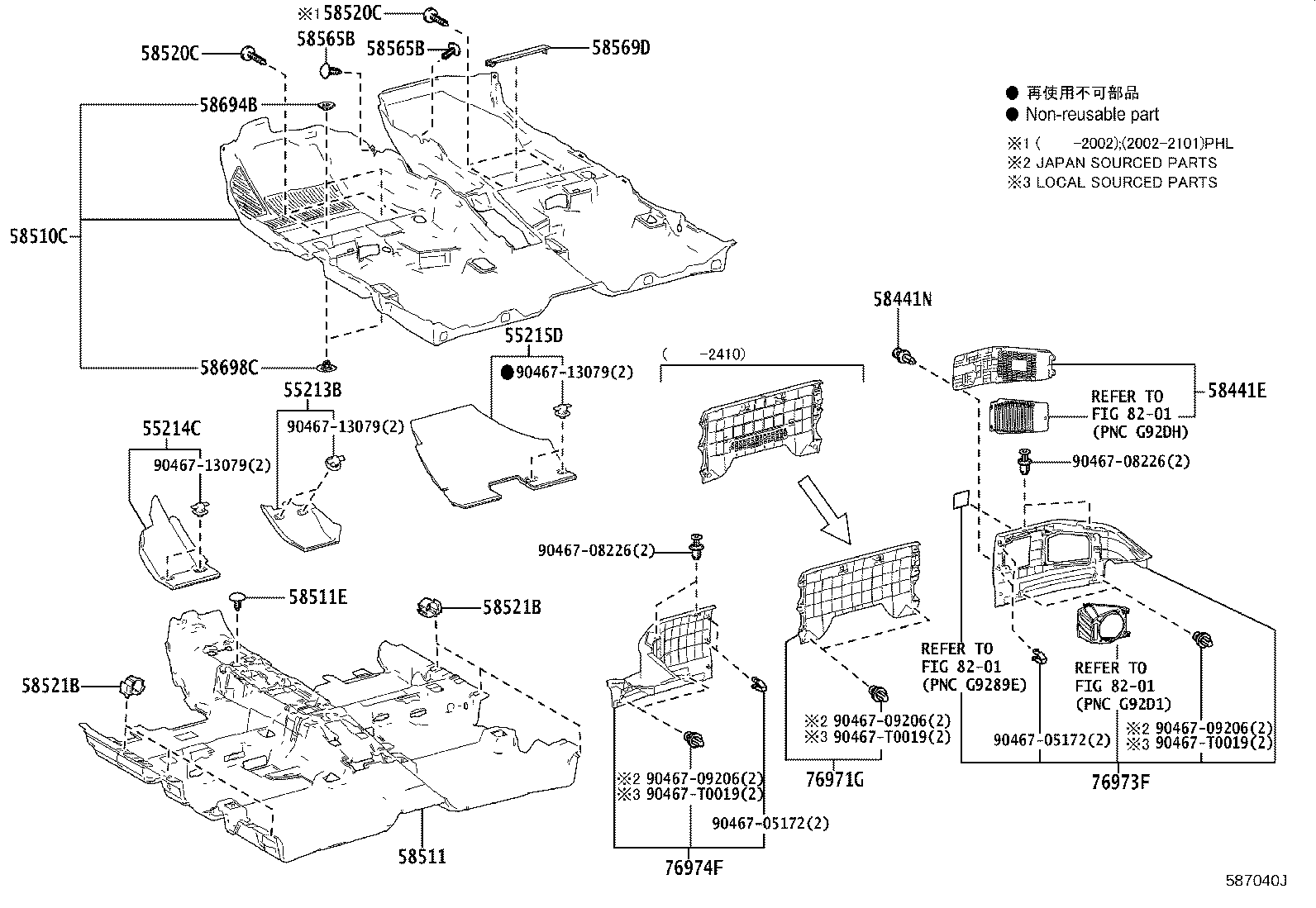

| PNC | Description |
|---|---|
| 55213B | Pad, Dash Panel Insulator, NO.1 |
| 55214C | Pad, Dash Panel Insulator, NO.2 |
| 55215D | Pad, Dash Panel Insulator, NO.3 |
| 58441E | Cover, Battery Service Hole |
| 58441N | Clip(FOR BATTERY SERVICE HOLE COVER) |
| 58510C | Carpet Assy, Front Floor, Front |
| 58511 | Mat, Floor, Front |
| 58511E | Clip(FOR FRONT FLOOR MAT) |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58565B | Clip |
| 58569D | Cover, Front Floor Caution Plate |
| 58694B | Plate, Mat Set, Upper |
| 58698C | Plate, Mat Set, Lower |
| 76971G | Cover, Rear Under |
| 76973F | Cover, Rear Under Side, RH |
| 76974F | Cover, Rear Under Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
