Toyota Corolla/Altis

2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

15 part groups · 2 illustrations

Illustrations

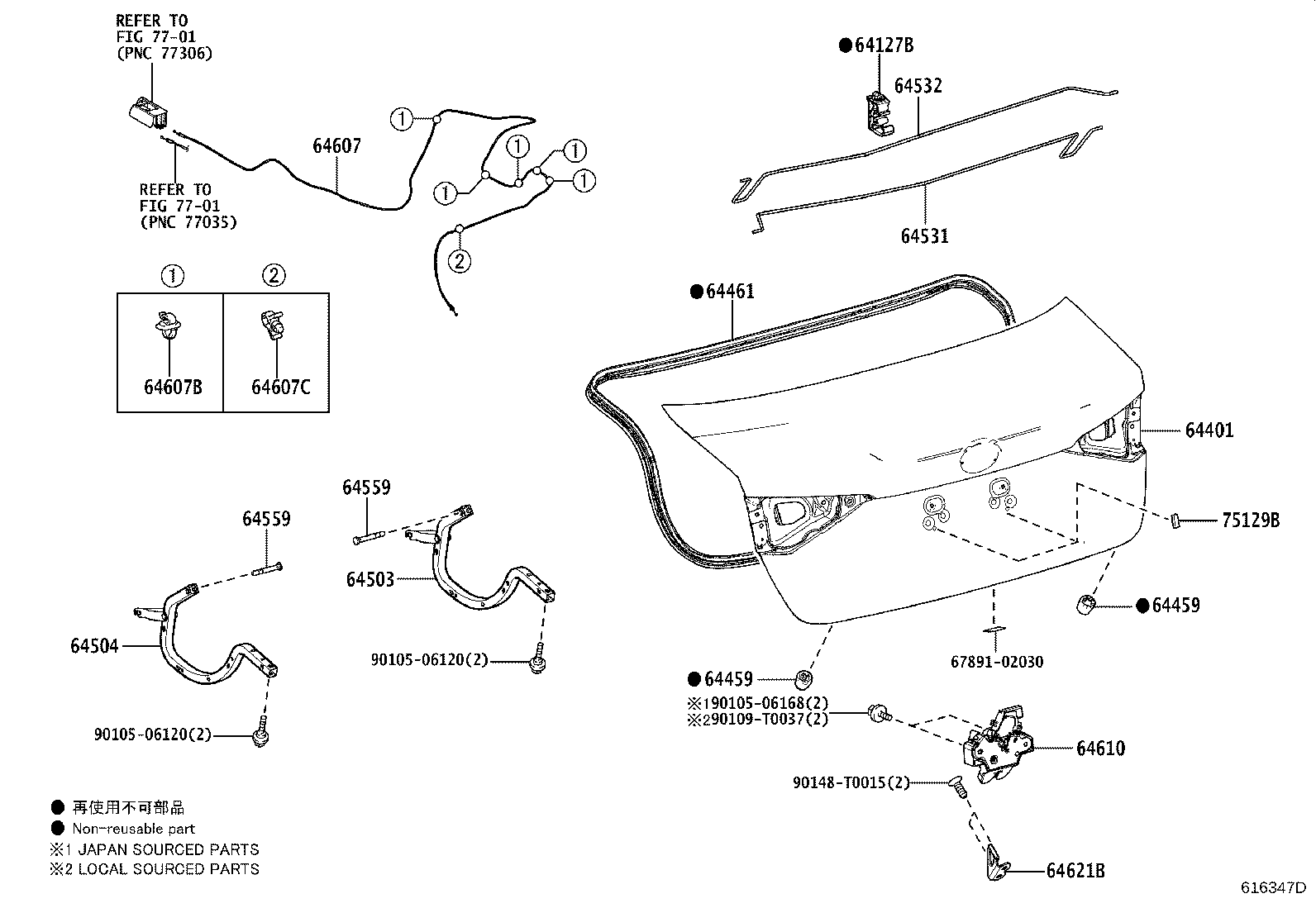

Figure 616273E 616273E 2019-04 → — Figure 616347D 616347D 2019-08 → —

Part groups

PNCDescription
64127B Support, Luggage Compartment Door Torsion Bar
64401 Panel Sub-assy, Luggage Compartment Door
64459 Cushion, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64559 Pin, Luggage Door Hinge
64607 Cable Sub-assy, Luggage Door Lock Control
64607B Clamp, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64607C Clamp, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64610 Lock Assy, Luggage Compartment Door
64621B Striker, Luggage Compartment Door Lock
75129B Cushion, Rear Licence Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
