Toyota Corolla/Altis
2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General
Supported model
Data version 2024-10

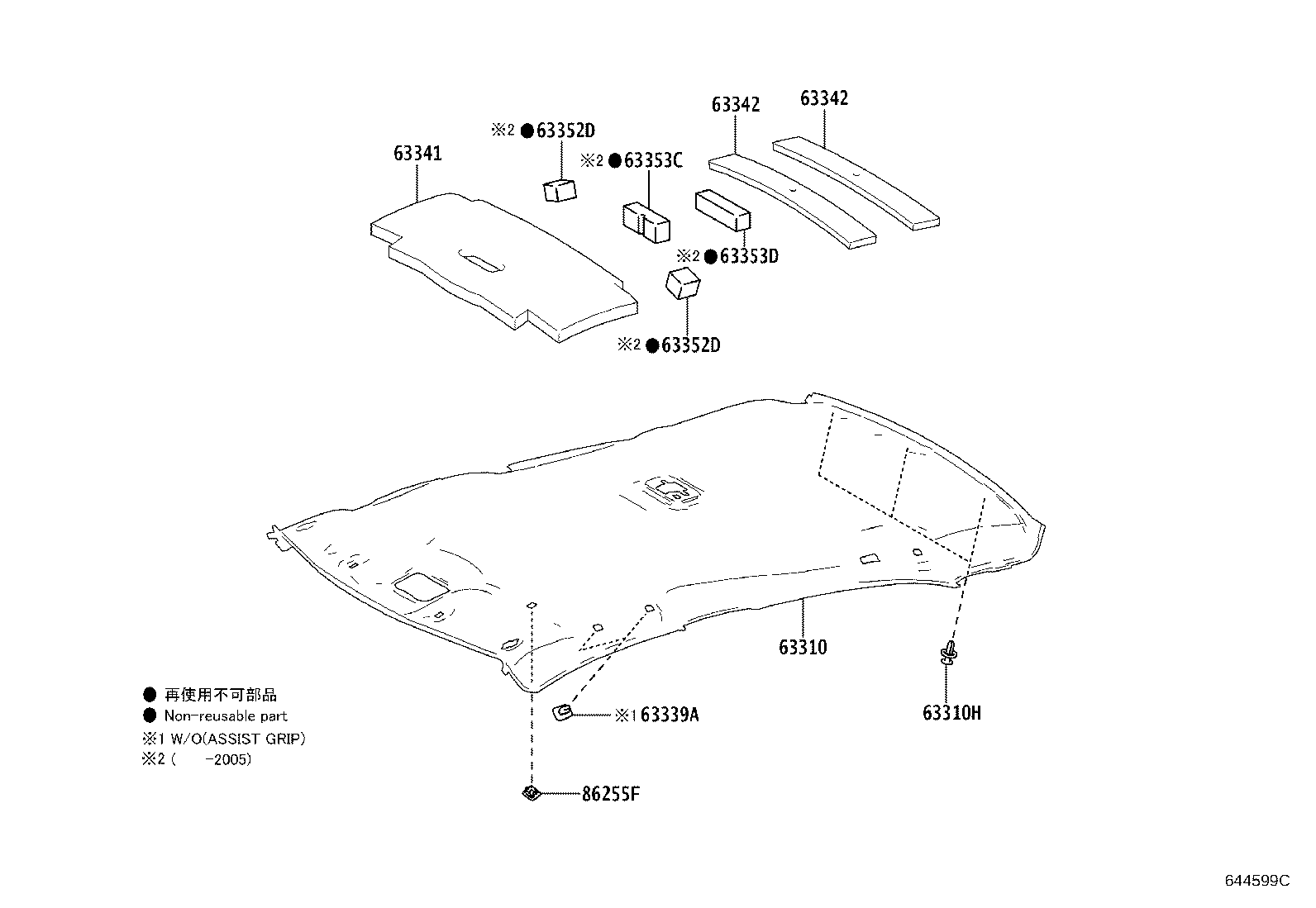

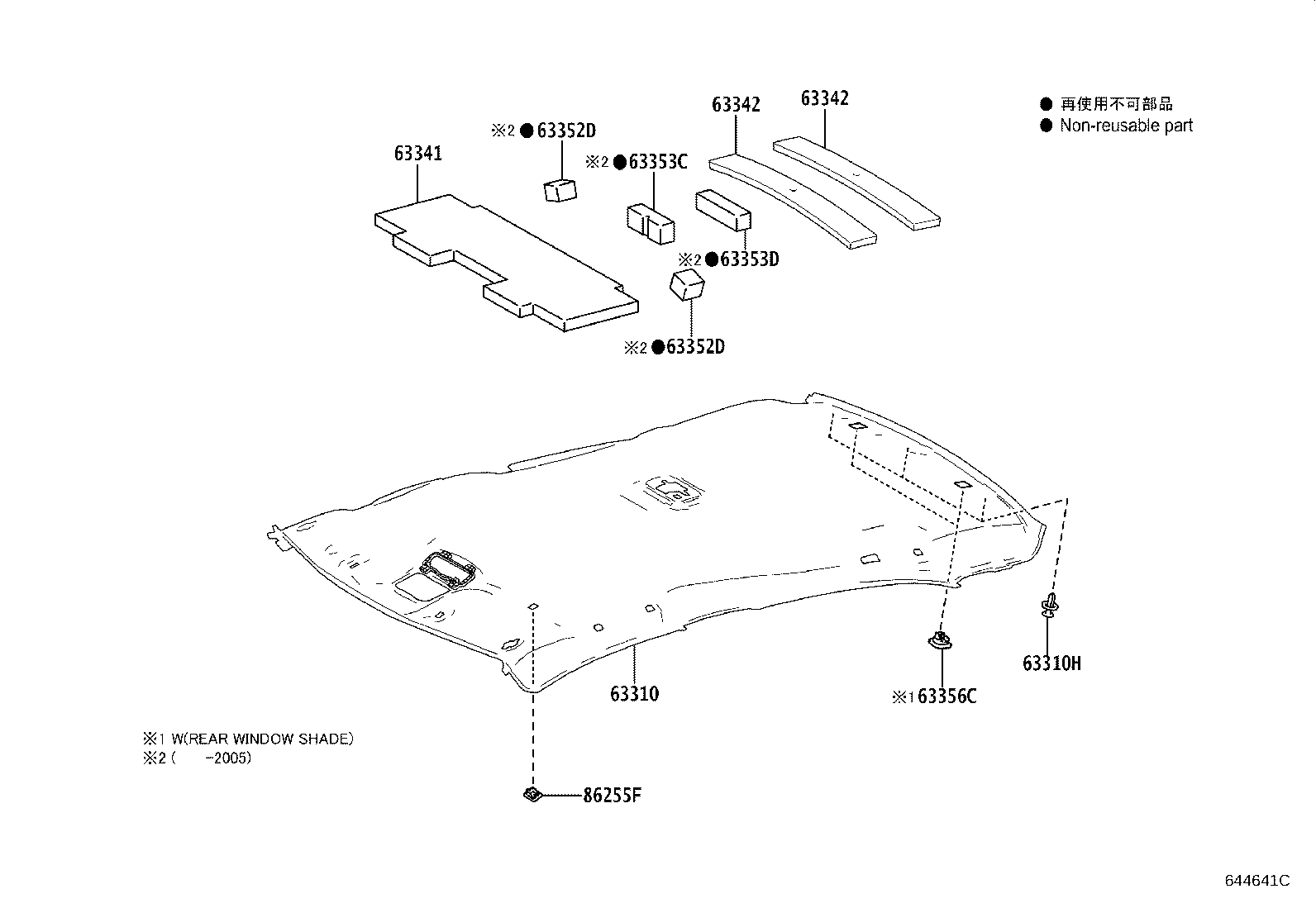

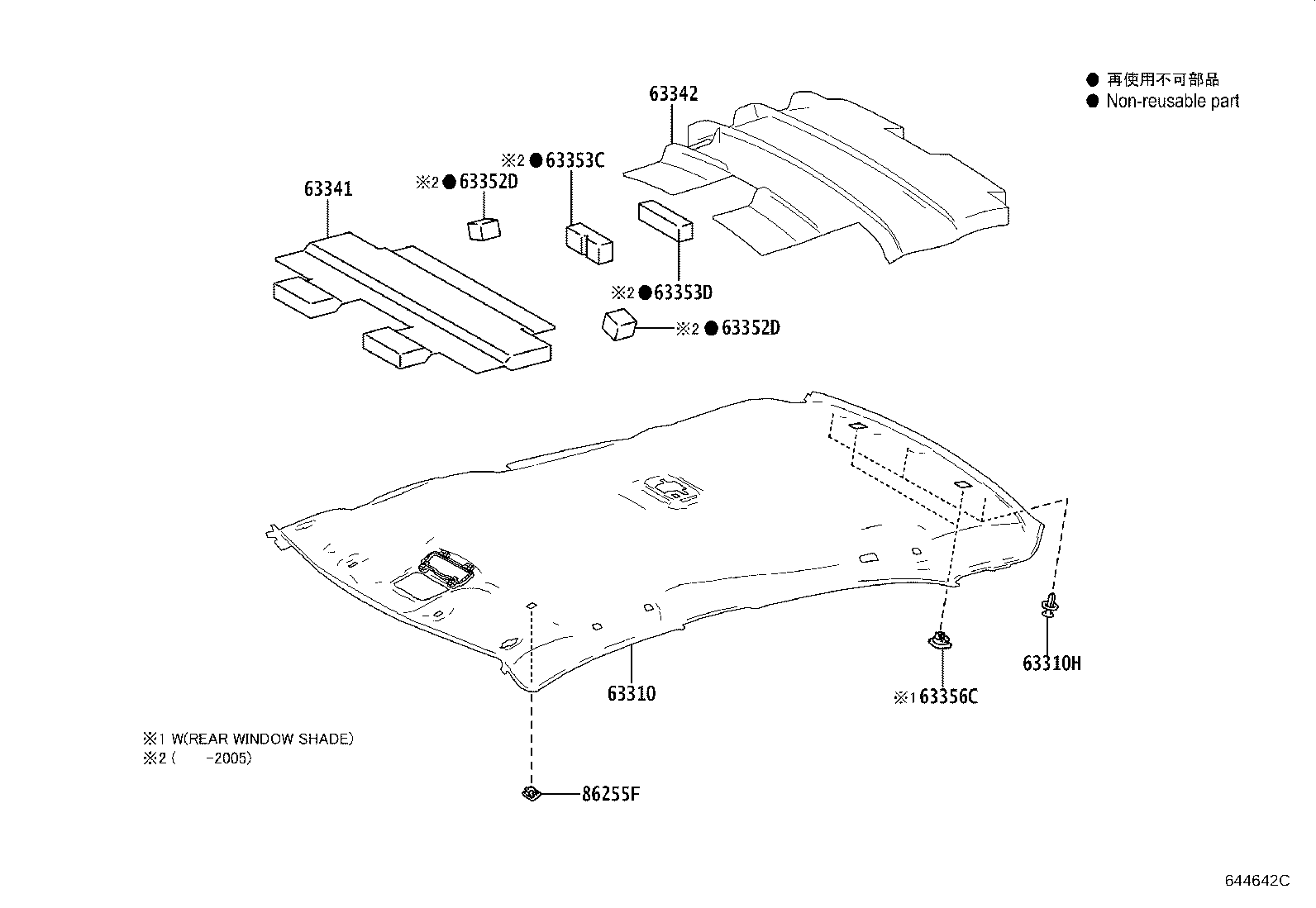

Roof Headlining & Silencer Pad
11 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63339A | Cover, Roof Headlining Service Hole |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63352D | Pad, Roof Headlining, NO.2 |
| 63353C | Pad, Roof Headlining, Center |
| 63353D | Pad, Roof Headlining, Center |
| 63356C | Holder, Sunshade Trim |
| 86255F | Case, Microphone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
