Toyota Corolla/Altis

2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

29 part groups · 4 illustrations

Illustrations

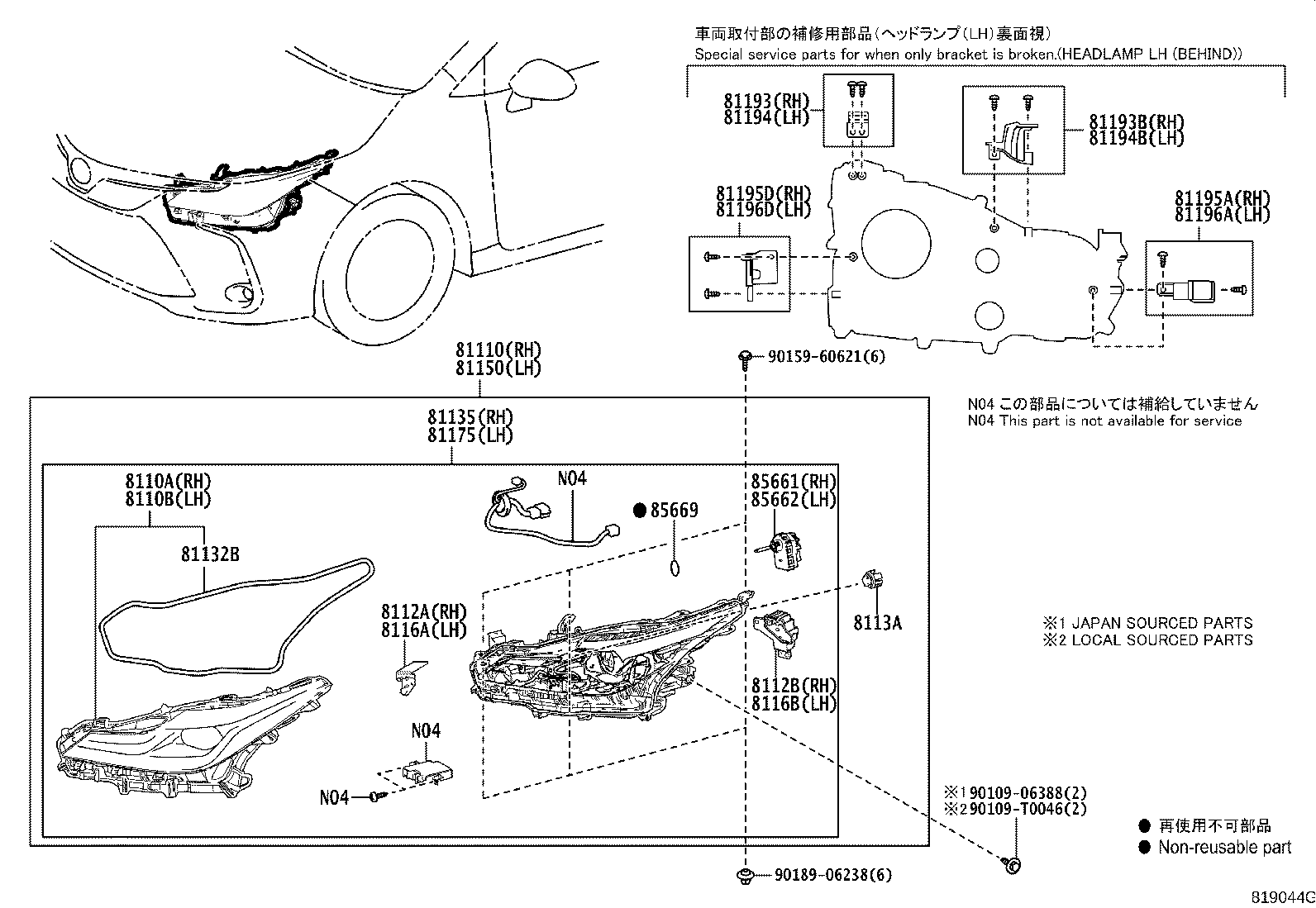

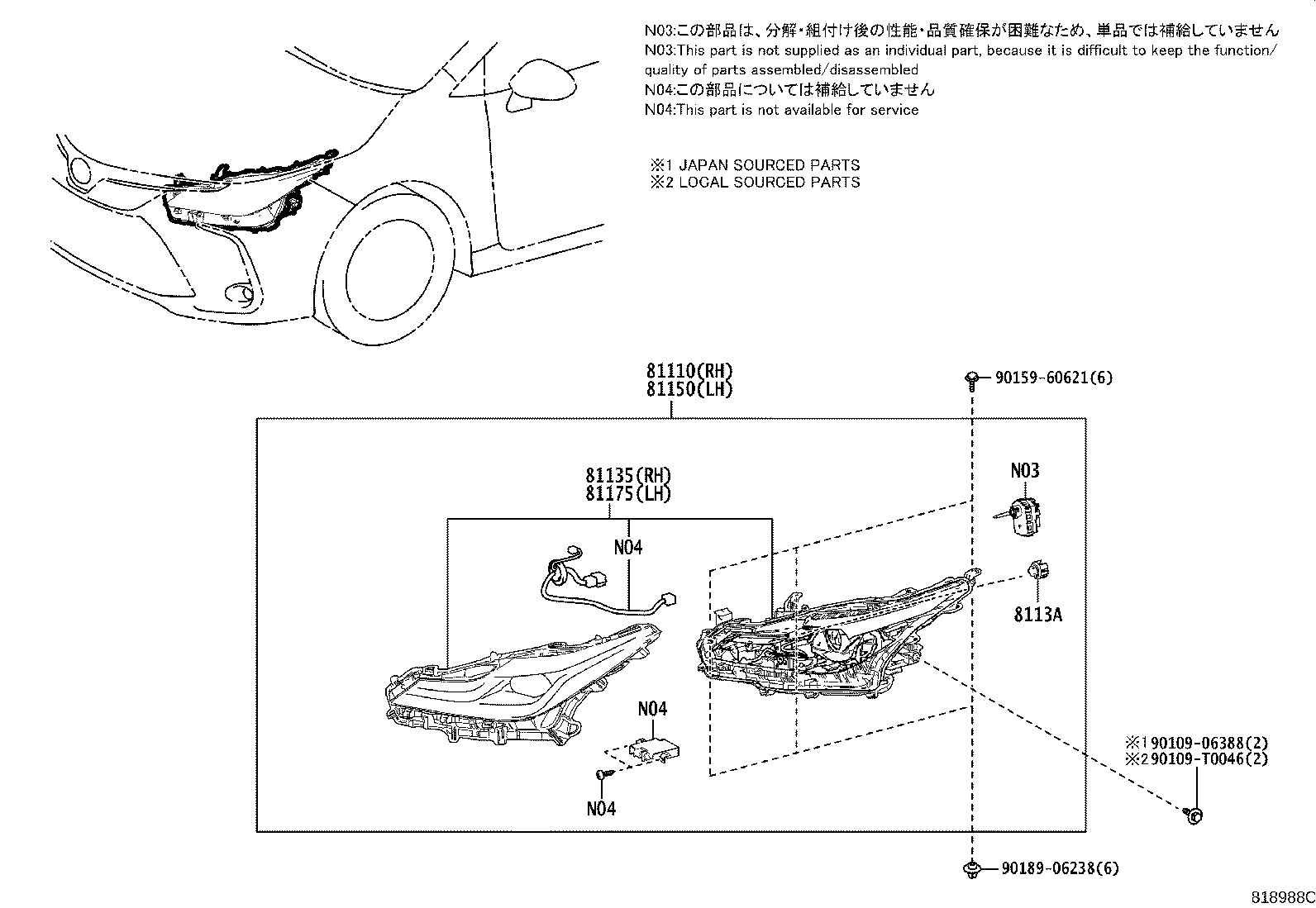

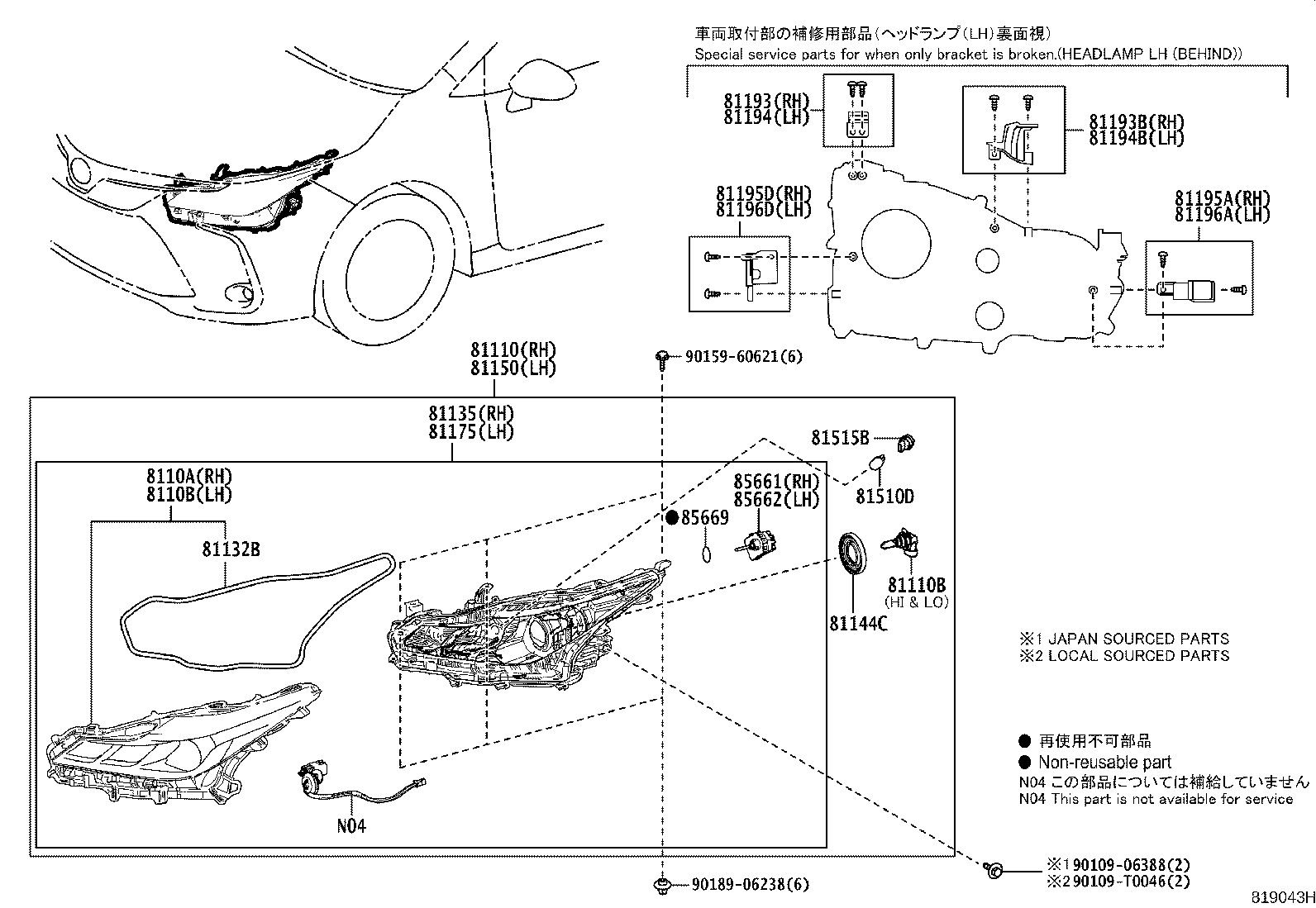

Figure 818987D 818987D 2019-04 → — Figure 818988C 818988C 2019-04 → — Figure 819043H 819043H 2019-08 → — Figure 819044G 819044G 2019-08 → —

Part groups

PNCDescription
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
8112A Unit, Headlamp Clearance Led, NO.1 RH
8112B Unit, Headlamp Clearance Led, NO.2 RH
81132B Gasket, Headlamp Lens
81135 Unit Assy, Headlamp, RH
8113A Led, Headlamp Front Turn Signal
81144C Cover, Headlamp Socket
81150 Headlamp Assy, LH
8116A Unit, Headlamp Clearance Led, NO.1 LH
8116B Unit, Headlamp Clearance Led, NO.2 LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195A Retainer, Headlamp Protector, Lower RH
81195D Retainer, Headlamp Protector, Lower RH NO.2
81196A Retainer, Headlamp Protector, Lower LH
81196D Retainer, Headlamp Protector, Lower LH NO.2
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
