Toyota Corolla/Altis
2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General
Supported model
Data version 2024-10

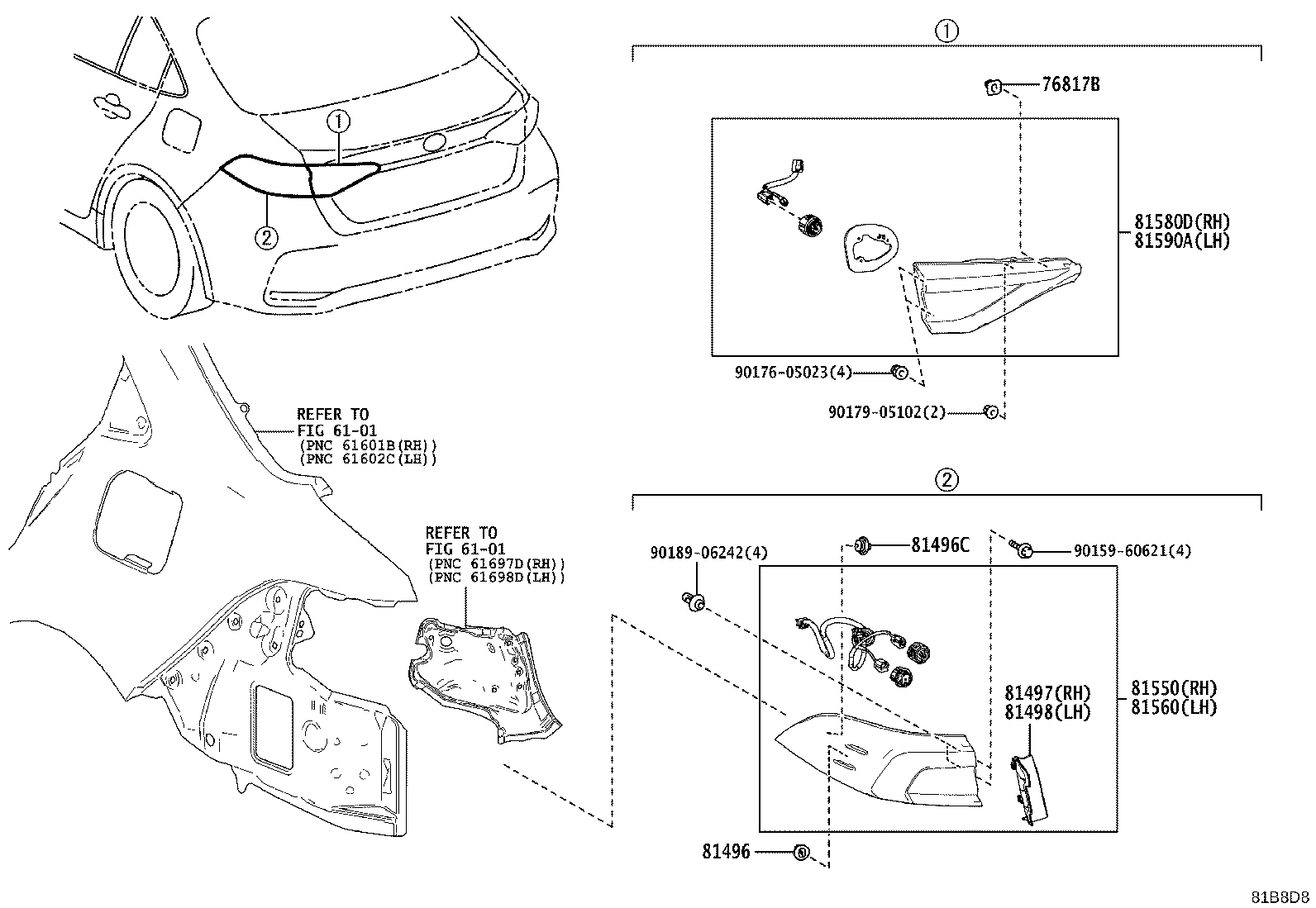

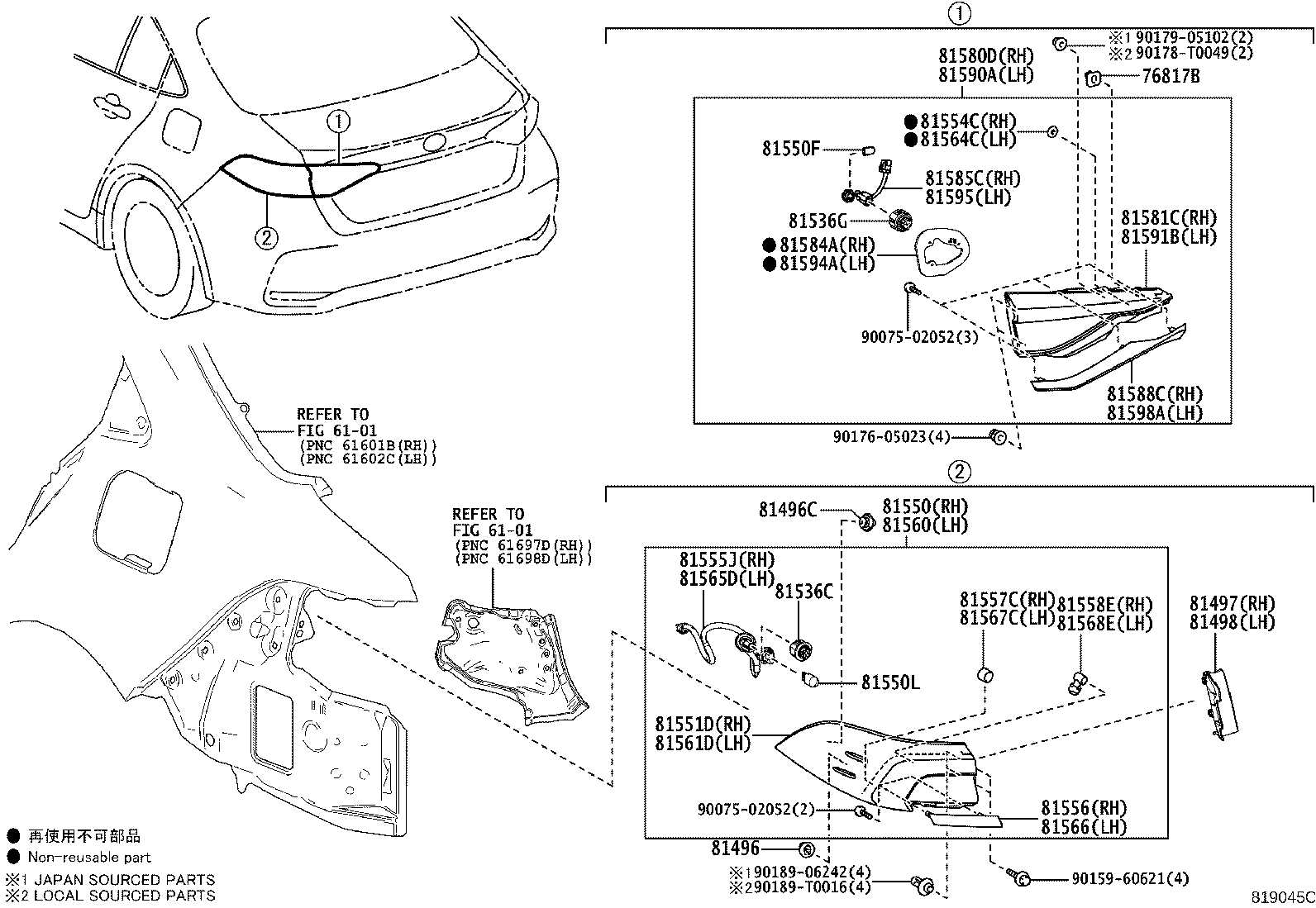

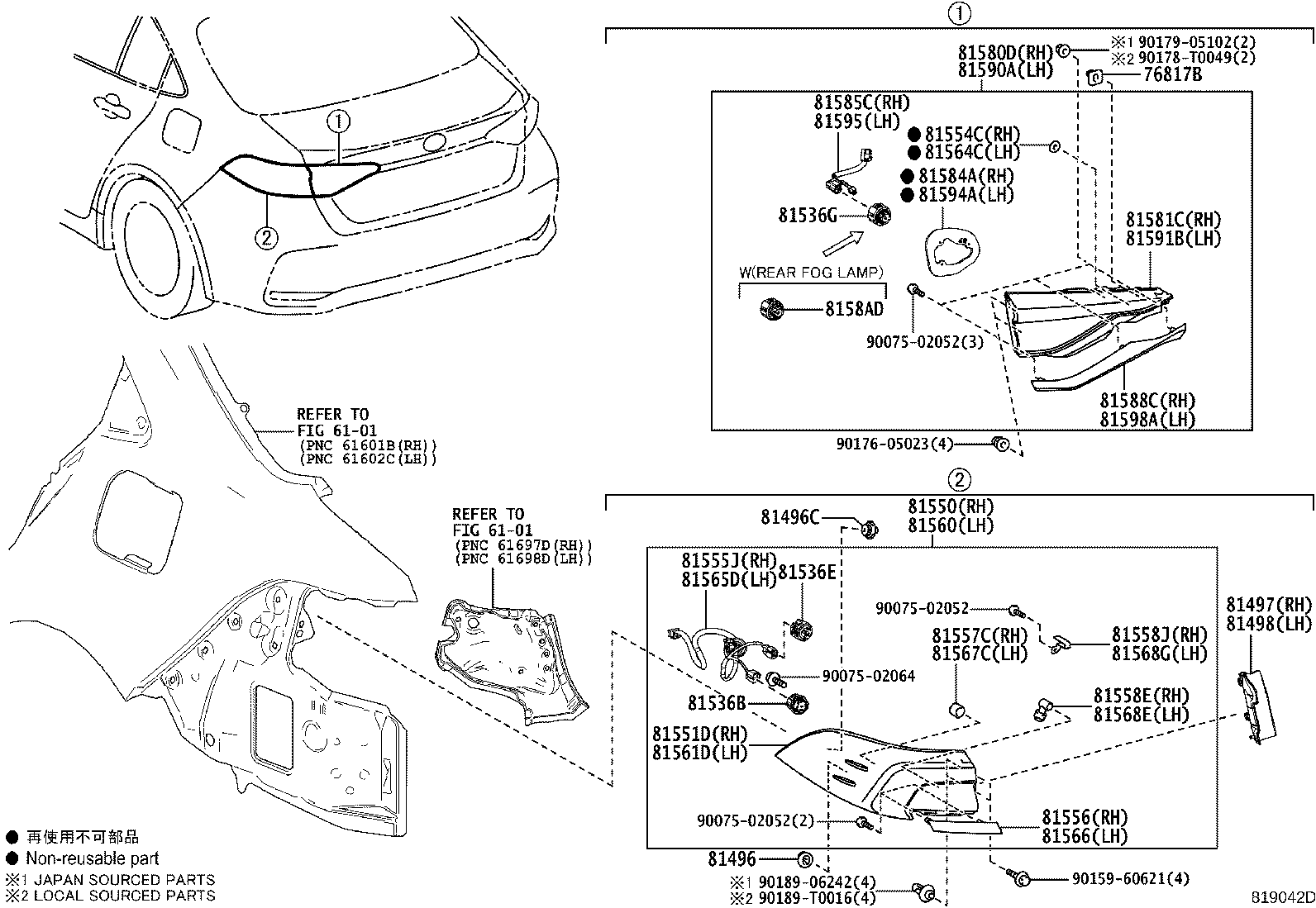

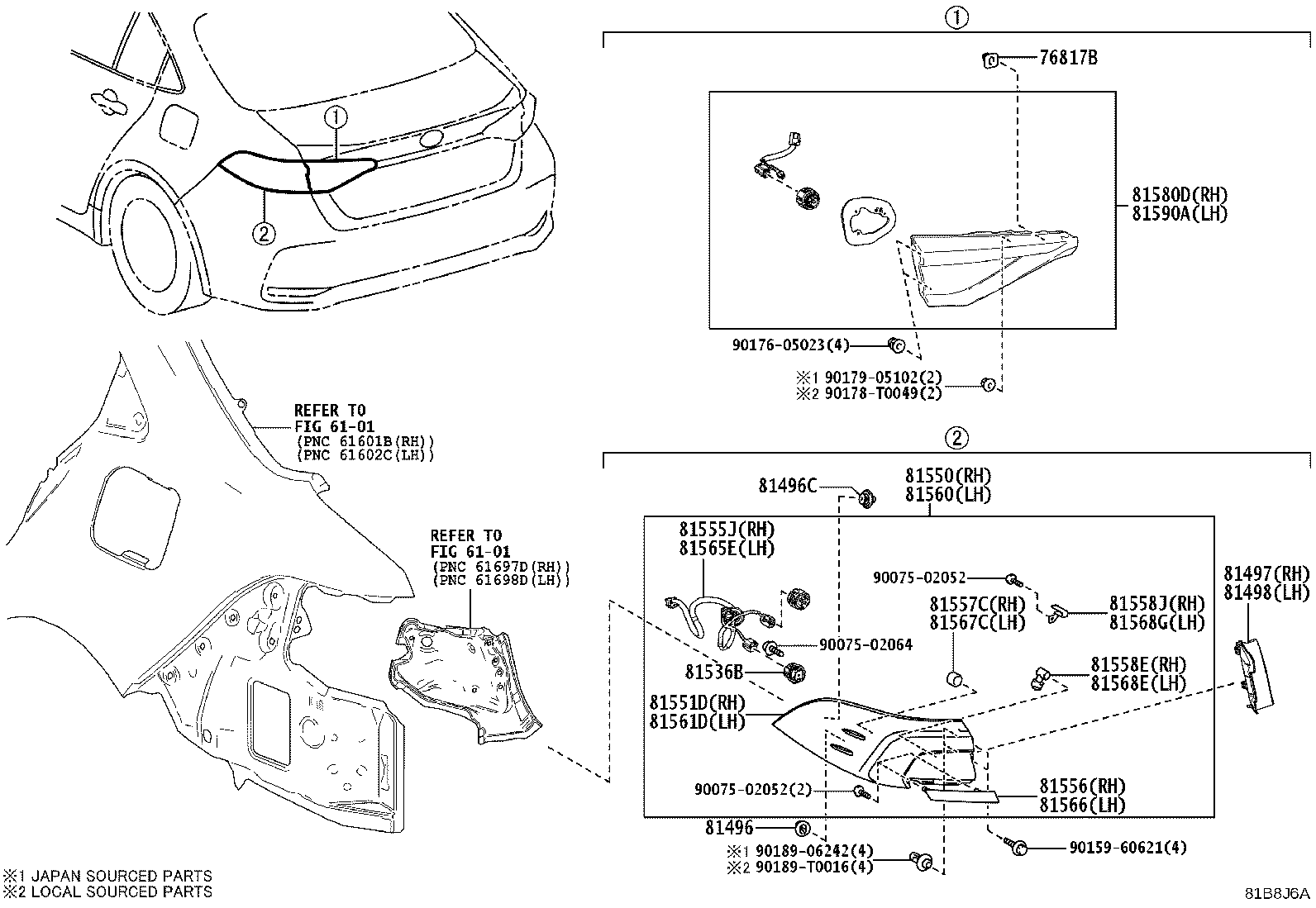

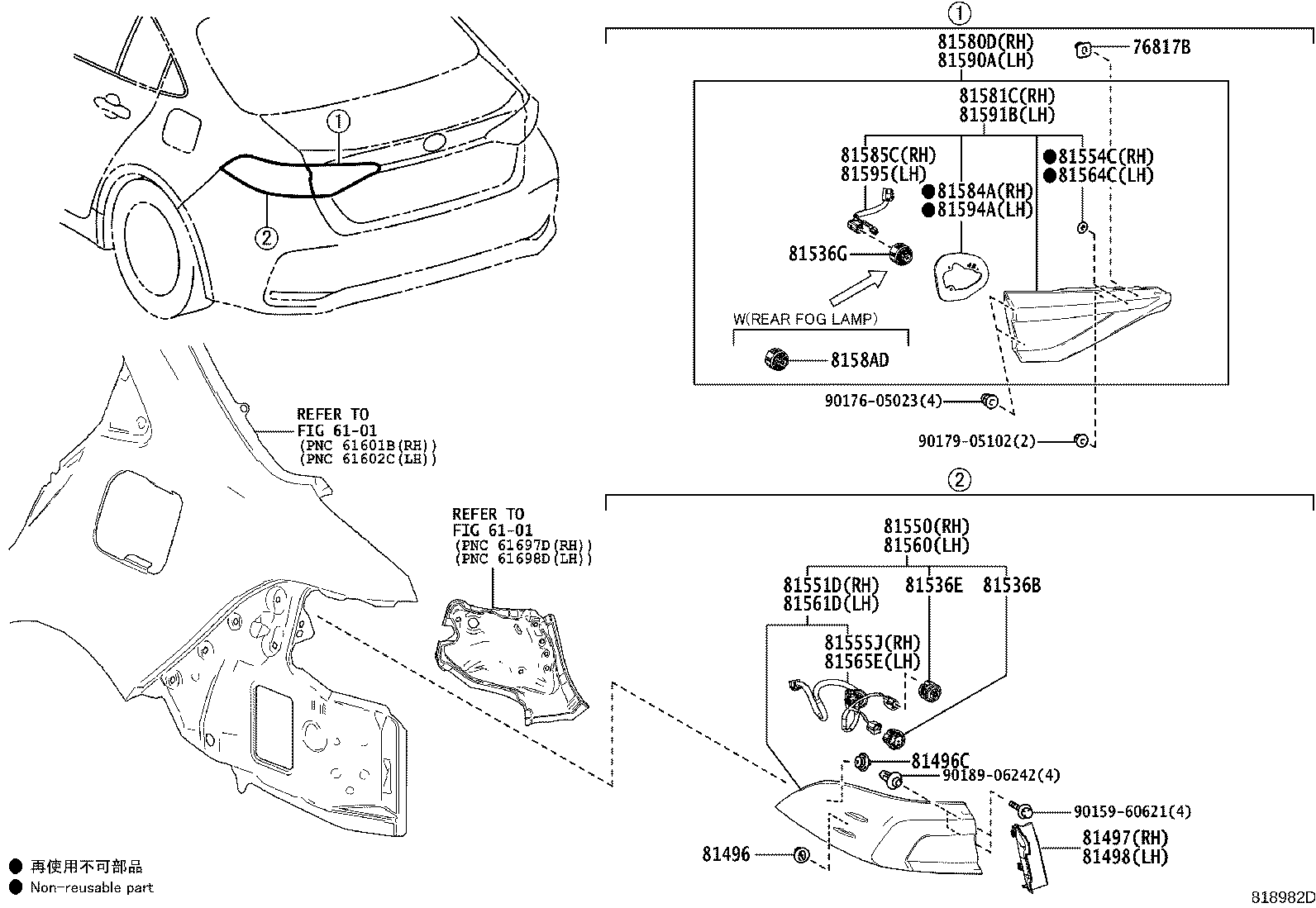

Rear Combination Lamp
39 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 76817B | Clip, Rear Lamp |
| 81496 | Guide, Rear Combination Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81536B | Led, Rear Turn Signal Lamp |
| 81536C | Led, Tail & Stop Lamp |
| 81536E | Led, Stop Lamp |
| 81536G | Led, Back-up Lamp |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550F | Bulb, Taillamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81554C | Packing, Rear Combination Lamp Body, RH |
| 81555J | Socket & Wire, Rear Combination Lamp, RH |
| 81556 | Rim, Rear Combination Lamp, RH |
| 81557C | Cover, Rear Combination Lamp, RH |
| 81558E | Cover, Rear Combination Lamp, RH |
| 81558J | Plate, Rear Combination Lamp Circuit, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81564C | Packing, Rear Combination Lamp Body, LH |
| 81565D | Cord, Rear Combination Lamp, LH |
| 81565E | Socket & Wire, Rear Combination Lamp, LH |
| 81566 | Rim, Rear Combination Lamp, LH |
| 81567C | Cover, Rear Combination Lamp, LH |
| 81568E | Cover, Rear Combination Lamp, LH |
| 81568G | Plate, Rear Combination Lamp Circuit, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 81588C | Rim, Rear Lamp, RH |
| 8158AD | Led, Rear Fog Lamp |
| 81590A | Lamp Assy, Rear, LH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
| 81598A | Rim, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
