Toyota Corolla/Altis
2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General
Supported model
Data version 2024-10

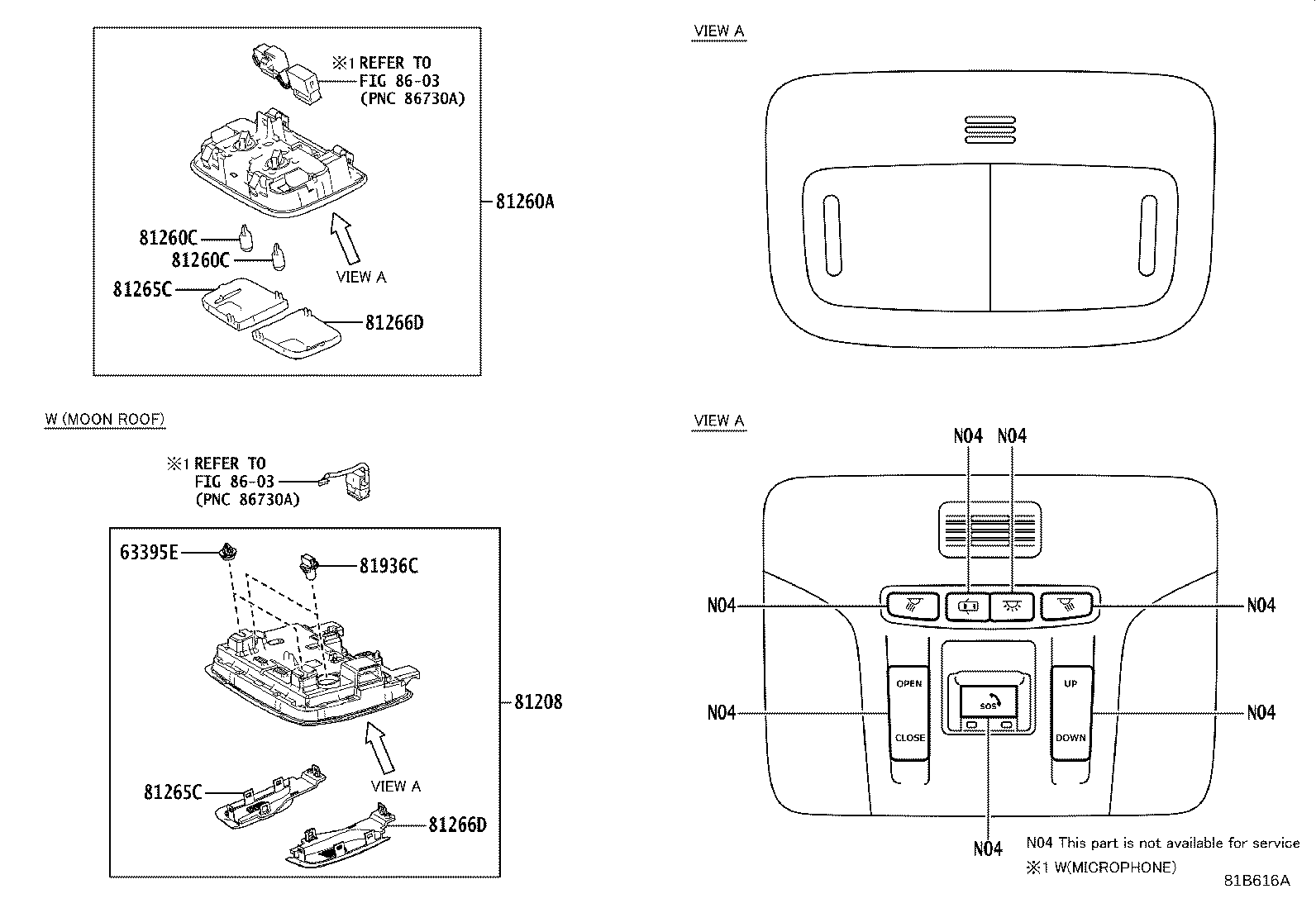

Interior Lamp
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81208 | Lamp Sub-assy, Map |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81265C | Lens, Map Lamp, NO.1 |
| 81266D | Lens, Map Lamp, NO.2 |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 813A0 | Lamp Assy, Instrument Panel |
| 81871 | Lens, Key Illumination |
| 81936C | Bulb Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
