Toyota Corolla/Altis

2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

5 part groups · 2 illustrations

Illustrations

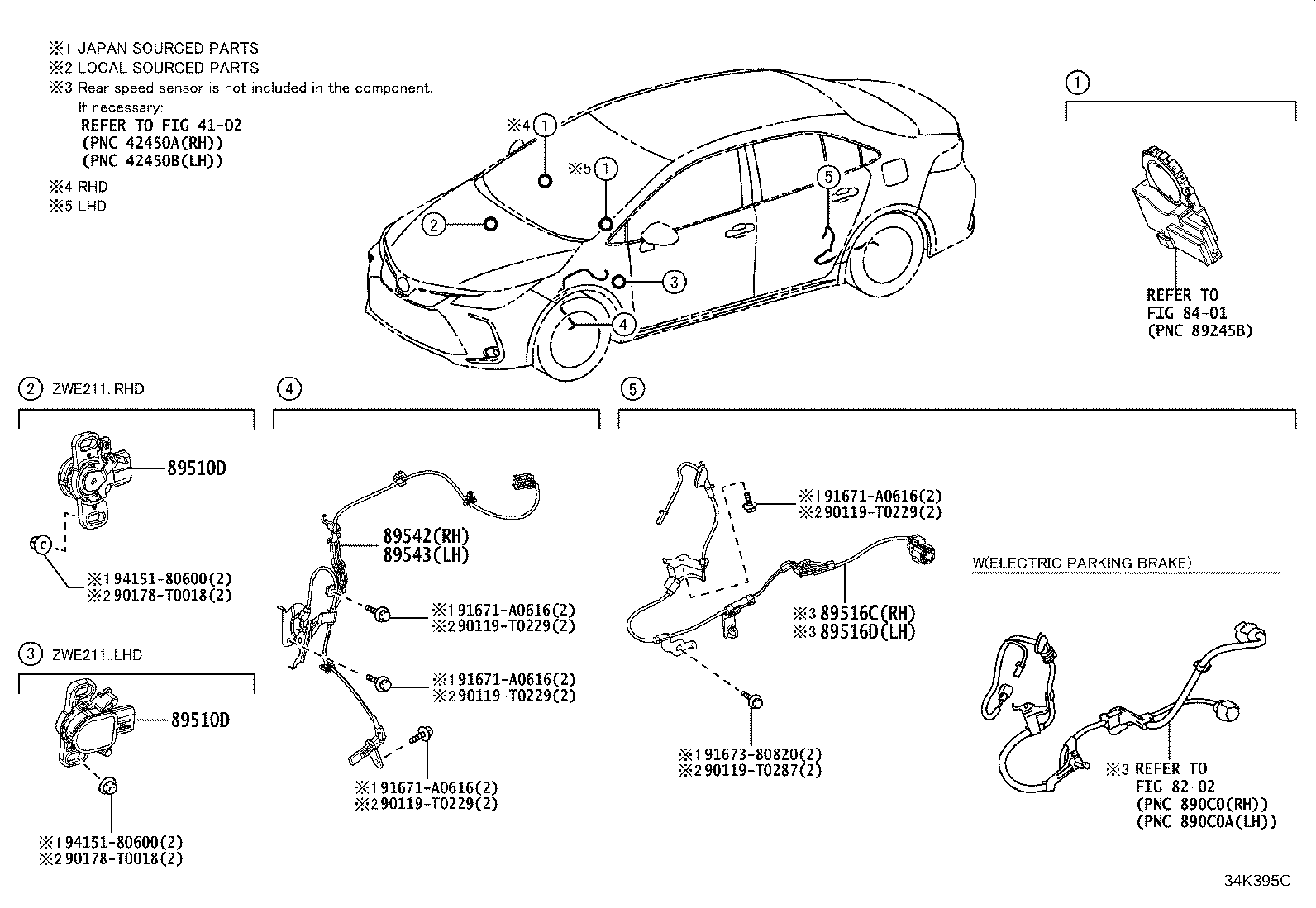

Figure 84K132B 84K132B 2019-04 → — Figure 84K395C 84K395C 2019-08 → —

Part groups

PNCDescription
89510D Sensor Assy, Brake Pedal Stroke
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
