Toyota Corolla/Altis

2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

8 part groups · 13 illustrations

Illustrations

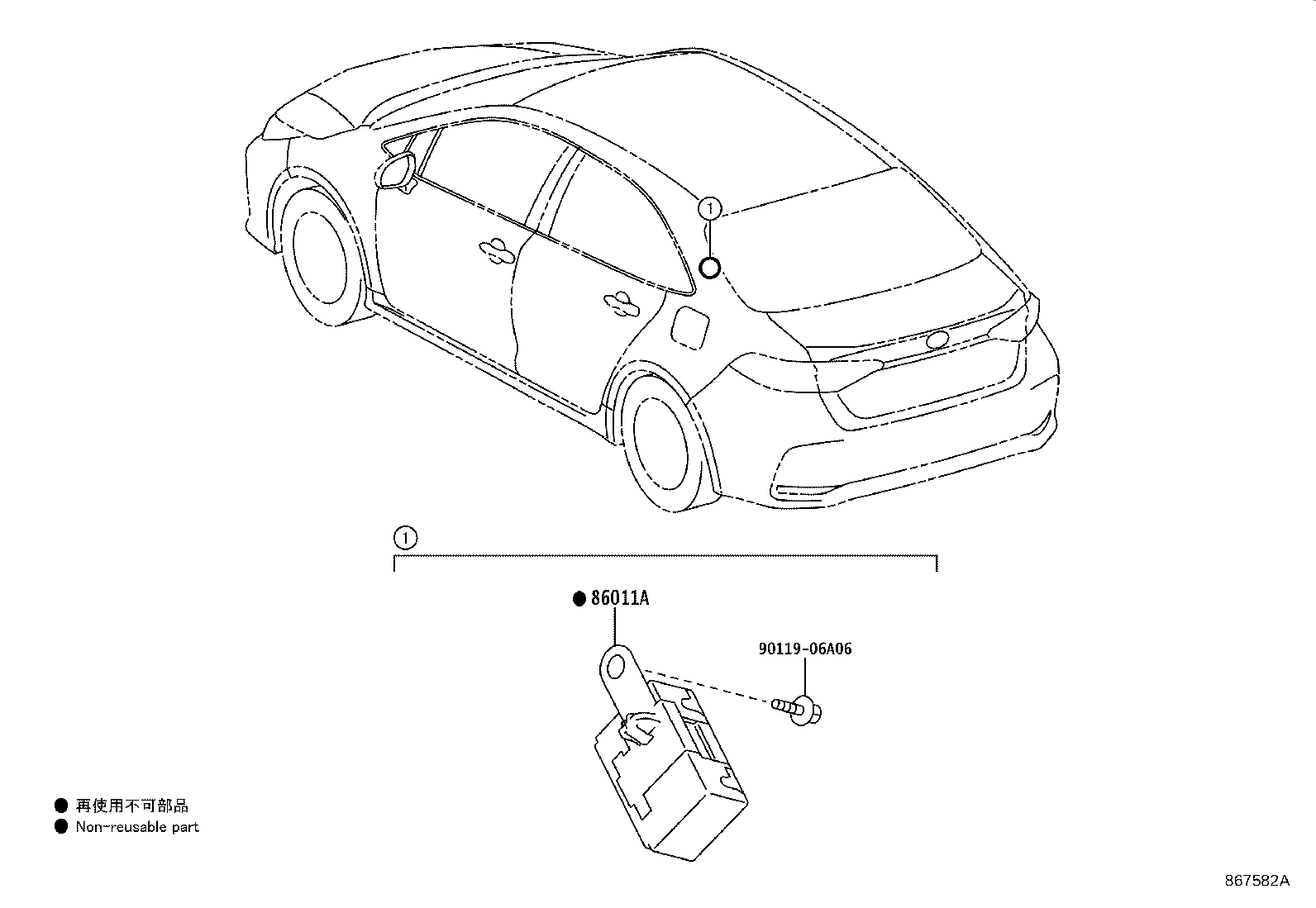

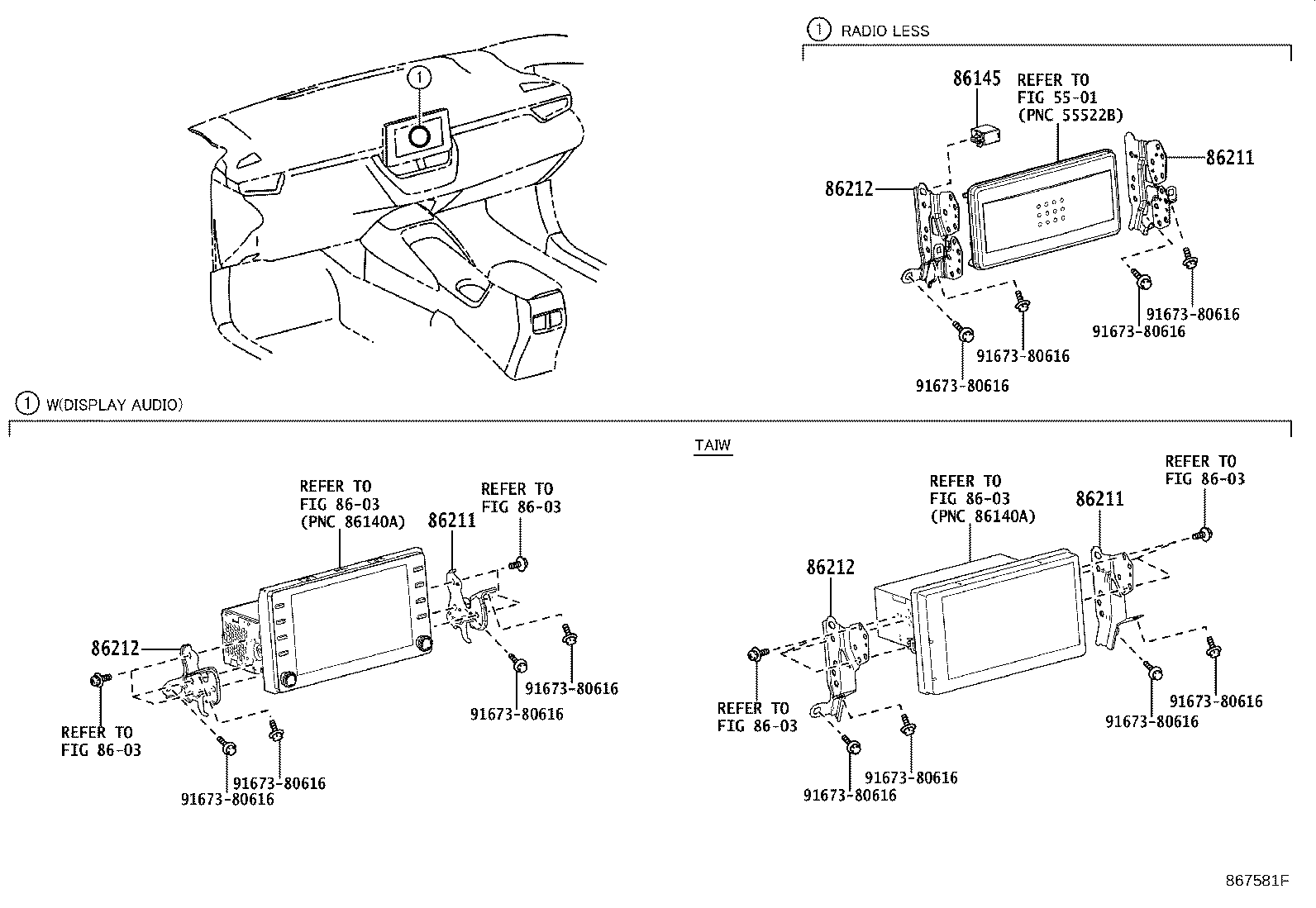

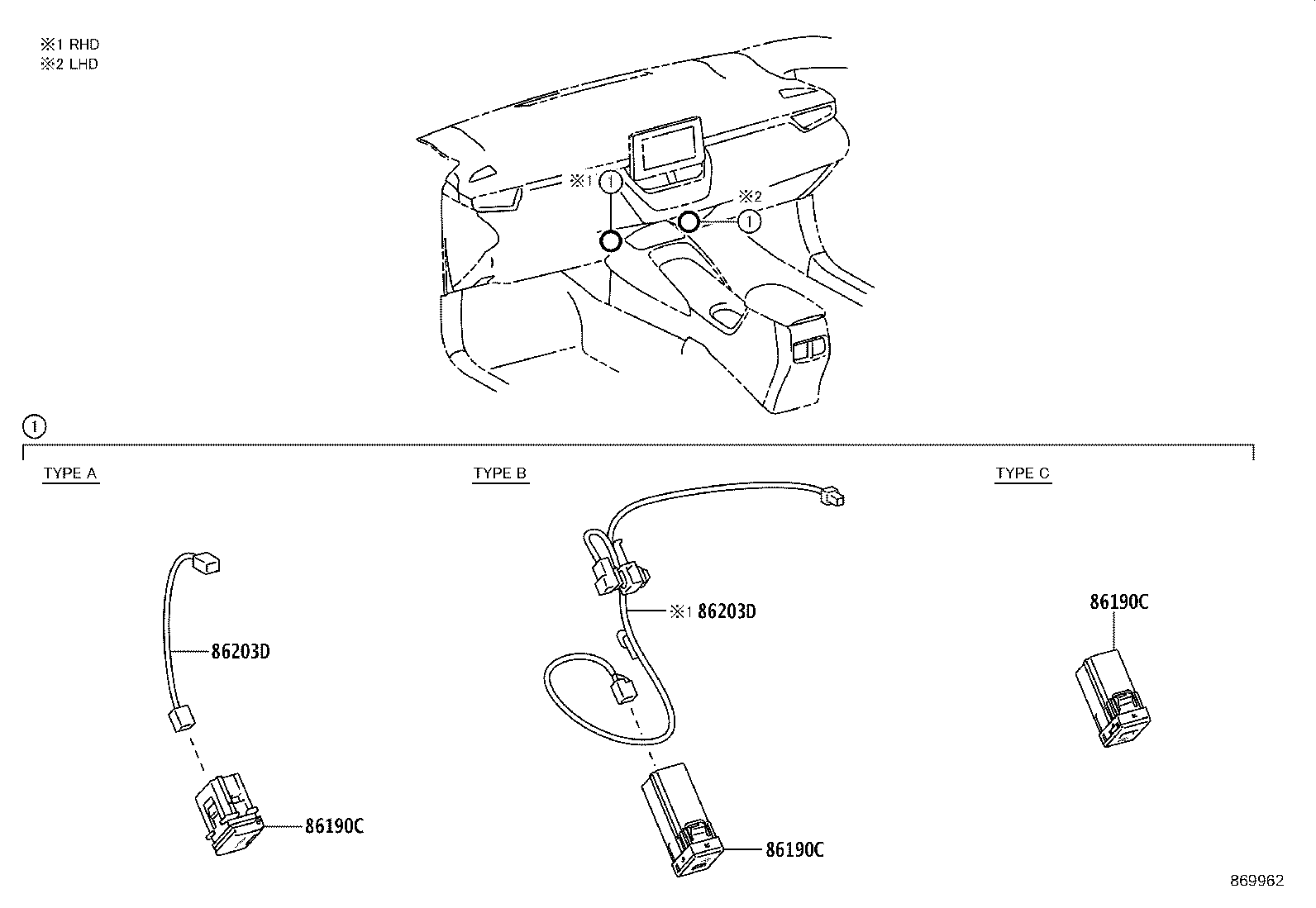

Figure 869965 869965 2019-04 → 2023-04 Figure 869965 869965 2019-04 → 2023-05 Figure 869965 869965 2019-08 → 2023-06 Figure 867581F 867581F 2023-04 → — Figure 867581F 867581F 2023-05 → — Figure 867581F 867581F 2023-06 → — Figure 869141 869141 2019-04 → 2023-04 Figure 869141 869141 2019-04 → 2023-05 Figure 869141 869141 2019-08 → 2023-06 Figure 869962 869962 2023-04 → — Figure 869962 869962 2023-05 → — Figure 869962 869962 2023-06 → — Figure 867582A 867582A 2019-04 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86145 Connector, Antenna Male
86190C Adapter Assy, Stereo Jack, NO.1
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
