Toyota Corolla/Altis

2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 5 illustrations

Illustrations

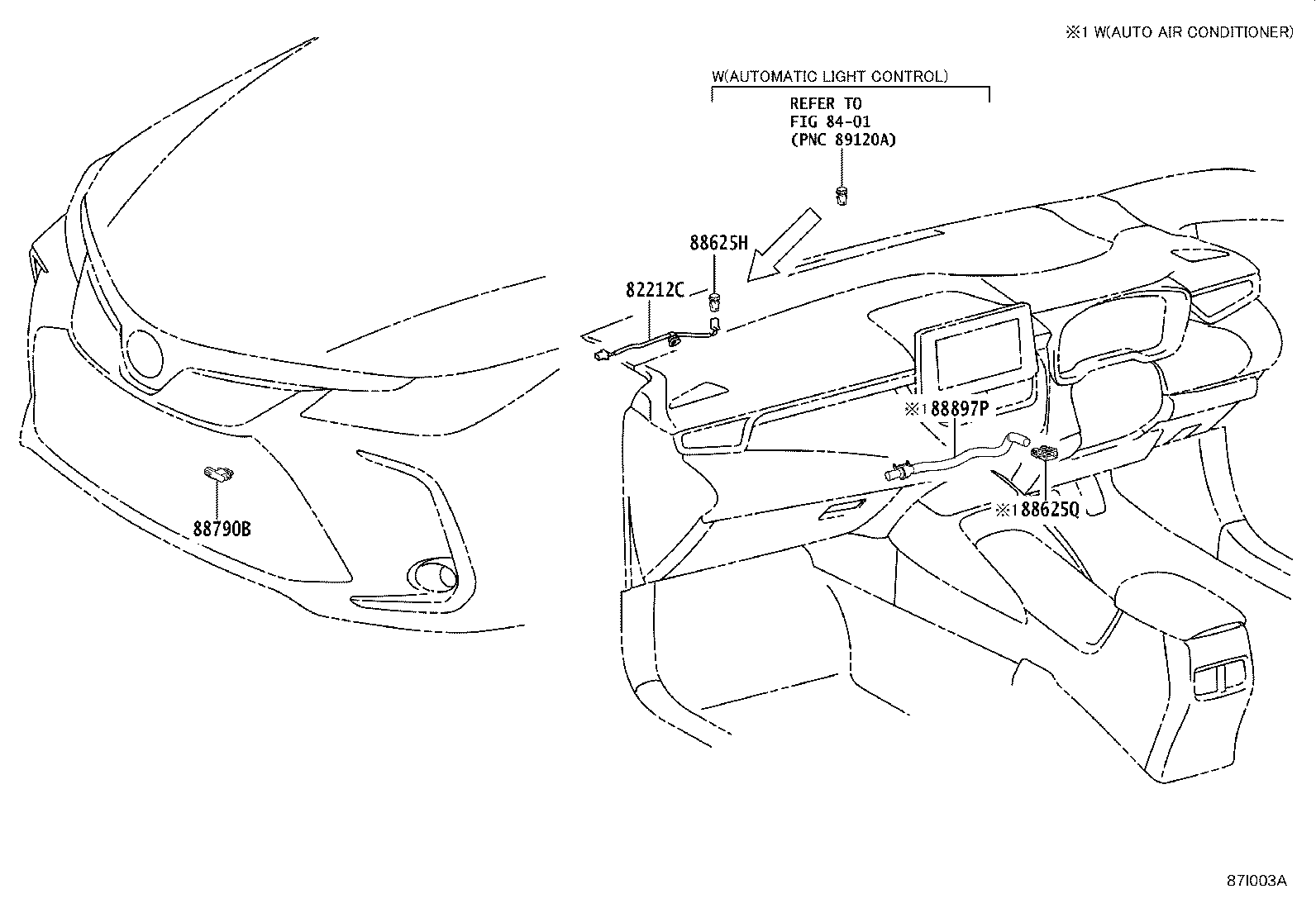

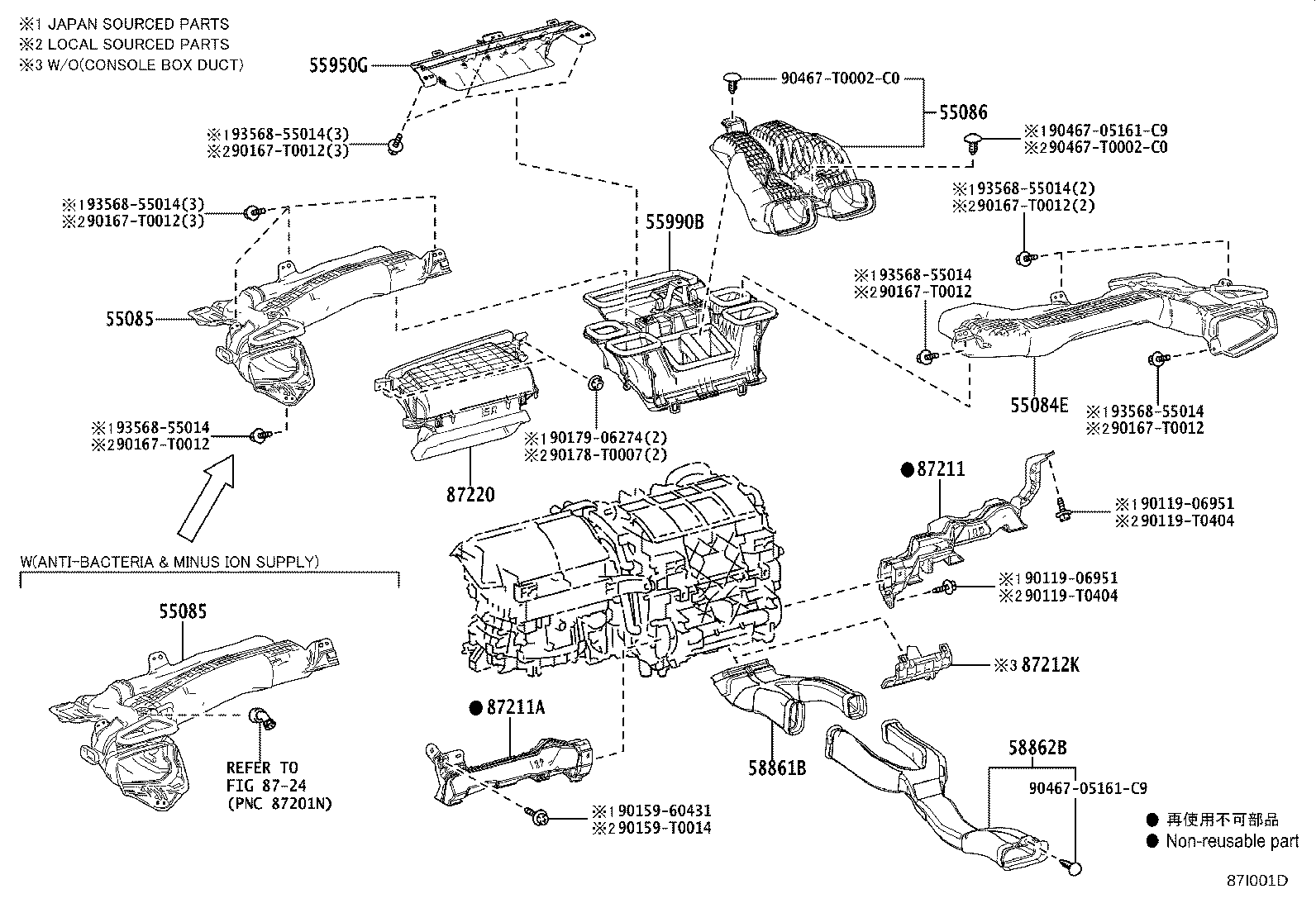

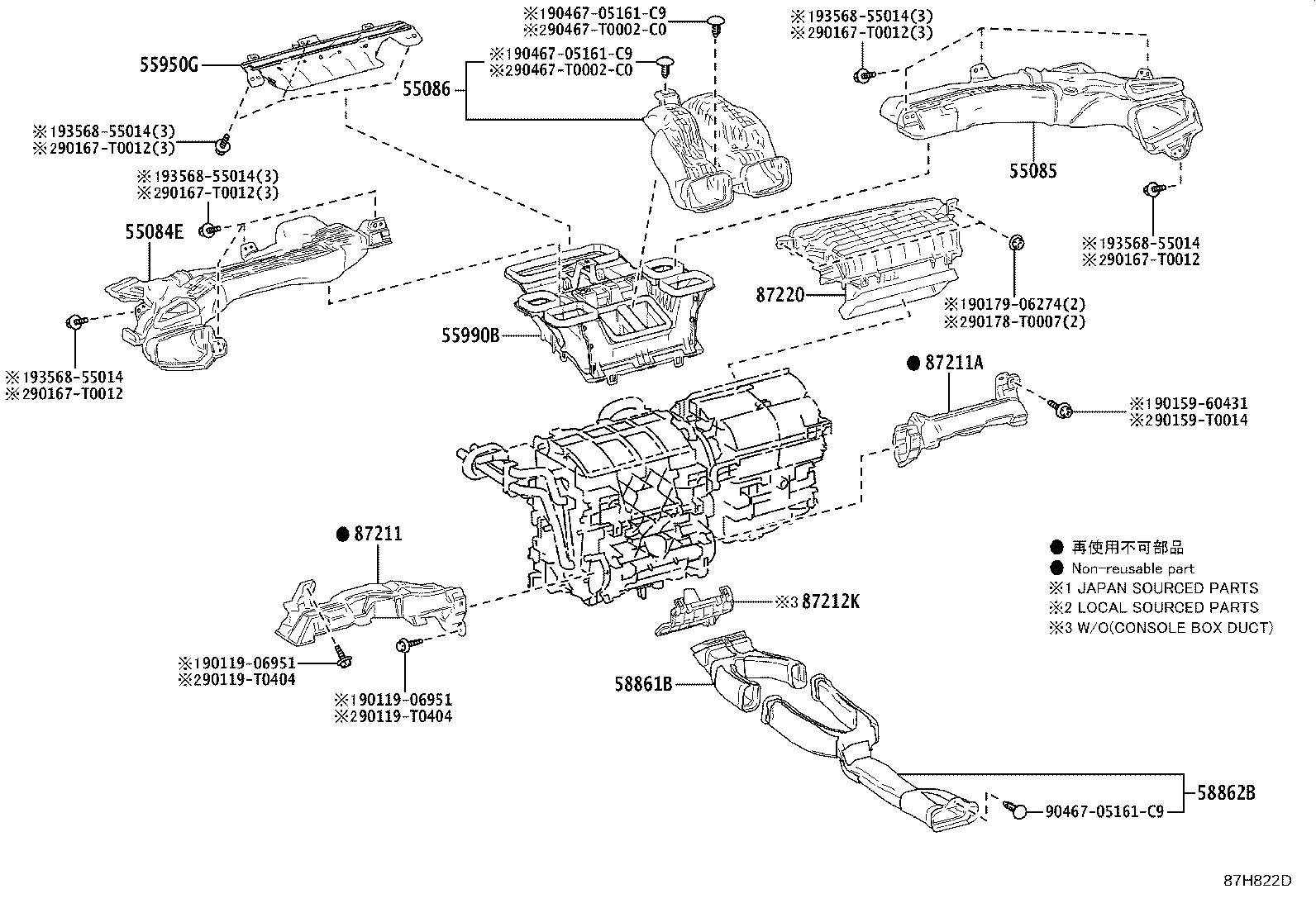

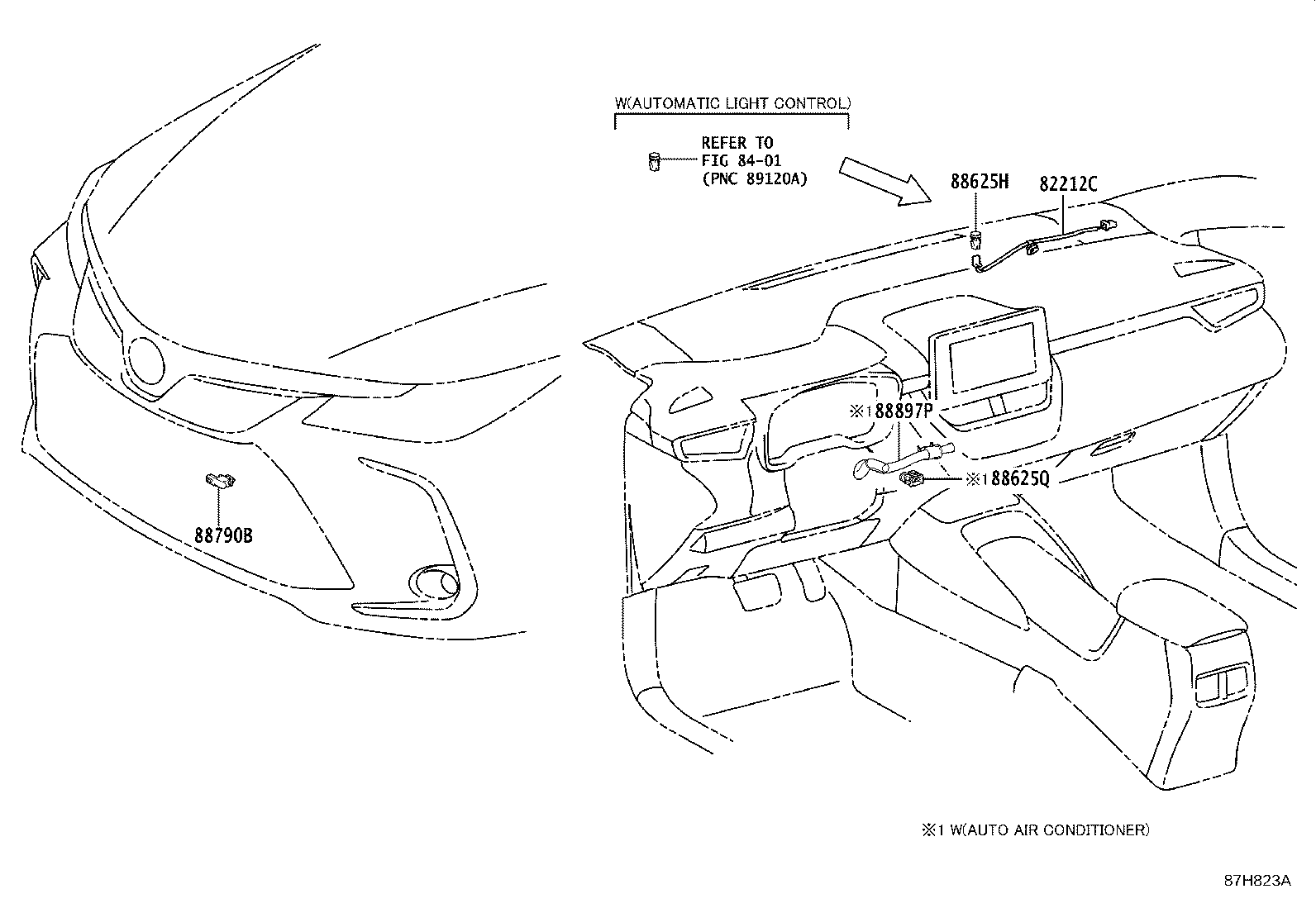

Figure 87H821C 87H821C 2019-04 → — Figure 87H822D 87H822D 2019-04 → — Figure 87I001D 87I001D 2019-08 → — Figure 87H823A 87H823A 2019-04 → — Figure 87I003A 87I003A 2019-08 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55906 Cable Sub-assy, Heater Control
55909A Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
82212C Harness, Air Conditioner NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212K Duct, Air, Rear NO.6
87220 Duct Assy, Air
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
