Toyota Corolla/Altis

2019-04 → present · chassis MZEA1#,ZRE21#,ZWE211 · catalogue 156380 · General

Supported model Data version 2024-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 6 illustrations

Illustrations

Figure 87H807B

87H807B 2019-04 → —

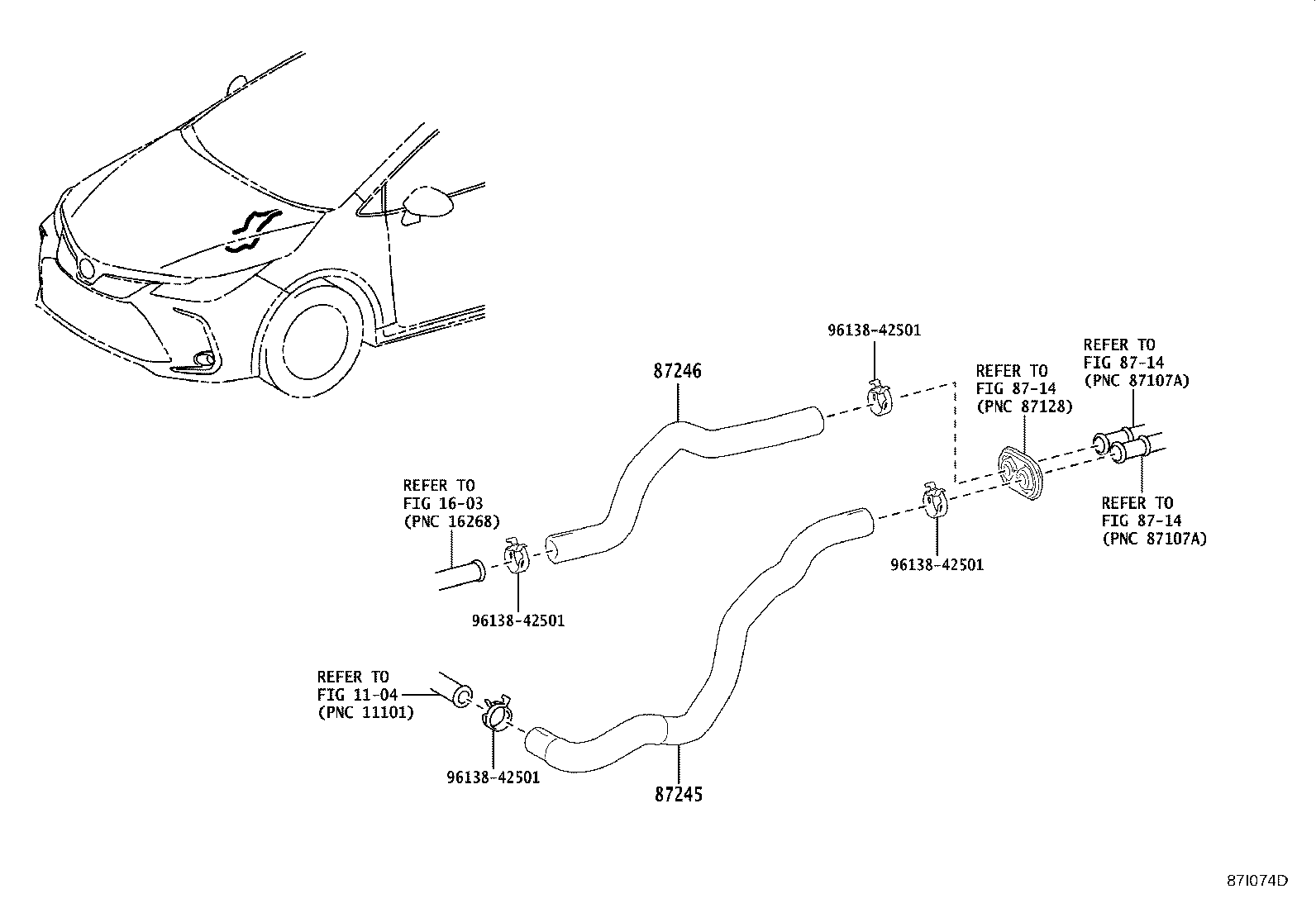

Figure 87I074D

87I074D 2019-08 → —

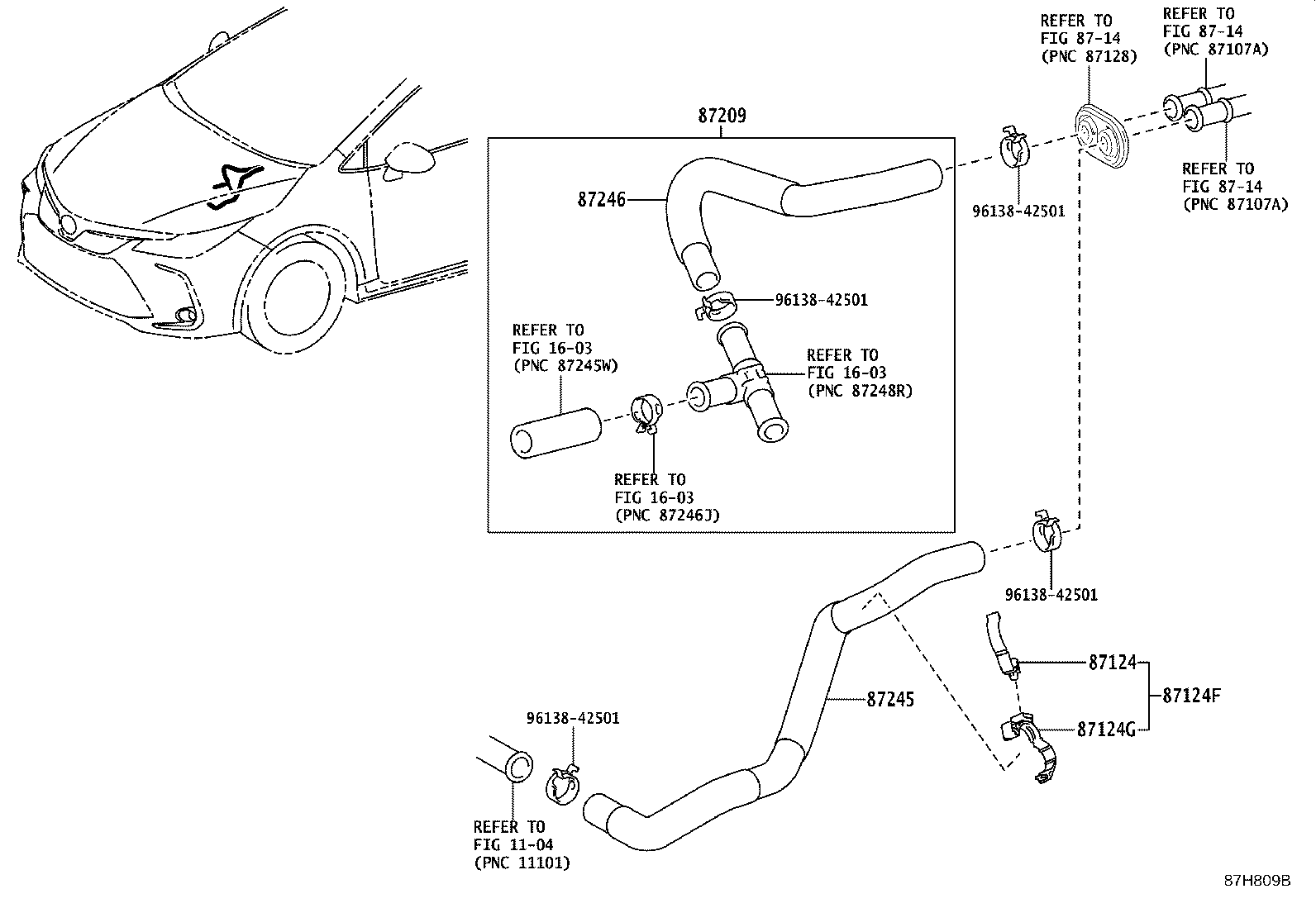

Figure 87H809B

87H809B 2019-04 → —

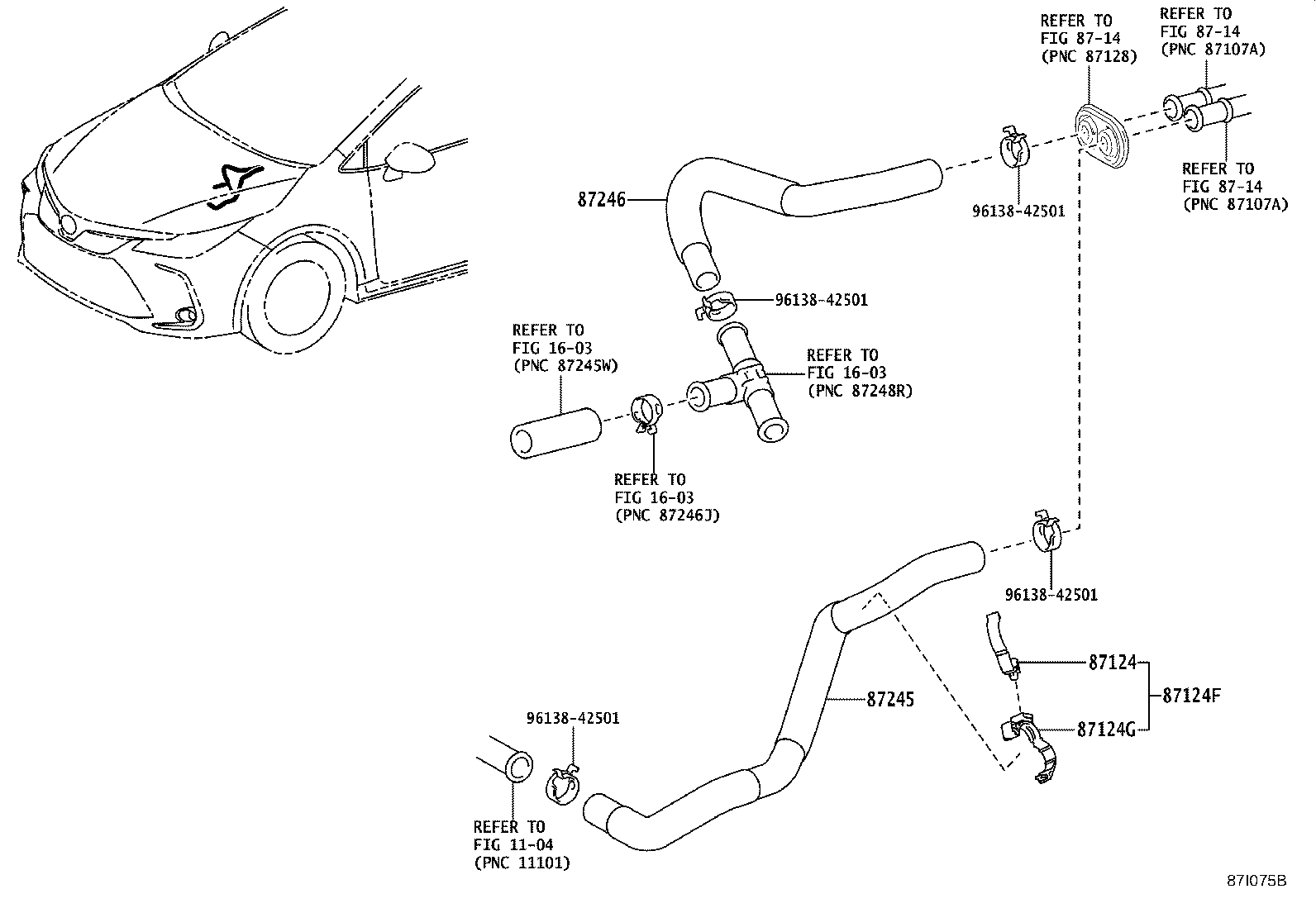

Figure 87I075B

87I075B 2019-08 → —

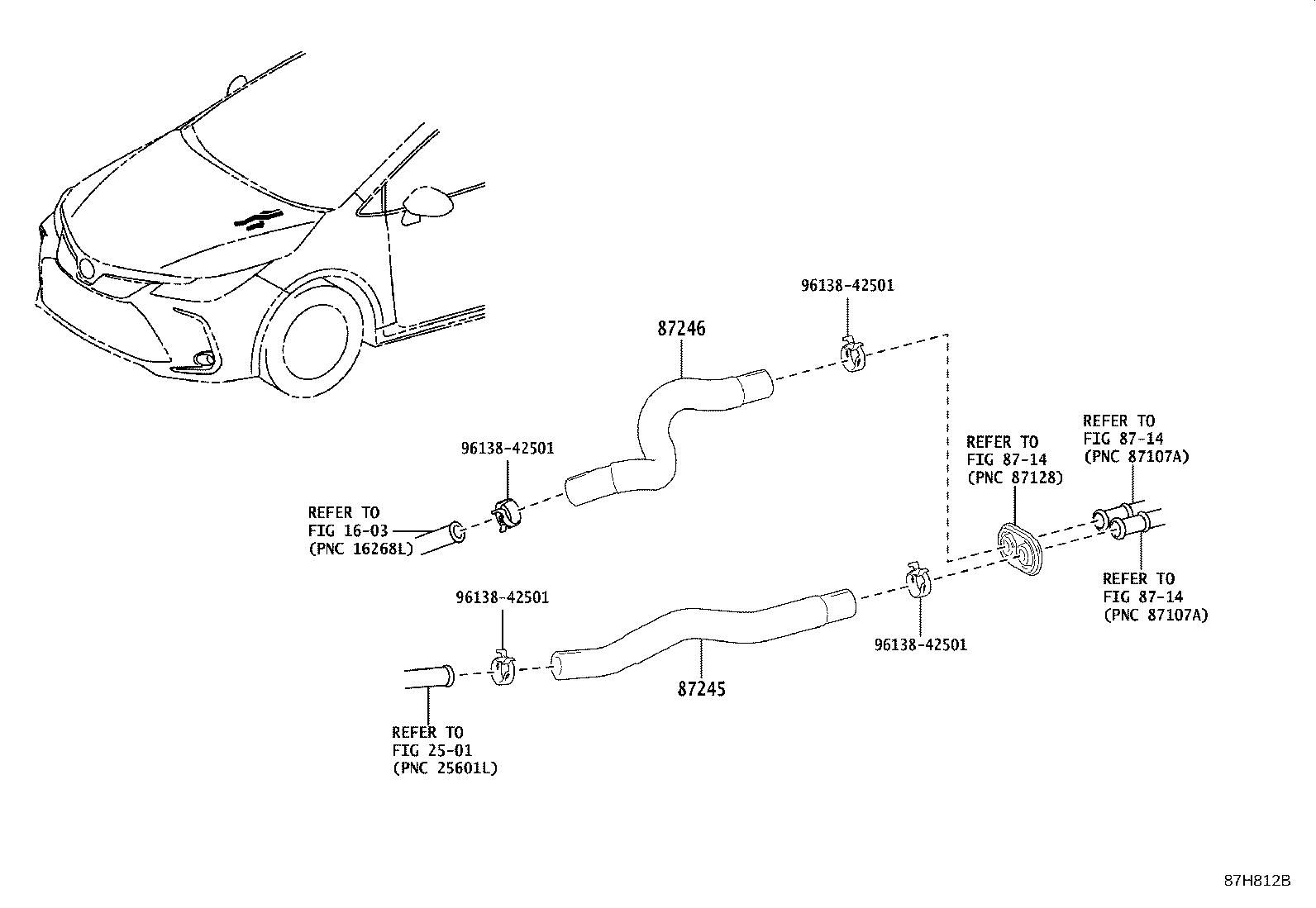

Figure 87H812B

87H812B 2019-04 → —

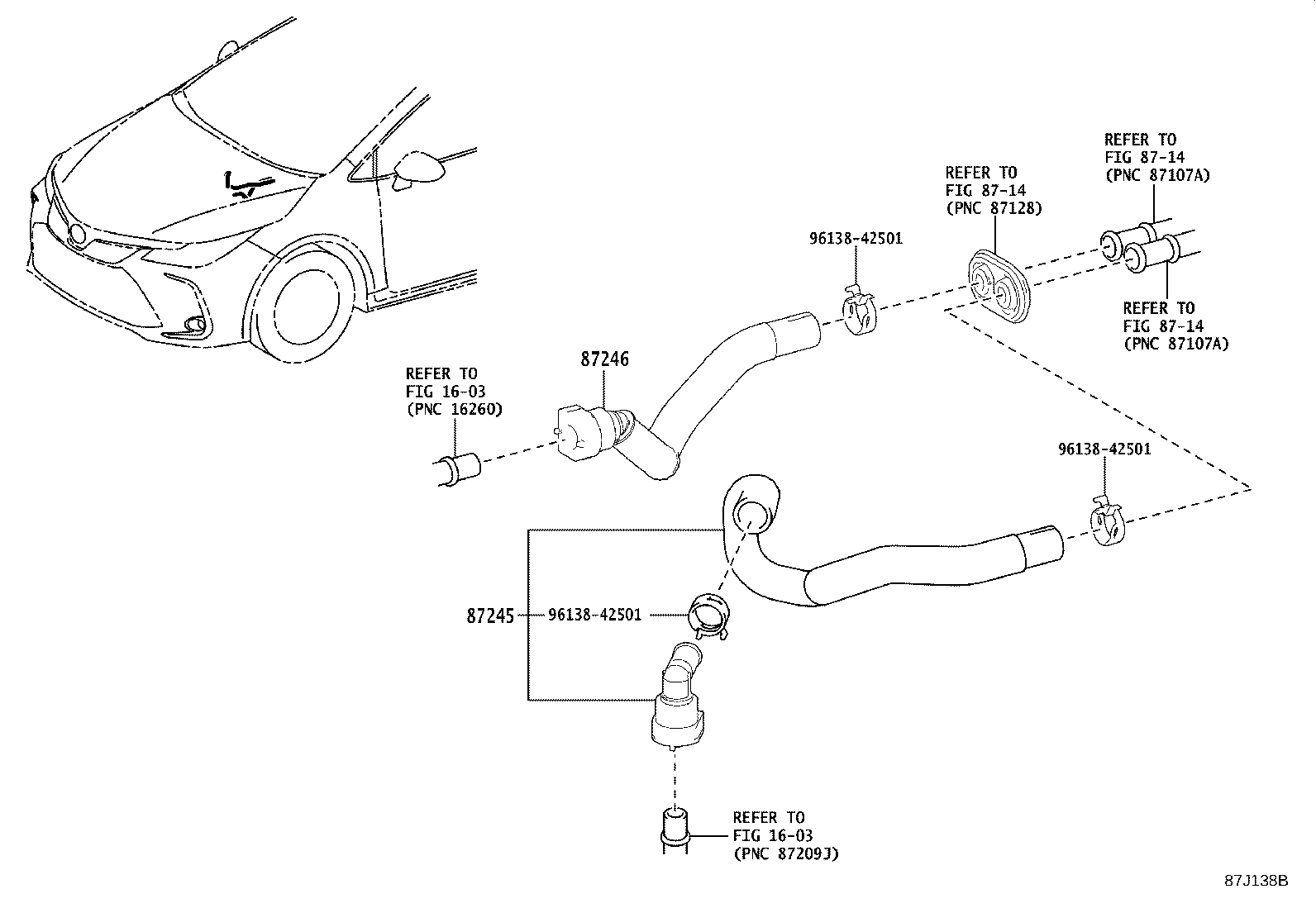

Figure 87J138B

87J138B 2020-08 → —

Part groups

PNC	Description
87124	Clamp, Heater
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87209	Hose Sub-assy, Water
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
