Toyota Corolla (S.AMERICA)

2002-05 → 2008-09 · chassis CDE120,ZZE12# · catalogue 157350 · General

Discontinued model Data version 2009-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

5 part groups · 2 illustrations

Illustrations

Figure 160819E

160819E 2002-05 → —

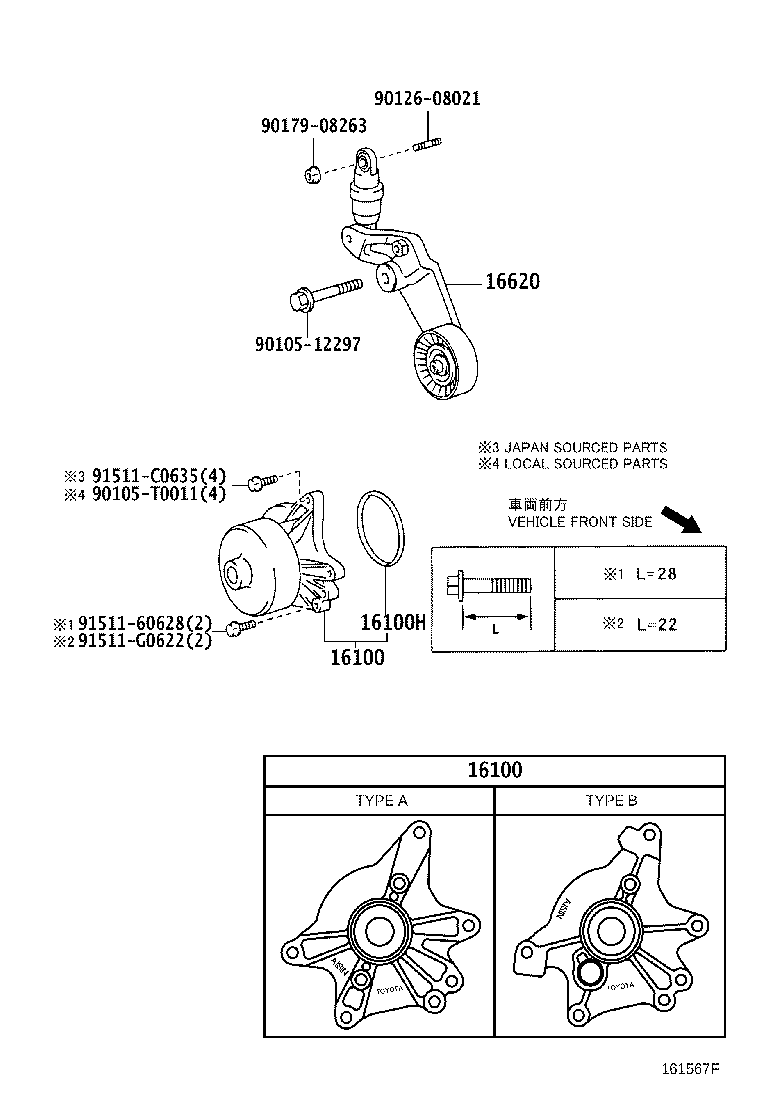

Figure 161567F

161567F 2002-05 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16100B	Pin, Ring(FOR WATER PUMP SET)
16100H	Ring, O(FOR WATER PUMP)
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
