Toyota Corolla (S.AMERICA)
2002-05 → 2008-09 · chassis CDE120,ZZE12# · catalogue 157350 · General
Discontinued model
Data version 2009-04

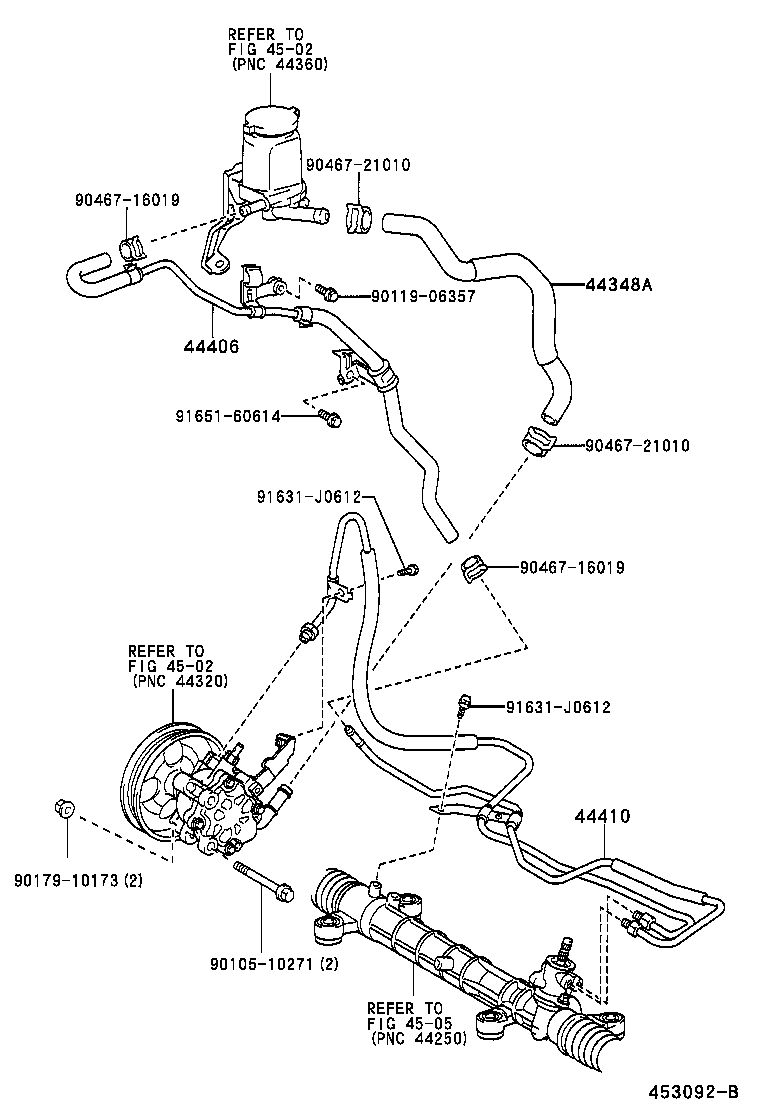

Power Steering Tube
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44350 | Pulley Assy, Power Steering Idle |
| 44350A | Bolt(FOR POWER STEERING IDLE PULLEY) |
| 44381 | Bracket, Power Steering Idle Pulley |
| 44406 | Tube Sub-assy, Return |
| 44410 | Tube Assy, Pressure Feed |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
