Toyota Corolla (S.AMERICA)
2002-05 → 2008-09 · chassis CDE120,ZZE12# · catalogue 157350 · General
Discontinued model
Data version 2009-04

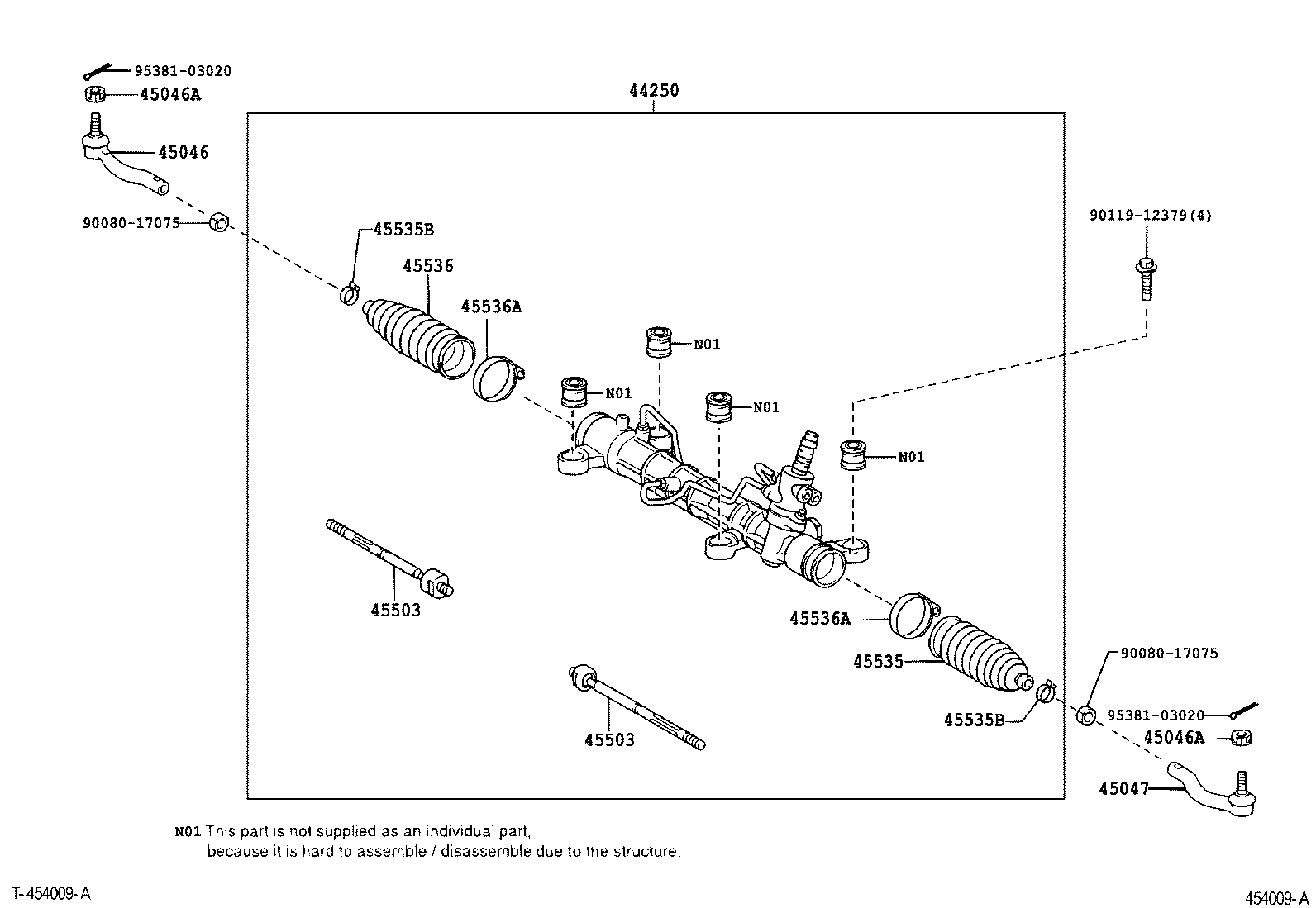

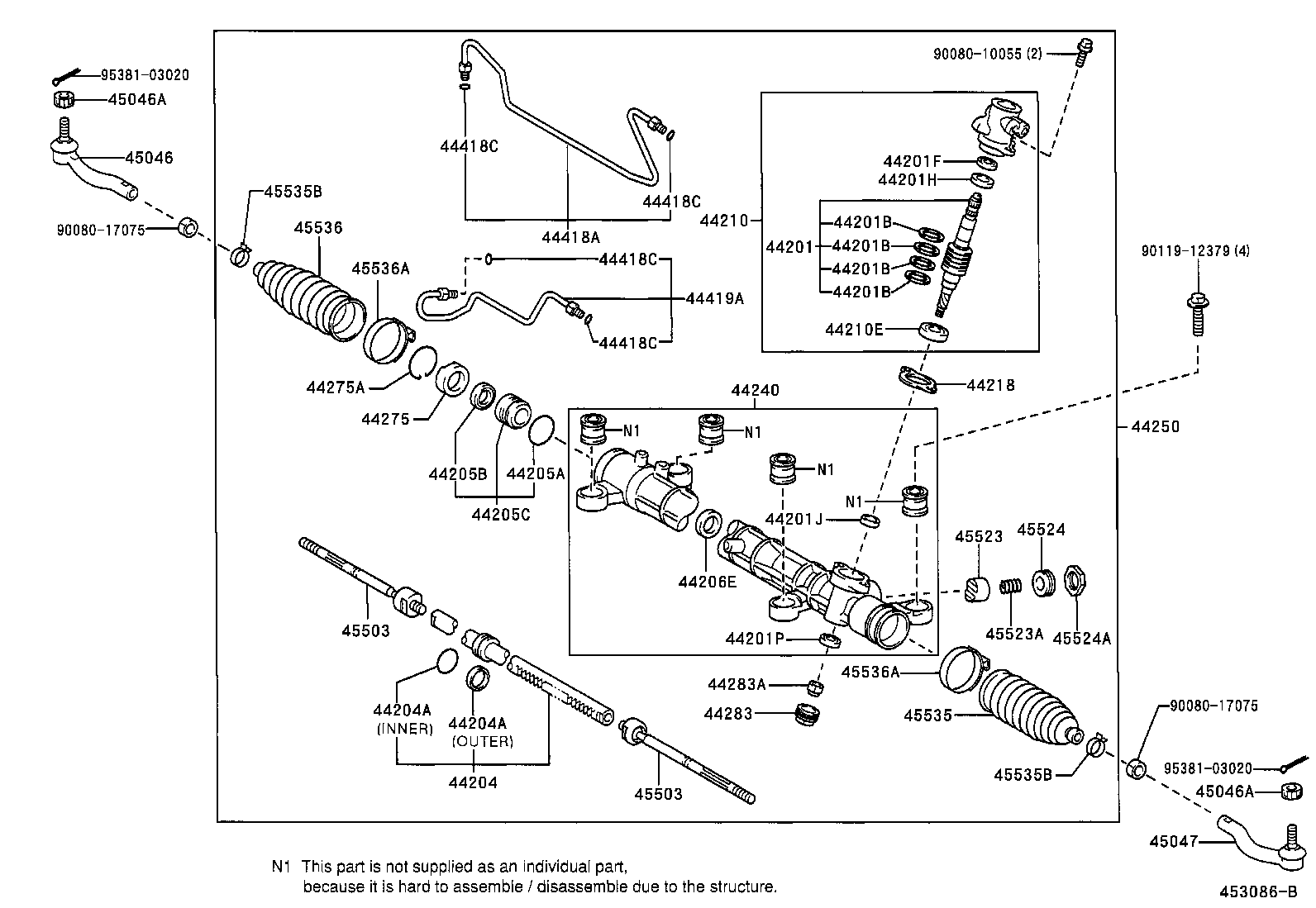

Front Steering Gear & Link
41 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 04445A | Gasket Kit, Power Steering Gear(FOR RACK & PINION) |
| 04455 | Gasket Kit, Power Steering Control Valve Overhole |
| 44200 | Link Assy, Power Steering |
| 44201 | Valve Sub-assy, Power Steering Control |
| 44201B | Spacer(FOR POWER STEERING CONTROL VALVE) |
| 44201F | Seal, Oil(FOR POWER STEERING CONTROL VALVE) |
| 44201H | Bearing(FOR POWER STEERING CONTROL VALVE UPPER) |
| 44201J | Bearing(FOR POWER STEERING CONTROL VALVE CENTER) |
| 44201P | Bearing(FOR POWER STEERING CONTROL VALVE LOWER) |
| 44204 | Rack Sub-assy, Power Steering |
| 44204A | Ring(FOR RACK STEERING PISTON) |
| 44205A | Ring, O(FOR CYLINDER END STOPPER) |
| 44205B | Seal, Oil(FOR CYLINDER END STOPPER) |
| 44205C | Bush Sub-assy, Power Steering Rack |
| 44206E | Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE) |
| 44210 | Valve Assy, Power Steering Control |
| 44210E | Seal, Oil(FOR POWER STEERING CONTROL VALVE) |
| 44218 | Gasket, Valve Housing |
| 44240 | Housing Assy, Power Steering Rack |
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 44275 | Stopper, Cylinder End |
| 44275A | Ring, Hole Snap(FOR CYLINDER END STOPPER) |
| 44283 | Cap, Rack Housing |
| 44283A | Nut(FOR RACK HOUSING CAP) |
| 44418A | Tube, Steering Right Turn Pressure |
| 44418C | Ring, O(FOR STEERING TURN PRESSURE TUBE) |
| 44419A | Tube, Steering Left Turn Pressure |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45503 | End Sub-assy, Steering Rack |
| 45503B | Washer, Claw(FOR STEERING RACK END) |
| 45523 | Guide, Rack(FOR STEERING GEAR) |
| 45523A | Spring(FOR STEERING GEAR RACK GUIDE) |
| 45524 | Cap, Steering Rack Guide Spring |
| 45524A | Nut(FOR STEERING RACK GUIDE SPRING CAP) |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45535D | Clamp(FOR STEERING RACK BOOT NO.1) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45536A | Clamp(FOR STEERING RACK BOOT NO.2) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
