Toyota Corolla (S.AMERICA)

2002-05 → 2008-09 · chassis CDE120,ZZE12# · catalogue 157350 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

10 part groups · 3 illustrations

Illustrations

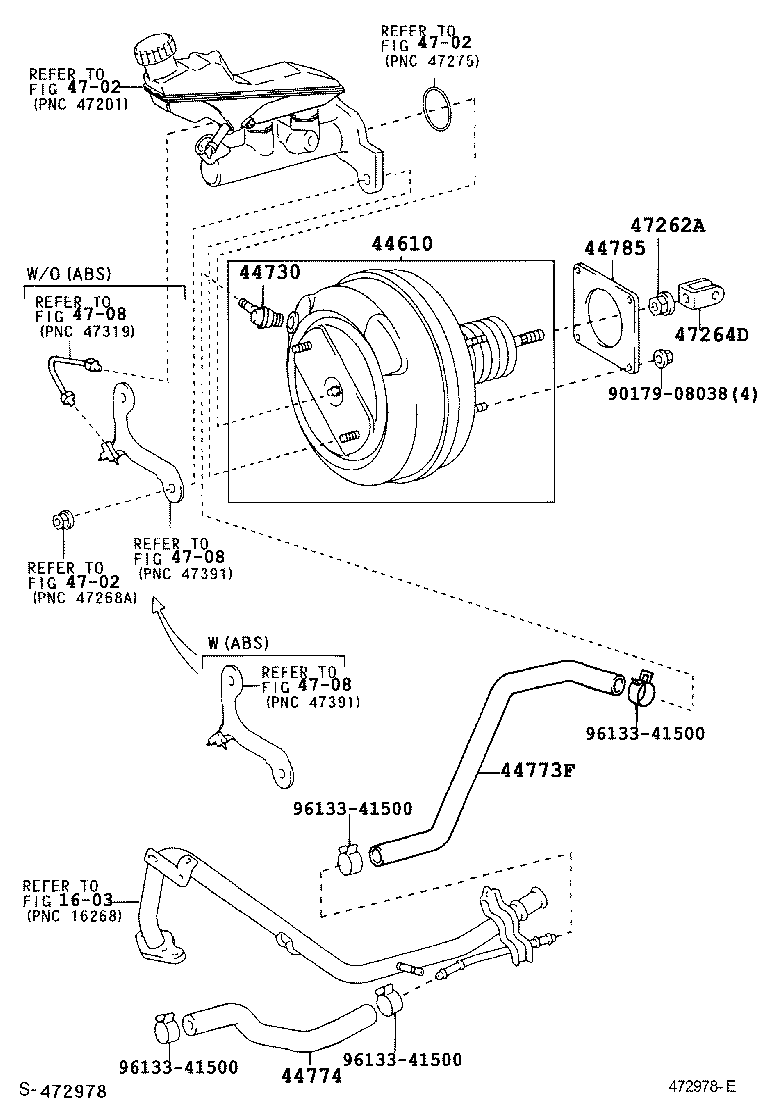

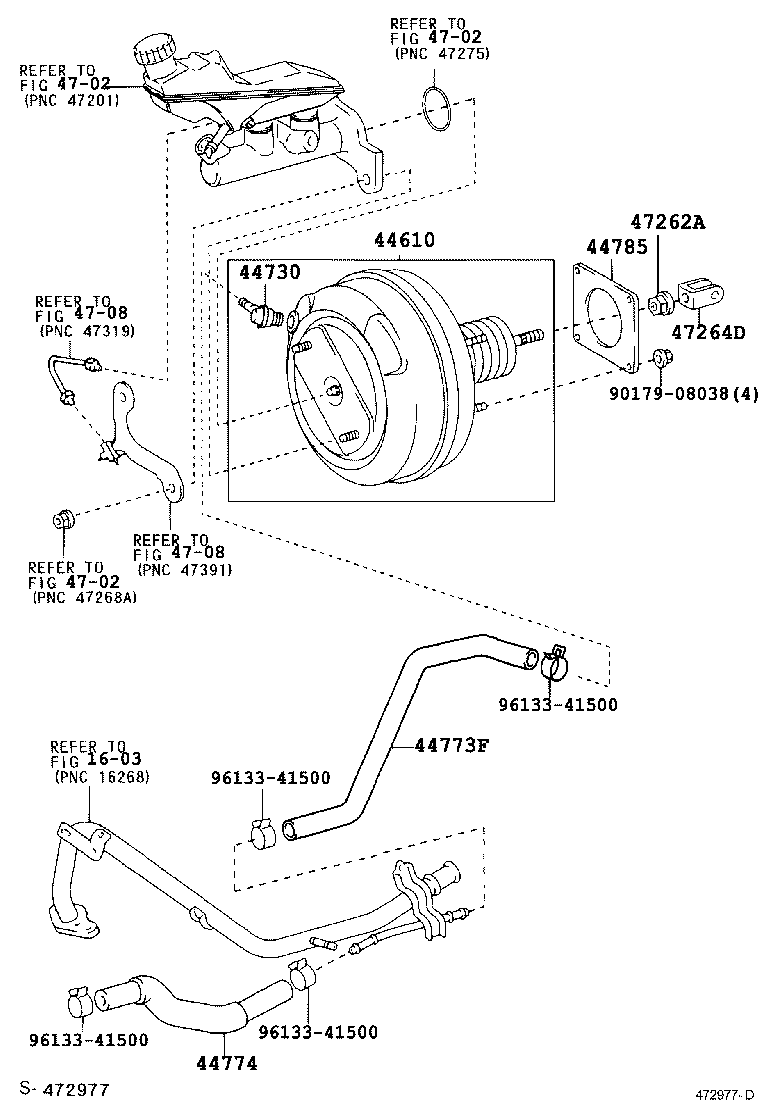

Figure 473021D 473021D 2002-05 → — Figure 472977D 472977D 2002-05 → — Figure 472978E 472978E 2002-05 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44773 Hose, Vacuum, NO.2
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44785 Gasket, Brake Booster
47262A Nut, Master Cylinder Push Rod Clevis Lock
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
