Toyota Corolla (S.AMERICA)

2002-05 → 2008-09 · chassis CDE120,ZZE12# · catalogue 157350 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

12 part groups · 2 illustrations

Illustrations

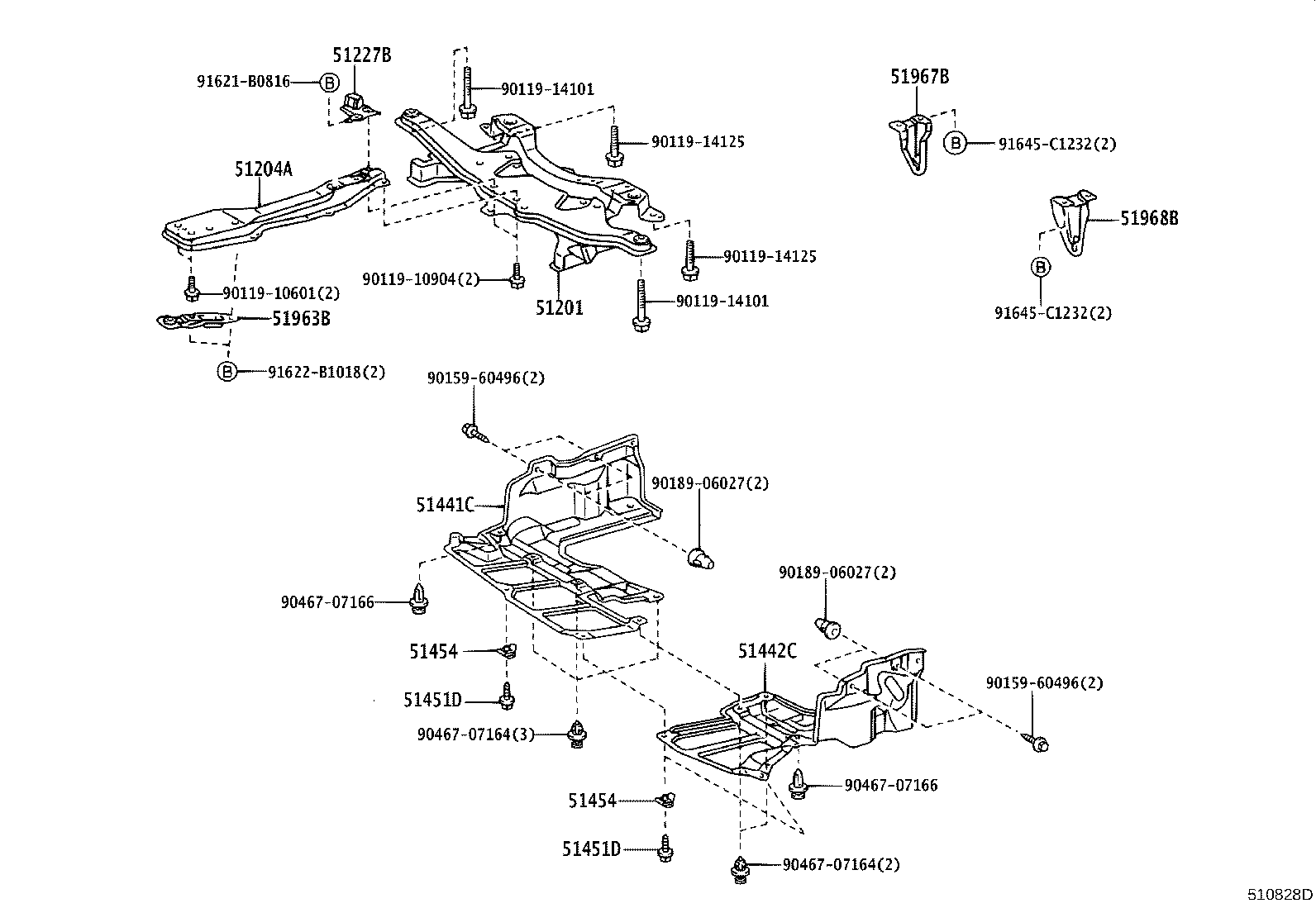

Figure 510776D 510776D 2002-05 → — Figure 510828D 510828D 2002-09 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51227B Damper, Front Suspension Member Dynamic
51441C Cover, Engine Under, RH
51441D Cover, Engine Under
51442C Cover, Engine Under, LH
51451D Screw, NO.1
51454 Clip
51963B Hook, Transport, Front RH
51967B Hook, Transport, Rear RH
51968B Hook, Transport, Rear LH
58398F Cover, Floor Under, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
