Toyota Corolla (S.AMERICA)

2002-05 → 2008-09 · chassis CDE120,ZZE12# · catalogue 157350 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

2 part groups · 4 illustrations

Illustrations

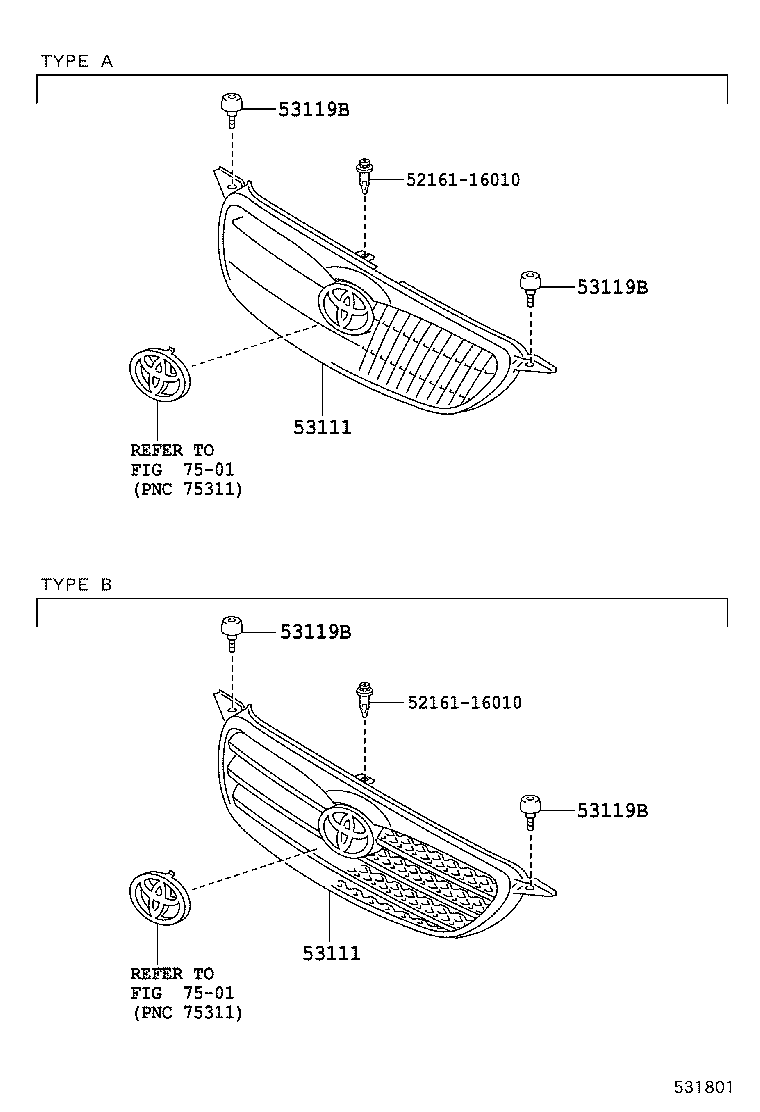

Figure 531283B 531283B 2002-05 → 2004-08 Figure 531283B 531283B 2004-08 → 2005-08 Figure 531283B 531283B 2004-08 → 2007-05 Figure 531801 531801 2004-08 → —

Part groups

PNCDescription
53111 Grille, Radiator
53119B Protector, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
