Toyota Corolla (S.AMERICA)

2002-05 → 2008-09 · chassis CDE120,ZZE12# · catalogue 157350 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 2 illustrations

Illustrations

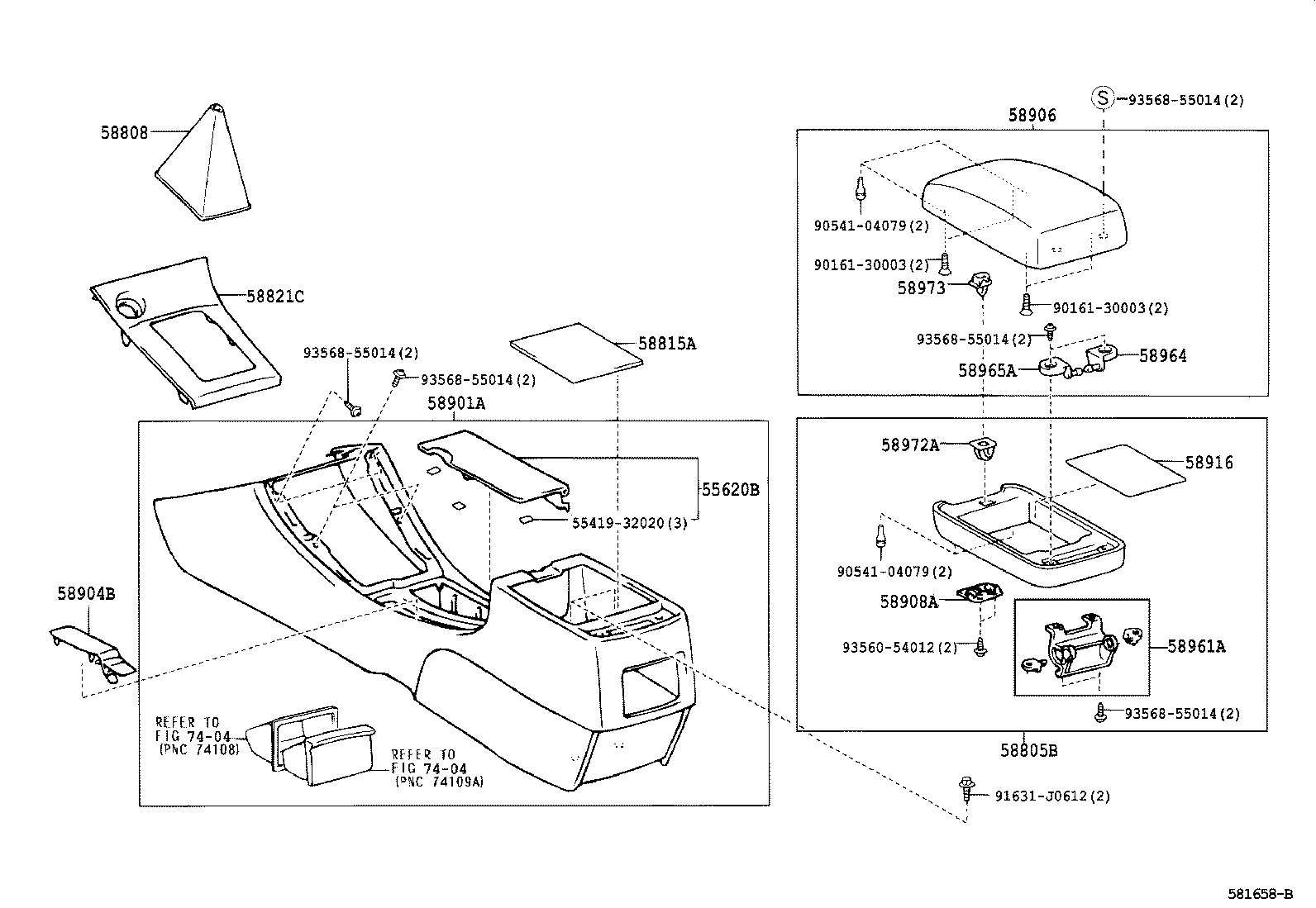

Figure 581571C 581571C 2002-05 → — Figure 581658B 581658B 2002-09 → —

Part groups

PNCDescription
55620B Holder, Instrument Panel Cup
58805B Panel Sub-assy, Console, Lower
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58821C Panel, Console, Upper
58901A Box Sub-assy, Console, Rear
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58906 Door Sub-assy, Upper Console
58908A Lock Sub-assy, Console Compartment Door
58916 Mat, Box Bottom
58961A Hinge, Console Compartment Door Male
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58972A Base, Console Compartment Door Lock
58973 Pin, Console Compartment Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
