Toyota Corolla (S.AMERICA)

2002-05 → 2008-09 · chassis CDE120,ZZE12# · catalogue 157350 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

7 part groups · 2 illustrations

Illustrations

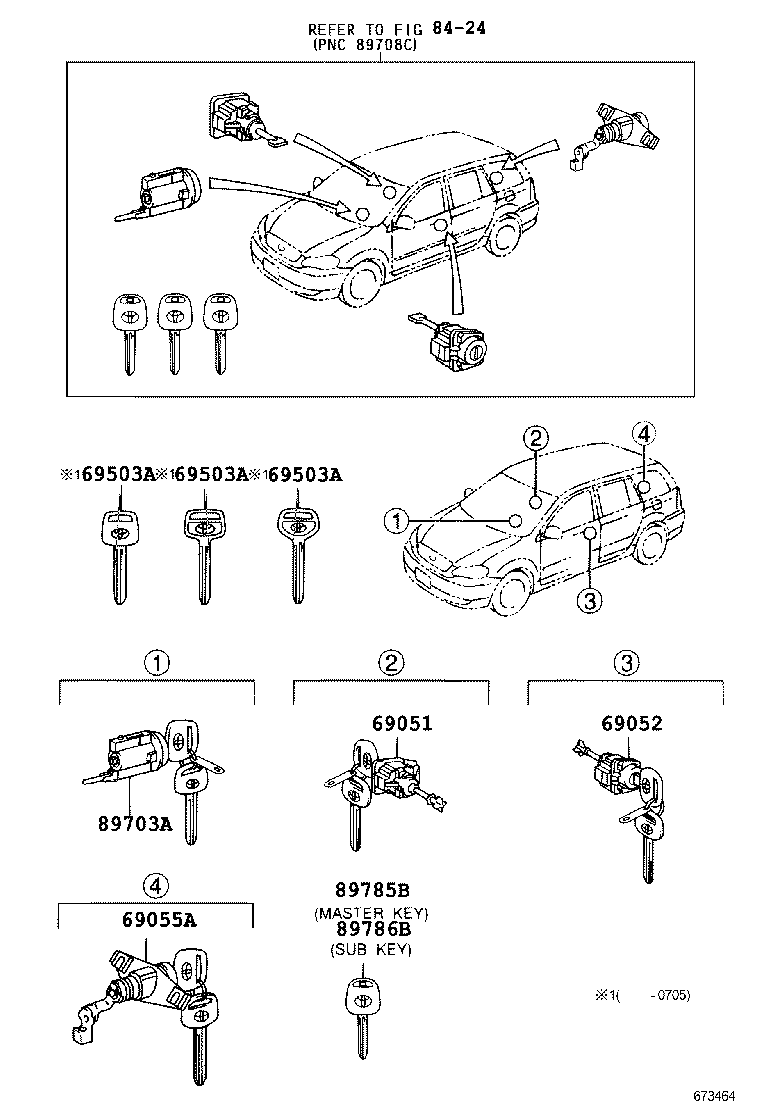

Figure 672713C 672713C 2002-05 → — Figure 673464B 673464B 2004-04 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69503A Key, Blank
89703A Cylinder & Key Set, Ignition W/Transponder
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
