Toyota Corolla (S.AMERICA)
2002-05 → 2008-09 · chassis CDE120,ZZE12# · catalogue 157350 · General
Discontinued model
Data version 2009-04

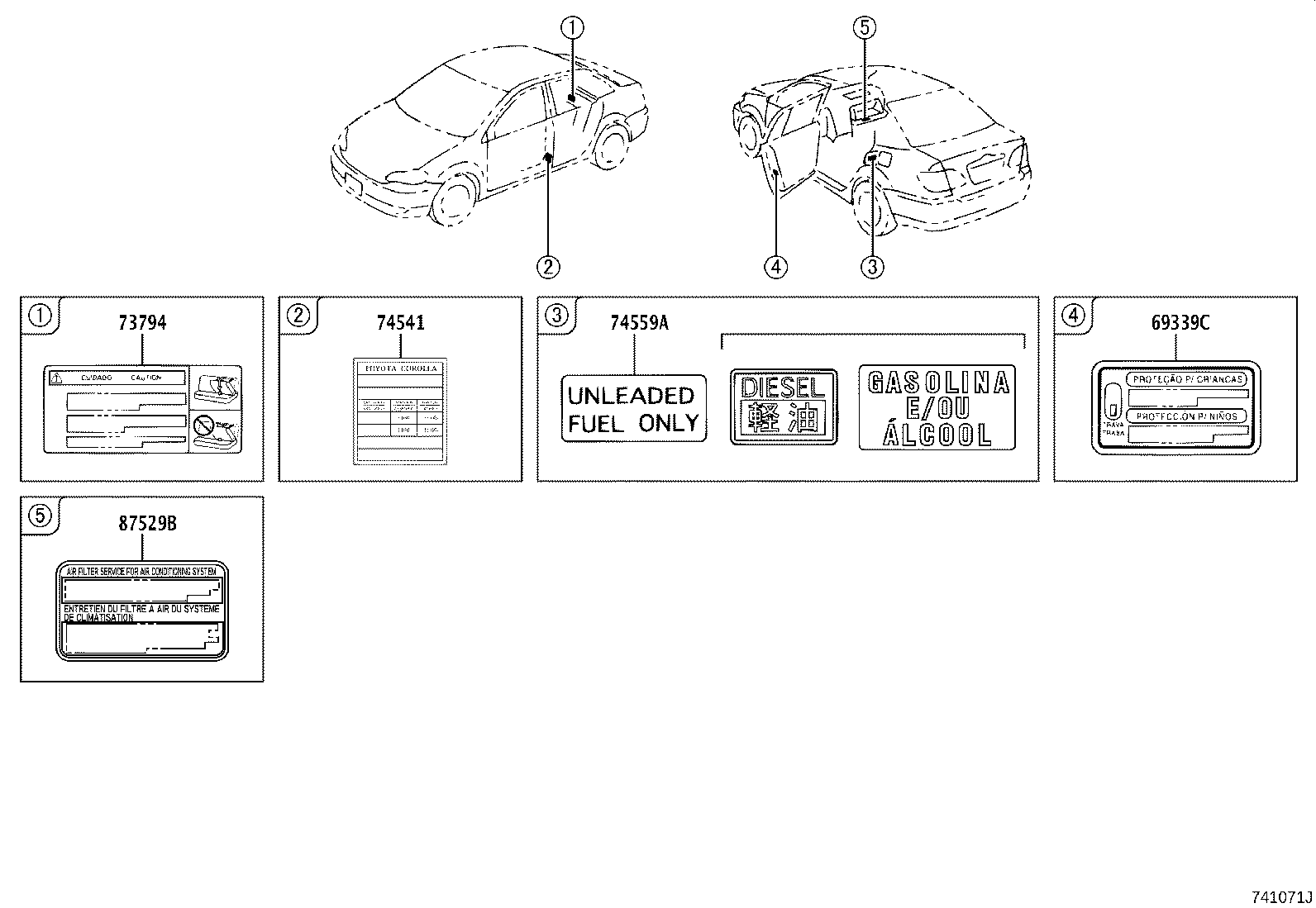

Caution Plate (EXTERIOR & INTERIOR)
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11296C | Label, Engine Service Information |
| 11296D | Label, Engine Service Information |
| 13564 | Label, Timing Belt Replacement Information |
| 16793E | Label, Cooling Fan Caution |
| 69339C | Label, Child Protector Information |
| 73794 | Label, Rear Seat Belt Notice |
| 74541 | Plate, Tire Pressure Caution |
| 74559A | Plate, Fuel Caution |
| 74571 | Plate, Brake Fluid Caution |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
