Toyota Corolla (S.AMERICA)

2002-05 → 2008-09 · chassis CDE120,ZZE12# · catalogue 157350 · General

Discontinued model Data version 2009-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 10 illustrations

Illustrations

Figure 823066A

823066A 2002-05 → —

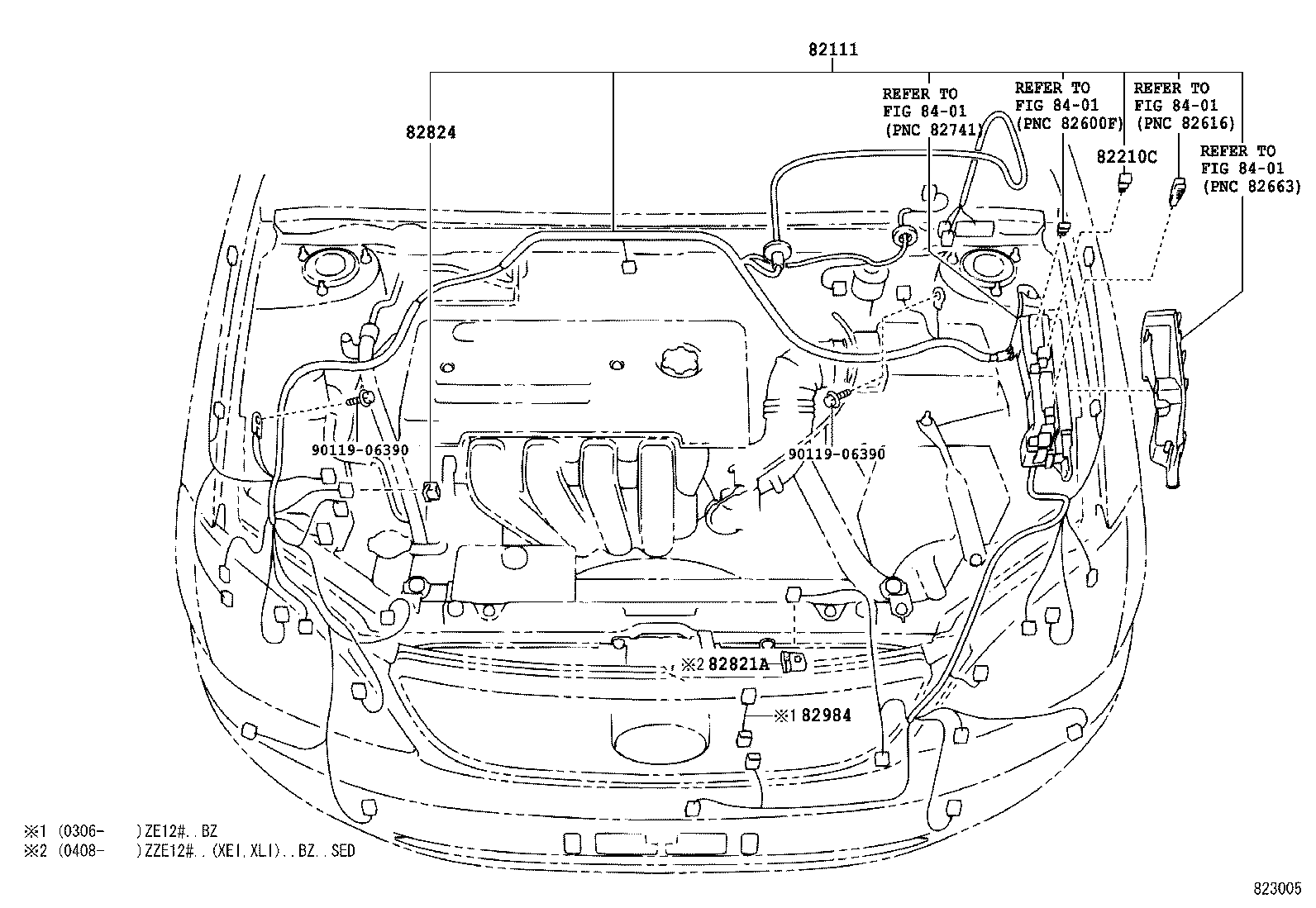

Figure 823005C

823005C 2002-05 → —

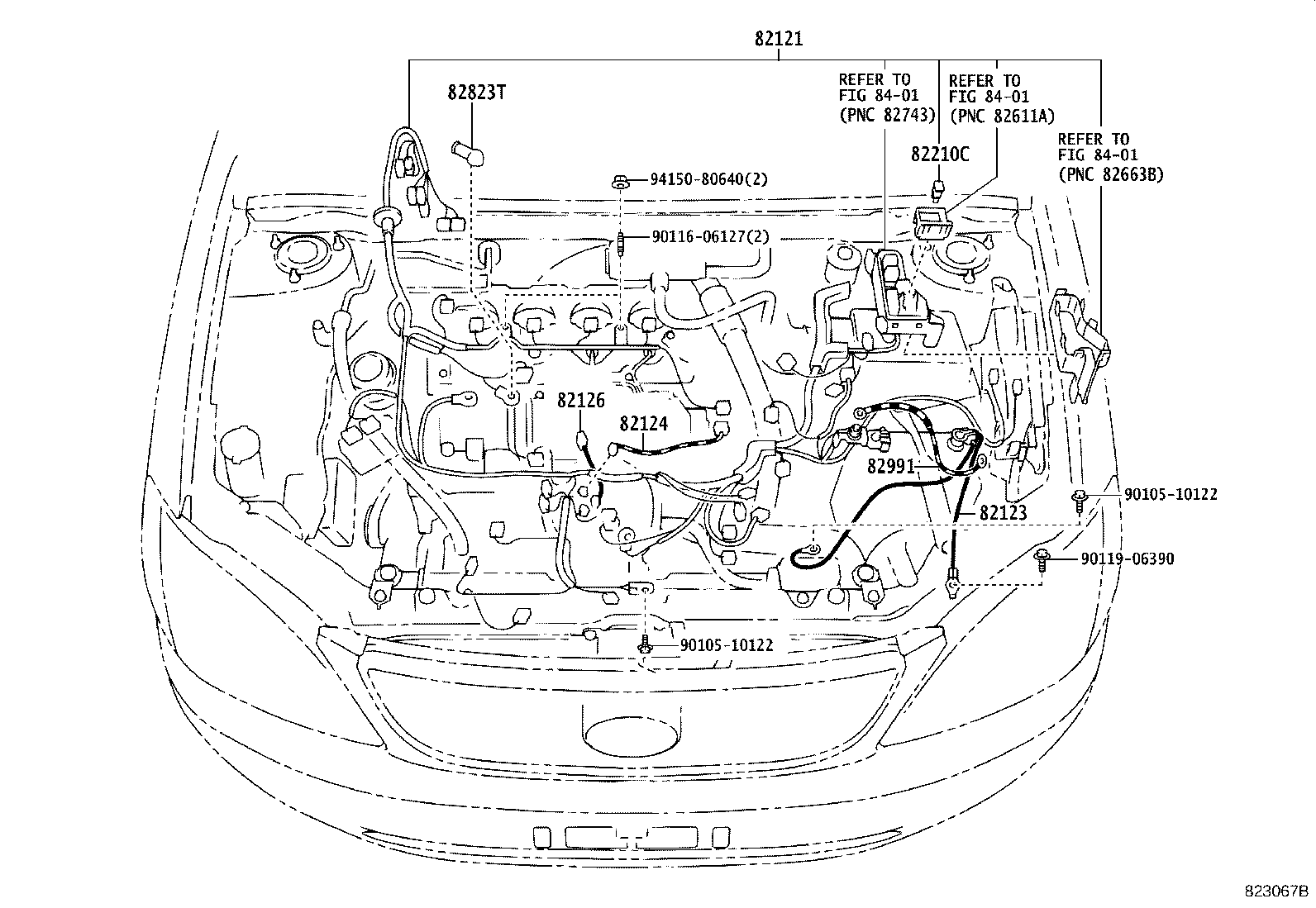

Figure 823067B

823067B 2002-05 → —

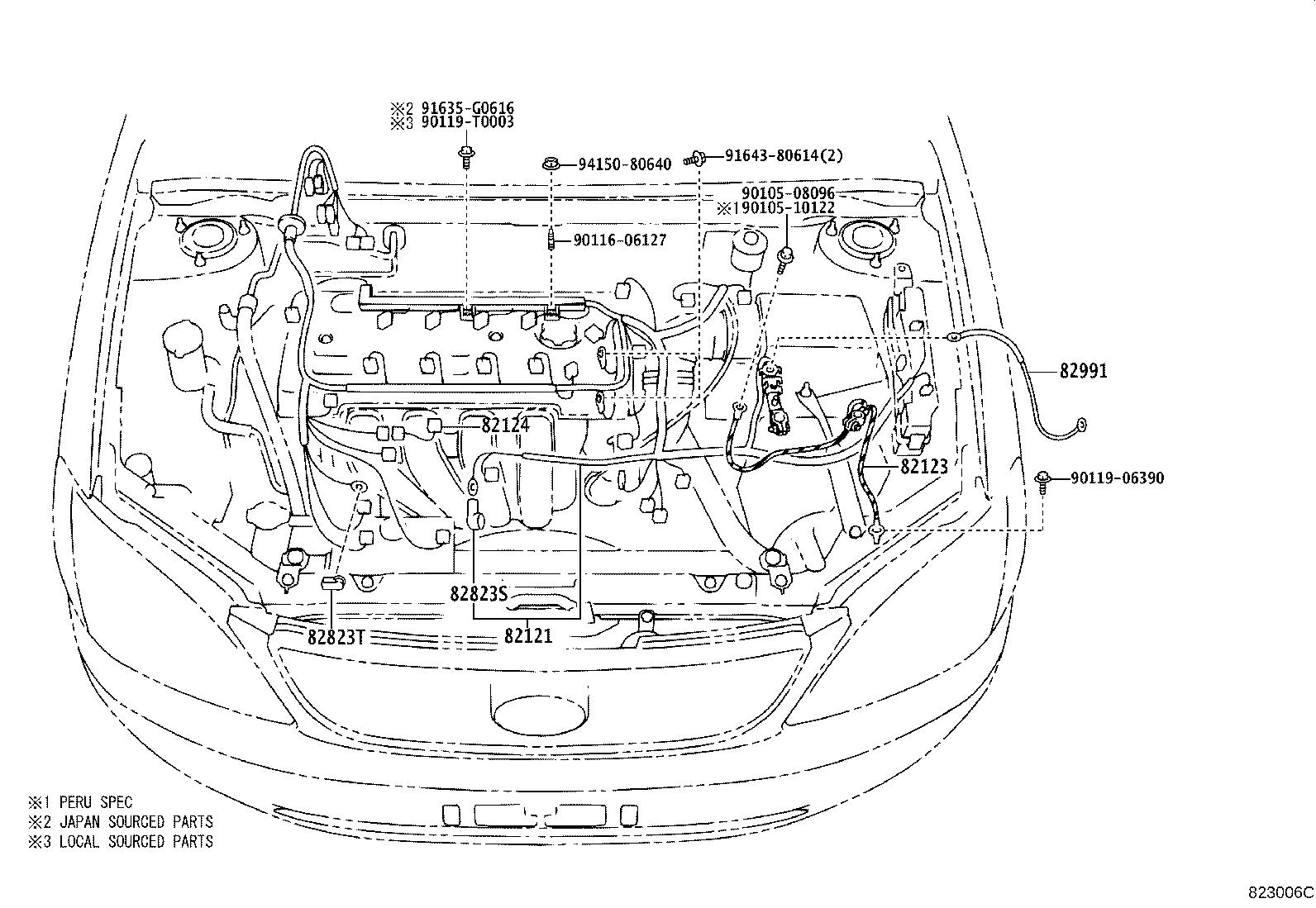

Figure 823006C

823006C 2002-05 → —

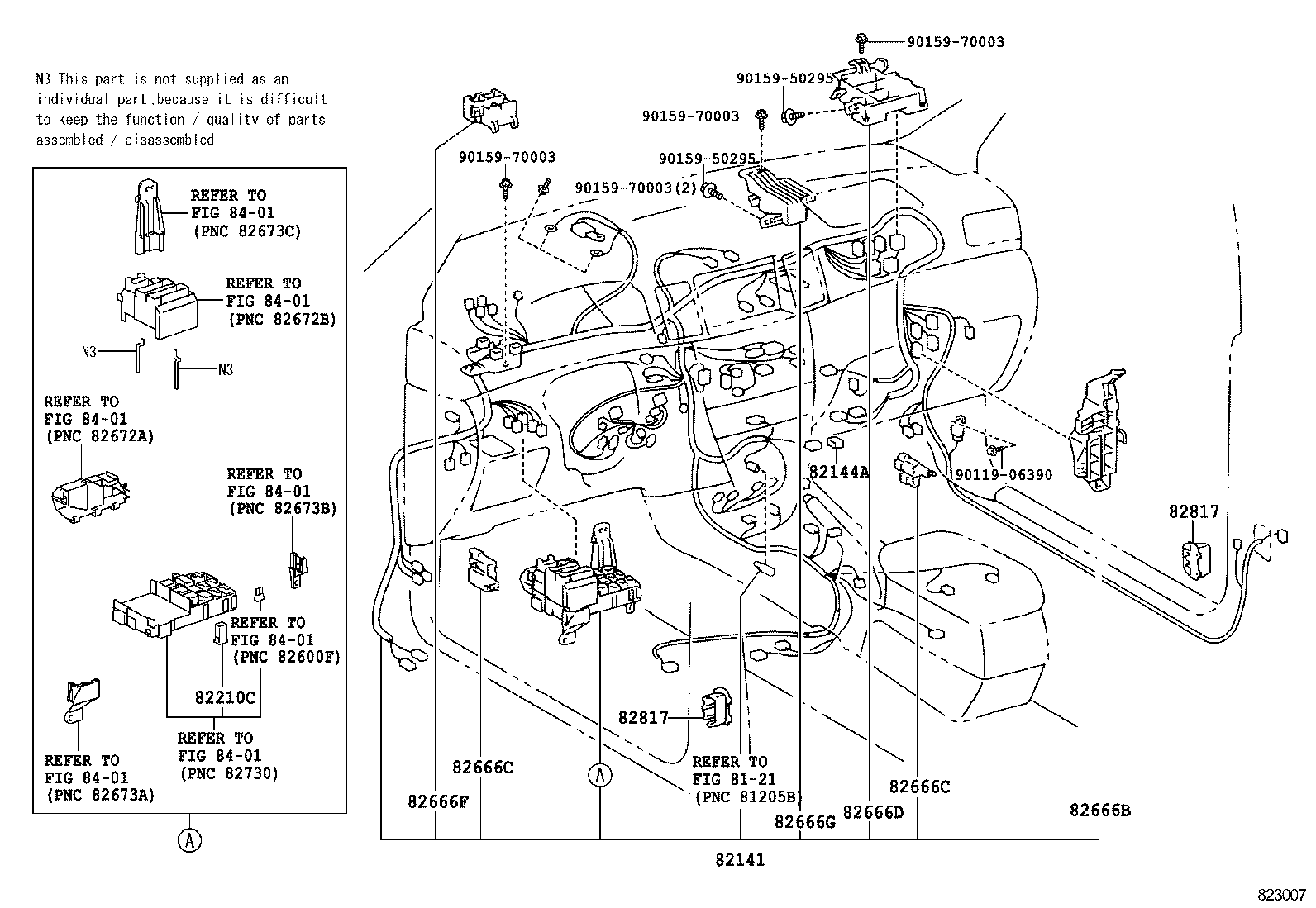

Figure 823007B

823007B 2002-05 → —

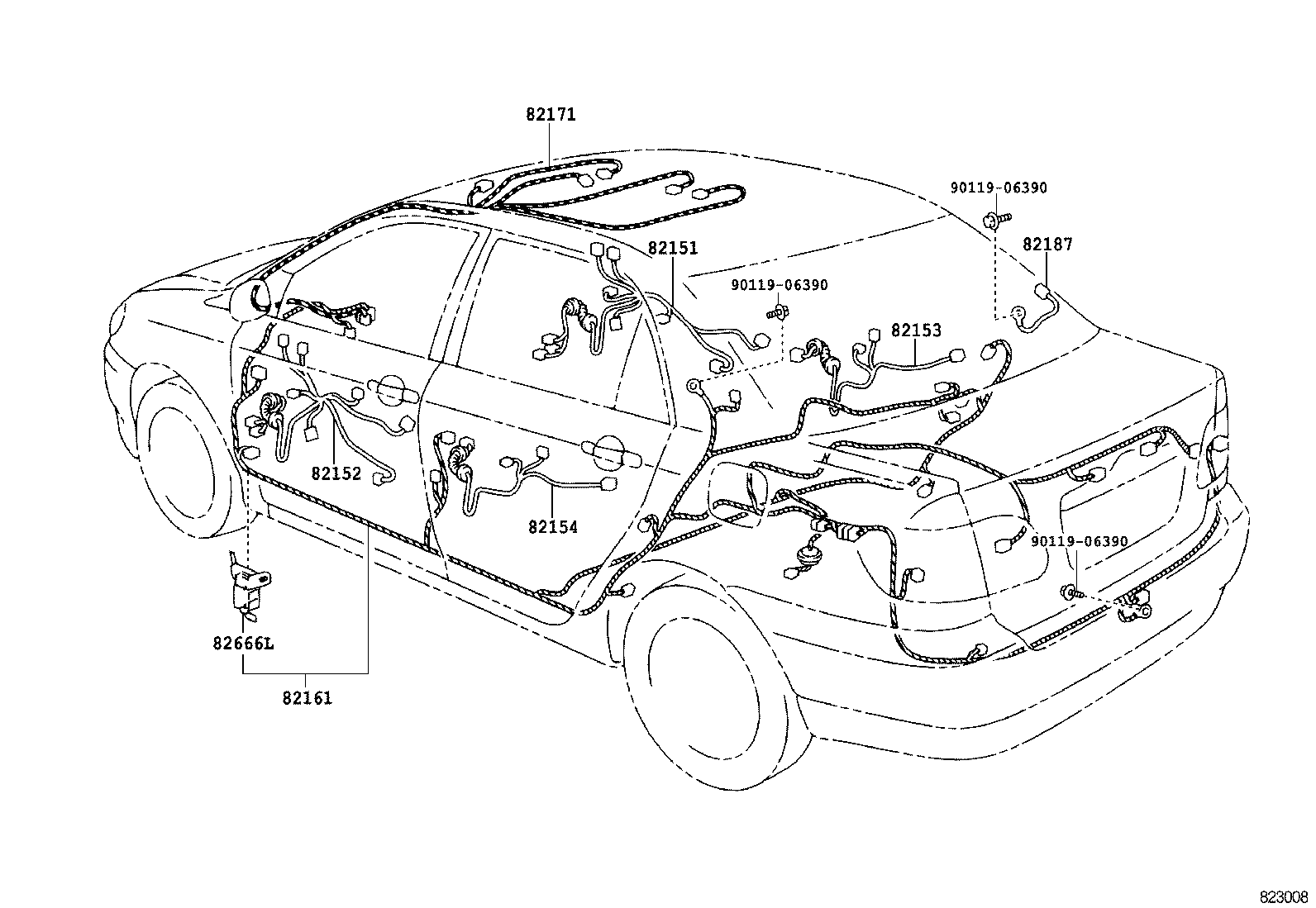

Figure 823008A

823008A 2002-05 → —

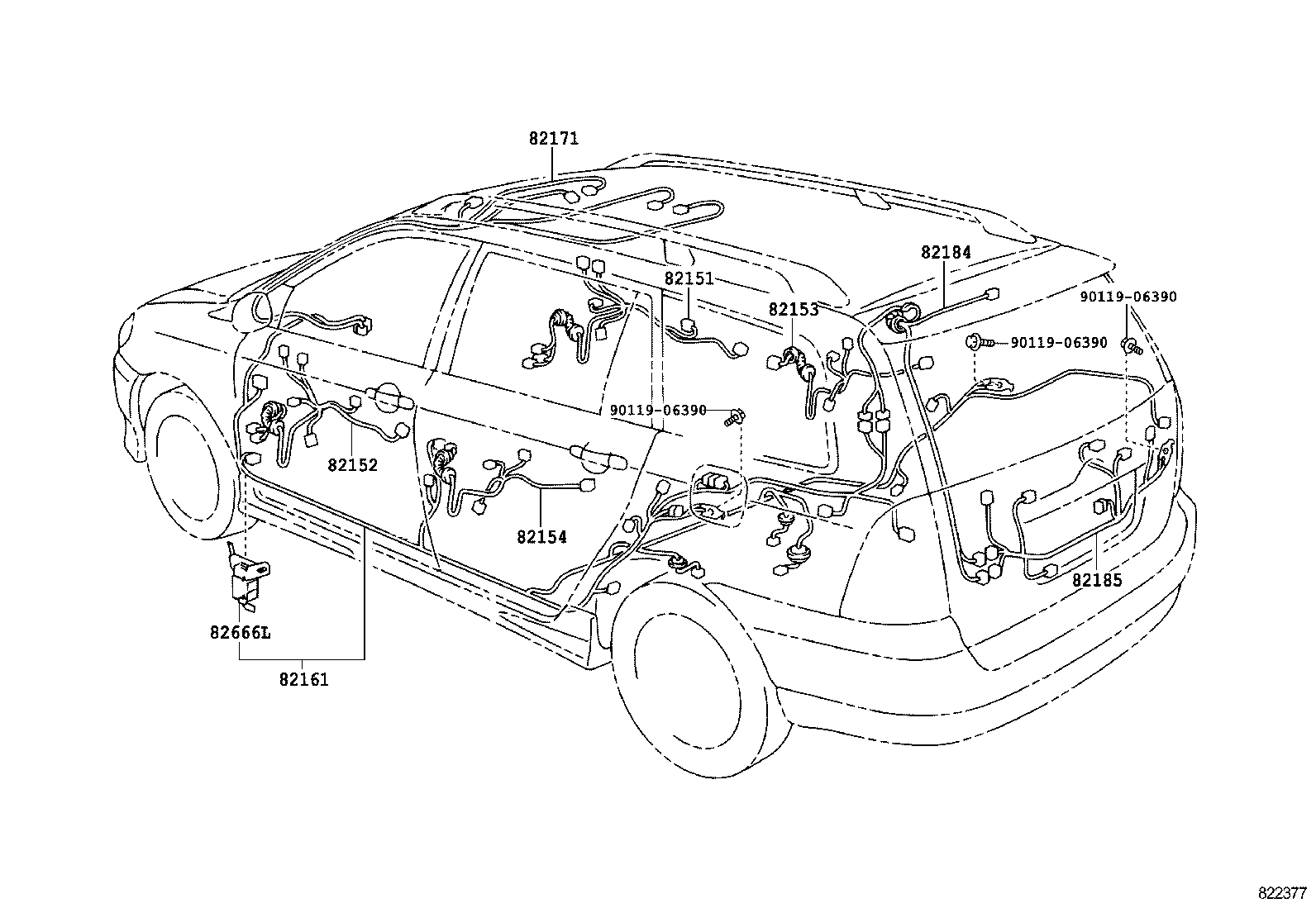

Figure 822377B

822377B 2004-04 → —

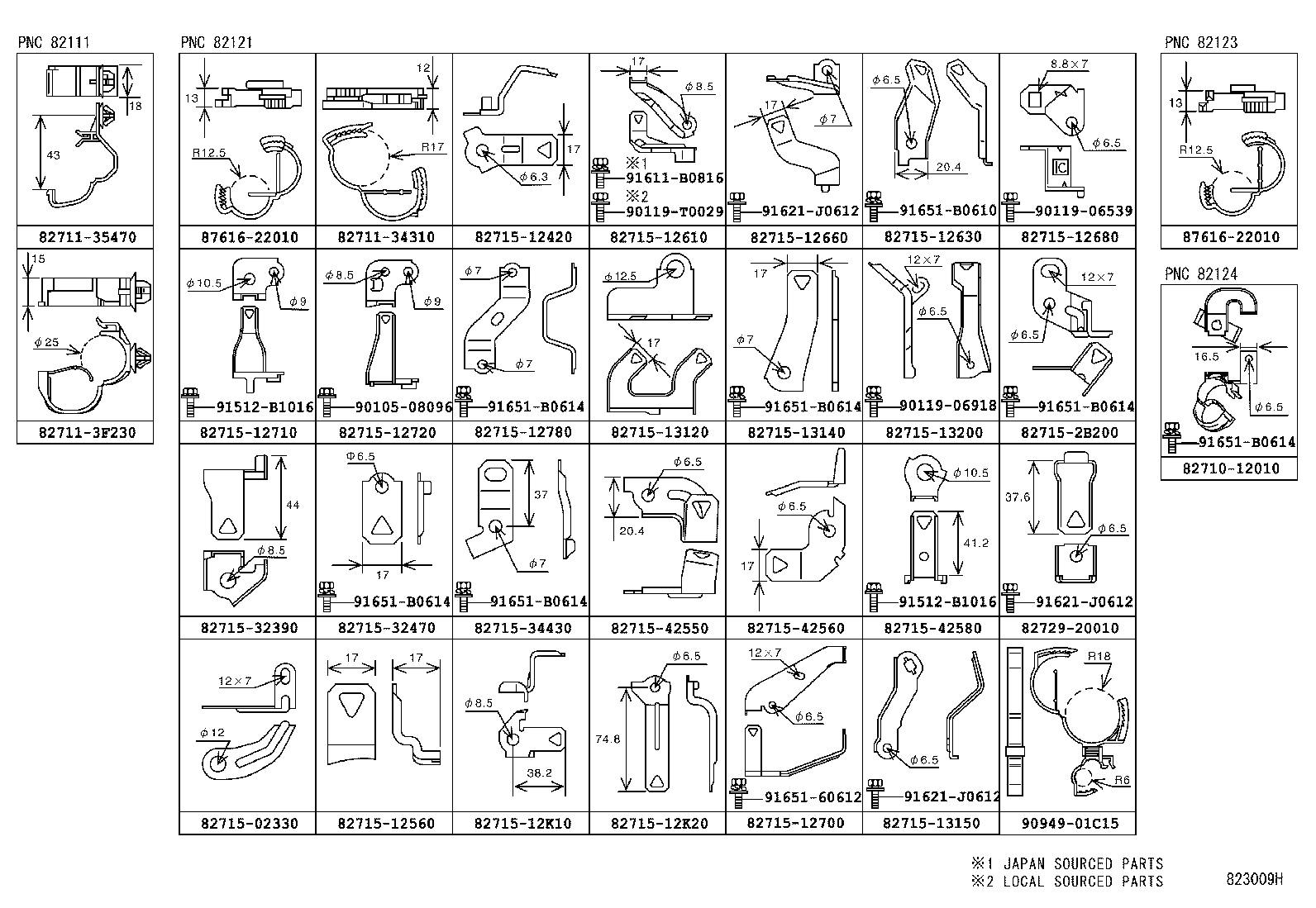

Figure 823009H

823009H 2002-05 → —

Figure 823010D

823010D 2002-05 → —

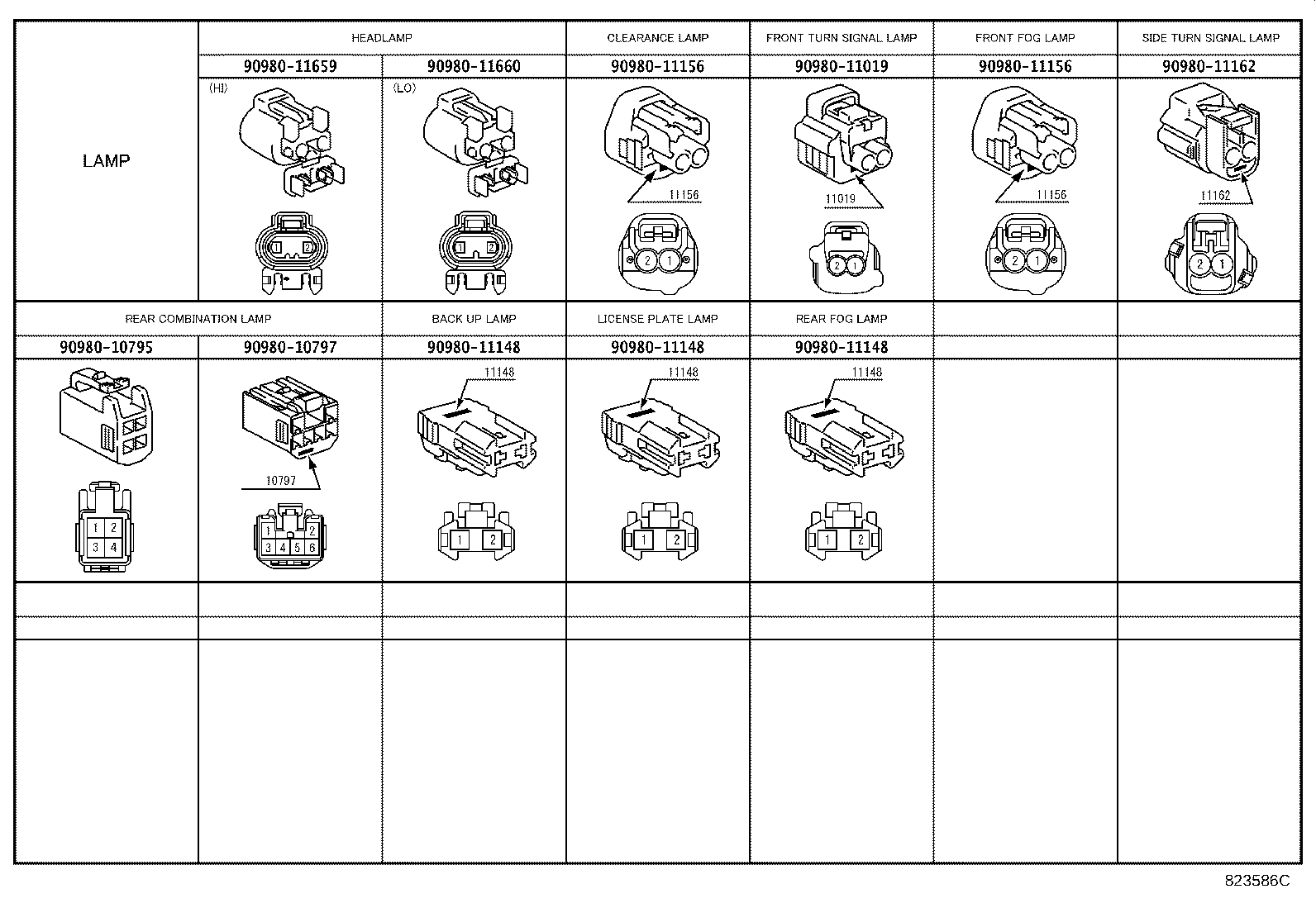

Figure 823586C

823586C 2002-05 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82111	Wire, Engine Room Main
82121	Wire, Engine
82123	Wire, Engine, NO.3
82124	Wire, Engine, NO.4
82126	Wire, Engine
82141	Wire, Instrument Panel
82144A	Wire, Instrument Panel, NO.4
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82161	Wire, Floor
82171	Wire, Roof, NO.1
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82187	Wire, Rear Window, NO.2
82210C	Fusible Link
82666B	Holder, Connector NO.3
82666C	Holder, Connector NO.4
82666D	Holder, Connector NO.5
82666F	Holder, Connector NO.7
82666G	Holder, Connector NO.8
82666L	Holder, Connector NO.9
82817	Protector, Wiring Harness, NO.1
82821A	Cover, Connector
82823S	Cap, Starter Terminal
82823T	Cap, Alternator Terminal
82824	Connector, Wiring Harness
82984	Wire, Horn Repair
82991	Wire, Fusible Link Repair

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
