Toyota Corolla (S.AMERICA)
2002-05 → 2008-09 · chassis CDE120,ZZE12# · catalogue 157350 · General
Discontinued model
Data version 2009-04
Switch & Relay & Computer
82 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |
| 82611A | Cover, Fuse Block, NO.2 |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673C | Bracket, Junction Block |
| 82683 | Plate, Fuse Block Caution |
| 82683A | Plate, Fuse Block Caution |

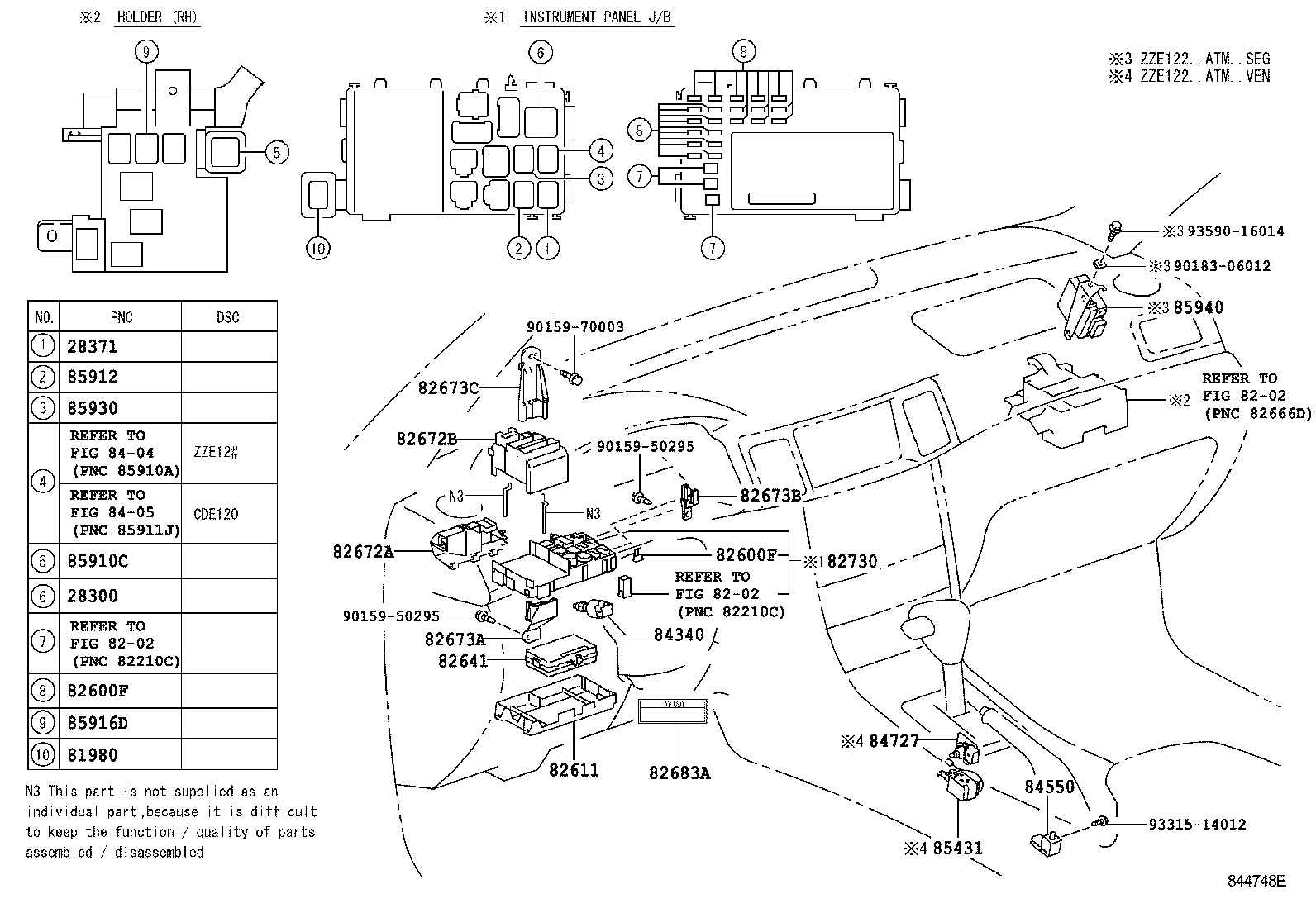

| 82730 | Block Assy, Instrument Panel Junction |

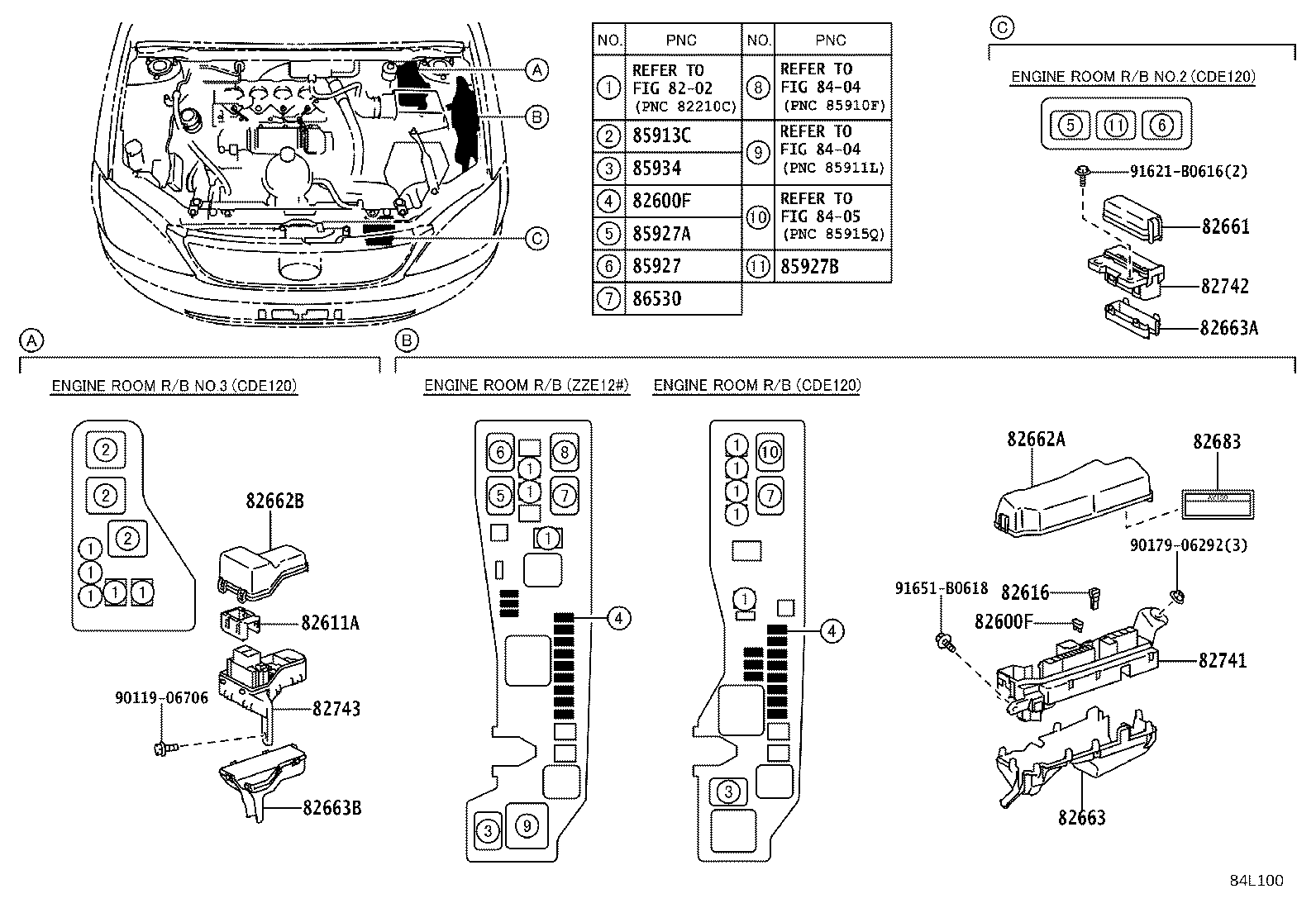

| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82743 | Block, Engine Room Relay, NO.3 |
| 82821B | Cover, Connector |
| 83181G | Sensor, Speedometer |
| 83181H | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83320 | Gage Assy, Fuel Sender |

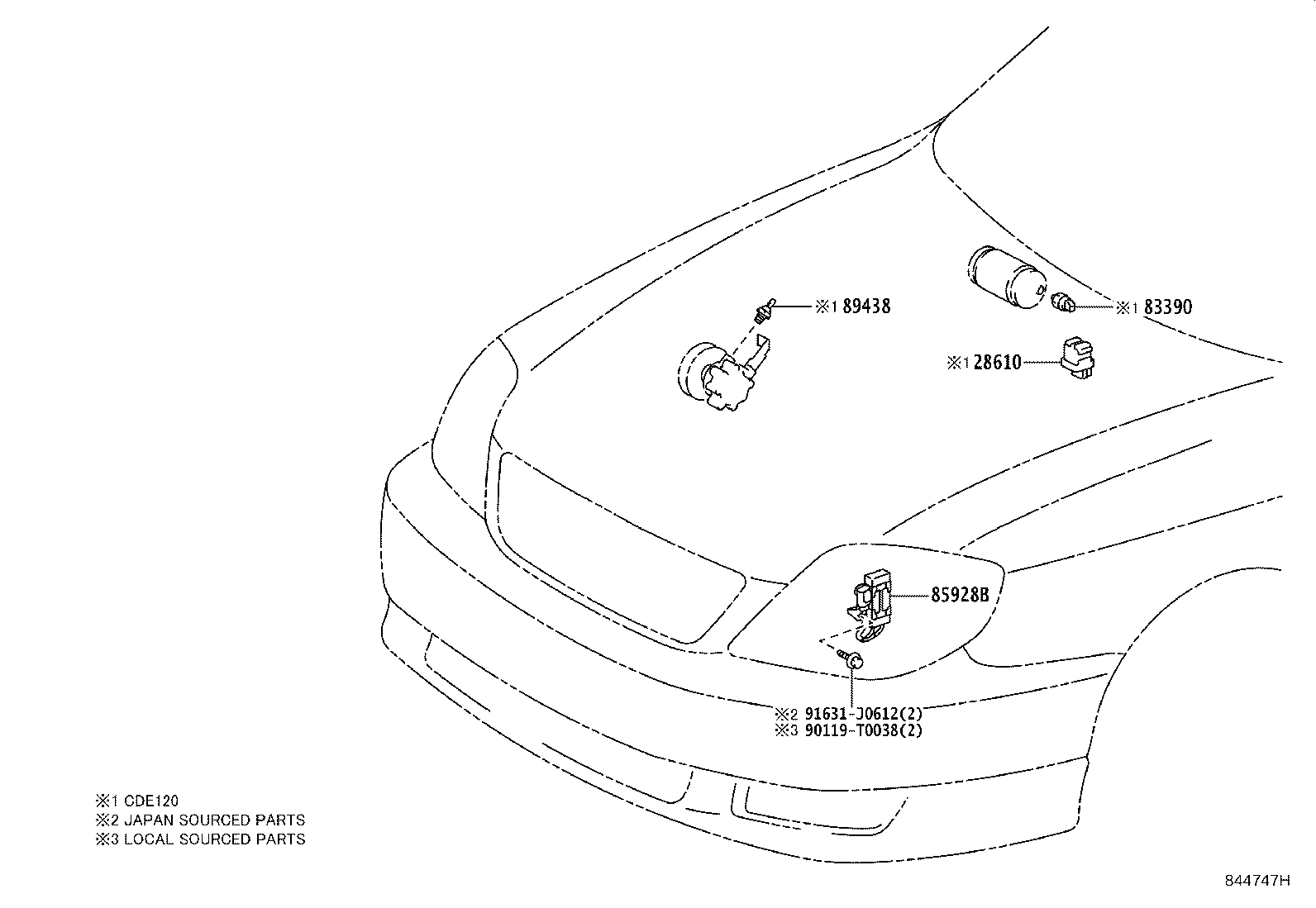

| 83390 | Switch Assy, Vacuum Warning |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |

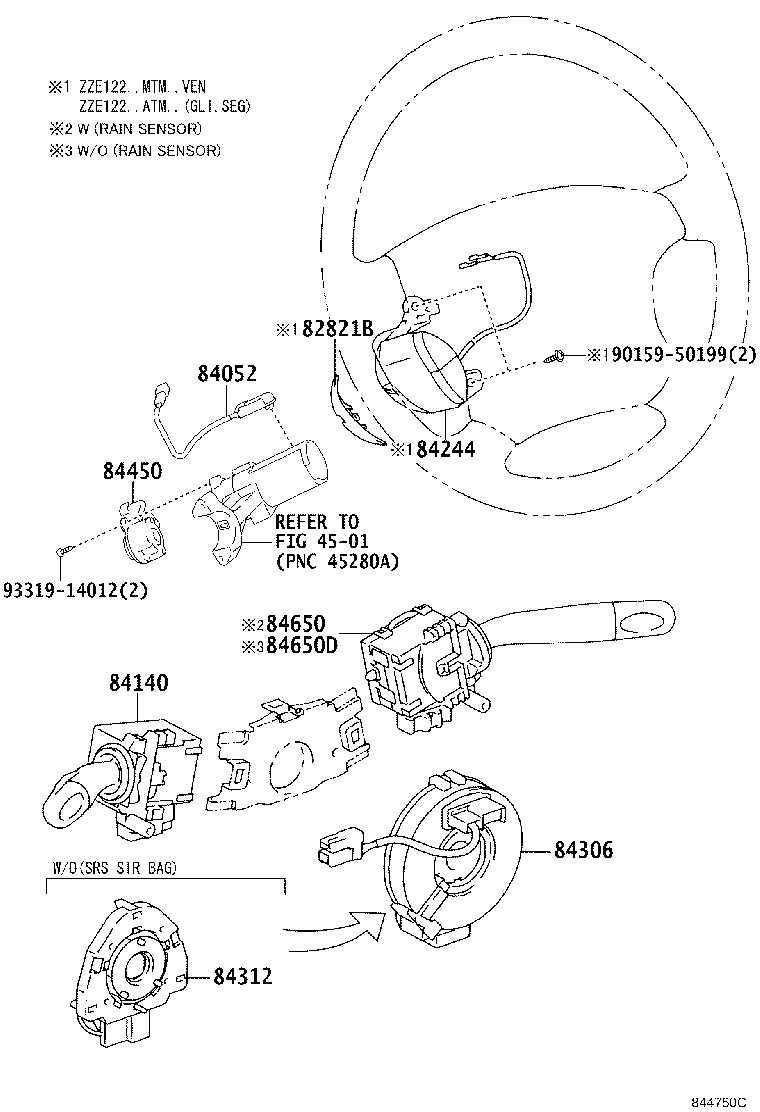

| 84244 | Switch, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84656A | Bezel, Switch |

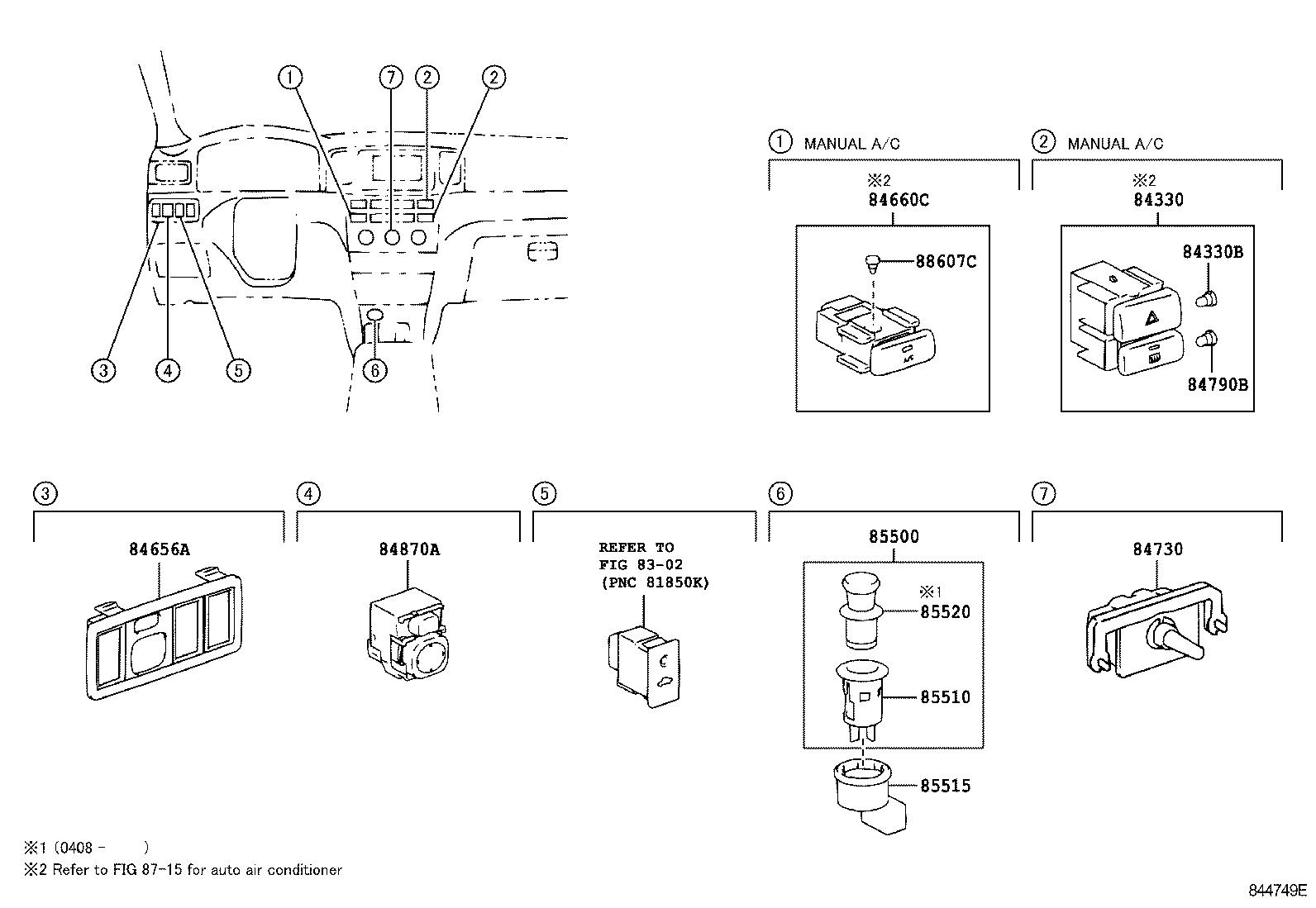

| 84660C | Switch, Cooler |
| 84727 | Switch, Shift Lock Control |
| 84730 | Switch Assy, Heater Blower |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |

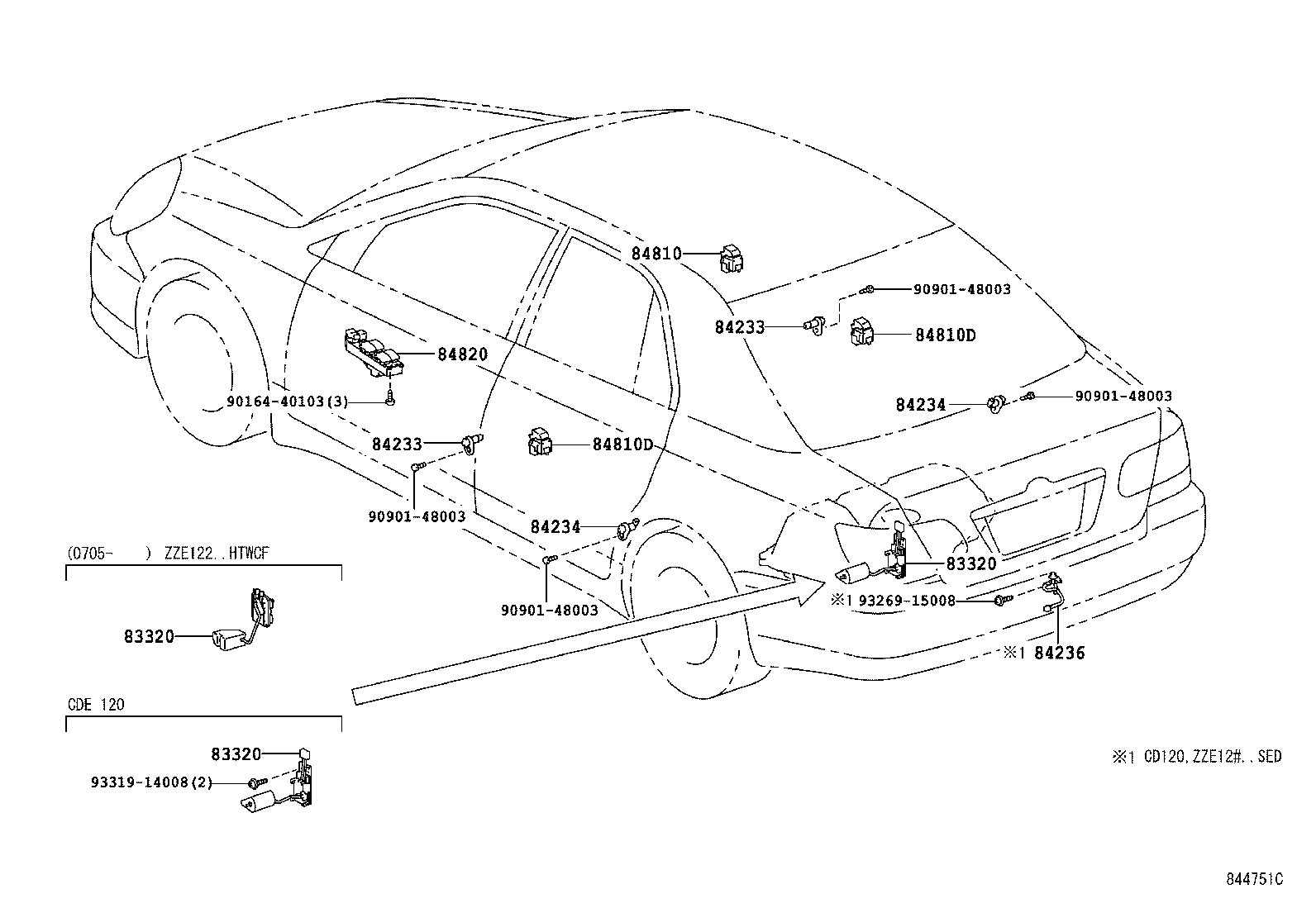

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 85431 | Solenoid, Shift Lock |
| 85500 | Lighter Assy, Cigarette |
| 85510 | Socket & Retainer Assy, Cigarlighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85913C | Relay, Heater, NO.1 |
| 85916D | Relay, Fog Lamp |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85928B | Resistor, Cooling Fan |
| 85930 | Relay Assy, Power Window |
| 85934 | Relay, Magnet-clutch |
| 85940 | Relay Assy, Windshield Wiper |
| 86530 | Relay Assy, Horn |
| 88607C | Lamp Sub-assy, Indicator |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89438 | Switch, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89615 | Sensor, Knock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
