Toyota Corolla (S.AMERICA)

2002-05 → 2008-09 · chassis CDE120,ZZE12# · catalogue 157350 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

14 part groups · 6 illustrations

Illustrations

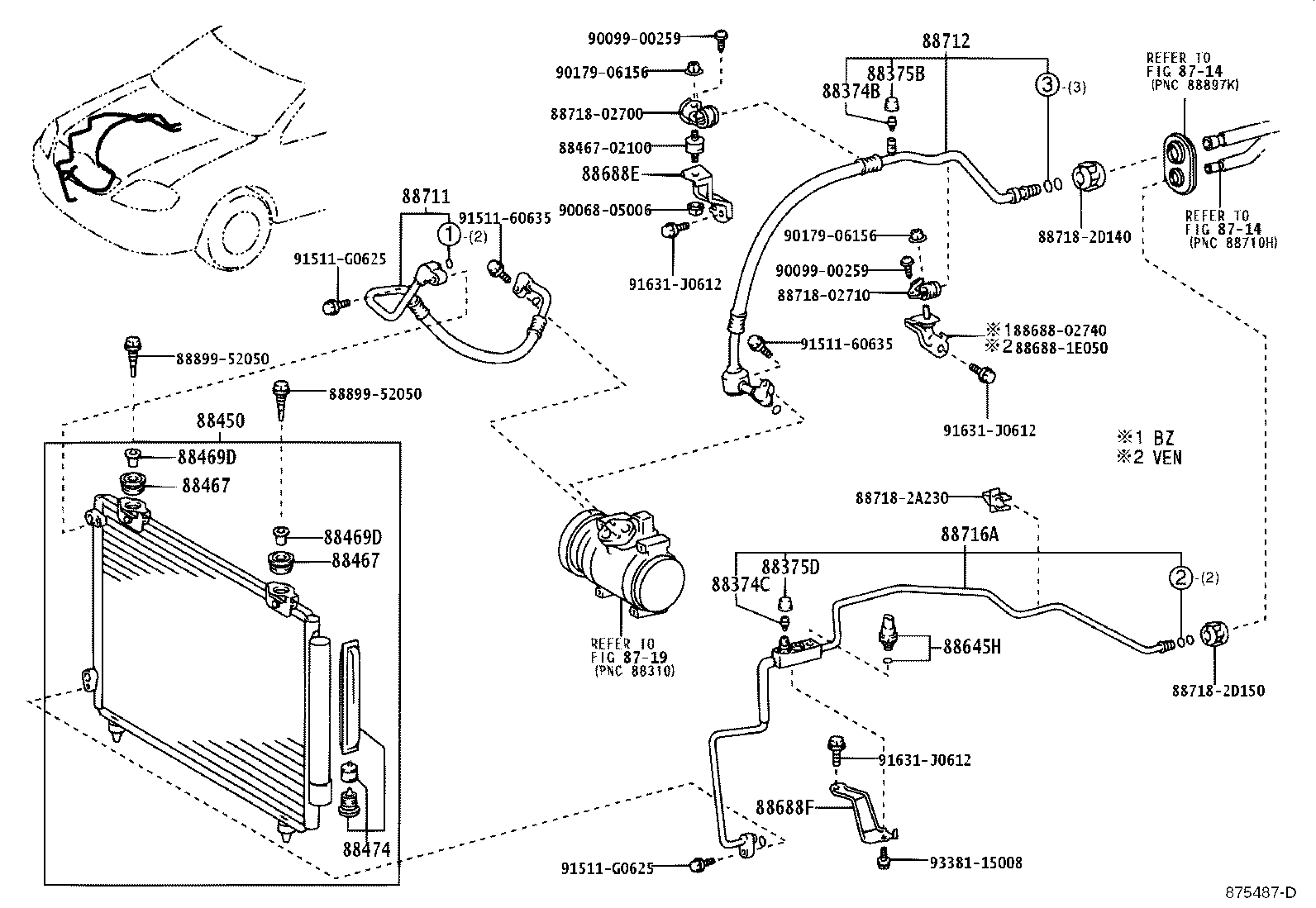

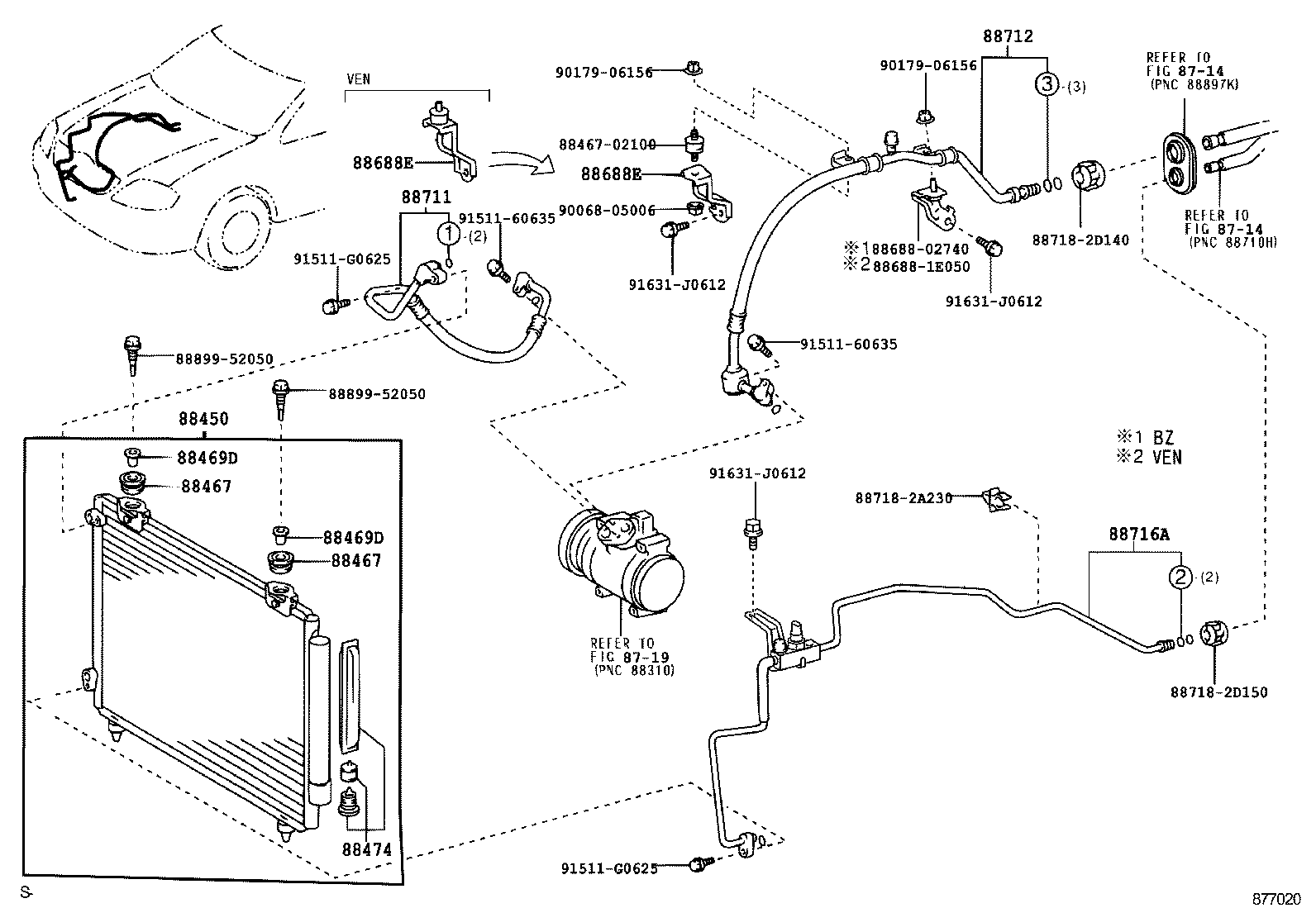

Figure 875521A 875521A 2002-05 → — Figure 875487D 875487D 2002-05 → 2004-08 Figure 875487D 875487D 2002-05 → 2005-08 Figure 875487D 875487D 2004-04 → 2007-05 Figure 877020A 877020A 2004-08 → — Figure 875488C 875488C 2002-05 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88467 Cushion, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
