Toyota Corolla (S.AMERICA)

2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 3 illustrations

Illustrations

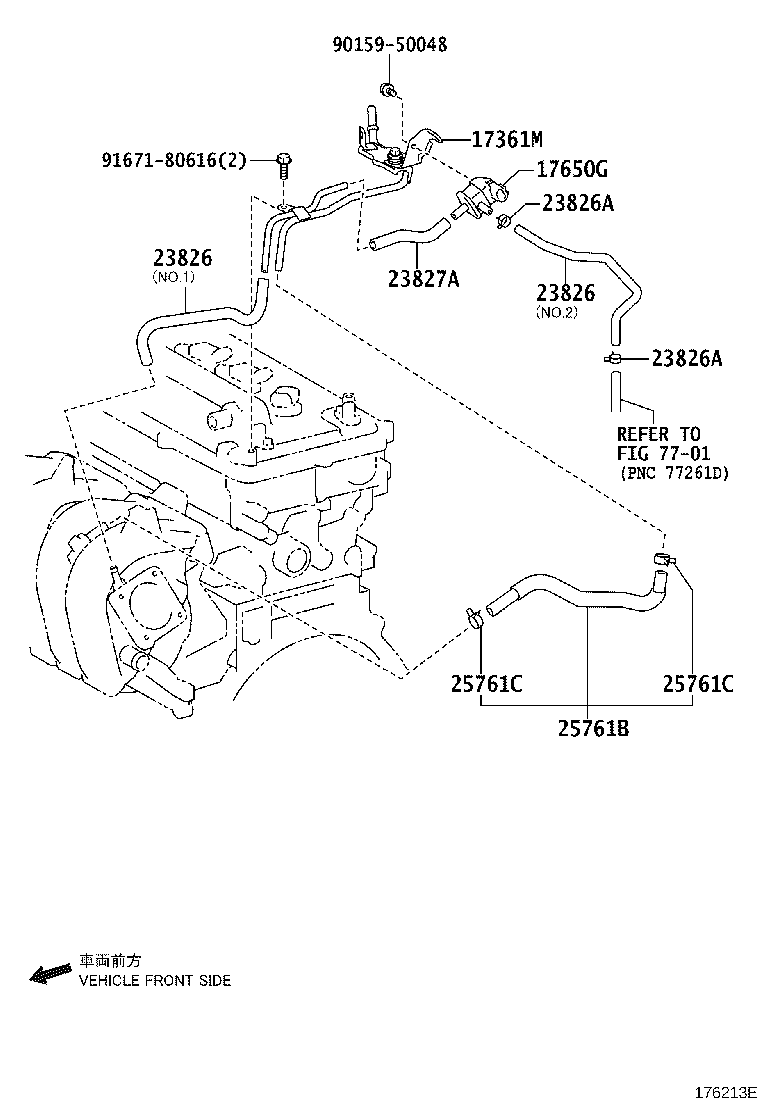

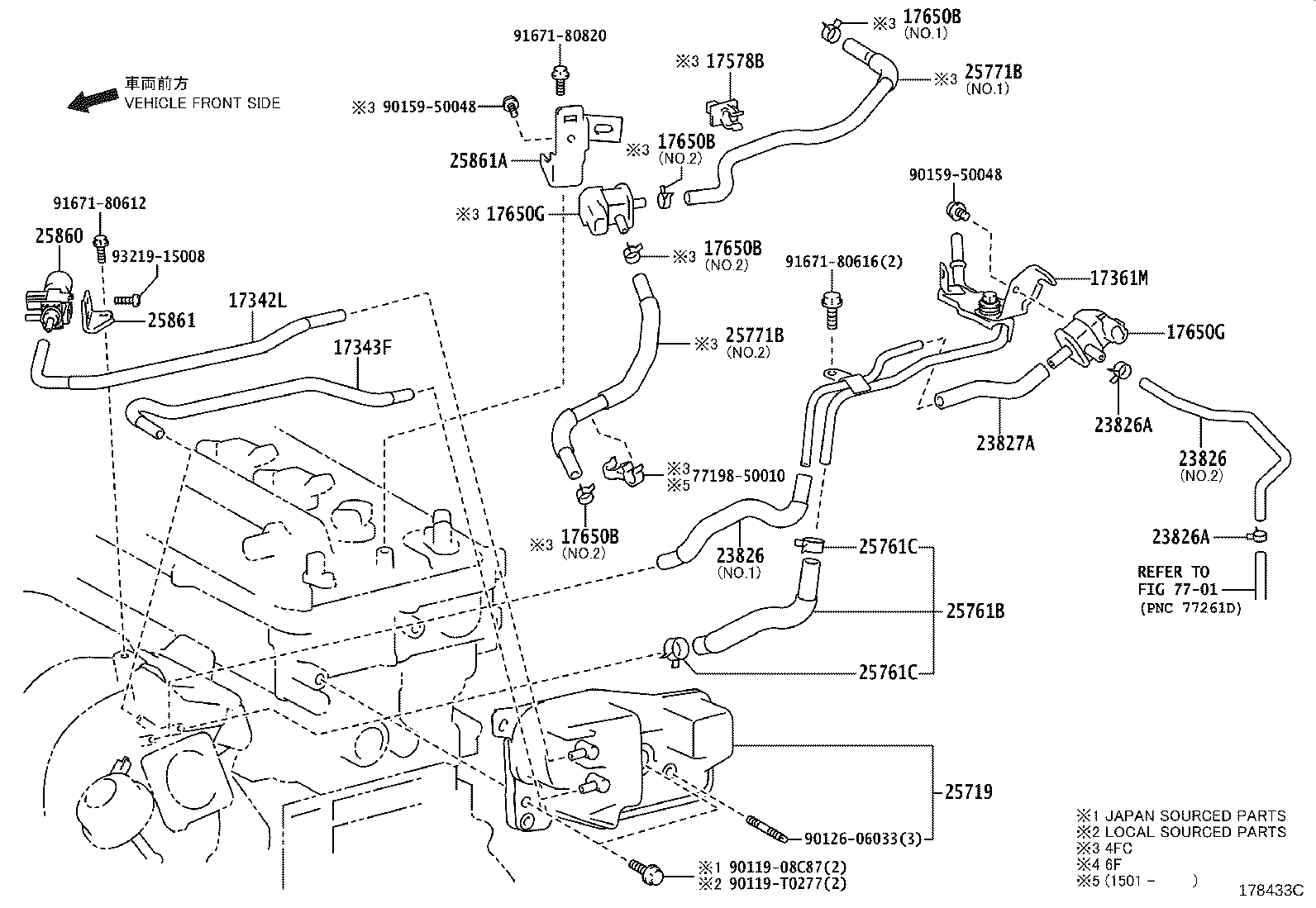

Figure 178333A 178333A 2014-03 → — Figure 176213E 176213E 2014-03 → — Figure 178433C 178433C 2015-01 → —

Part groups

PNCDescription
17342L Hose, Air, NO.2
17343F Hose, Air, NO.3
17361M Tube, Air
17578B Clamp, Pipe
17650B Clip(FOR VACUUM SWITCHING VALVE HOSE)
17650G Valve, Duty Vacuum Switching
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
25719 Tank, Vacuum Surge
25761B Hose, Vaccum Transmitting, NO.1
25761C Clip(VACCUM TRANSMITTING HOSE NO.1)
25771B Hose, Vaccum Transmitting, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
