Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11

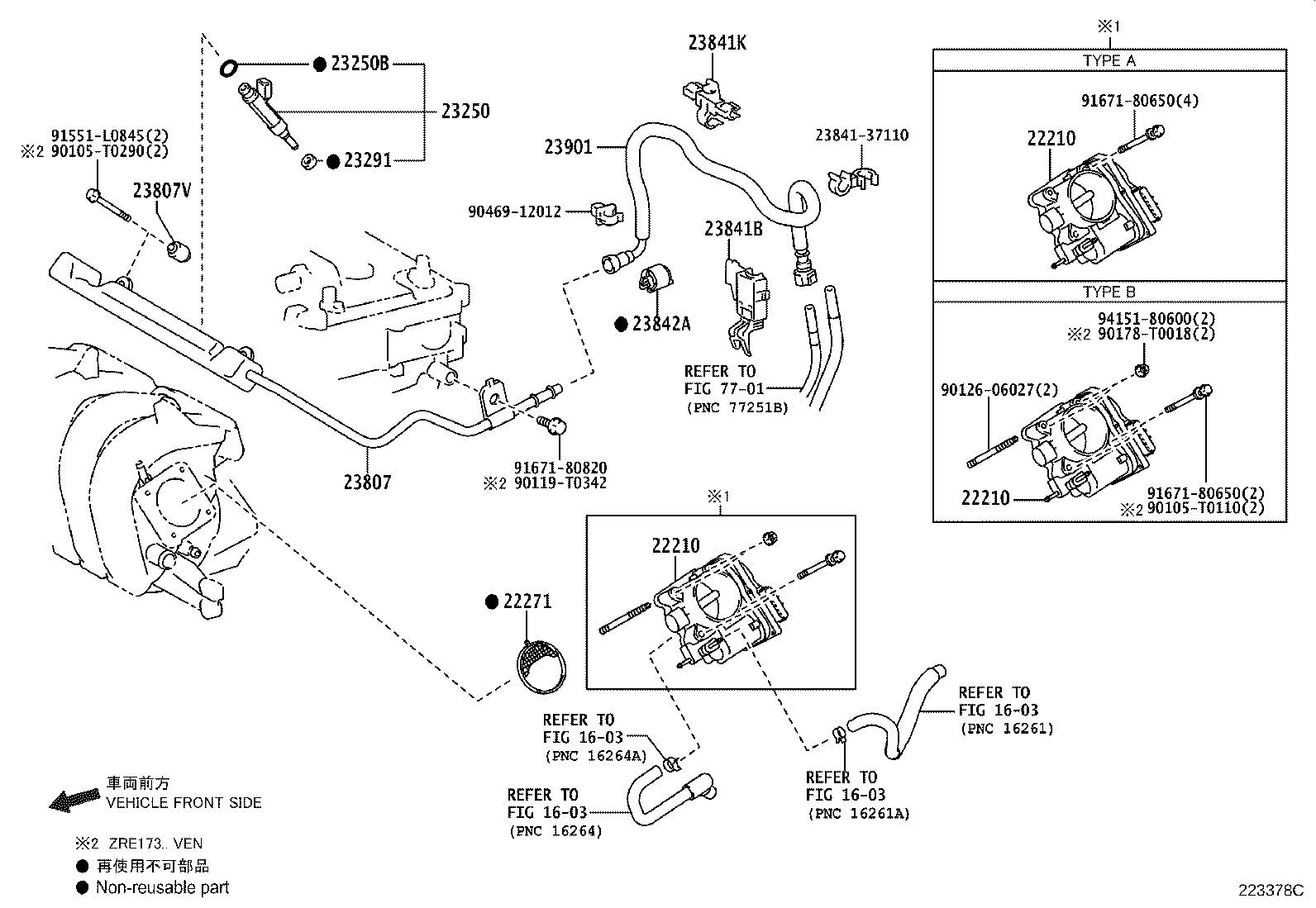

Fuel Injection System
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 22210 | Body Assy, Throttle |
| 22271 | Gasket, Throttle Body |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23291 | Insulator, Injector Vibration |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23841K | Clamp, Fuel Pipe |
| 23842A | Clamp, Fuel Pipe, NO.2(FOR EFI) |
| 23901 | Tube Sub-assy, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
