Toyota Corolla (S.AMERICA)

2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 8 illustrations

Illustrations

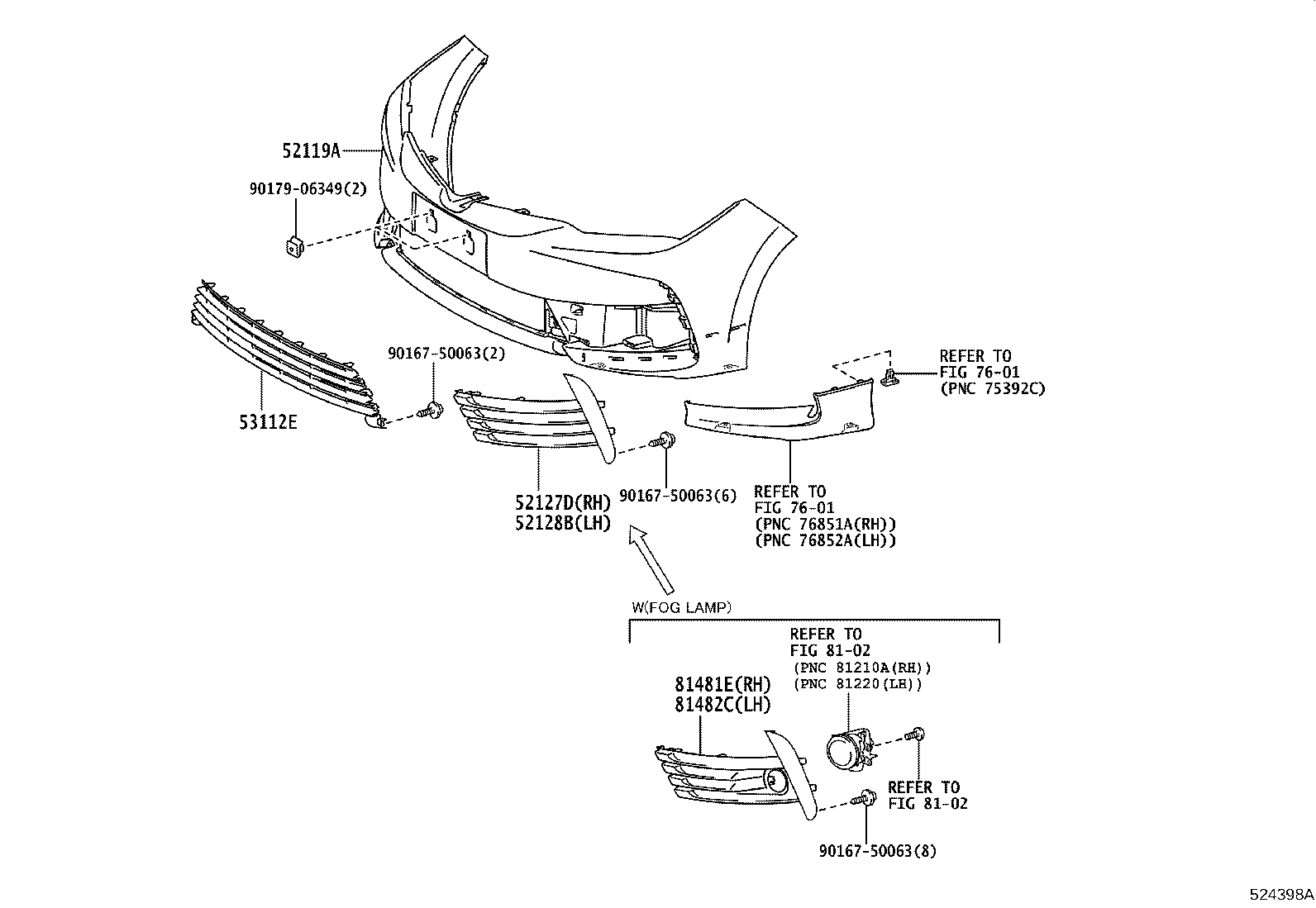

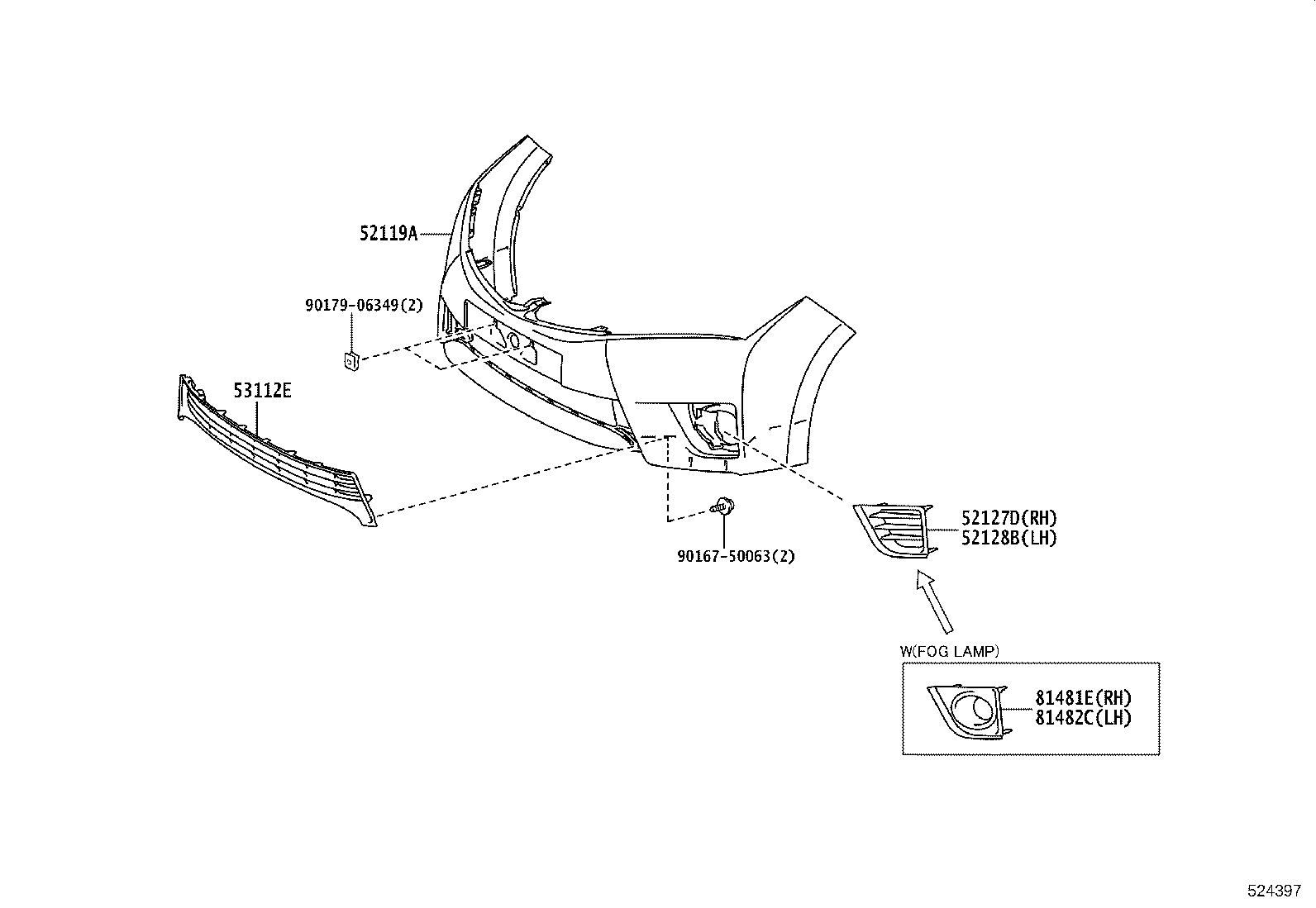

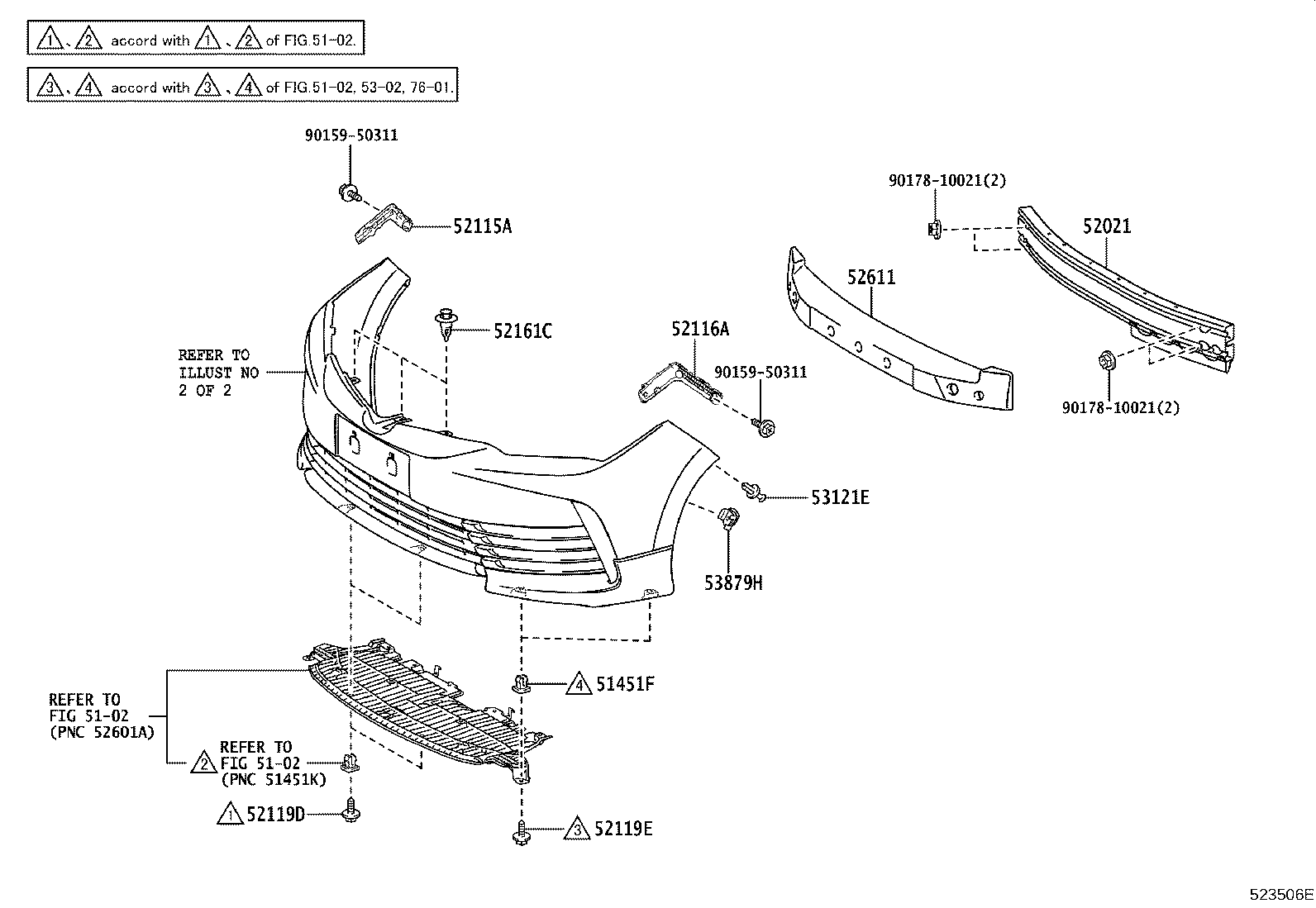

Figure 522936G 522936G 2014-03 → 2017-03 Figure 522936G 522936G 2014-03 → 2017-08 Figure 524397 524397 2014-03 → 2017-03 Figure 524397 524397 2014-03 → 2017-08 Figure 523506E 523506E 2017-03 → — Figure 523506E 523506E 2017-08 → — Figure 524398A 524398A 2017-03 → — Figure 524398A 524398A 2017-08 → —

Part groups

PNCDescription
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52119E Screw, NO.2
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53121E Clip(FOR FRONT BUMPER), NO.1
53879H Retainer, Front Fender Liner
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
