Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11

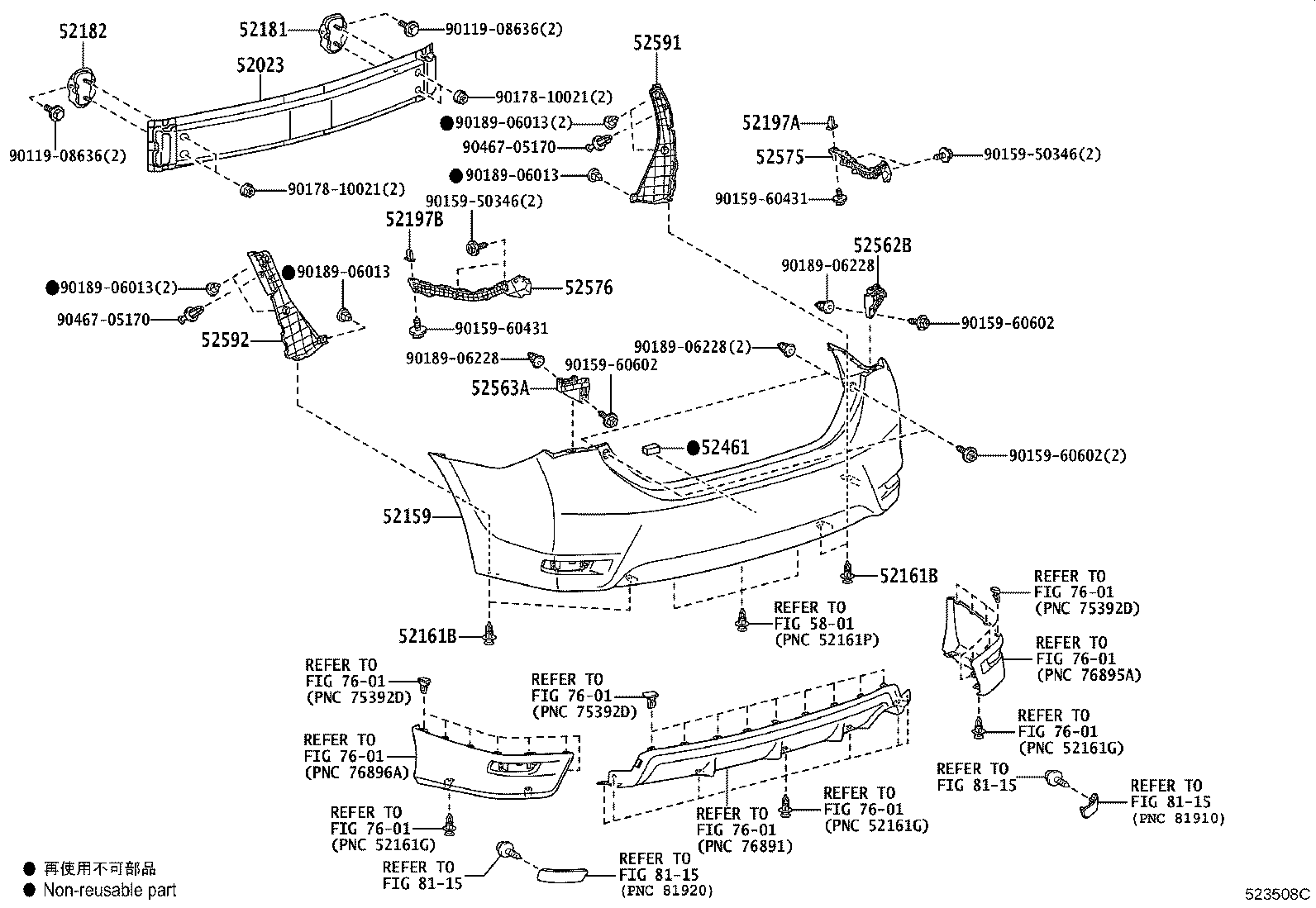

Rear Bumper & Bumper Stay
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52023 | Reinforcement Sub-assy, Rear Bumper |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52181 | Arm, Rear Bumper, RH |
| 52182 | Arm, Rear Bumper, LH |
| 52197A | Bracket, Rear Bumper Seal, RH |
| 52197B | Bracket, Rear Bumper Seal, LH |
| 52461 | Pad, Rear Bumper, Center |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
