Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11

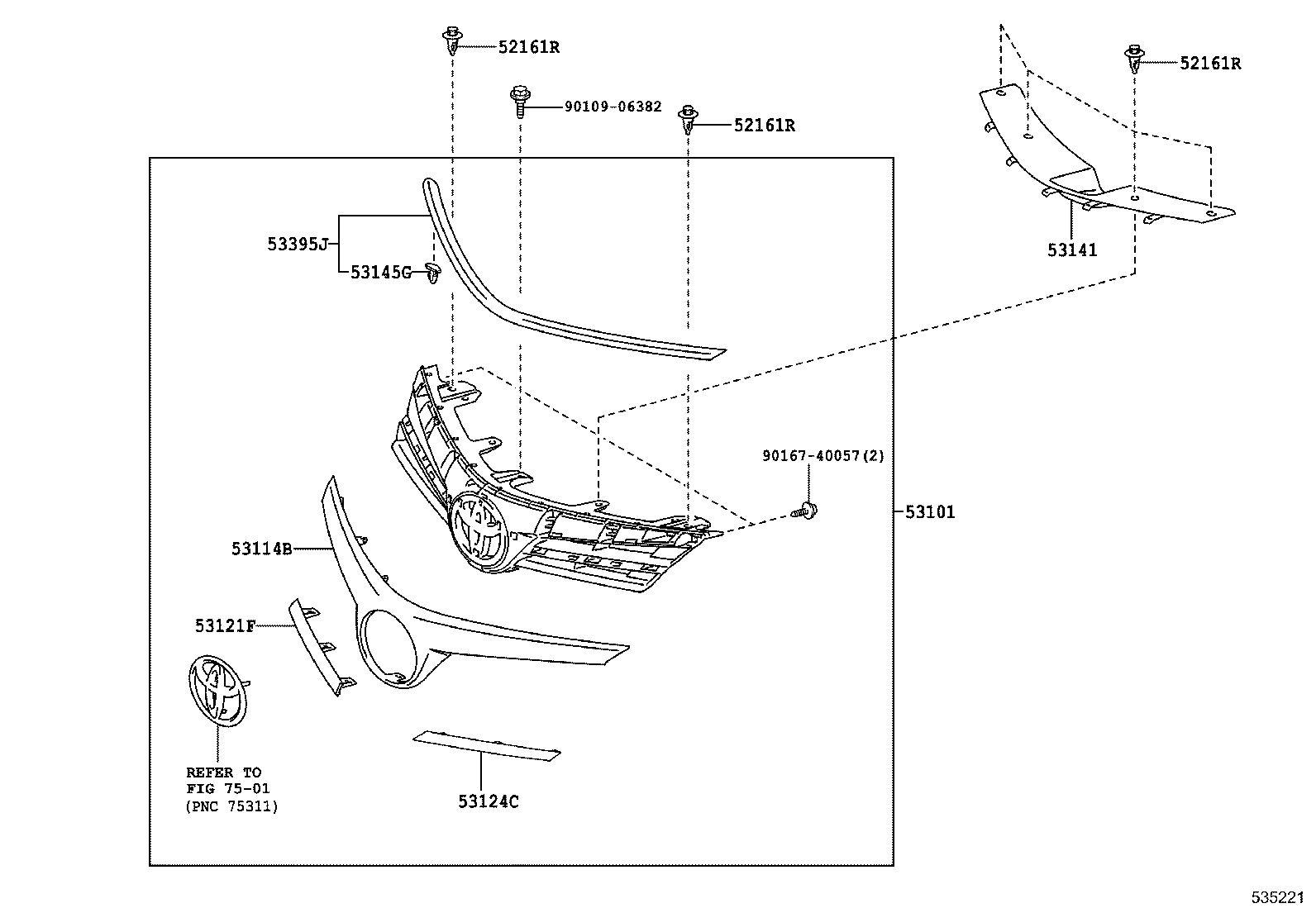

Radiator Grille
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161R | Piece, Front Bumper |
| 53101 | Grille Sub-assy, Radiator |
| 53114B | Grille, Radiator, Upper |
| 53121F | Moulding, Radiator Grille, Upper RH |
| 53124C | Moulding, Radiator Grille, Upper LH |
| 53125A | Moulding, Radiator Grille, Center RH |
| 53126A | Moulding, Radiator Grille, Center LH |
| 53141 | Cover, Radiator |
| 53145G | Clip, Radiator Grille |
| 53395J | Seal, Hood TO Front End Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
