Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11

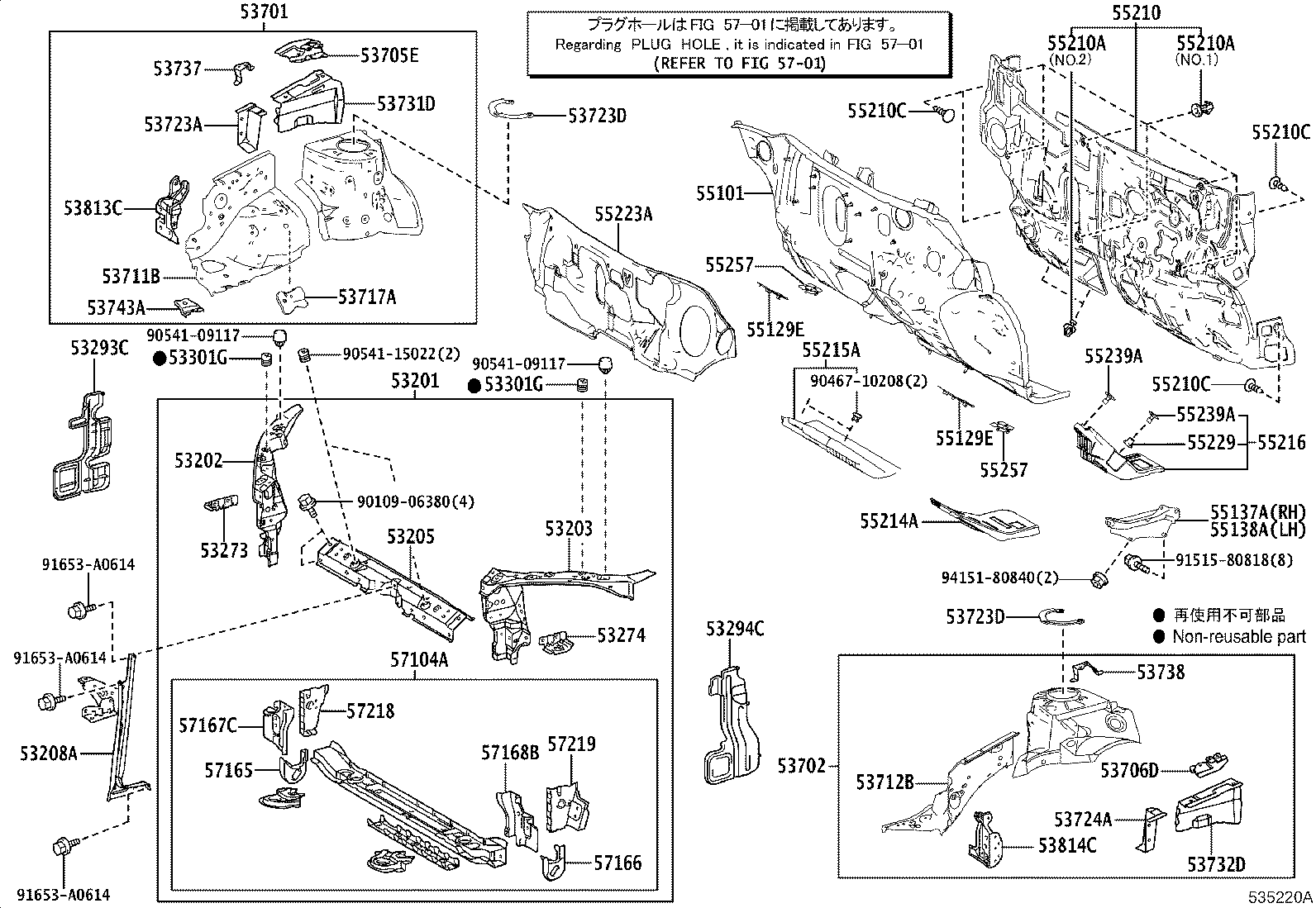

Front Fender Apron & Dash Panel
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53201 | Support Sub-assy, Radiator |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53208A | Support Sub-assy, Hood Lock |
| 53273 | Bracket, Front Bumper Arm Mounting, RH |
| 53274 | Bracket, Front Bumper Arm Mounting, LH |
| 53293C | Deflector, Radiator Side, RH |
| 53294C | Deflector, Radiator Side, LH |
| 53301G | Cushion, Hood Bumper |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53705E | Member Sub-assy, Front Apron TO Cowl Side, RH |
| 53706D | Member Sub-assy, Front Apron TO Cowl Side, LH |
| 53711B | Apron, Front Fender, Front RH |
| 53712B | Apron, Front Fender, Front LH |
| 53717A | Plate, Fender Apron |
| 53723A | Reinforcement, Front Spring Support, RH |
| 53723D | Reinforcement, Front Spring Support |
| 53724A | Reinforcement, Front Spring Support, LH |
| 53731D | Member, Front Apron TO Cowl Side, Upper RH |
| 53732D | Member, Front Apron TO Cowl Side, Upper LH |
| 53737 | Plate, Front Apron TO Cowl Side Member, RH |
| 53738 | Plate, Front Apron TO Cowl Side Member, LH |
| 53743A | Reinforcement, Front Fender Apron, Front RH |
| 53813C | Extension, Front Fender, RH |
| 53814C | Extension, Front Fender, LH |
| 55101 | Panel Sub-assy, Dash |
| 55129E | Cover, Dash Panel Hole, RH |
| 55137A | Brace, Dash TO Frame, RH |
| 55138A | Brace, Dash TO Frame, LH |
| 55139D | Cover, Dash Panel Hole, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55210C | Clip |
| 55214A | Pad, Dash Panel Insulator, NO.2 |
| 55215A | Pad, Dash Panel Insulator, NO.3 |
| 55216 | Pad, Dash Panel Insulator, NO.4 |
| 55223A | Insulator, Dash Panel, Outer |
| 55229 | Plate, Dash Panel Insulator, NO.4 |
| 55239A | Plate, Dash Panel Insulator, NO.3 |
| 55239E | Plate, Dash Panel Insulator, NO.3 |
| 55257 | Cover, Dash Panel Opening |
| 57104A | Member Sub-assy, Front Cross |
| 57165 | Reinforcement, Front Crossmember, Lower RH |
| 57166 | Reinforcement, Front Crossmember, Lower LH |
| 57167C | Gusset, Front Crossmember Side, RH |
| 57168B | Gusset, Front Crossmember Side, LH |
| 57218 | Gusset, Front Side Member, NO.1 |
| 57219 | Gusset, Front Side Member, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
