Toyota Corolla (S.AMERICA)

2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

53 part groups · 13 illustrations

Illustrations

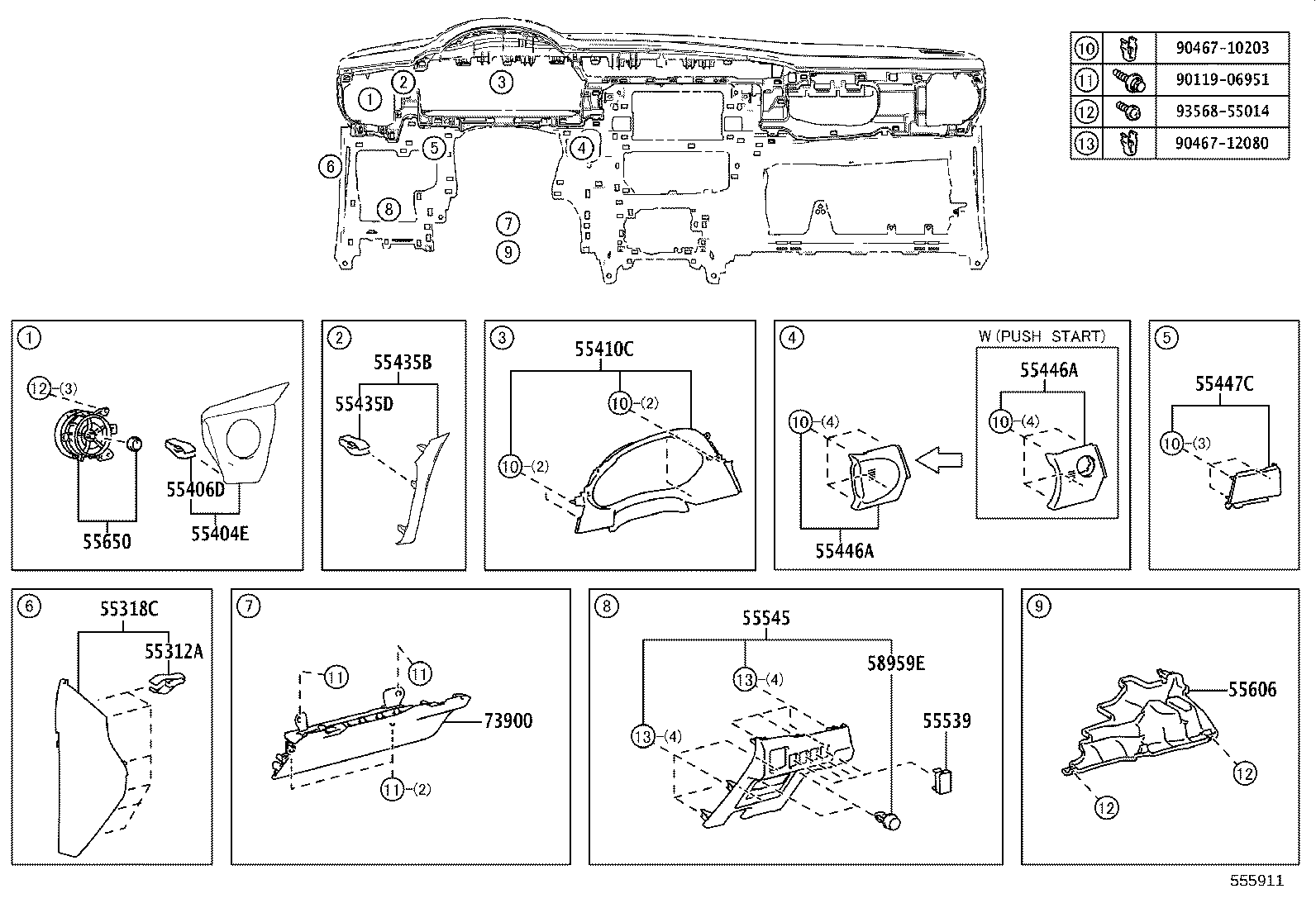

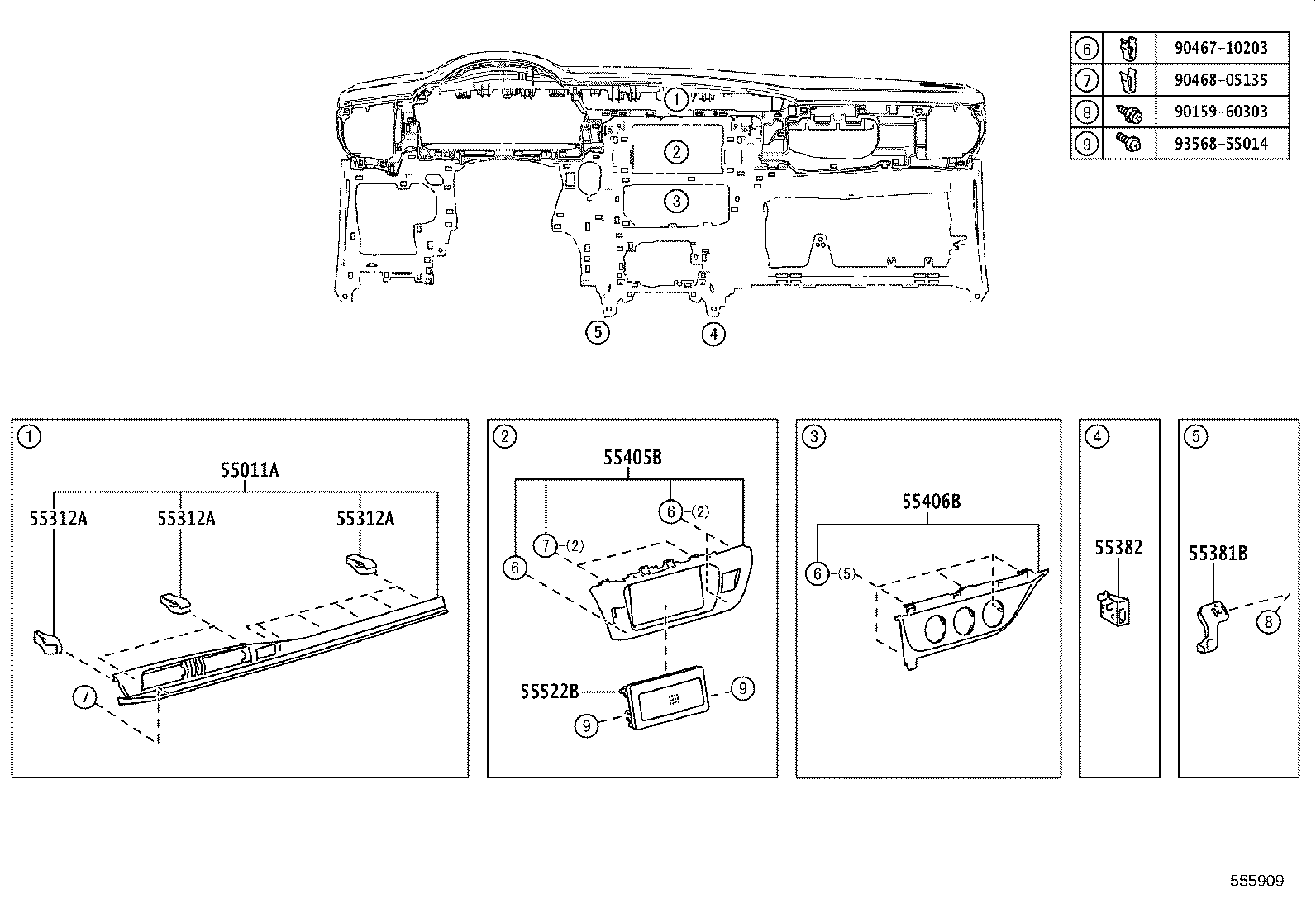

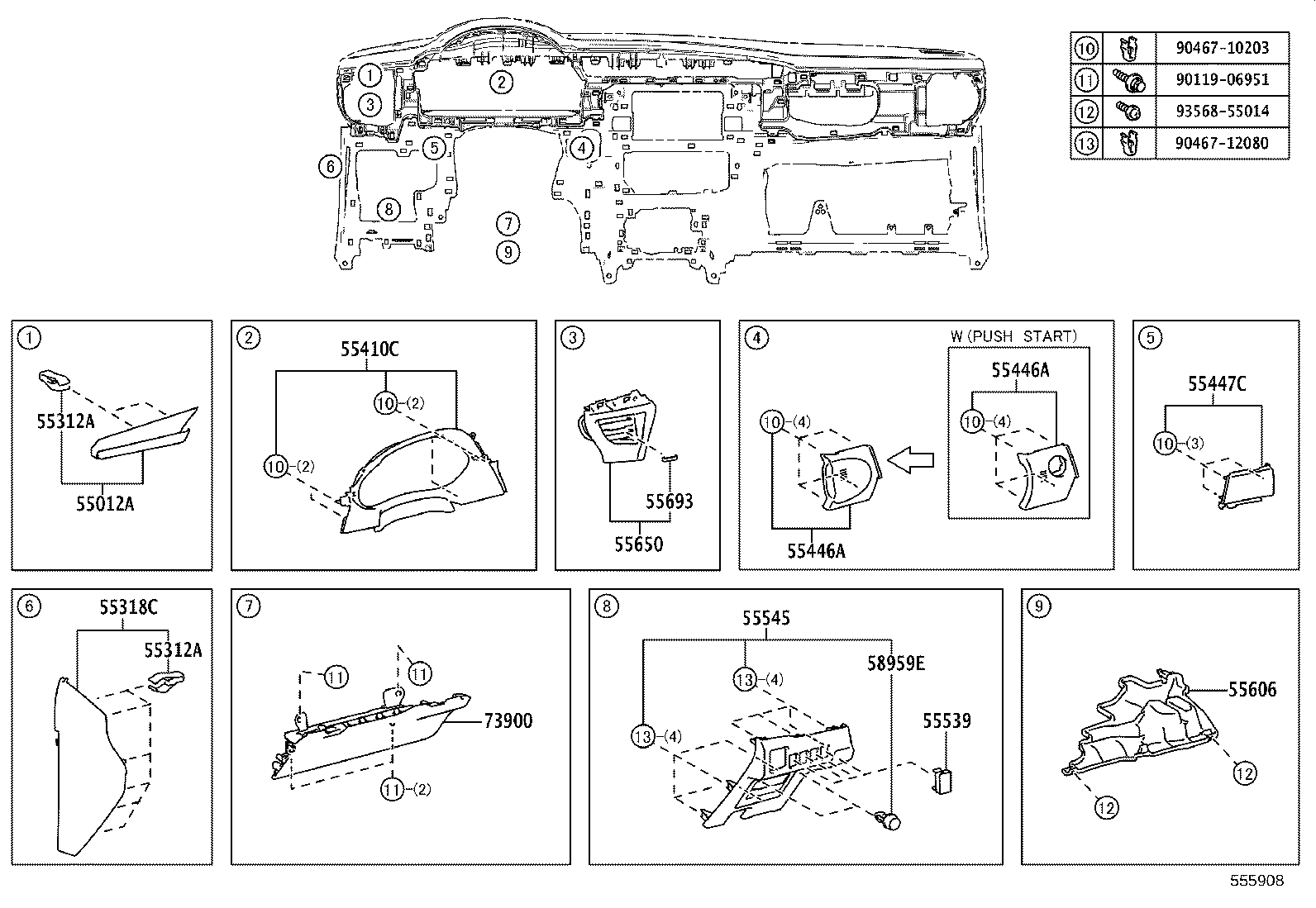

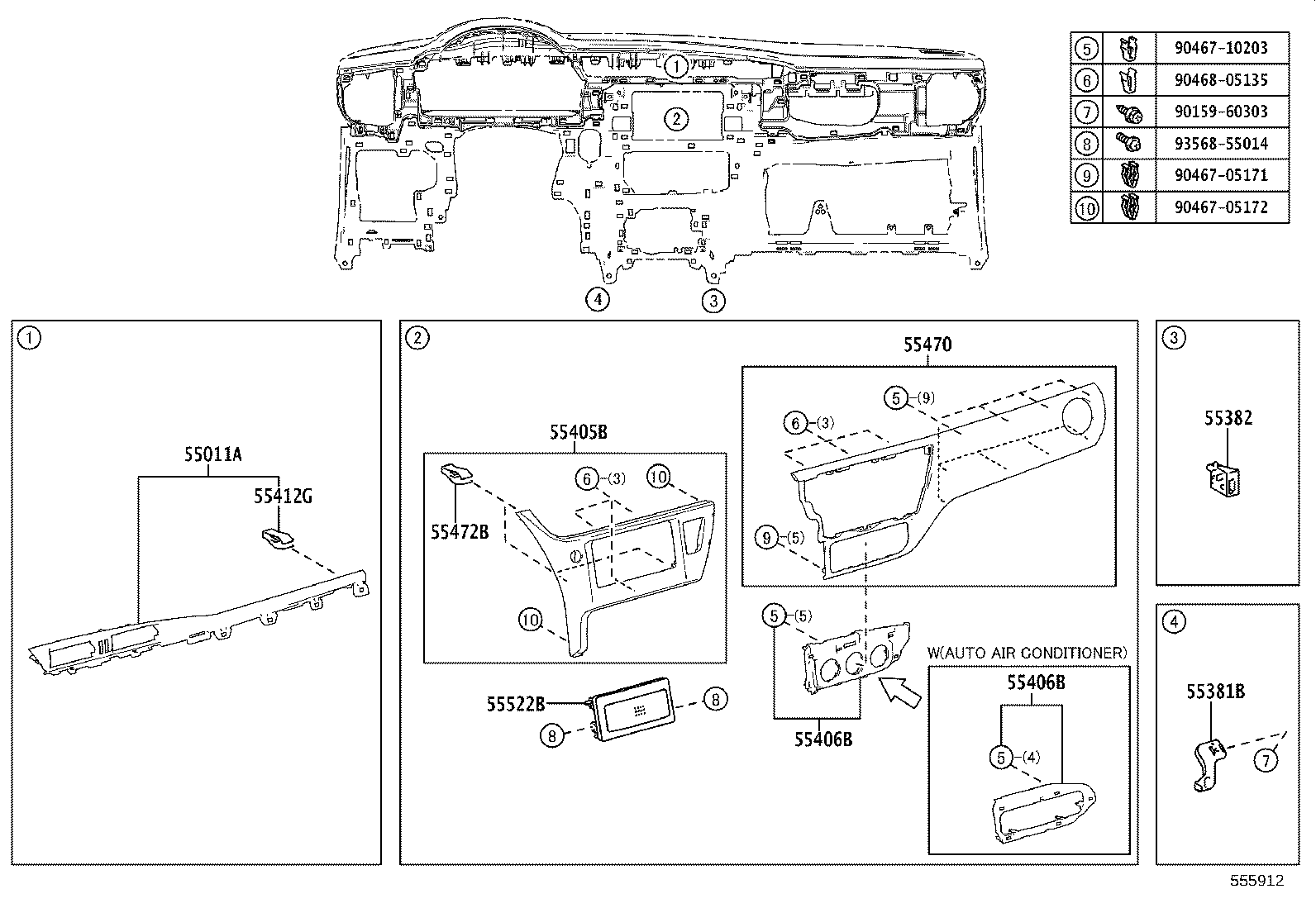

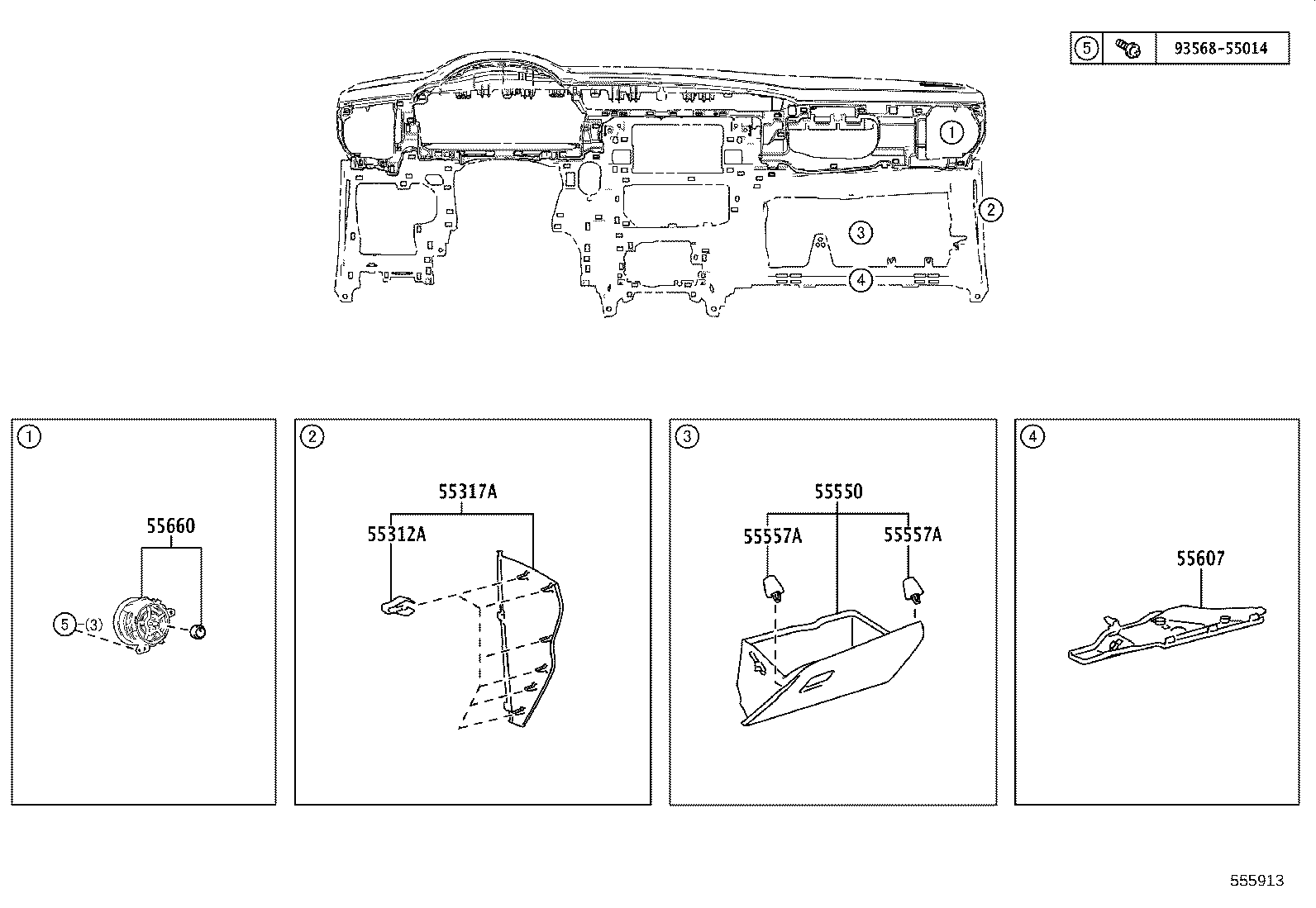

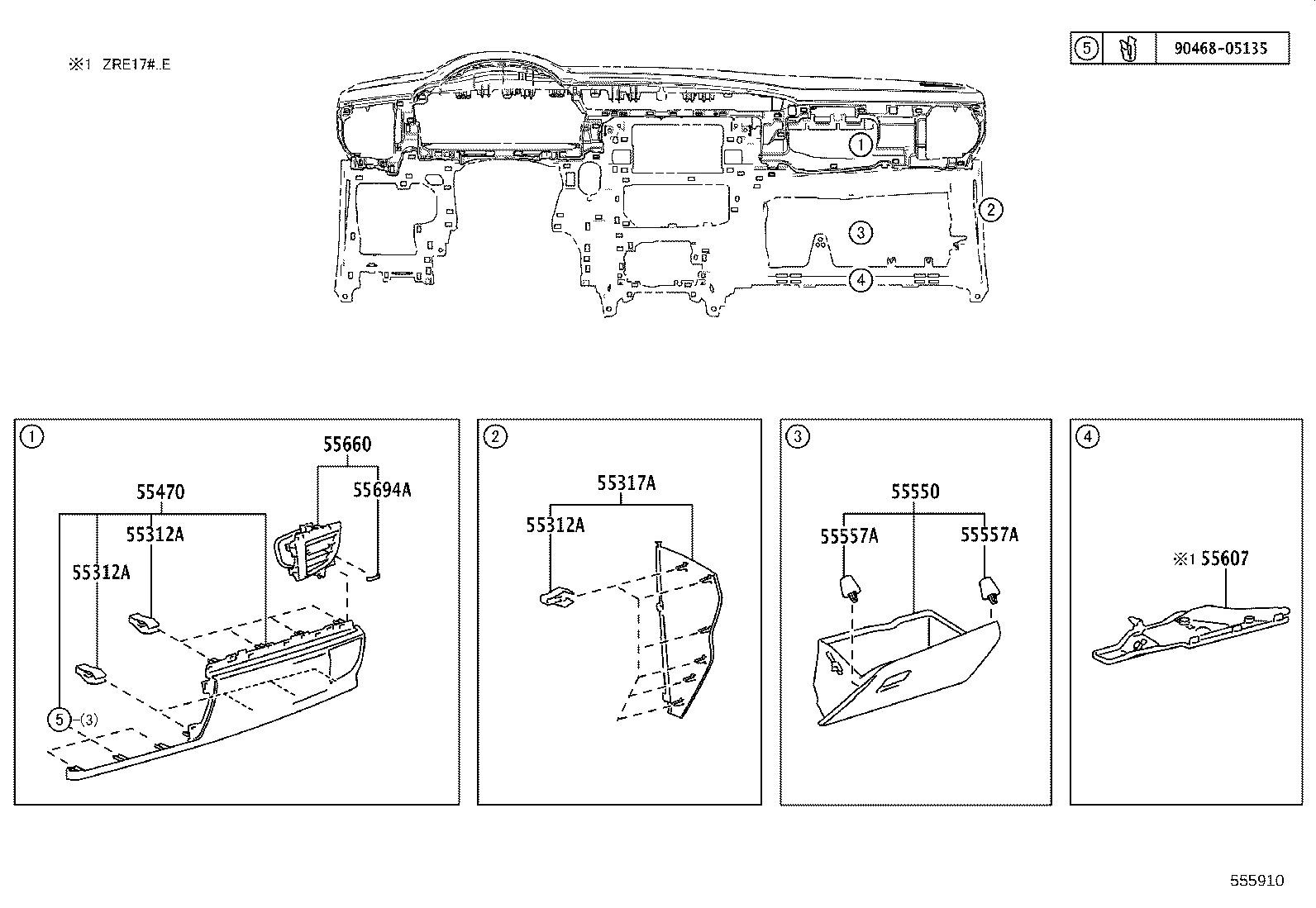

Figure 553263E 553263E 2014-03 → — Figure 555908 555908 2014-03 → 2017-03 Figure 555908 555908 2015-01 → 2017-08 Figure 555909 555909 2014-03 → 2017-03 Figure 555909 555909 2015-01 → 2017-08 Figure 555910 555910 2014-03 → 2017-03 Figure 555910 555910 2015-01 → 2017-08 Figure 555911 555911 2017-03 → — Figure 555911 555911 2017-08 → — Figure 555912 555912 2017-03 → — Figure 555912 555912 2017-08 → — Figure 555913 555913 2017-03 → — Figure 555913 555913 2017-08 → —

Part groups

PNCDescription
55011A Garnish Sub-assy, Instrument Panel, NO.1
55012A Garnish Sub-assy, Instrument Panel, NO.2
55054 Stopper Sub-assy, Glove Compartment Door
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55312A Clip, Instrument Panel
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55330B Reinforcement Assy, Instrument Panel
55343B Brace, Instrument Panel TO Cowl, Center
55349A Cushion, Instrument Panel
55355E Cushion, Instrument Panel
55356C Cushion, Instrument Panel, NO.2
55357B Cushion, Instrument Panel, NO.3
55376 Bracket, Instrument Panel Mounting, NO.1
55377A Bracket, Instrument Panel Mounting, NO.2
55381B Bracket, Finish Panel Mounting, NO.1
55382 Bracket, Finish Panel Mounting, NO.2
55401E Pad Sub-assy, Instrument Panel Safety
55401F Clip(FOR SAFETY PAD)
55404E Panel Sub-assy, Instrument Cluster Finish, Upr
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55410C Panel Assy, Instrument Cluster Finish
55412G Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)
55416A Retainer, Meter Hood, NO.1
55435B Cluster, Meter Hood, NO.1
55435D Clip, Meter Hood Cluster
55446A Base, Switch Hole, NO.1
55447C Base, Switch Hole, NO.2
55470 Garnish Assy, Instrument Cluster Finish Panel
55472B Clip, Instrument Cluster Moulding
55522B Cover, Radio Tuner Opening
55539 Cover, Spare Switch Hole
55545 Cover, Fuse Box Opening
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55693 Protector, Control Knob, NO.1
55694A Protector, Control Knob, NO.2
55699 Knob, Instrument Panel Register Control
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
58959E Cushion, Console Compartment Door
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
