Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11

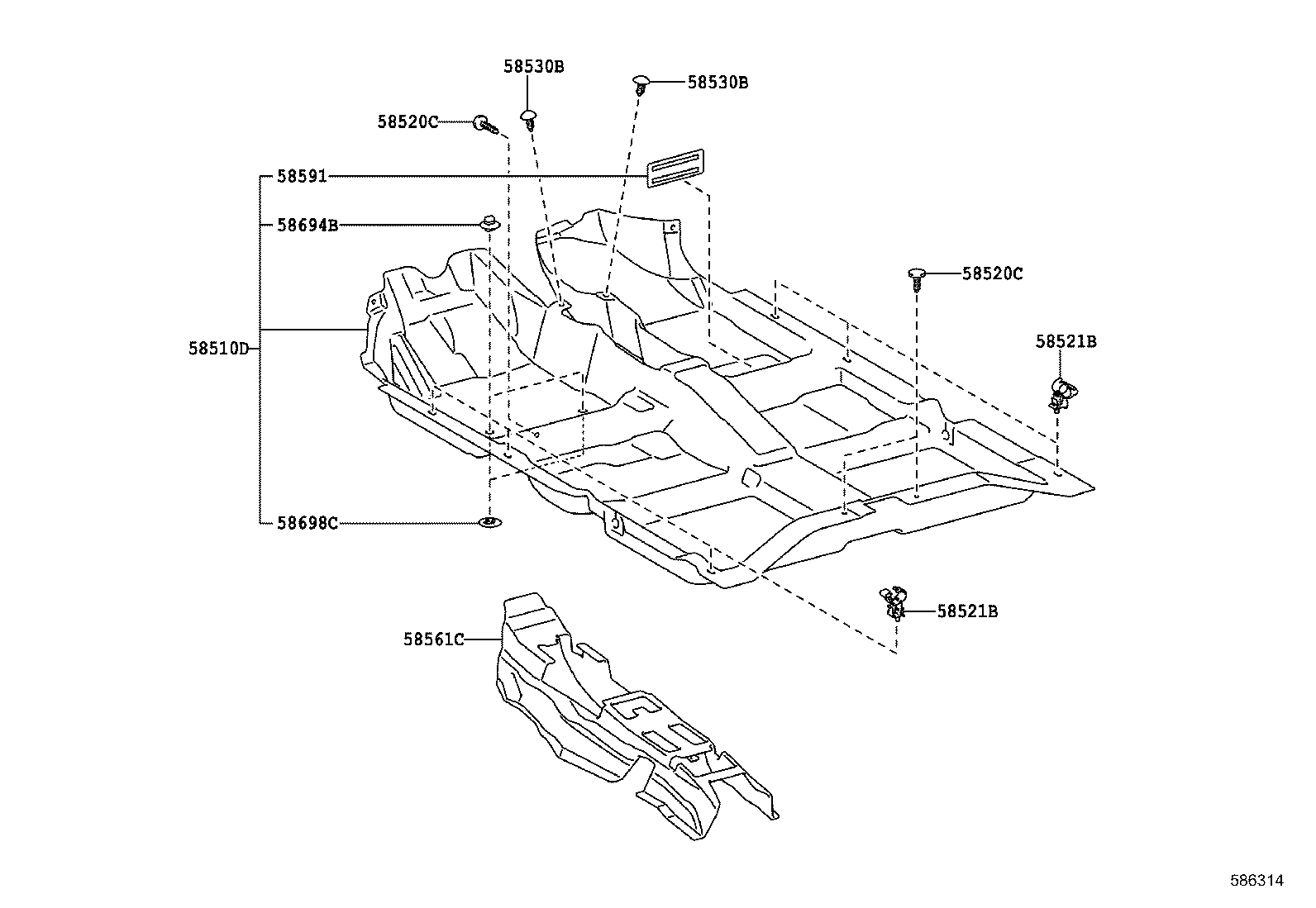

Mat & Carpet
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510D | Carpet Assy, Floor, Front |
| 58511 | Mat, Floor, Front |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58561C | Silencer, Front Floor, NO.1 |
| 58591 | Cover, Floor Carpet |
| 58694B | Plate, Mat Set, Upper |
| 58698C | Plate, Mat Set, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
