Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11

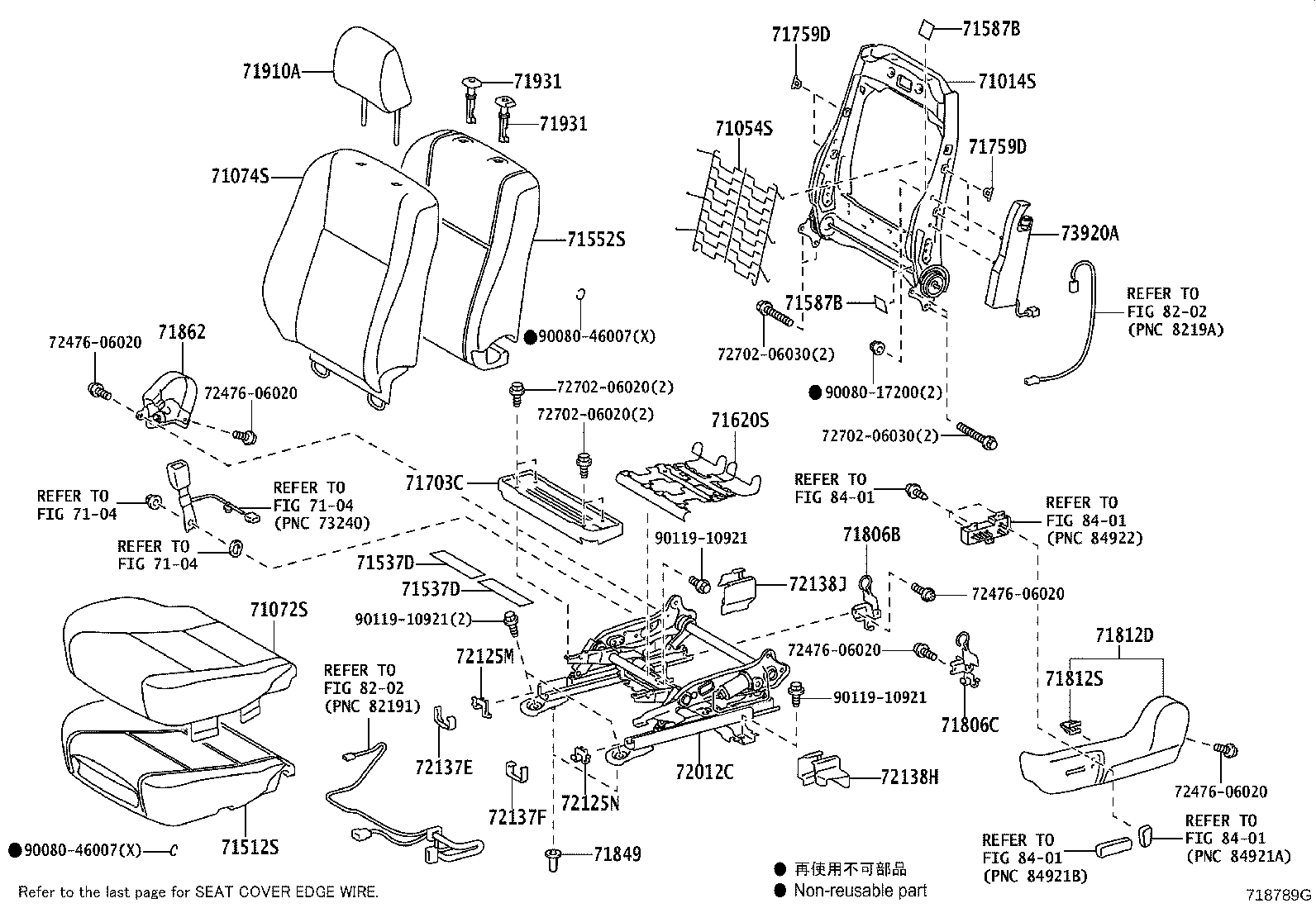

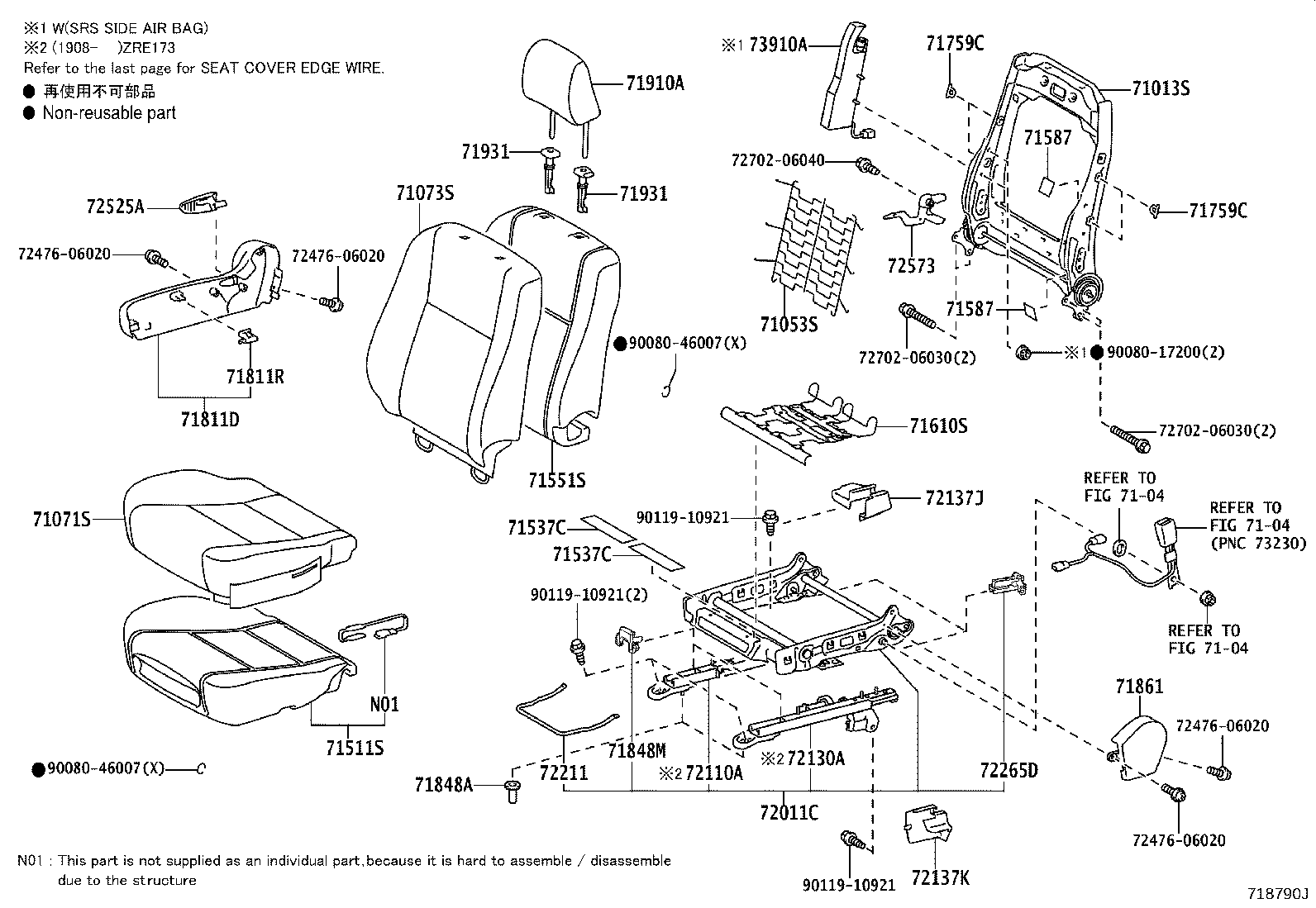

Front Seat & Seat Track
58 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71053S | Spring Sub-assy, Front Seatback, RH |
| 71054S | Spring Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71587B | Protector, Front Seatback Edge |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71703C | Panel Sub-assy, Front Seat Cushion |
| 71759C | Hook, Front Seatback, NO.1 |
| 71759D | Hook, Front Seatback, NO.2 |
| 71806B | Shield Sub-assy, Front Seat Cushion, LH NO.1 |
| 71806C | Shield Sub-assy, Front Seat Cushion, LH NO.2 |
| 71811D | Shield, Front Seat Cushion, RH |
| 71811R | Clip, Front Seat Cushion Shield, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71812S | Clip, Front Seat Cushion Shield, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71848M | Cap, Seat Adjuster Cover, Front Upper |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72011C | Adjuster Sub-assy, Front Seat, RH |
| 72012C | Adjuster Sub-assy, Front Seat, LH |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72125M | Cover, Seat Track, Upper NO.3 |
| 72125N | Cover, Seat Track, Upper NO.4 |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72137E | Cover, Seat Track, NO.1 |
| 72137F | Cover, Seat Track, NO.2 |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72137K | Cover, Front Seat Track, RH Rear Inner |
| 72138H | Cover, Front Seat Track, LH Rear Inner |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72265D | Cover, Seat Track Upper Rail |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72573 | Lever, Reclining Control, RH |
| 72574 | Lever, Reclining Control, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
