Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11

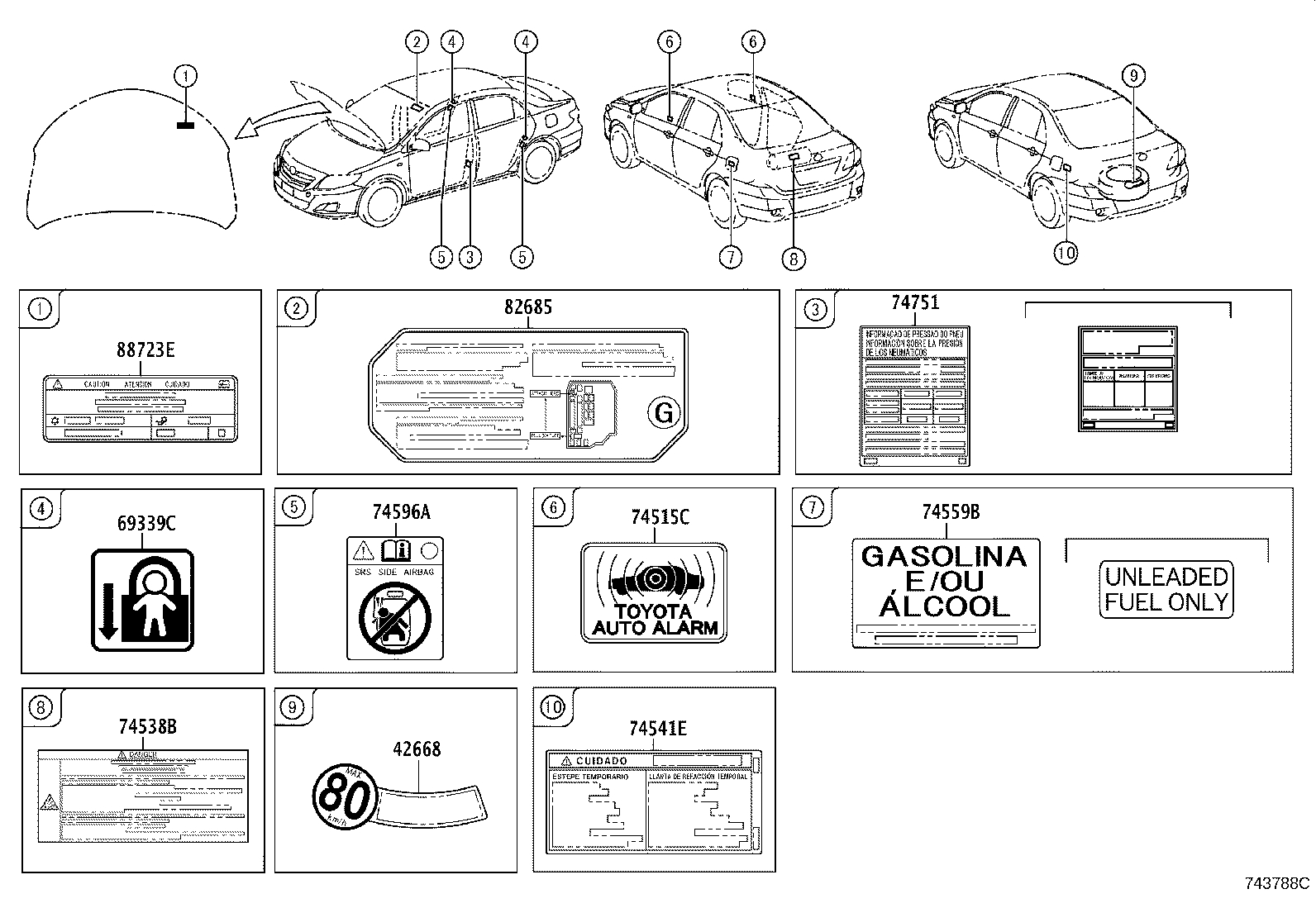

Caution Plate (EXTERIOR & INTERIOR)
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11297C | Label, Engine Service Information, NO.2 |
| 16793E | Label, Cooling Fan Caution |
| 42668 | Label, Compact Spare Tire Caution |
| 69339C | Label, Child Protector Information |
| 74515C | Label, Theft Warning Information |
| 74538B | Label, Fuel Tank System Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 82685 | Plate, Caution |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
