Toyota Corolla (S.AMERICA)

2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

6 part groups · 4 illustrations

Illustrations

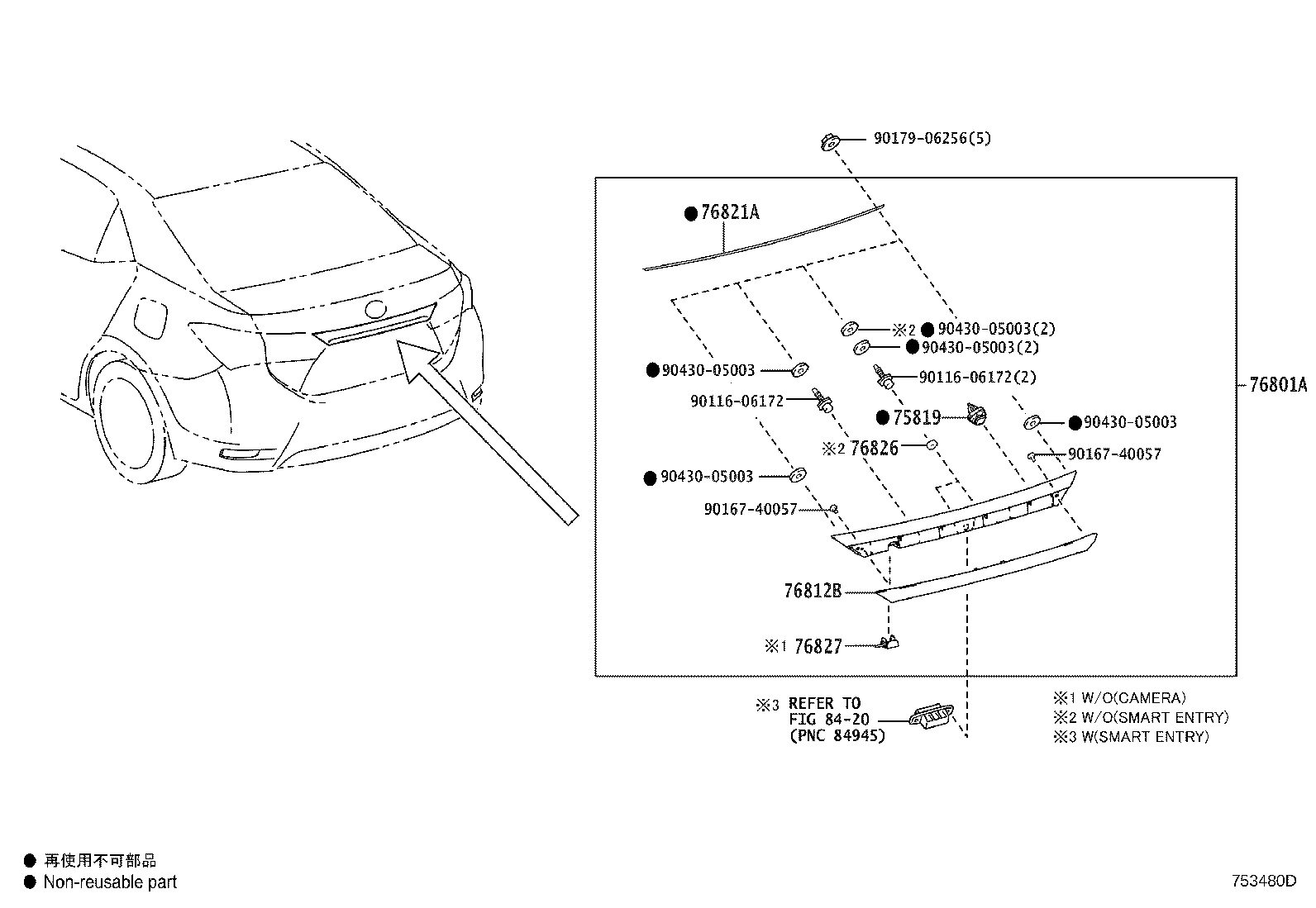

Figure 752975B 752975B 2014-03 → 2017-03 Figure 752975B 752975B 2015-01 → 2017-08 Figure 753480D 753480D 2017-03 → — Figure 753480D 753480D 2017-08 → —

Part groups

PNCDescription
75819 Clip, Luggage Compartment Door Moulding
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76812B Garnish, Luggage Compartment Door, Outside NO.2
76821A Protector, Luggage Compartment Door Outside Garnish
76826 Retainer, Back Door Garnish, NO.1
76827 Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
