Toyota Corolla (S.AMERICA)

2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

30 part groups · 3 illustrations

Illustrations

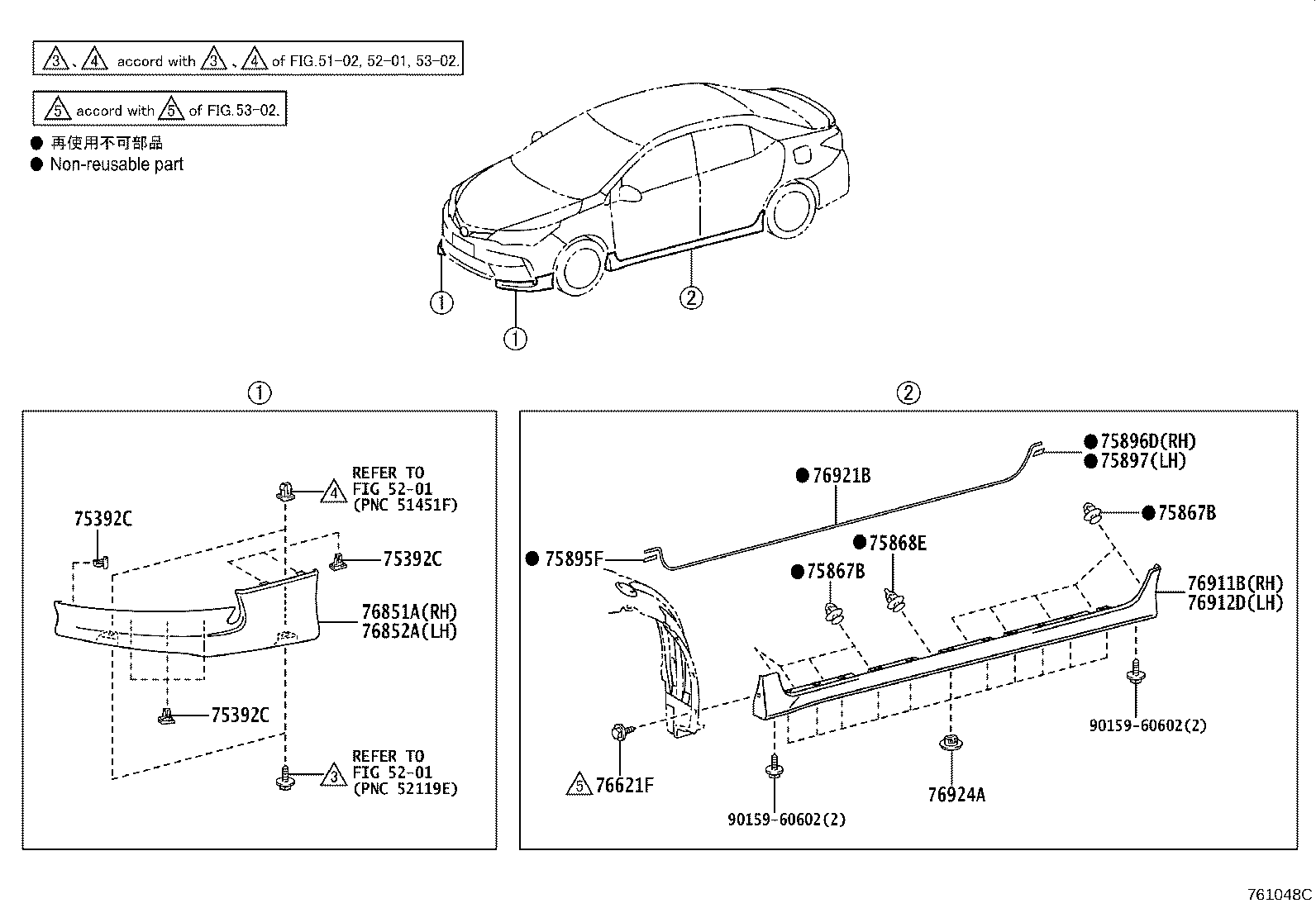

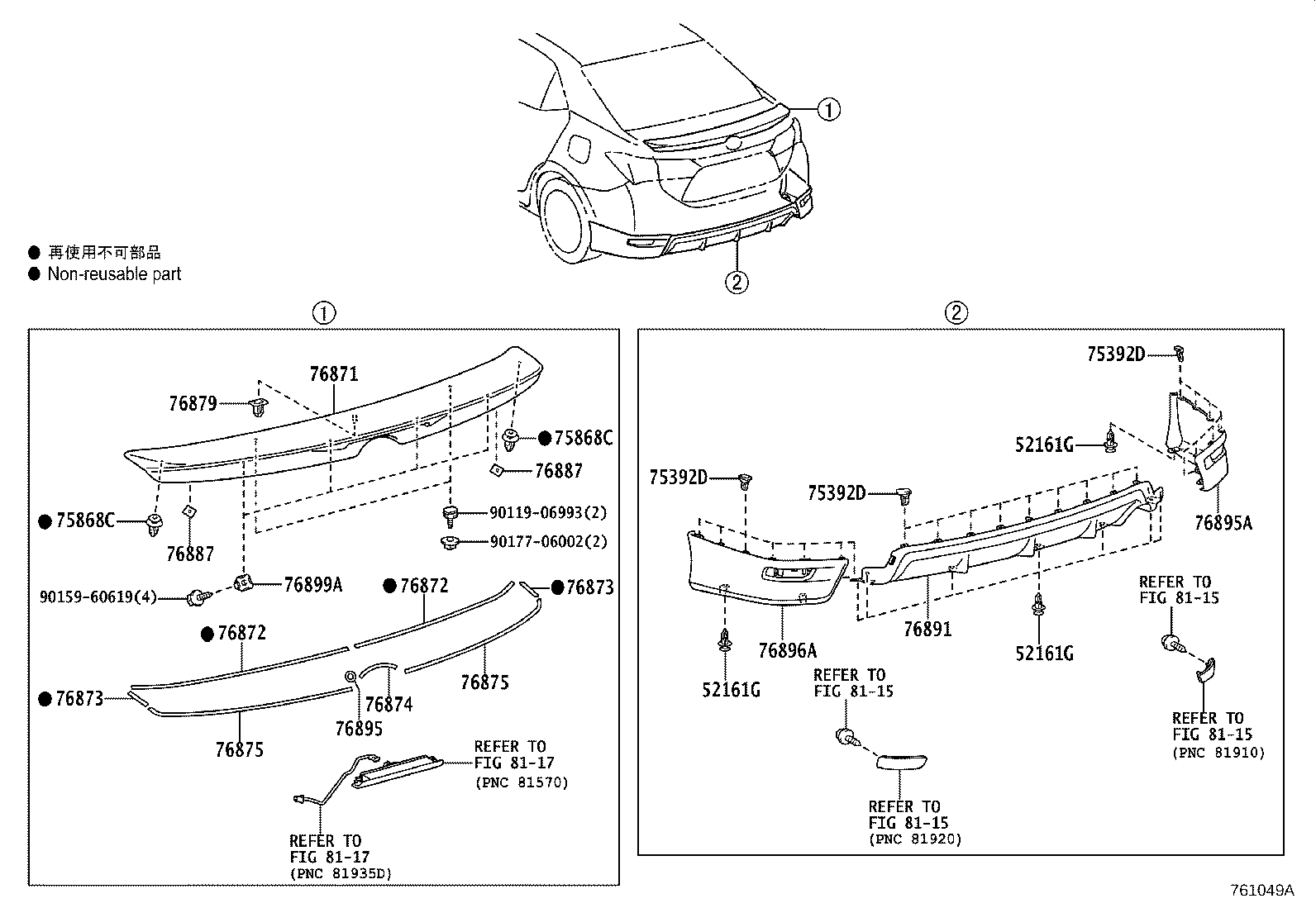

Figure 760923A 760923A 2014-03 → — Figure 761048C 761048C 2017-03 → — Figure 761049A 761049A 2017-03 → —

Part groups

PNCDescription
52161G Piece, Rear Bumper
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75392C Retainer, Outside Moulding
75392D Retainer, Outside Moulding
75867B Clip, Rocker Panel Moulding
75868C Clip, Rear Spoiler, NO.2
75868E Clip, Rocker Panel Moulding, NO.2
75895F Tape, Moulding, NO.1
75896D Tape, Moulding, NO.2
75897 Tape, Moulding, NO.3
76621F Screw, NO.1
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76871 Spoiler, Rear
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76879 Clip, Rear Spoiler, NO.1
76887 Seal, Rear Spoiler
76891 Spoiler, Rear NO.1
76895 Protector, Rear Spoiler, NO.5
76895A Spoiler, Rear Bumper, RH
76896A Spoiler, Rear Bumper, LH
76899A Nut, Rear Spoiler
76911B Mudguard, Side, RH
76912D Mudguard, Side, LH
76921B Protector, Side Mudguard, NO.1
76924A Retainer, Side Mudguard, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
