Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11
Fuel Tank & Tube
93 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23300J | Filter Assy, Fuel |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77027B | Tube Sub-assy, Fuel Emission, NO.1 |

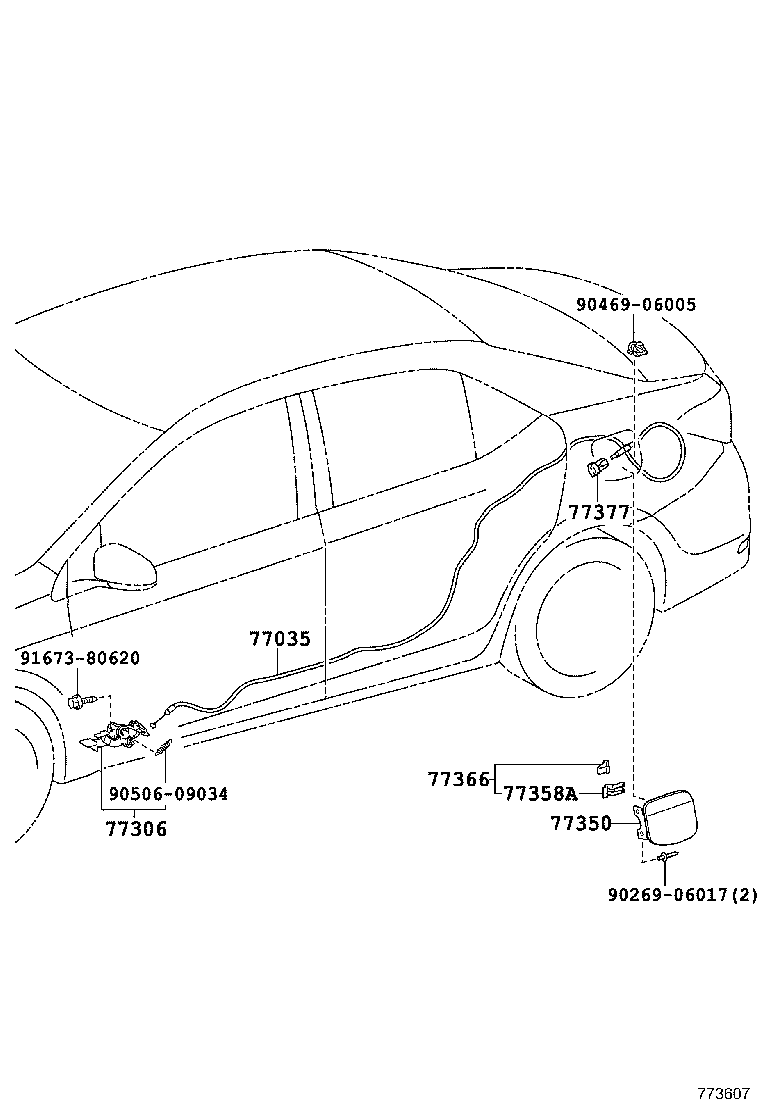

| 77035 | Cable Sub-assy, Fuel Lid Lock Control |

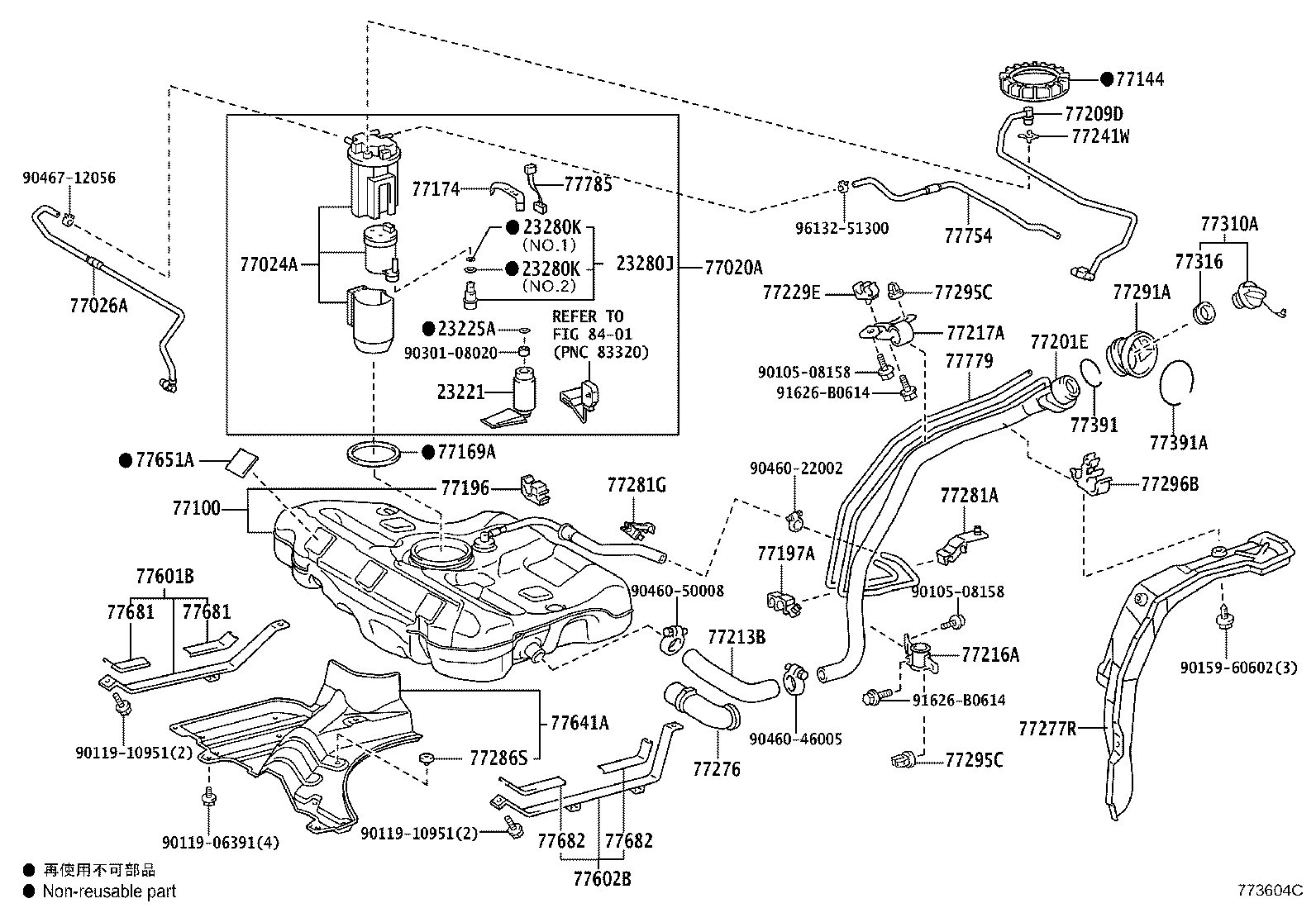

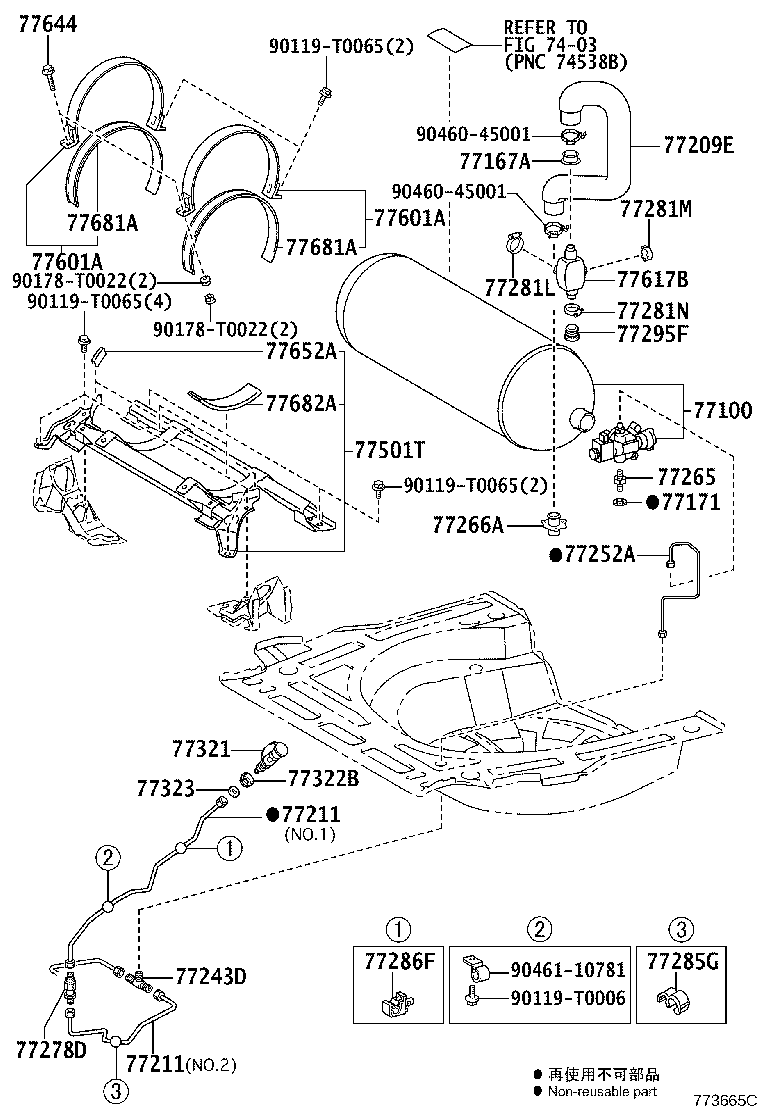

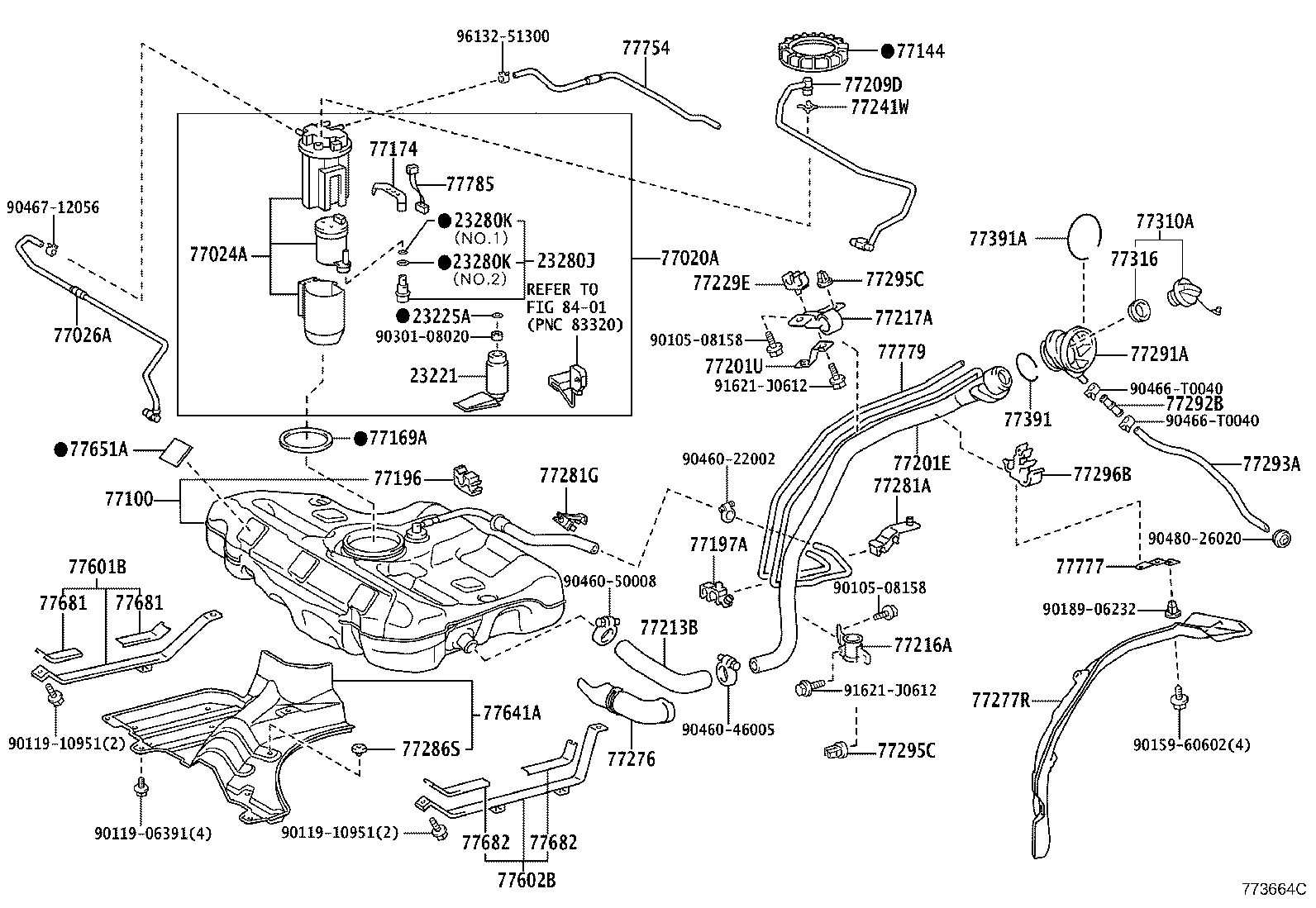

| 77100 | Tank Assy, Fuel |
| 77144 | Retainer, Fuel Pump Gauge |
| 77167A | Support, Fuel Tank Vent Tube, NO.2 |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77171 | Gasket, Fuel Tank Tube, NO.1 |
| 77174 | Support, Fuel Suction, NO.1 |
| 77196 | Clamp, Evaporation Vent Tube, NO.1 |
| 77197A | Clamp, Evaporation Vent Tube, NO.2 |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77201U | Bracket(FOR FUEL TANK INLET PIPE) |
| 77204A | Tube, Fuel Tank Return |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77209E | Hose Sub-assy, Fuel Emission |
| 77211 | Pipe, Fuel Tank Inlet |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77229E | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77243D | Joint, Fuel Tube, NO.1 |
| 77251B | Tube, Fuel Main |
| 77251J | Tube, Fuel Main, NO.1 |
| 77252A | Tube, Fuel Main, NO.2 |
| 77259C | Hose, Fuel |

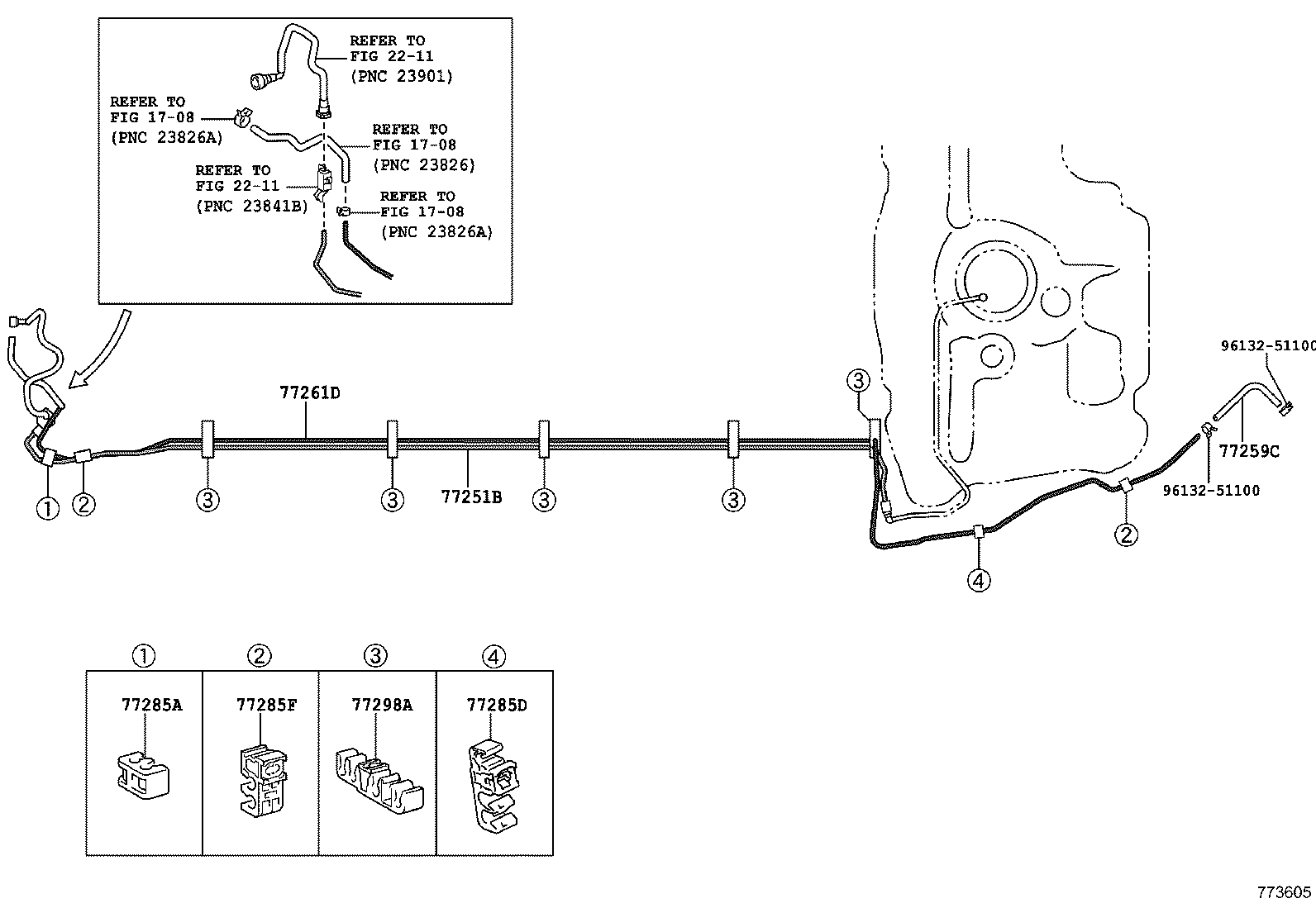

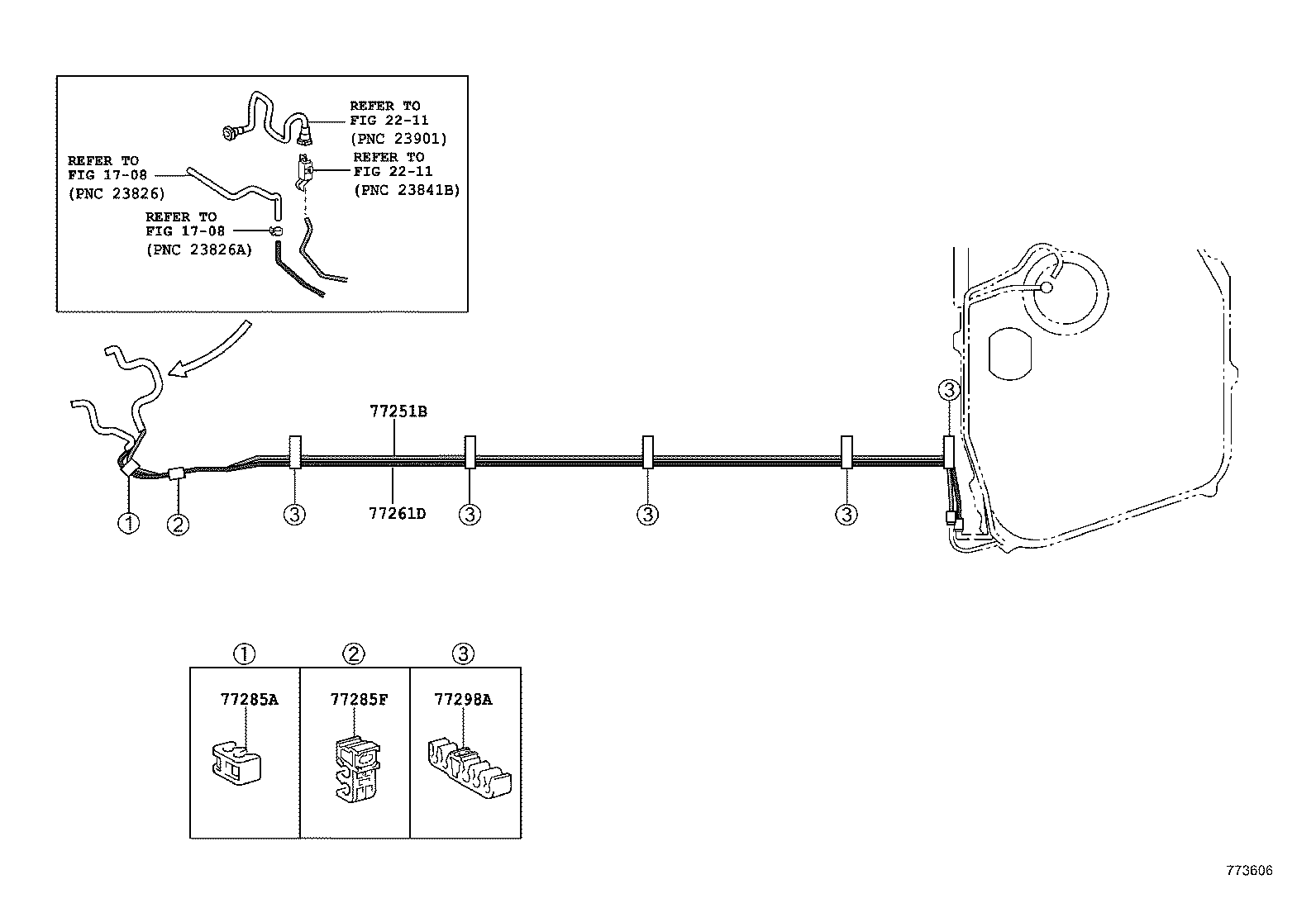

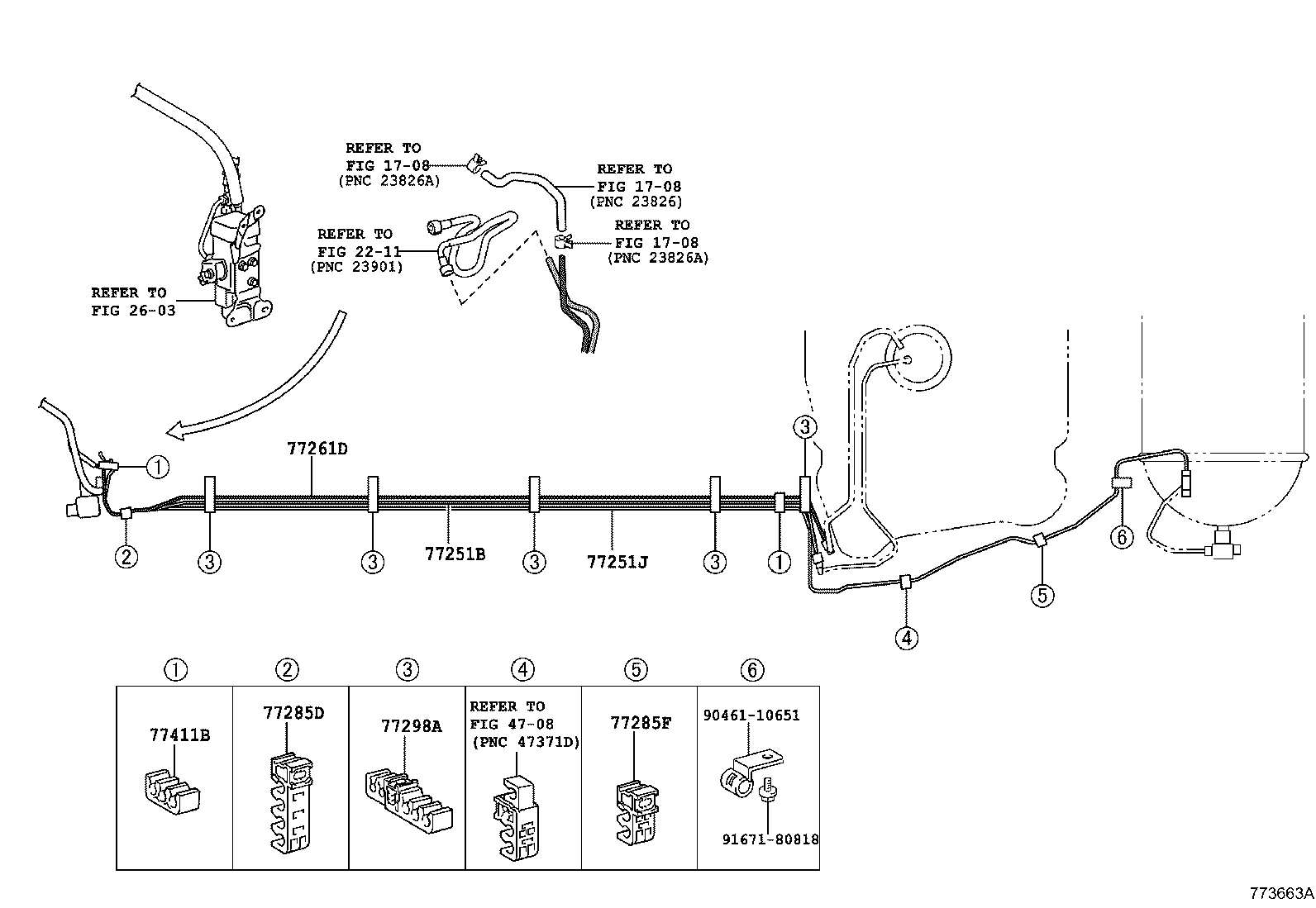

| 77261D | Tube, Fuel Tank TO Canister |
| 77265 | Connector, Fuel Main Tube |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77276 | Protector, Fuel Hose |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77278D | Valve, Check W/Bracket |
| 77281A | Clamp, Fuel Filler Pipe |
| 77281G | Clamp, Fuel Hose |
| 77281L | Clamp, Fuel Hose |
| 77281M | Clamp, Fuel Hose |
| 77281N | Clamp, Fuel Hose |
| 77285A | Support, Fuel Return And Main Tube |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77286B | Clamp, Fuel Tube W/Grommet, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286S | Cushion, Fuel Tank Protector |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77292B | Shield, Fuel Tank Drain Plug |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77295C | Grommet, Fuel Tube |
| 77295F | Grommet, Fuel Hose |
| 77296B | Support, Fuel Tube Protector, NO.1 |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77321 | Coupler, Fuel Inlet |
| 77322B | Washer, Fuel Inlet Coupler, NO.1 |
| 77323 | Washer, Fuel Inlet Coupler, NO.2 |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77358A | Stopper, Fuel Filler Opening Lid |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77501T | Bracket Sub-assy, Fuel Tank |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77617B | Cover, Fuel Tank Valve, Rear |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77644 | Bolt, Fuel Tank |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77681A | Seat, Fuel Tank Band |
| 77682 | Seat, Fuel Tank Band, LH |
| 77682A | Seat, Fuel Tank Band, NO.2 |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77740 | Canister Assy, Charcoal |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77777 | Bracket, Fuel Tube Clamp |
| 77779 | Tube, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
