Fog Lamp

3 part groups · 4 illustrations

Illustrations

Figure 816855C

816855C 2014-03 → 2017-03

Figure 816855C

816855C 2015-01 → 2017-08

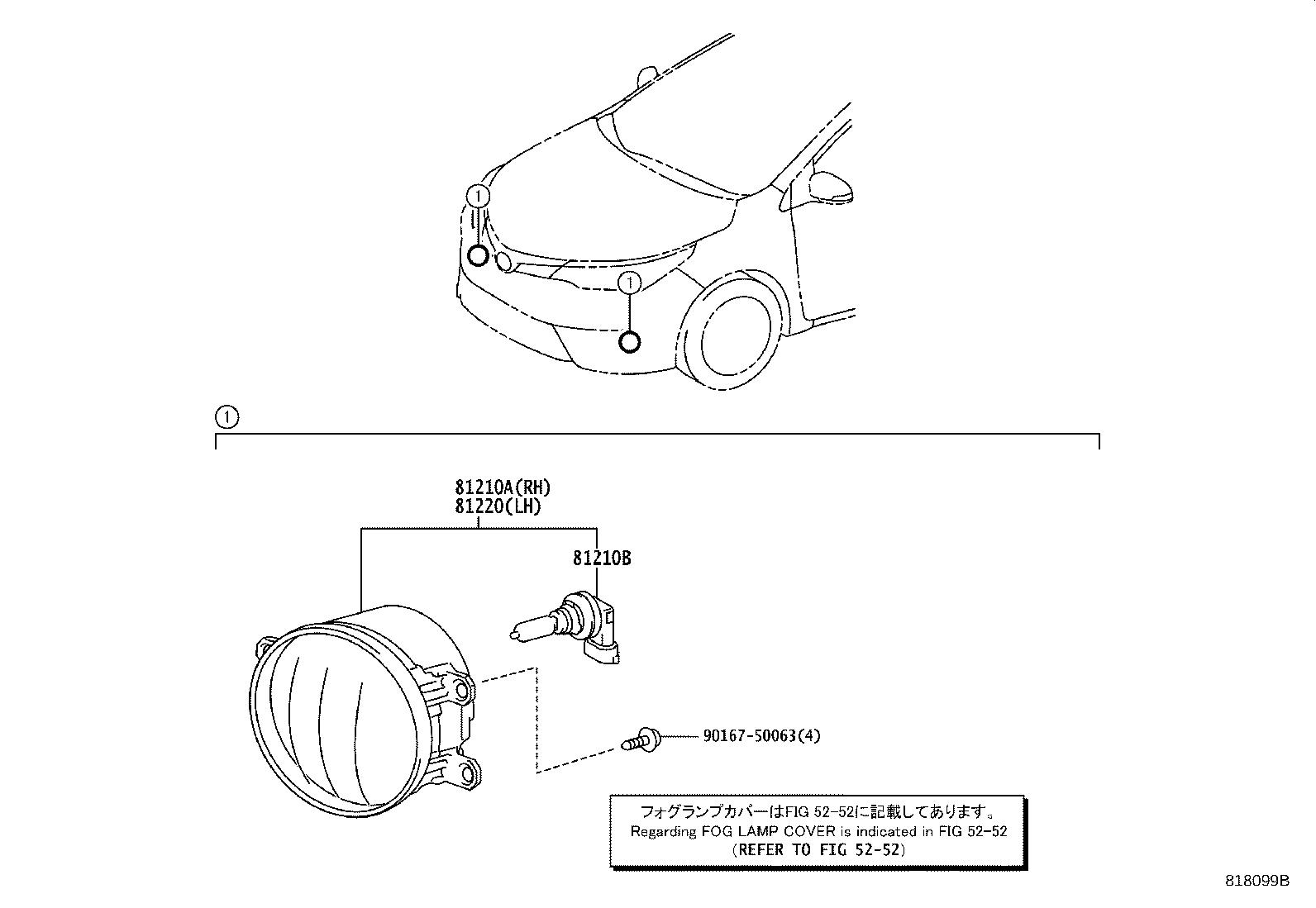

Figure 818099B

818099B 2017-03 → —

Figure 818099B

818099B 2017-08 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81220	Lamp Assy, Fog, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
