Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11

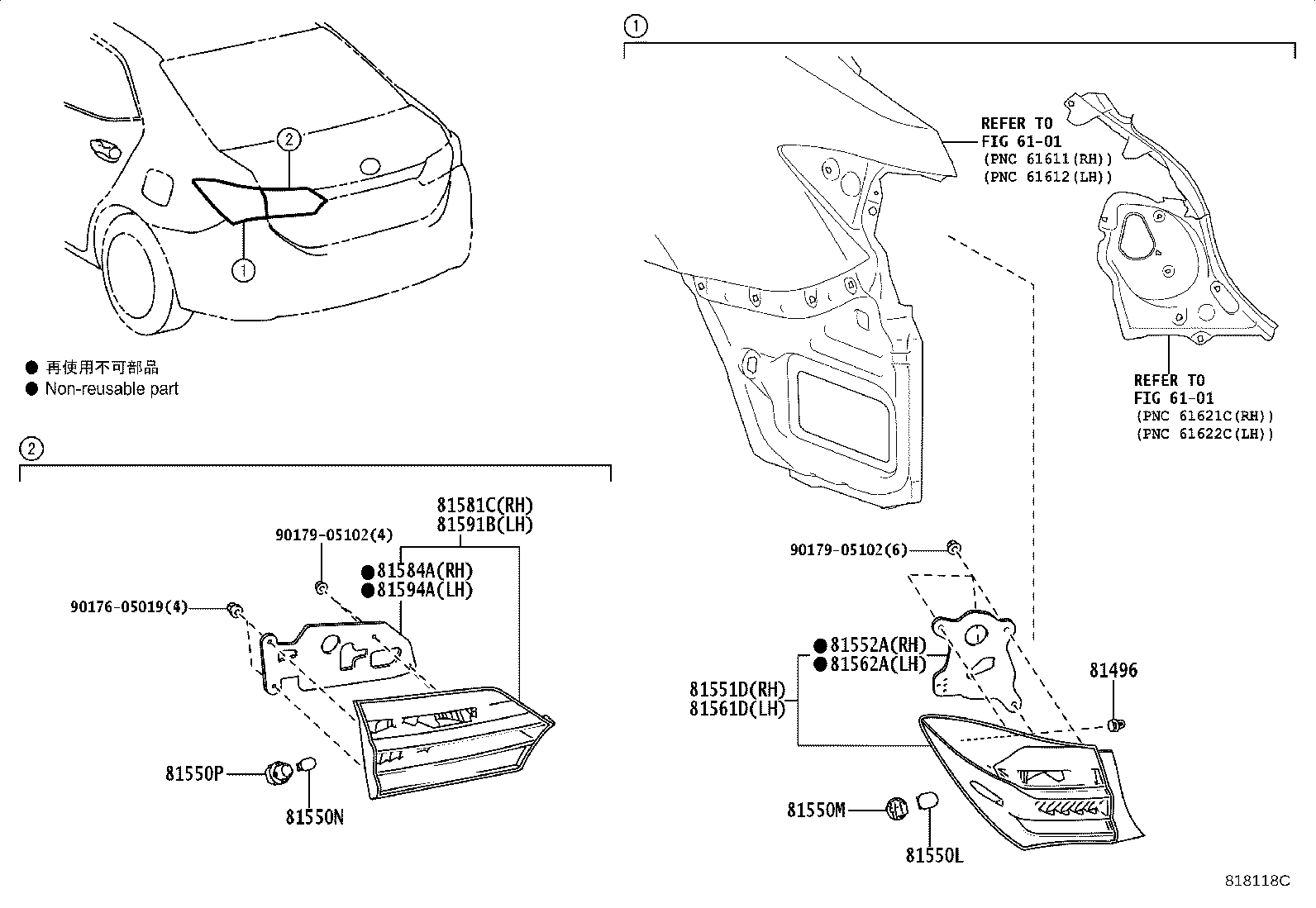

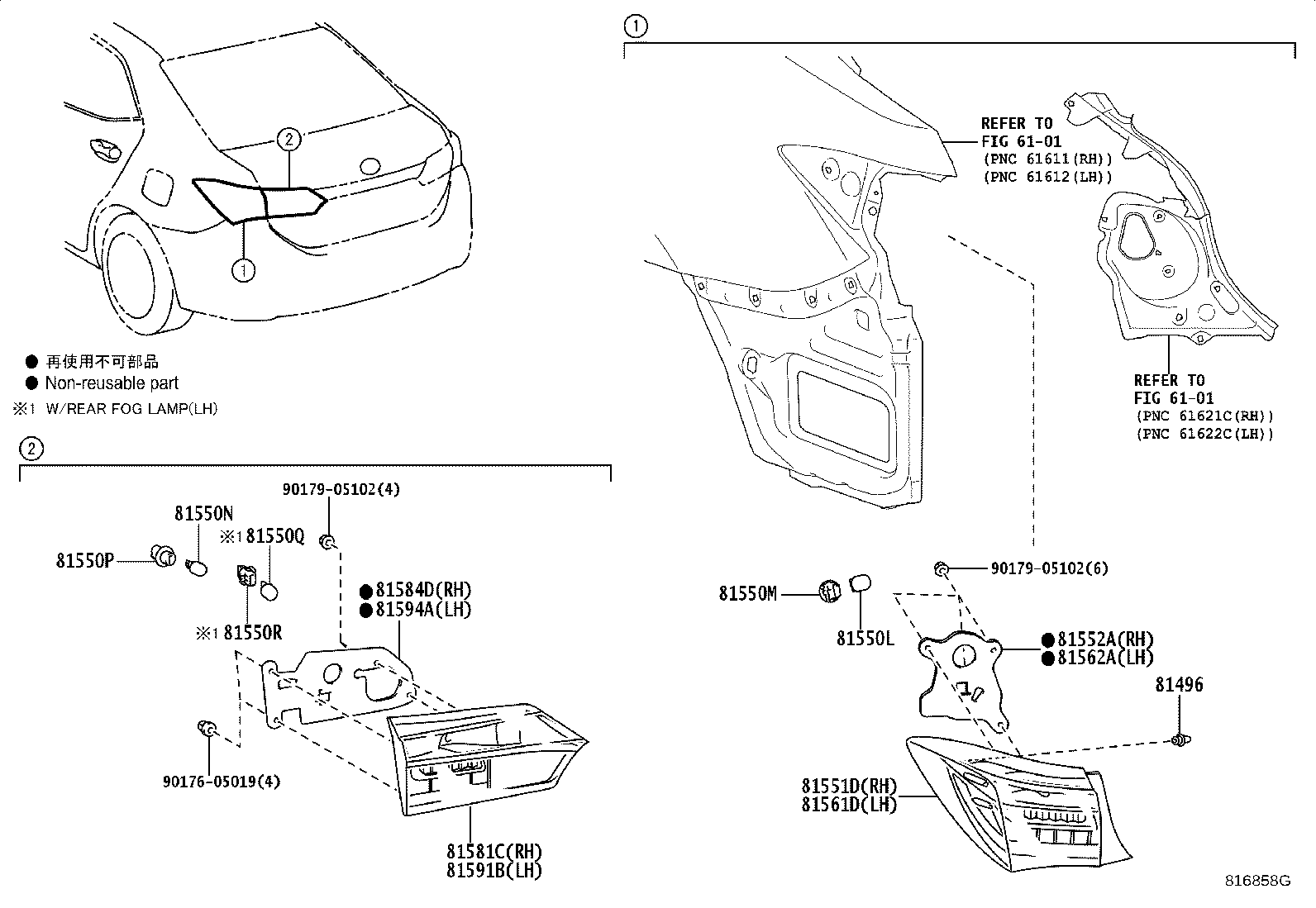

Rear Combination Lamp
20 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81550F | Bulb, Taillamp |
| 81550G | Socket, Taillamp |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550J | Socket, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550M | Socket, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550P | Socket, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81550R | Socket, Rear Fog Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81552A | Gasket, Rear Combination Lamp, RH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81562A | Gasket, Rear Combination Lamp, LH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81584D | Gasket, Rear Lamp |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
