Toyota Corolla (S.AMERICA)
2014-03 → 2020-12 · chassis ZRE17# · catalogue 157370 · General
Supported model
Data version 2021-11
Switch & Relay & Computer
89 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371C | Relay, Ignition, NO.2 |
| 28551A | Controller, Heated Injector |

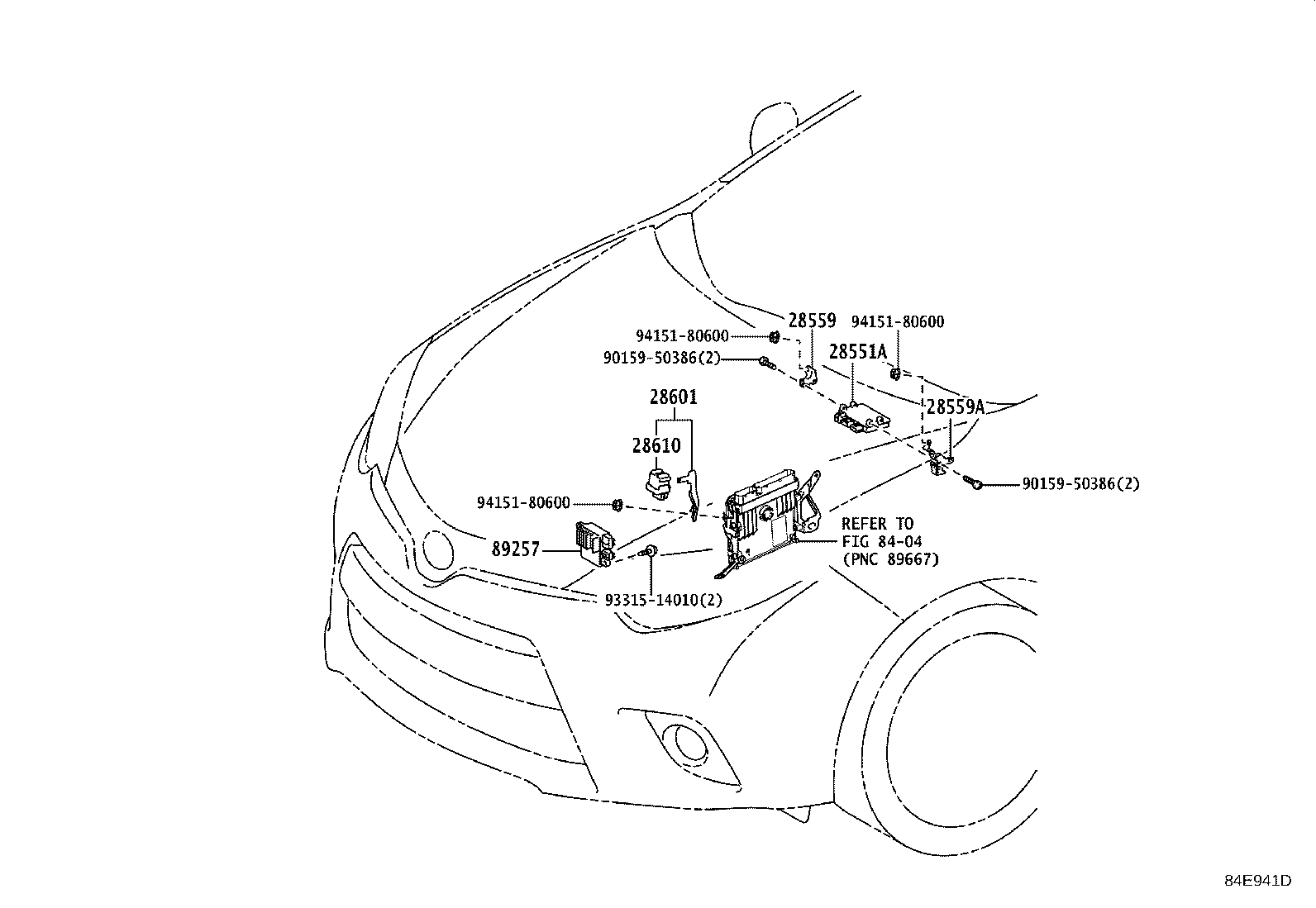

| 28559 | Bracket, Glow Plug Controller, NO.1 |
| 28559A | Bracket, Glow Plug Controller, NO.2 |
| 28601 | Glow Sub-assy, Plug Relay Set |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 69065A | Cylinder Sub-assy, Airbag Cut Off Switch |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82291D | Wire, TO Solenoid |
| 82600E | Engine Room Fuse |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82630 | Holder Assy, Fuse |
| 82630C | Holder Assy, Fuse |
| 82630F | Holder, Fuse |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82672F | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673C | Bracket, Junction Block |
| 82730A | Block Assy, Driver Side Junction |

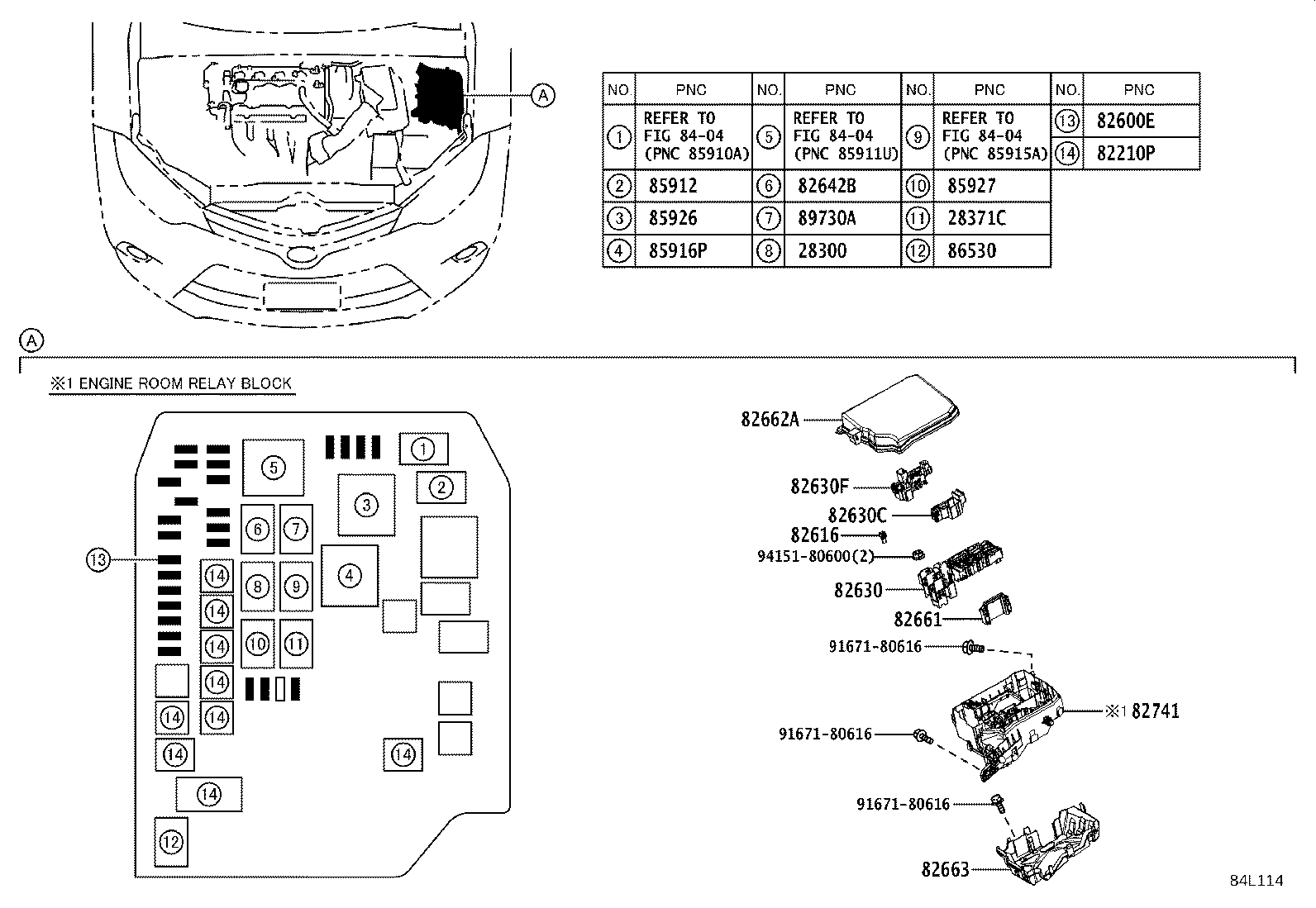

| 82741 | Block, Engine Room Relay |
| 82755 | Block, Center Relay |

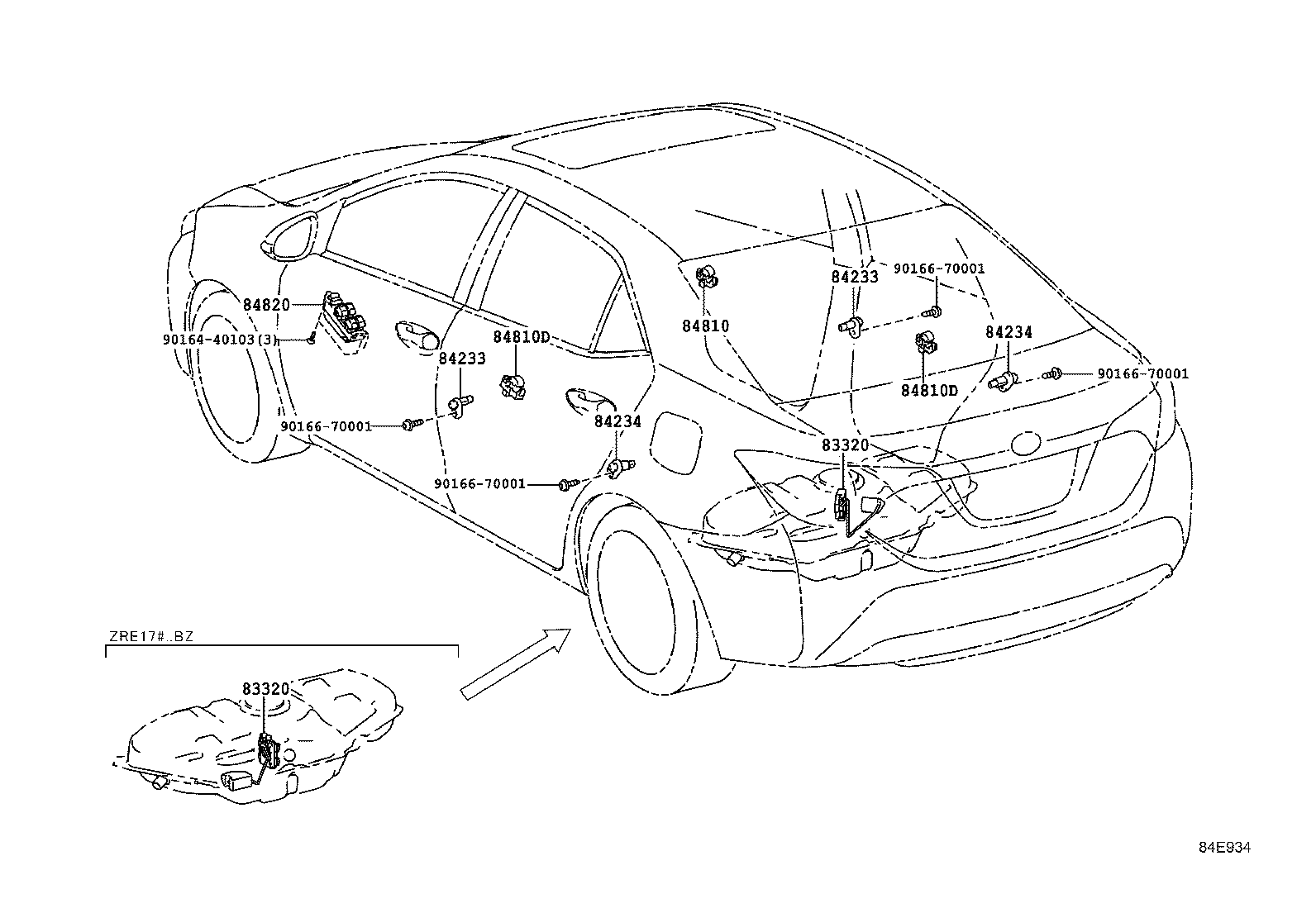

| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83910G | Clock Assy |
| 83950M | Lamp Assy, Telltale |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |

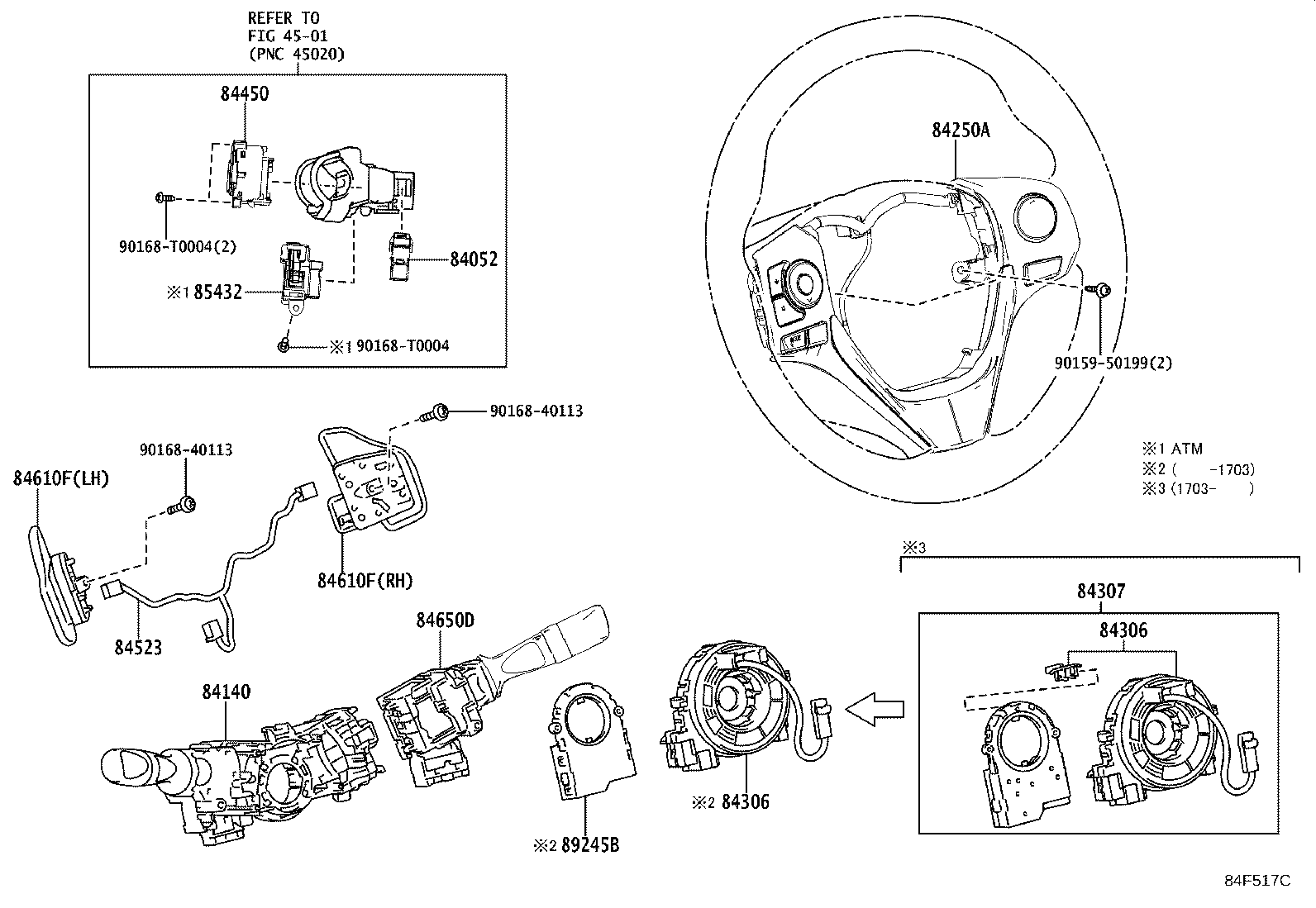

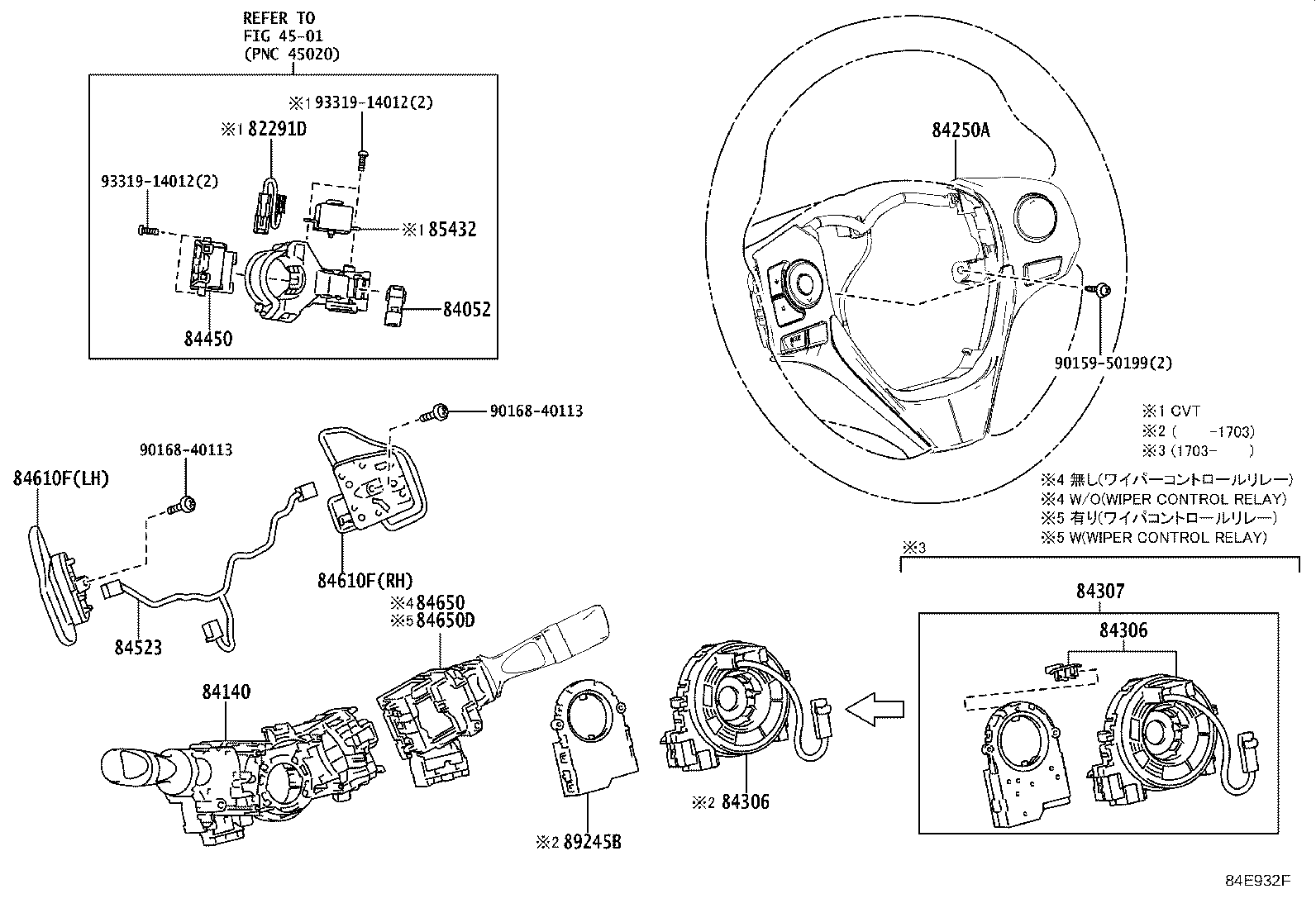

| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84520E | Switch Assy, Clutch Start, NO.2 |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84610F | Switch Assy, Transmission Shift |
| 84650 | Switch Assy, Windshield Wiper |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84720J | Switch Assy, Pattern Select |
| 84720K | Switch Assy, Pattern Select |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922 | Switch, Front Power Seat |
| 84988L | Switch, Vsc Off |
| 85432 | Solenoid, Key Interlock |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530A | Relay, Power Outlet Socket |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85916L | Relay, Rear Fog Lamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85940 | Relay Assy, Windshield Wiper |
| 8598A | Battery, Door Control |
| 86530 | Relay Assy, Horn |
| 87299 | Relay, Heater |
| 89120A | Sensor, Automatic Light Control |

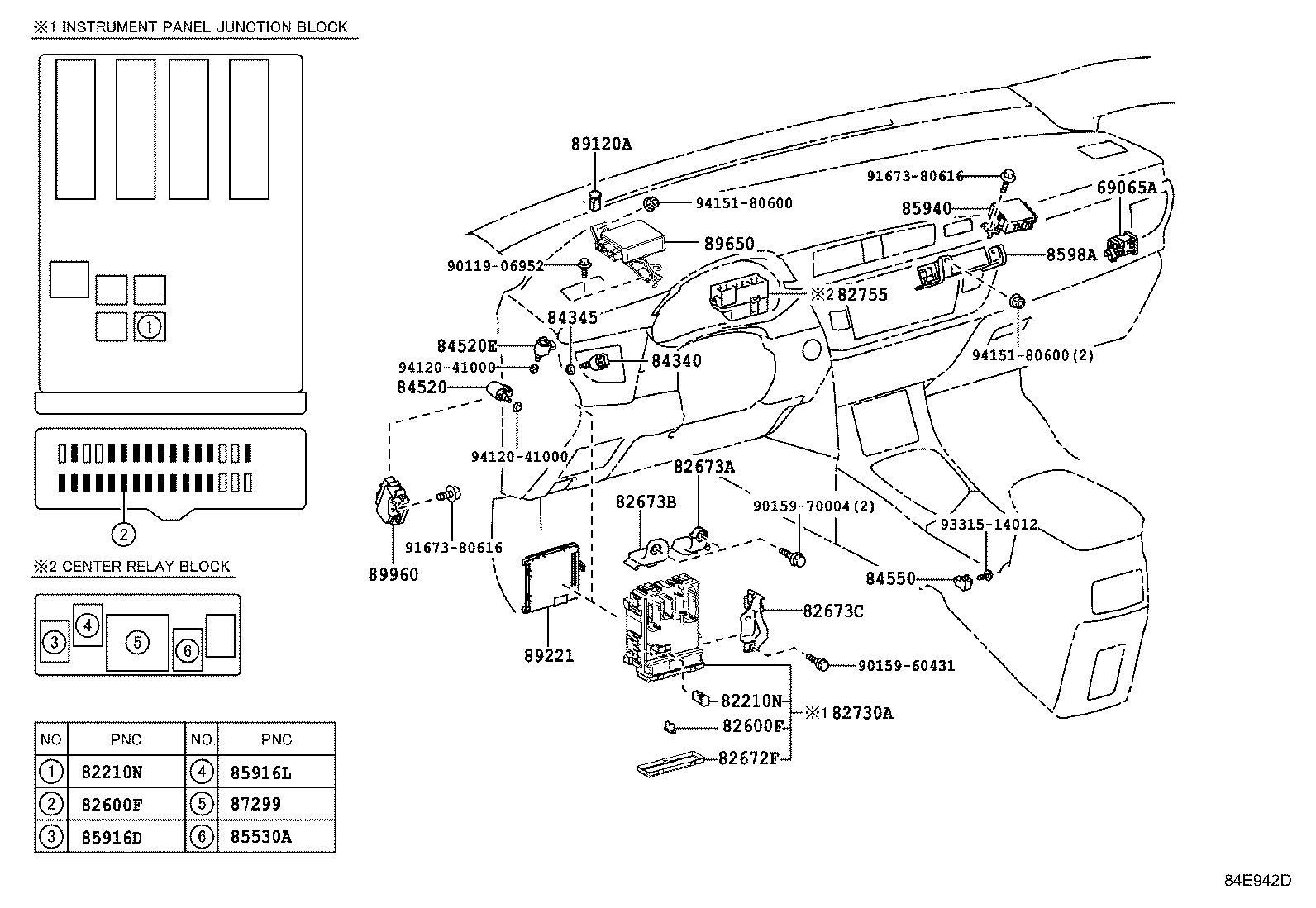

| 89221 | Computer, Multiplex Network Body |
| 89245B | Sensor, Steering |
| 89257 | Computer, Cooling Fan |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |

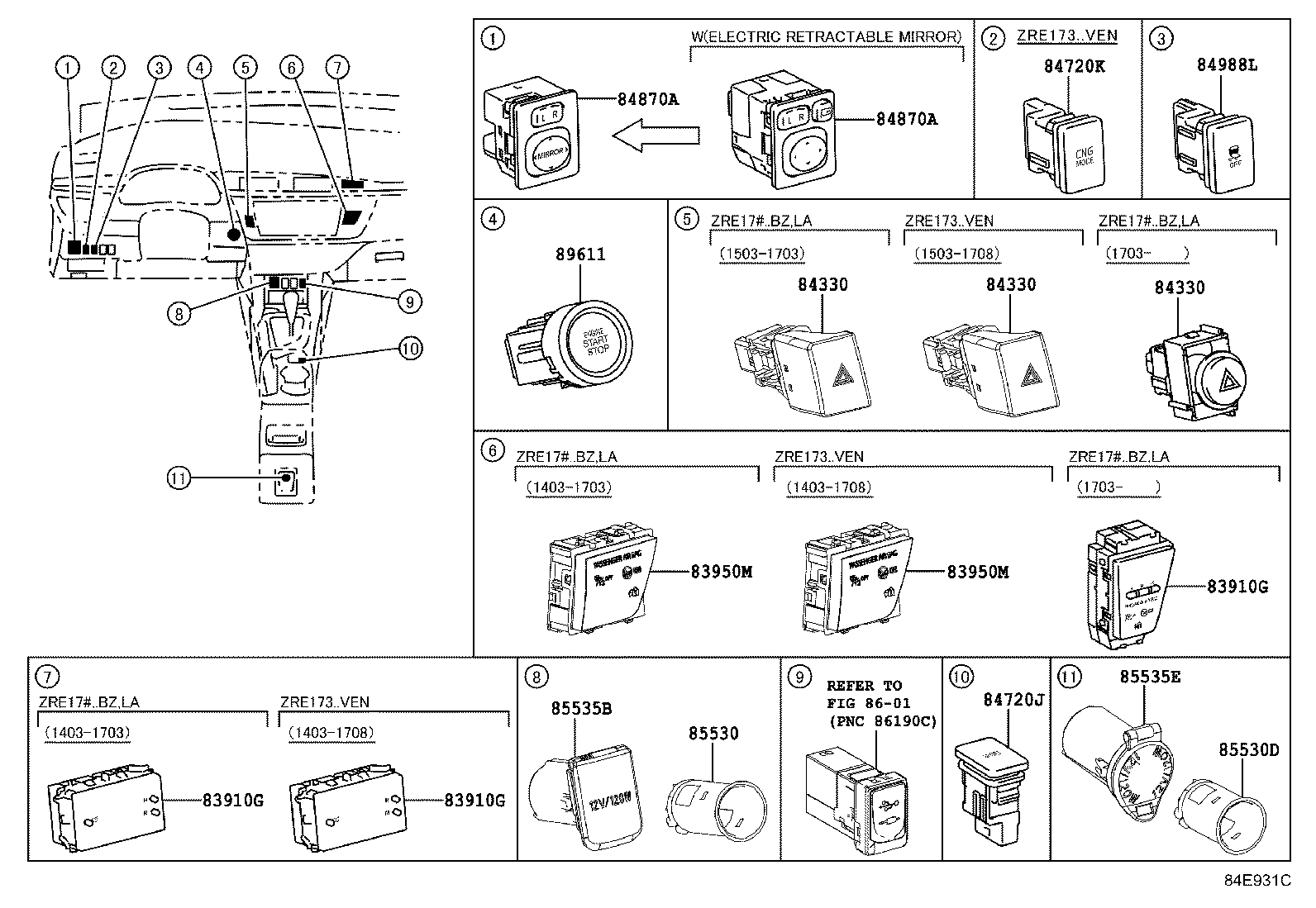

| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
